Kaka industrial JB23-25,25 Ton Mechanical Power Press Punching Manual Sheet Metal Punch Press Machine

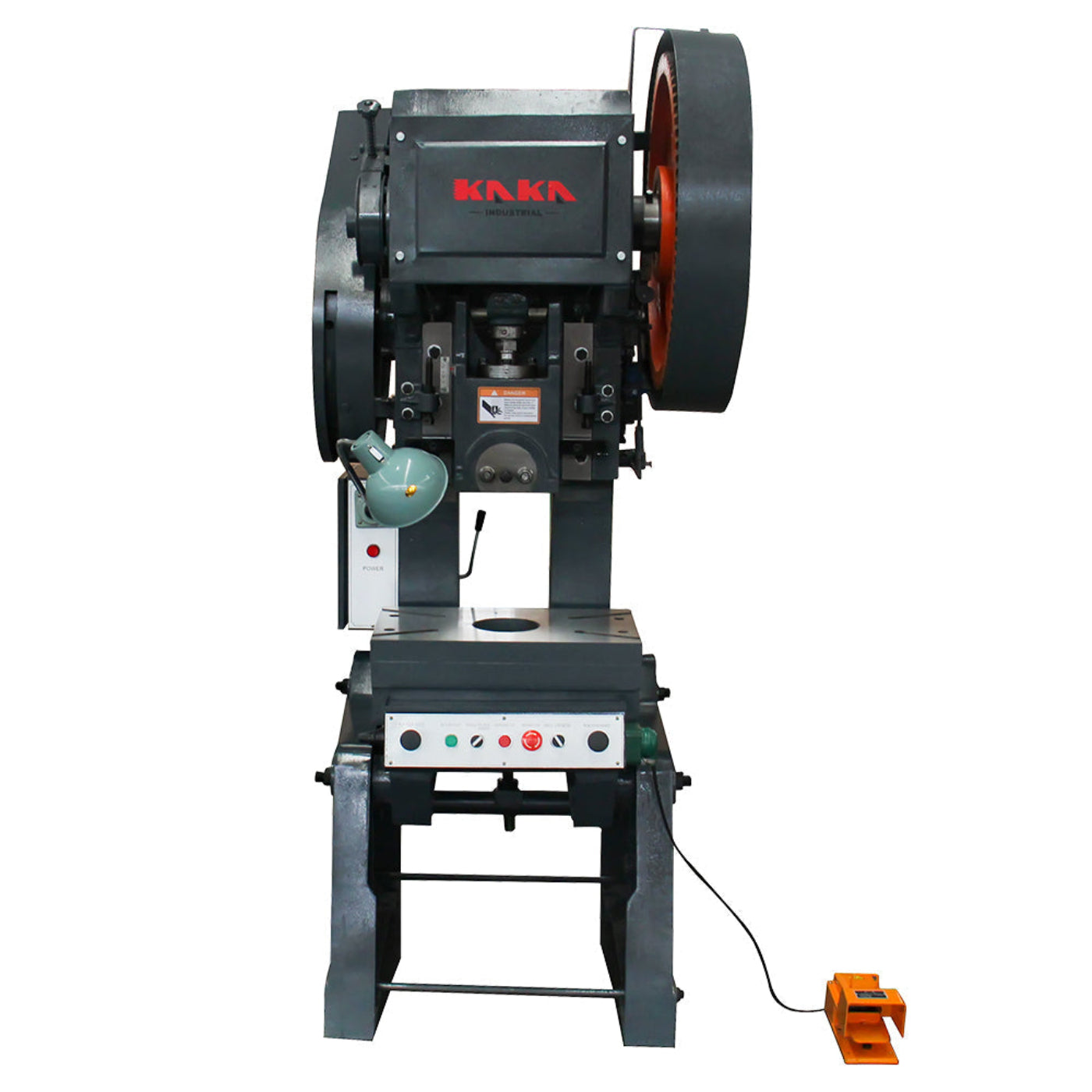

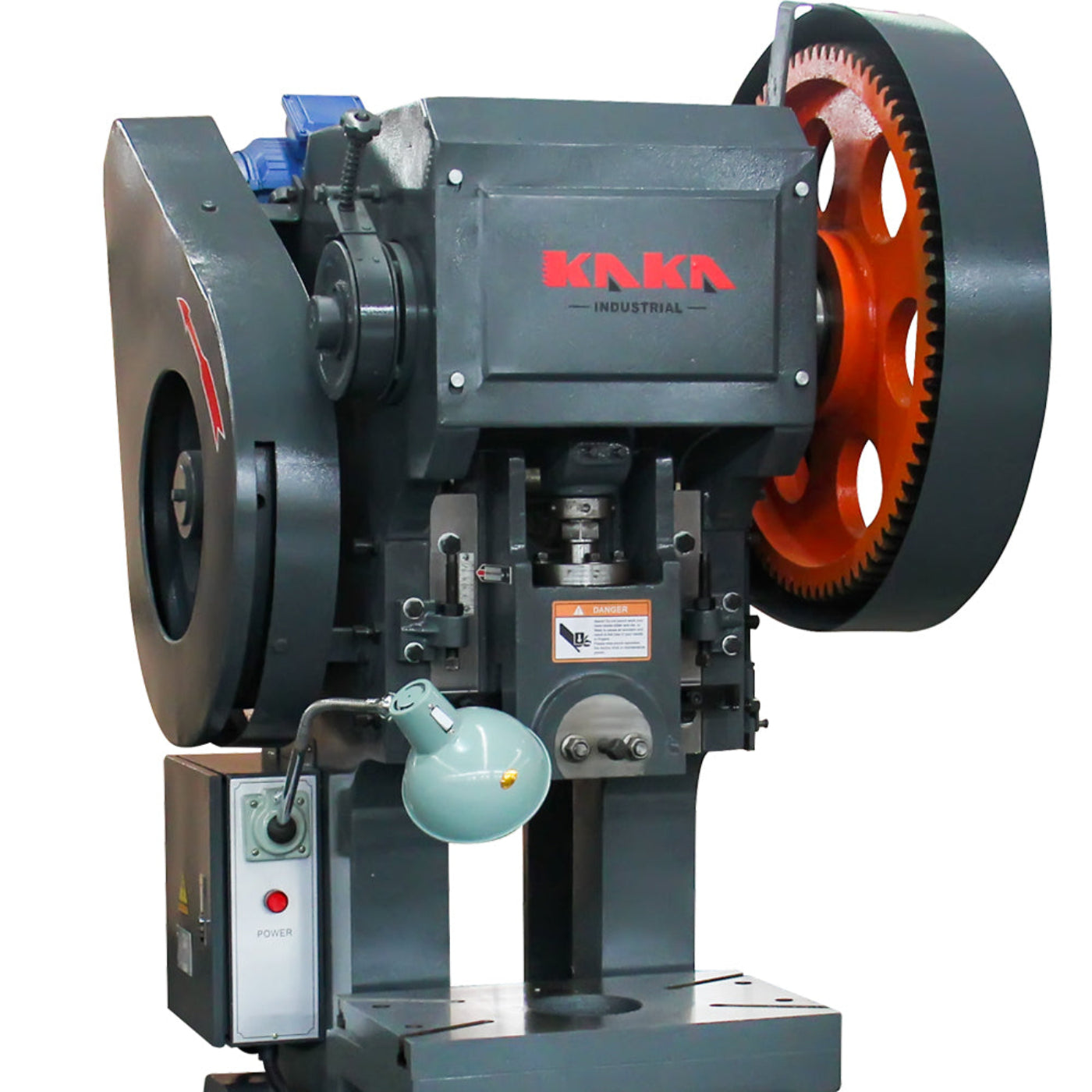

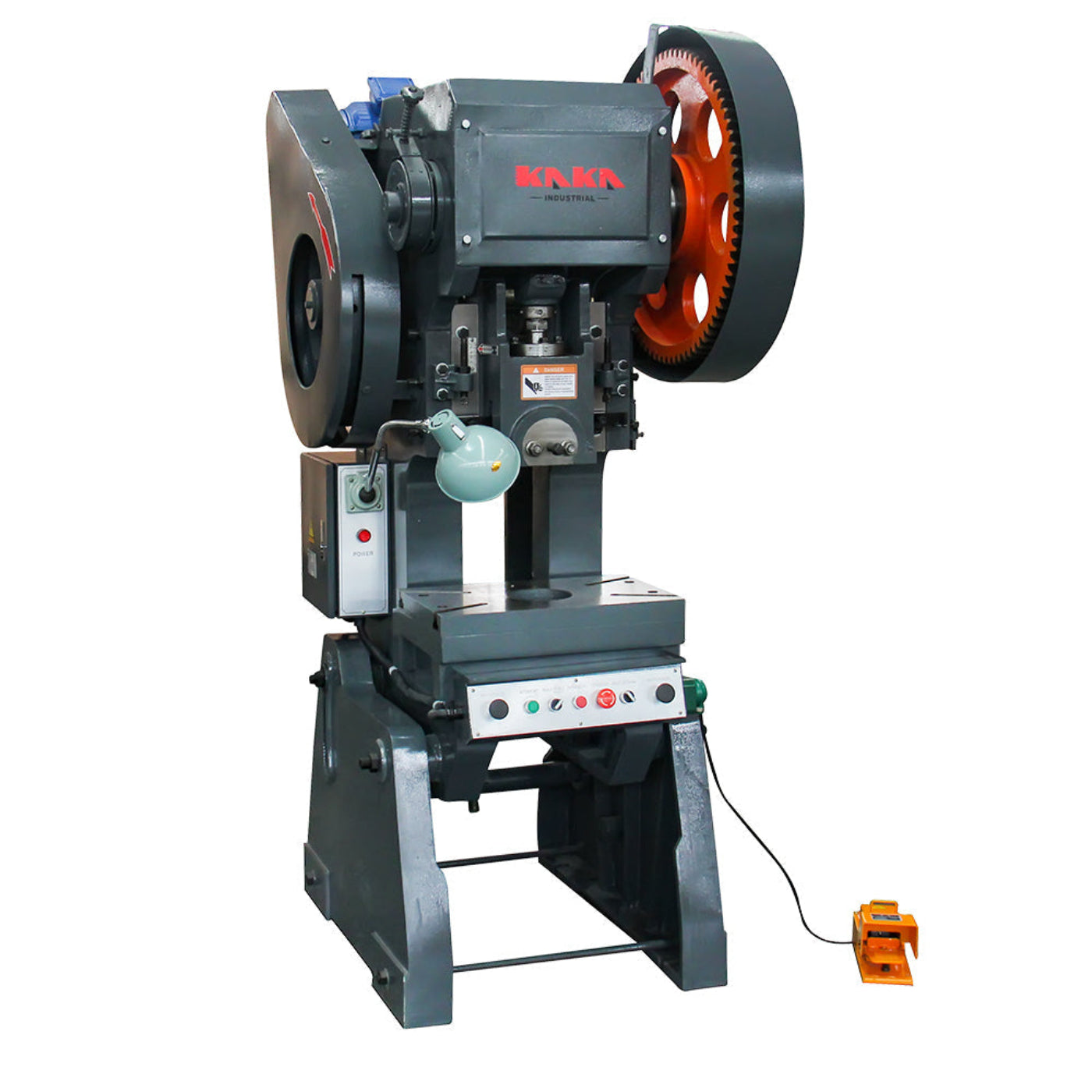

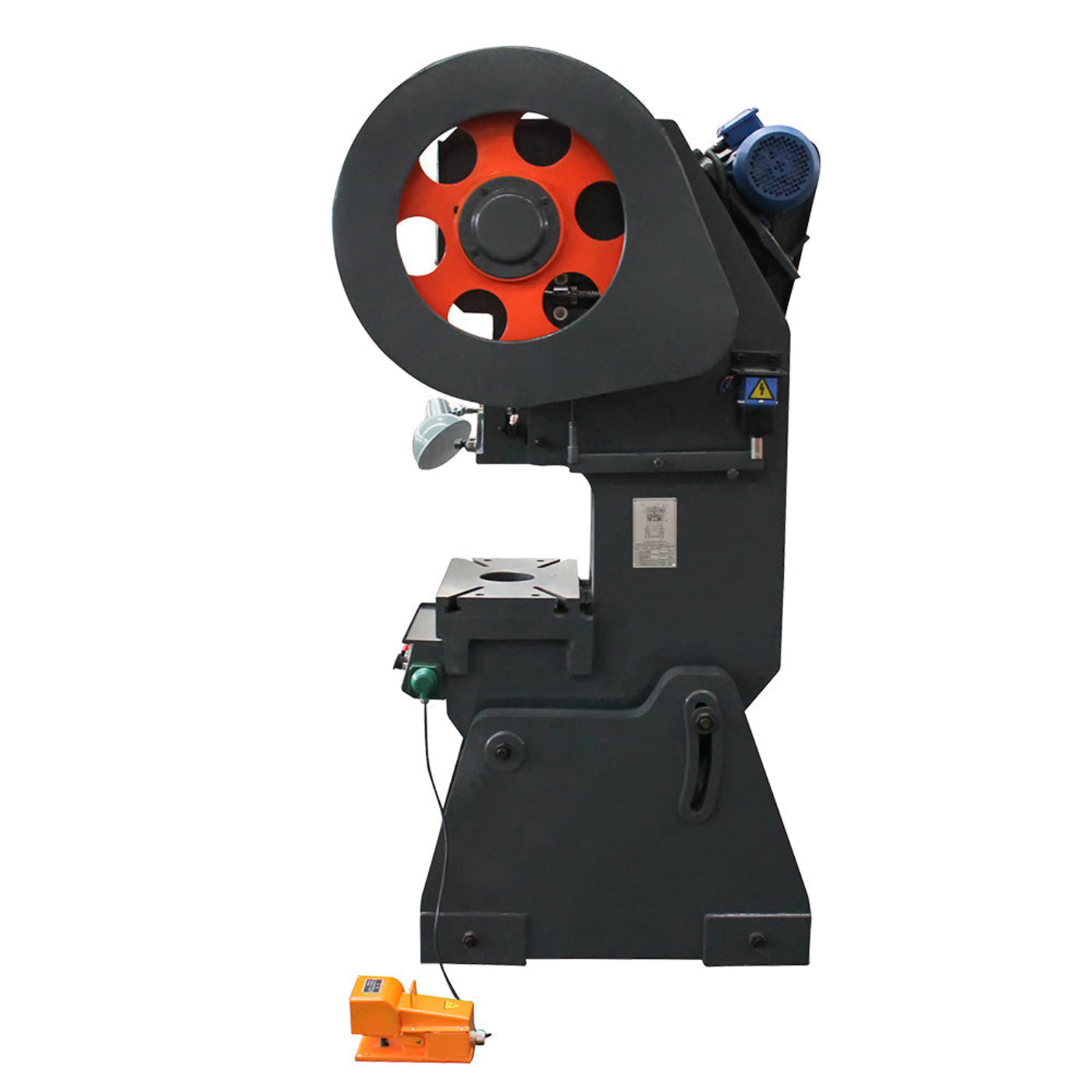

JB23-25 punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance. Its throat has certain depth. The compact structure makes the use convenient and operation safe. Its working table is open on three sides, so the mold loading and unloading and operation are convenient. The punch press is widely used for it provides good conditions for mechanization and automation. And as main equipment for plate punching production, the punch press can be used for punching holes, blanking, trimming, bending, shallow stretching and forming in national defense, aerospace, automobile, tractor, motor, electrical appliance, bearing, instruments, agricultural machine and tool, bicycle, sewing, mechanical appliance,daily hardware and coinage departments.

Features

1. J23-25,25 Ton Manual Sheet Metal Punch Press Machine Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking,punching,bending and other cold stamping processes.
2. C-frame Casting fuselage, maximum rigidity and minimum deflection for accurate parts and long too life .body can be tilted, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine uses Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crankshaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

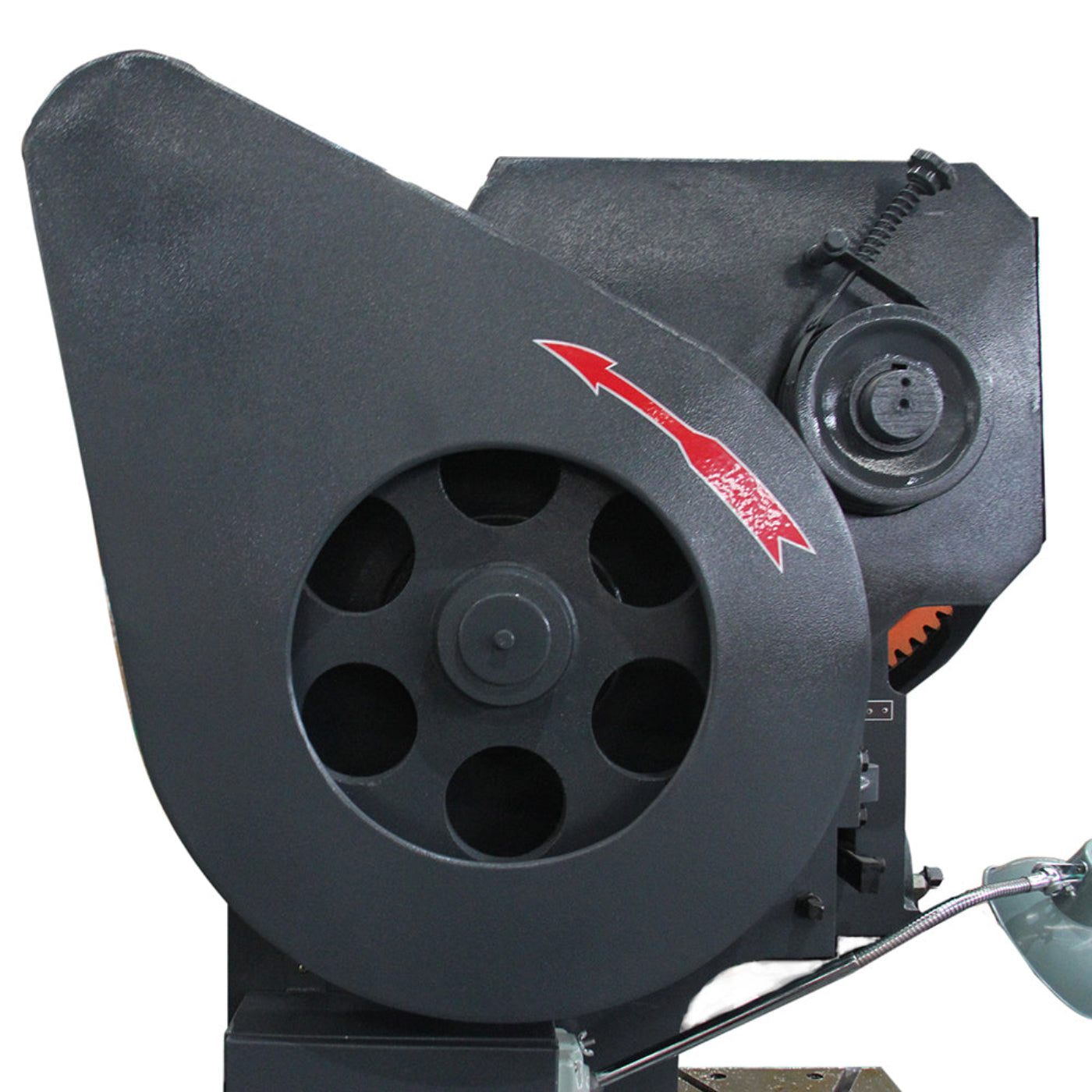

5. Properly sized flywheel, is made of high grade cast iron,for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.

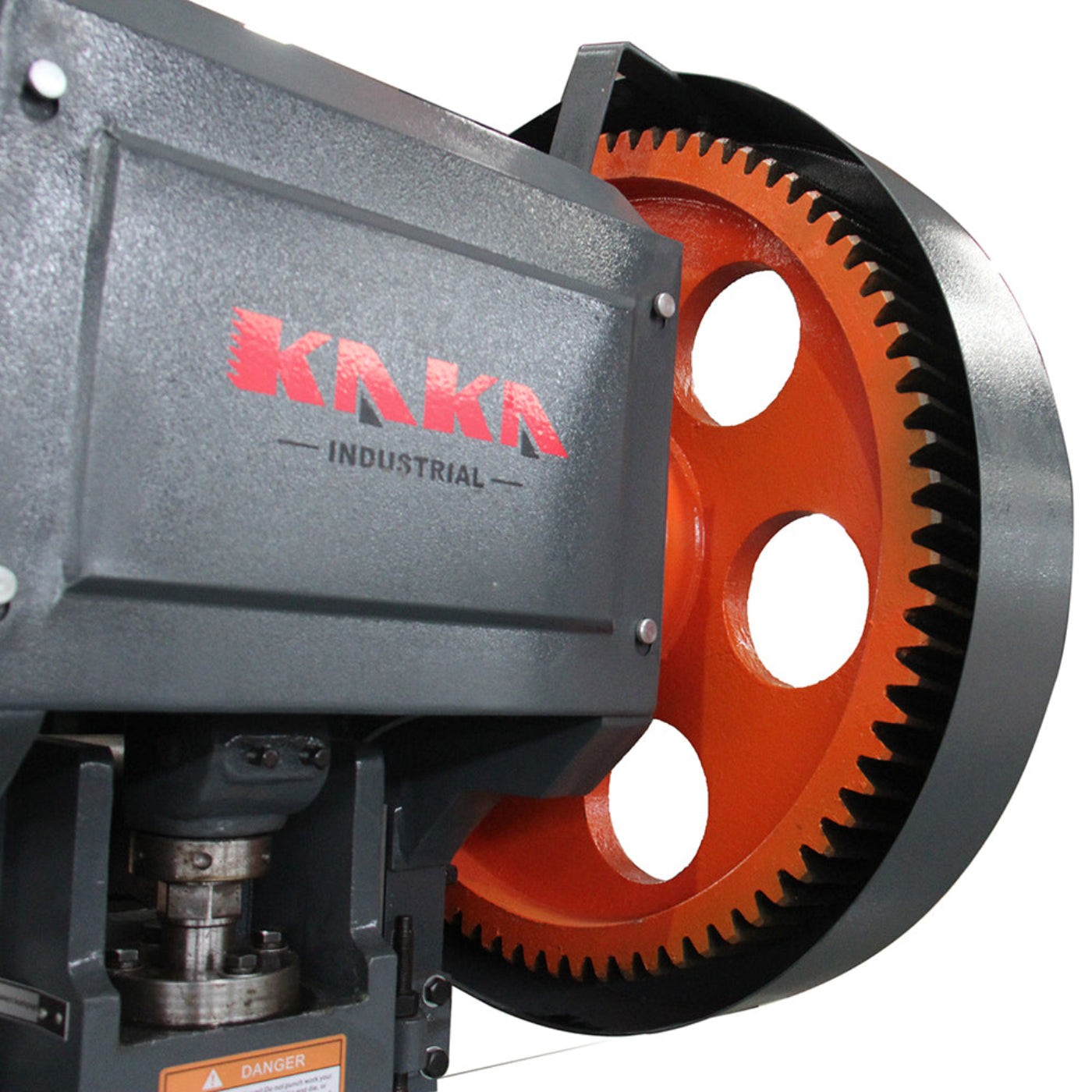

6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

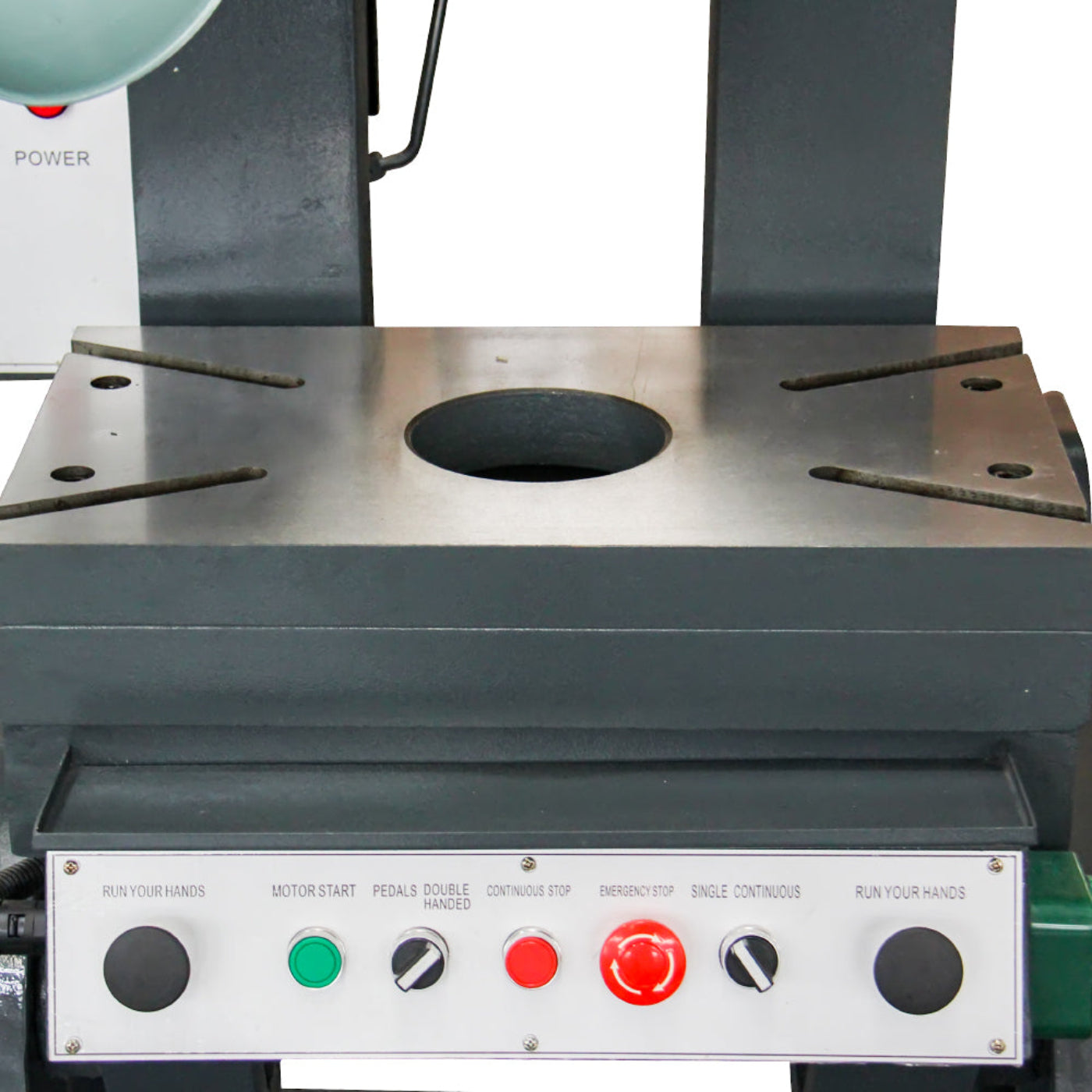

7. Machine is with both hands button and footswitch control:anti-tie down, non-repeat controls with ring guards;conforms to OSHA.
8. Protective fence and the safety interlock to ensure operation safety. Have a movable single-hand pedal switch, easy to operate.

Specifications

Manual

JB23-25 Manual

What Our Experts Think

• 25-Ton Punching Force: Delivers high precision and efficiency for sheet metal punching applications.
• Mechanical Power Press Design: Provides consistent and repeatable performance, ideal for production work.
• Heavy-Duty Construction: Built with rugged steel for long-term durability and reliability.
• 220V 3-Phase Operation: Ensures stable power delivery for industrial-grade applications.
• Versatile Metalworking Capabilities: Suitable for punching, stamping, and forming various sheet metal parts.
• User-Friendly & Safe Operation: Designed with operator safety and ease of use in mind

Q&A

Q: What is the KAKA Industrial JB23-25 Mechanical Power Press?
A: The JB23-25 is a 25-ton mechanical power press designed for manual sheet metal punching and forming. It operates on 220V, 3-phase power and is ideal for industrial metalworking applications.

Q: What makes the JB23-25 unique?
A: It features a high-precision punching mechanism, 25 tons of punching force, and a durable cast-iron frame for stability and long-term use.

Q: What materials can the JB23-25 punch?
A: It is designed to punch mild steel, stainless steel, aluminum, and other sheet metals with high accuracy.

Q: What is the maximum punching capacity?
A: The capacity depends on the thickness and type of metal but is optimized for industrial-grade punching tasks.

Q: Is the JB23-25 easy to operate?
A: Yes, its manual operation with mechanical assistance makes it efficient for precise metal punching in fabrication workshops.

Q: What types of projects is the JB23-25 best suited for?
A: It is perfect for sheet metal fabrication, industrial metal forming, stamping, and high-precision punching operations.

Maintenance Tips

• Keep It Clean – Regularly remove dust, metal shavings, and debris from the press bed, punch, and die area to maintain precision and prevent damage.
• Lubricate Moving Parts – Apply oil or grease to bearings, gears, and sliding components to reduce friction and wear. Follow the manufacturer’s lubrication schedule.
• Inspect Punch & Die – Check for signs of wear, dull edges, or misalignment. Replace or sharpen as needed for clean, accurate punching.
• Monitor Fasteners & Bolts – Periodically tighten all bolts, screws, and mechanical connections to maintain machine stability and alignment.
• Check Clutch & Brake System – Ensure proper function of the clutch and brake for smooth operation and safe stopping. Adjust as necessary.
• Verify Electrical Connections – Inspect wiring, switches, and the motor for signs of wear, overheating, or loose connections.
• Align Workpiece Properly – Always position the sheet metal correctly to prevent misaligned punches or damage to the tooling.
• Avoid Overloading – Do not exceed the 25-ton capacity to prevent damage to the mechanical components.
• Prevent Rust & Corrosion – Store in a dry, well-ventilated space and apply a rust inhibitor to exposed metal surfaces when not in use.
• Perform Test Runs – Before full operation, conduct test punches on scrap material to ensure proper alignment and function.
