John Boos 3PB1824-1D18L 3-Compartment Pro-Bowl Sink - JB3PB18241D18L

John Boos 3PB1824-1D18L 3-Compartment Pro-Bowl Sink - JB3PB18241D18L

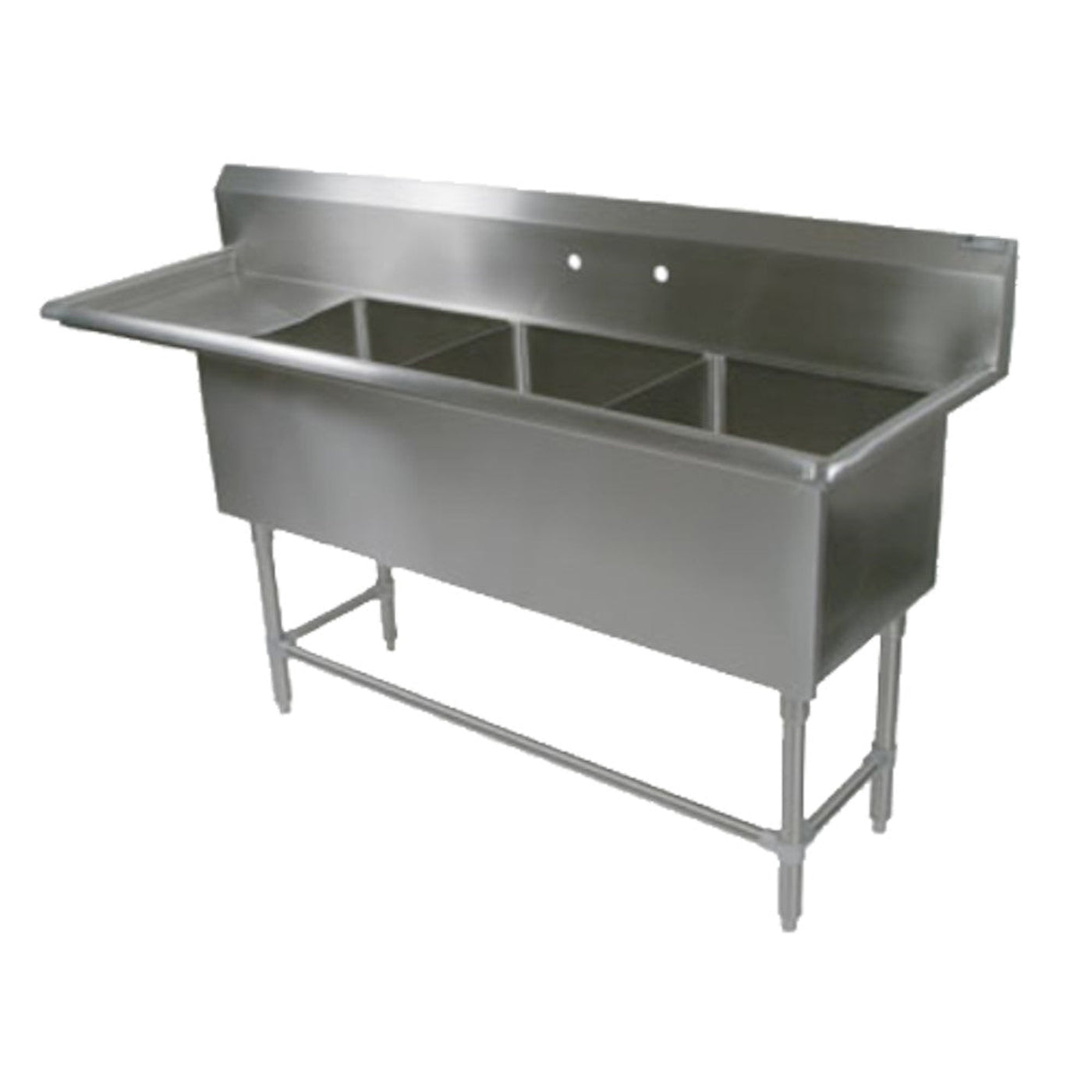

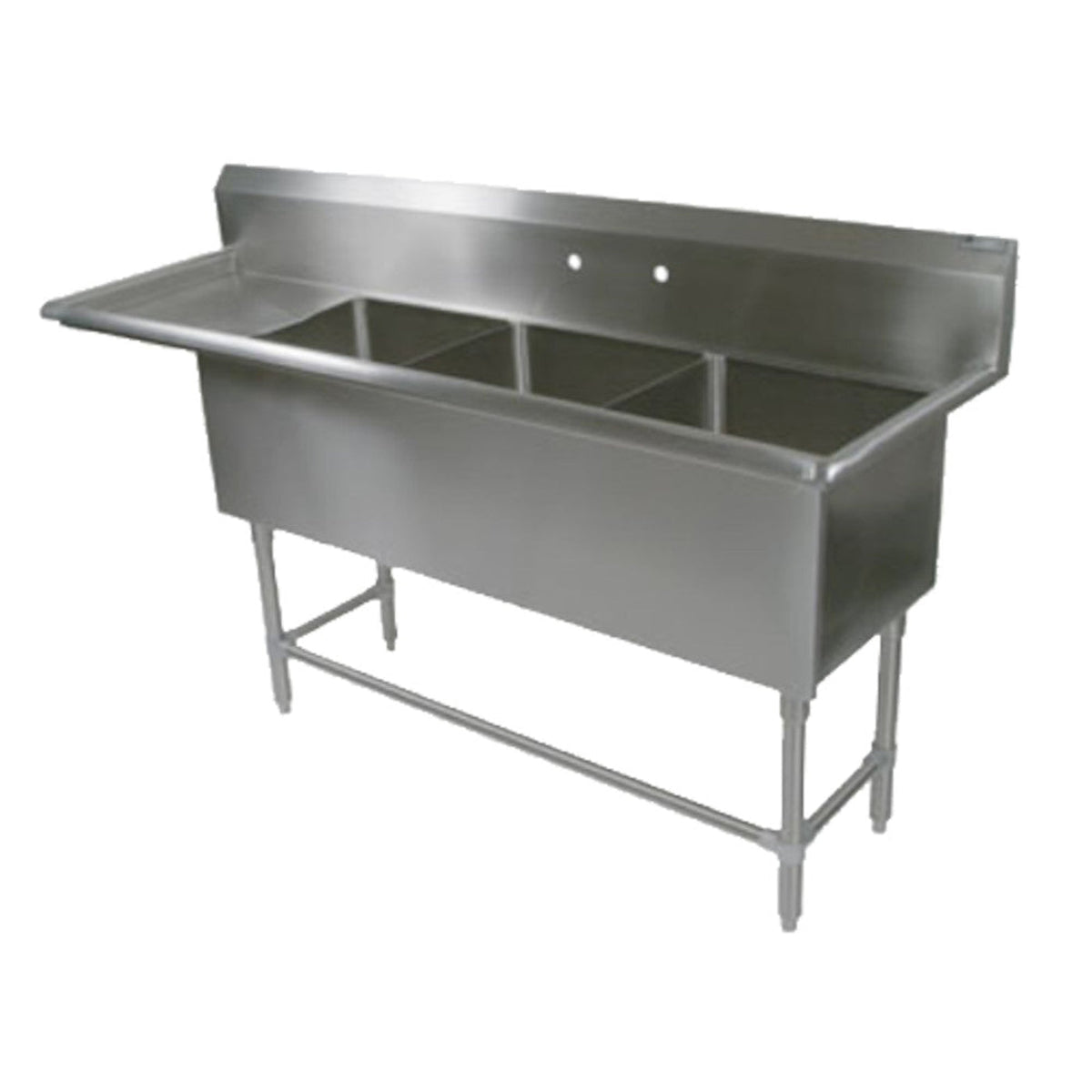

The John Boos 3PB1824-1D18L is a three-compartment, stainless steel pro-bowl sink. The bowls are 18” wide x 24” front-to-back x 12” deep. It has a 18” left drainboard. The 10” high boxed backsplash with a 45-degree top and 2” return. The set of splash mount faucet holes have 8” centers to accommodate a variety of faucets (Faucet not included). The 3PB1824-1D18L has a 3-1/2” die-stamped drain opening. The legs, bracing, and feet are all made from stainless steel as well.

Features

• STANDARD 16GA TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• ALL CORNERS, BOTH VERTICAL AND HORIZONTAL, COVED AT 5/8" RADIUS
• BOTTOMS OF BOWLS FORMED FOR DRAINAGE TO 3-1/2" DIAMETER DIE STAMPED OPENING
• FULL LENGTH 10" HIGH BOXED BACKSPLASH, WITH 2" RETURN TO WALL AT 45 DEGREE AND 3/4" TURNED DOWN REAR LIP
• 8" ON-CENTER, 1" FAUCET HOLES IN BACKSPLASH
• SOLID STAINLESS STEEL FRONT PANEL, TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• ALL OUTSIDE CORNERS OF ASSEMBLY ARE BULLNOSED TO PROVIDE SAFE, CLEAN, AND POLISHED EDGE
• STAINLESS STEEL SINKS ARE TIG WELDED, EXPOSED WELDS ARE POLISHED TO MATCH ADJACENT SURFACE
• STAINLESS STEEL BASES, STANDARD K.D
• 16GA TYPE 300 STAINLESS STEEL BOWLS AND TOP WITH #4 POLISH, SATIN FINISH
• 1-5/8" ROUND O.D. STAINLESS STEEL LEGS
• 1-1/4" ROUND O.D. STAINLESS STEEL BRACING
• STAINLESS STEEL GUSSETS
• 1" ADJUSTABLE STAINLESS STEEL BULLET FEET

Specifications

What our Experts Think

• Overall Dimensions: 76-3/16" width x 29-1/2" depth x 44-1/16" height

• Compartment Sizes: Three bowls, each measuring 18" width x 24" front-to-back x 12" depth, providing ample space for washing, rinsing, and sanitizing

• Drainboard: Features an 18" left-side drainboard for additional workspace and efficient drainage.

• Backsplash: Equipped with a 10" high boxed backsplash with a 45° top and 2" return to the wall, helping to contain splashes and facilitate easy cleaning.

• Faucet Mounting: Includes a set of splash mount faucet holes with 8" centers, accommodating various faucet styles.

• Construction: Made from 16-gauge Type 300 series stainless steel with a polished satin finish, ensuring durability and resistance to corrosion.

Q&A

Q: What is the John Boos 3PB1824-1D18L Pro-Bowl Sink?
A: The John Boos 3PB1824-1D18L is a commercial-grade, three-compartment sink designed for durability and efficiency in professional kitchens.

Q: What are the dimensions and features of this sink?
A: The sink has an overall width of 76-3/16 inches, depth of 29-1/2 inches, and height of 44-1/16 inches. It features three compartments, each measuring 18 inches in width, 24 inches front-to-back, and 12 inches in depth. Additionally, it includes an 18-inch left drainboard for added workspace

Q: What materials is the sink constructed from?
A: Constructed from 16-gauge Type 300 stainless steel with a polished satin finish, the sink ensures durability and ease of cleaning.

Q: Is this sink certified for commercial use?
A: Yes, the John Boos 3PB1824-1D18L sink is NSF and CSA-Sanitation certified, meeting essential health and safety standards for commercial kitchen equipment.

Maintenance Tips

• Overall Dimensions: 76-3/16" Width x 29-1/2" Depth x 44-1/16" Height

• Compartments

• Three bowls, each measuring 18" Width x 24" Front-to-Back x 12" Depth

• Designed for washing, rinsing, and sanitizing dishes

• Drainboard

• One 18" left-hand drainboard for additional workspace

• Backsplash

• 10" high boxed backsplash with a 45° top and 2" return to wall

• Equipped with a set of splash mount faucet holes with 8" centers
