John Boos 41PB204-1D30L 1-Compartment Pro Bowl Sink - JB41PB2041D30L

John Boos 41PB204-1D30L 1-Compartment Pro Bowl Sink - JB41PB2041D30L

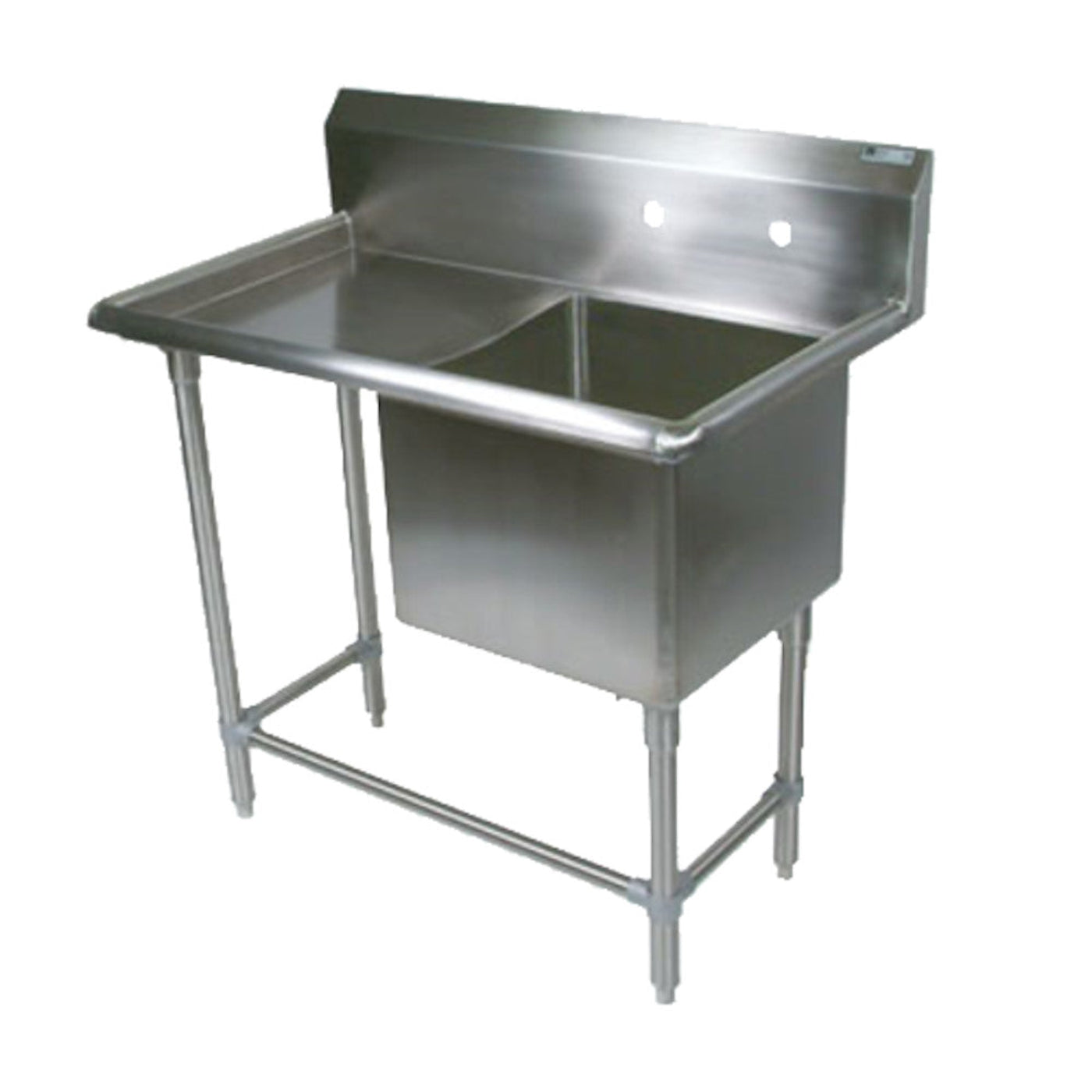

The John Boos 41PB204-1D30L is a single compartment, stainless steel pro-bowl sink. The bowl is 20” wide x 20” front-to-back x 14” deep. It has a 30” left drainboard. The 10” high boxed backsplash with 45-degree top and 2” return. The set of splash mount faucet holes have 8” centers to accommodate a variety of faucets (Faucet not included). The 41PB204-1D30L has a 3-1/2” die-stamped drain opening. The legs, bracing, and feet are all made from stainless steel as well.

Features

• STANDARD 14GA TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• ALL CORNERS, BOTH VERTICAL AND HORIZONTAL, COVED AT 5/8" RADIUS
• BOTTOMS OF BOWLS FORMED FOR DRAINAGE TO 3-1/2" DIAMETER DIE STAMPED OPENING
• FULL LENGTH 10" HIGH BOXED BACKSPLASH, WITH 2" RETURN TO WALL AT 45 DEGREE AND 3/4" TURNED DOWN REAR LIP
• 8" ON-CENTER, 1" FAUCET HOLES IN BACKSPLASH
• SOLID STAINLESS STEEL FRONT PANEL, TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• ALL OUTSIDE CORNERS OF ASSEMBLY ARE BULLNOSED TO PROVIDE SAFE, CLEAN, AND POLISHED EDGE
• STAINLESS STEEL SINKS ARE TIG WELDED, EXPOSED WELDS ARE POLISHED TO MATCH ADJACENT SURFACE
• STAINLESS STEEL BASES, STANDARD K.D
• 14GA TYPE 300 STAINLESS STEEL BOWLS AND TOP WITH #4 POLISH, SATIN FINISH
• 1-5/8" ROUND O.D. STAINLESS STEEL LEGS
• 1-1/4" ROUND O.D. STAINLESS STEEL BRACING
• STAINLESS STEEL GUSSETS
• 1" ADJUSTABLE STAINLESS STEEL BULLET FEET

Specifications

What our Experts Think

• Overall Dimensions: 54-3/16" width x 25-1/2" depth x 44-1/16" height

• Compartment Size: Single bowl measuring 20" width x 20" front-to-back x 14" depth, providing ample space for washing large items.

• Drainboard: Features a 30" left-side drainboard for additional workspace and efficient drainage.

• Backsplash: Equipped with a 10" high boxed backsplash with a 45° top and 2" return to the wall, helping to contain splashes and maintain a clean environment.

• Faucet Mounting: Includes a set of splash mount faucet holes with 8" centers, accommodating various faucet styles.

• Construction: Made from 14-gauge Type 300 series stainless steel with a #4 polish satin finish, ensuring durability and ease of cleaning.

Q&A

Q: What is the John Boos 41PB204-1D30L Pro Bowl Sink?
A: The John Boos 41PB204-1D30L is a commercial-grade, single-compartment sink designed for durability and efficiency in professional kitchens.

Q: What are the dimensions and capacity of this sink?
A: The sink has an overall width of 54.19 inches, depth of 25.5 inches, and height of 44.06 inches. It features a single compartment measuring 20 inches in width, 20 inches front-to-back, and 14 inches in depth. Additionally, it includes a 30-inch left-hand drainboard for added workspace.

Q: What materials is the sink constructed from?
A: Constructed from 14-gauge Type 300 stainless steel with a #4 polished satin finish, the sink ensures durability and ease of cleaning. The base is supported by stainless steel legs with front and side crossrails, featuring adjustable bullet feet for stability.

Maintenance Tips

• Overall Dimensions: 54-3/16" Width x 25-1/2" Depth x 44-1/16" Height

• Compartment

• Dimensions: 20" Width x 20" Front-to-Back x 14" Depth

• Drainboard

• Size: 30" Left-hand drainboard

• Backsplash

• Height: 10" High boxed backsplash

• Design: 45° top with a 2" return
