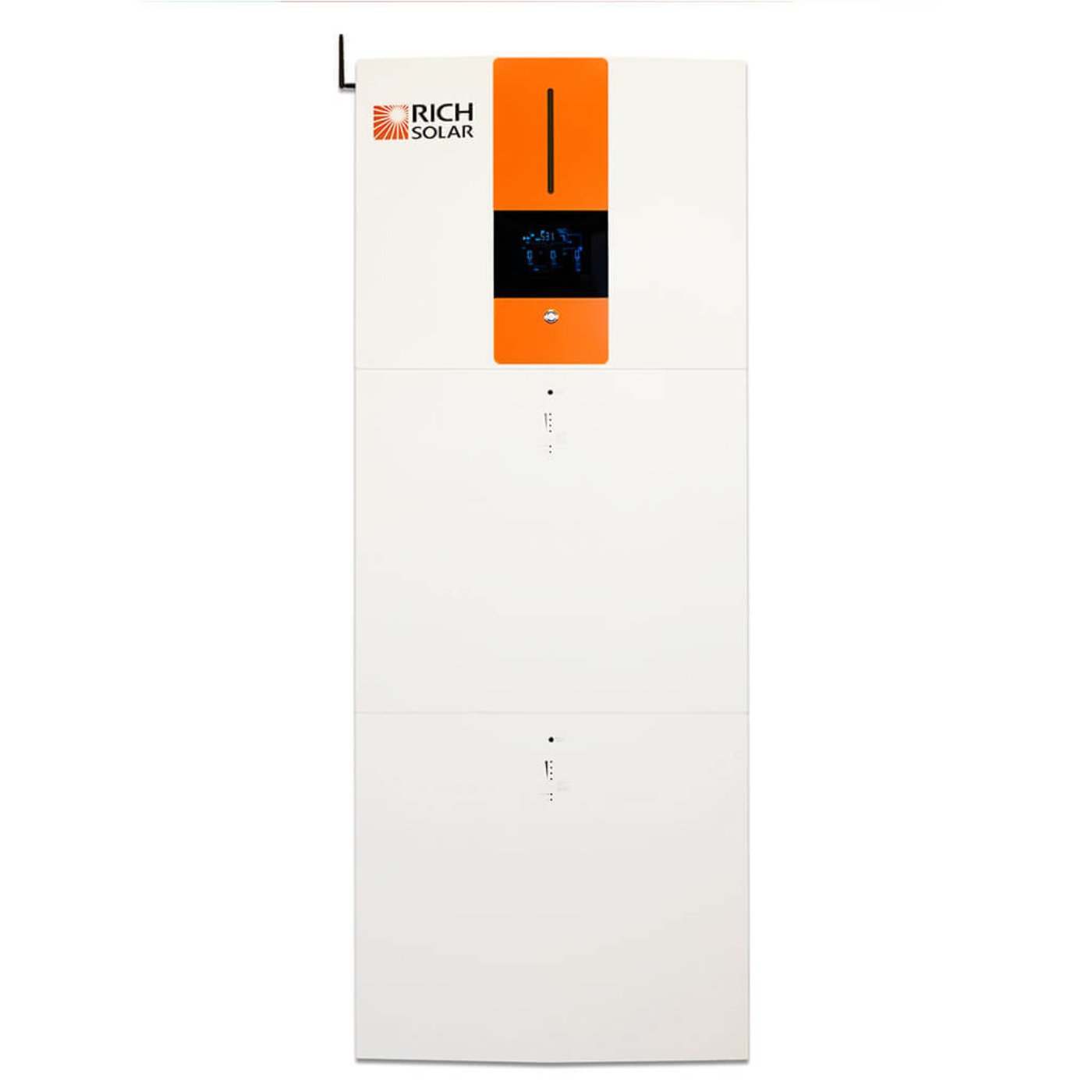

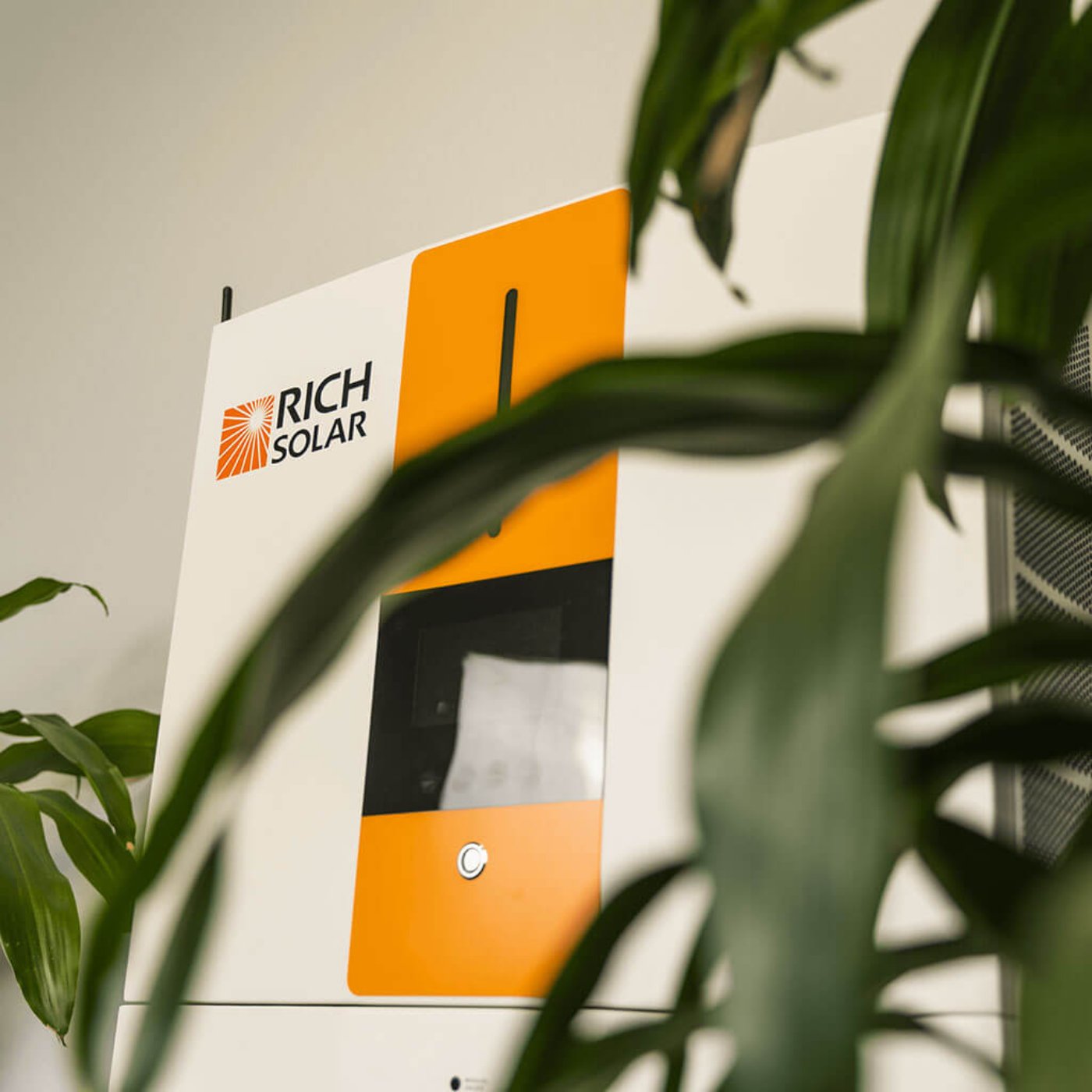

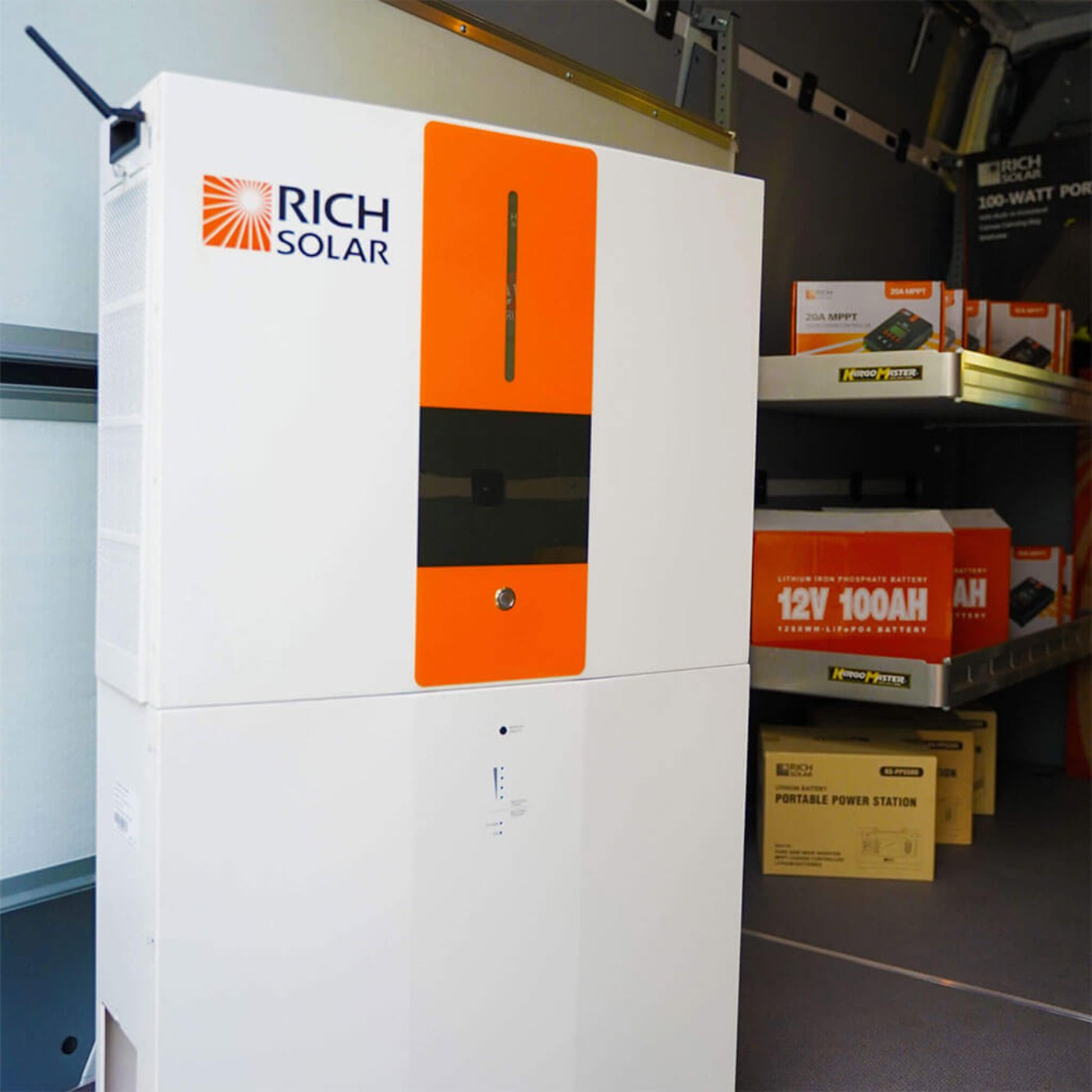

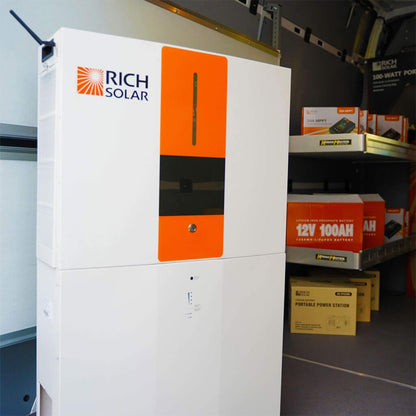

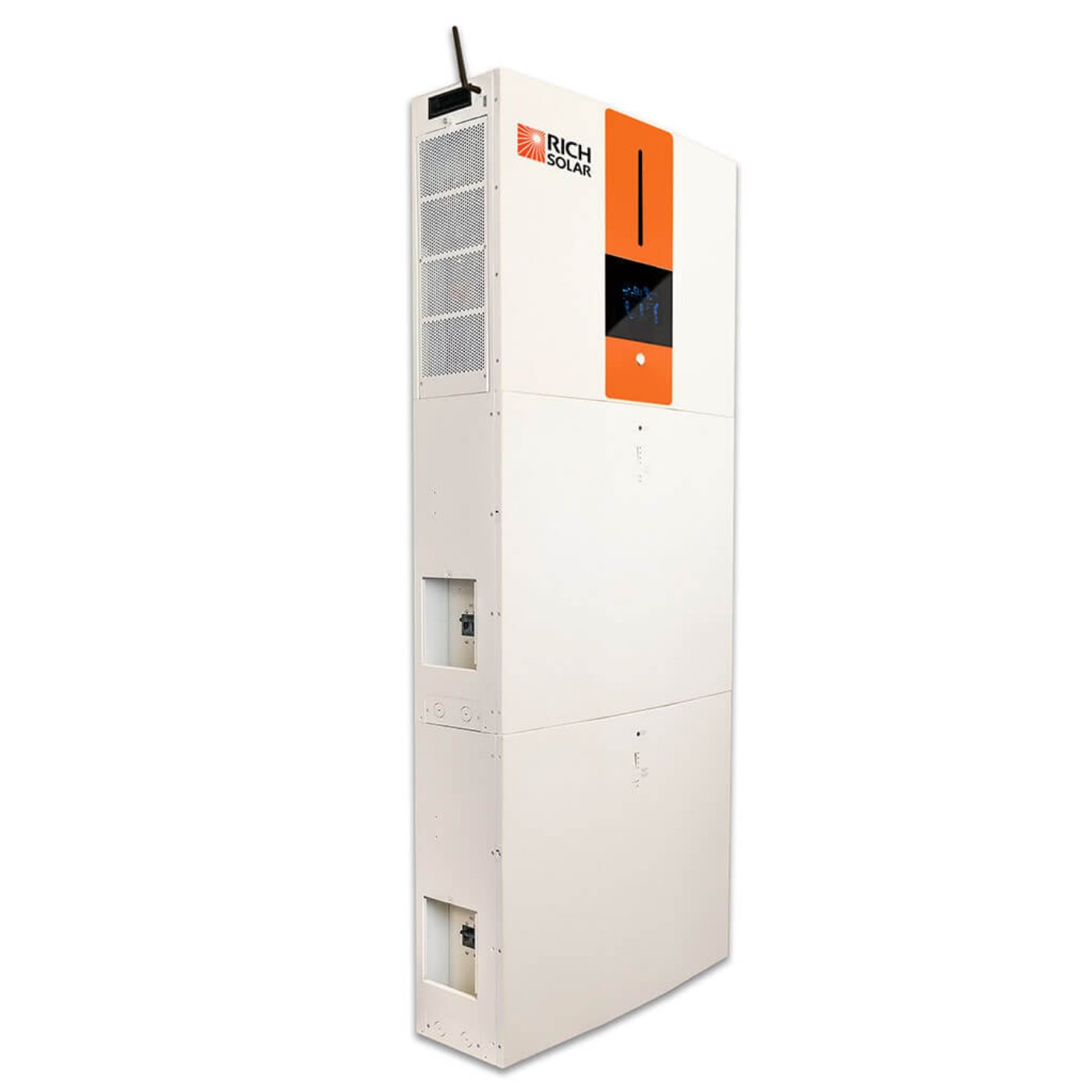

Introducing the RICH SOLAR All-in-One Energy Storage System
The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
- Pure sine wave output
- Off-Grid application
- Programmable supply priority for PV, Battery, or Grid
- User-adjustable battery charging current
- Battery independent design
- Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi
- Monitoring APP (Android and iOS) for real-time status display and parameter control
- Built-in 2 MPPT trackers and AC/Solar charger up to 120A
- Compatible with utility and generator
- Scalable Li-Ion battery expansion
The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.
Specs
SPECIFICATIONS
| Model: | RS-A10 |
| Maximum PV Input Power: | 8000W |
| Rated Output Power: | 6500W |
| Maximum Charging Power: | 6500W |
PV INPUT (DC)
| MPPT Range @ Operating Voltage: | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage: | 250 VDC |
| Maximum Solar Charge Current: | 120A |
| Number of MPP Trackers / Maximum Input Current: | 2 / 2 x 18 A |
AC INPUT
| Acceptable Input Voltage Range: | 90-140 VAC (For Computers) |
| 80-140 VAC (For Home Appliances) | |
| Maximum AC Input Current: | 60A |
BATTERY MODE OUTPUT
| Nominal Output Voltage: | 120 VAC |
| Maximum Conversion Efficiency (DC/AC): | 93% |
BATTERY
| Nominal DC Voltage: | 48 VDC |
| Maximum Charging Current: | 120 A |
| Dimension: | (D x W x H): 8.4″ x 24.4″ x 19.7″ |
| Net Weight: | 99 lb |
| Capacity: | 5120Wh |
| Nominal Voltage: | 51.2VDC |
| Full Charge Voltage(FC): | 56V |
| Full Discharge Voltage(FD): | 42V |
| Typical Capacity: | 100 Ah |
| Max Continuous Discharging Current: | 120A |
| Max Discharging Current: | 192A at 1 min |
| Protection: | BMS, Breaker |
| Float Charge Voltage: | 52.5V |
| Charge Current: | 20A (0.2C) |
| Maximum Charge current: | 50A (0.5C) |
| Standard Charge method: | 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C |
| Inner Resistance: | ≤20m ohm |
ALL IN ONE SYSTEM PHYSICAL
| System Dimension (D X W X H): | 19.7″ x 26″ x 49.2″ |
| Net Weight: | 287 lb |
STANDARD
| Compliance Safety: | IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B |
Manual
ALL IN ONE ENERGY STORAGE SYSTEM
