Armstrong Air C5297-54 Armstrong 881 Inverted Bucket Trap w/ Strainer 3/4 Inch NPT 70 PSI 5/32 Inch Orifice C5297-54 - C5297-54

Armstrong Air C5297-54 Armstrong 881 Inverted Bucket Trap w/ Strainer 3/4 Inch NPT 70 PSI 5/32 Inch Orifice C5297-54 - C5297-54

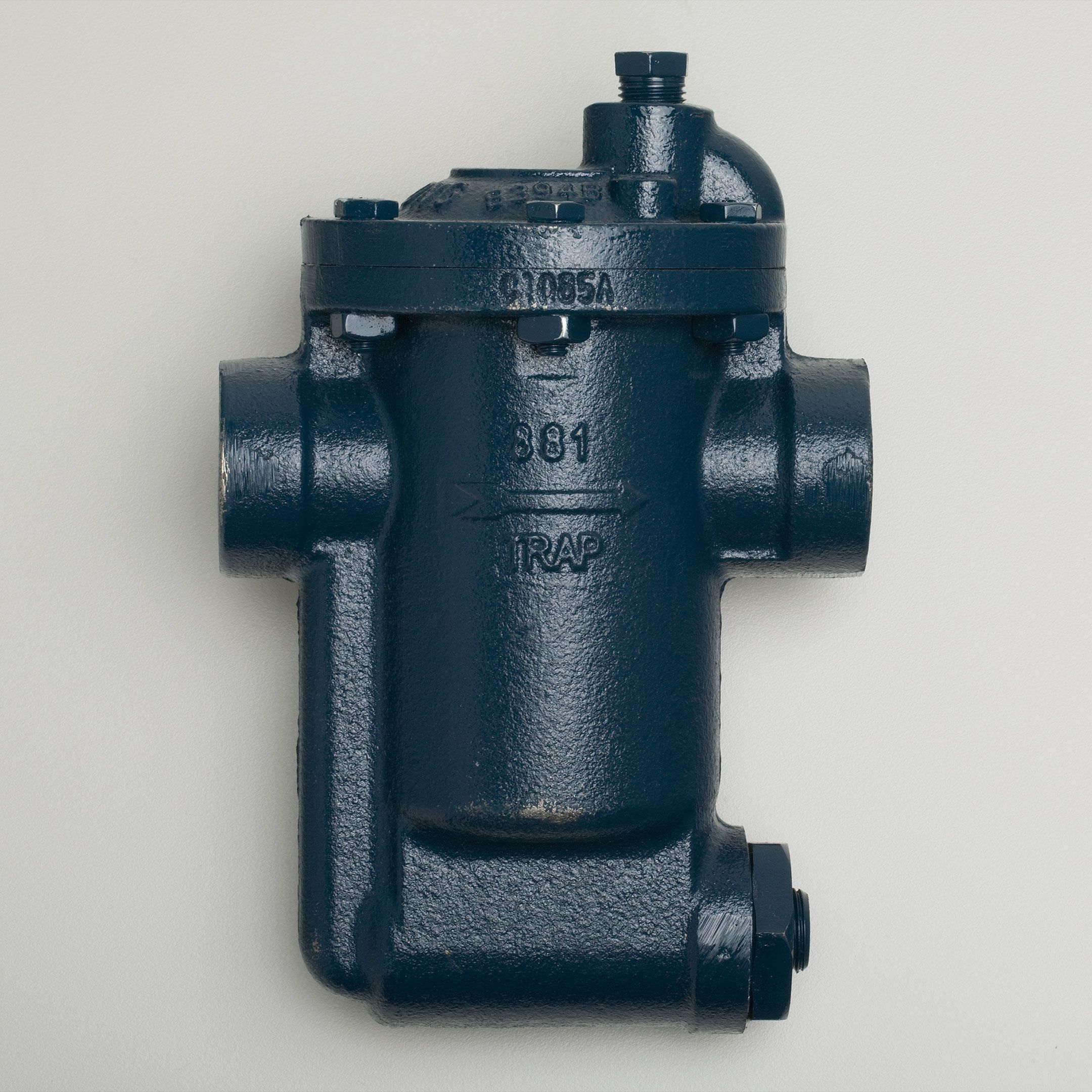

The Armstrong Air C5297-54 model 881 represents a robust inverted bucket steam trap designed with a 3/4 inch NPT in-line horizontal configuration, integrated with a strainer. This model ensures a maximum operational pressure of 70 PSI, effectively managing steam and condensate systems.

The Armstrong 881 offers a significant capacity of up to 950 pounds per hour, making it ideal for heat exchange equipment and high air discharge applications.

Features

• Streamlined in-line configuration for efficient steam management.
• Durable cast iron construction withstands high pressure and thermal variation.
• Integrated strainer purges non-condensable gases and debris effectively.

 Specifications

What our Expect Think

• Efficient Steam Control: Inverted bucket design ensures reliable steam and condensate management for optimal performance.
• High-Pressure Capacity: Rated for up to 70 PSI, ideal for residential and light commercial steam systems.
• Durable Construction: Built with high-quality materials, including a strainer, for long-lasting reliability.
• Precise Operation: 5/32-inch orifice allows for effective air and condensate removal to maintain system efficiency.
• Easy Integration: 3/4-inch NPT threading ensures seamless installation into existing steam systems.

Q&A

Q: What is the Armstrong Air C5297-54 Inverted Bucket Trap?
A: The C5297-54 is an inverted bucket steam trap designed for condensate removal in steam systems, featuring a built-in strainer, 3/4-inch NPT connection, 70 PSI pressure rating, and 5/32-inch orifice.

Q: Is this steam trap suitable for all steam systems?
A: The C5297-54 is compatible with various steam applications. Verify your system’s compatibility before purchasing.

Q: How does the inverted bucket design improve performance?
A: The inverted bucket design allows for efficient condensate drainage, reduces water hammer, and ensures optimal steam system performance and reliability.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper operation and maintain system efficiency.

Maintenance Tips

• Inspect for Leaks – Regularly check for any steam or fluid leaks at the trap's connections to ensure a tight seal.
• Clean the Strainer and Bucket – Periodically clean the strainer and inverted bucket to prevent debris buildup that can impede the trap’s performance.
• Check for Corrosion – Inspect all components, especially around the inlet, outlet, and orifice, for corrosion and replace any damaged parts.
• Ensure Proper Bucket Movement – Ensure the inverted bucket is moving freely and is not obstructed by scale or debris.
• Verify Pressure Rating – Ensure the trap is operating within its 70 PSI rating to avoid potential over-pressurization issues.
• Inspect the Orifice – Ensure the 5/32-inch orifice is clear of any obstructions to maintain proper fluid and steam flow.
• Check for Proper Drainage – Confirm that the trap is properly draining condensate to prevent water buildup and maintain efficient operation.
• Annual Professional Inspection – Schedule a professional inspection annually to check for wear and tear and to ensure the trap is working efficiently.
