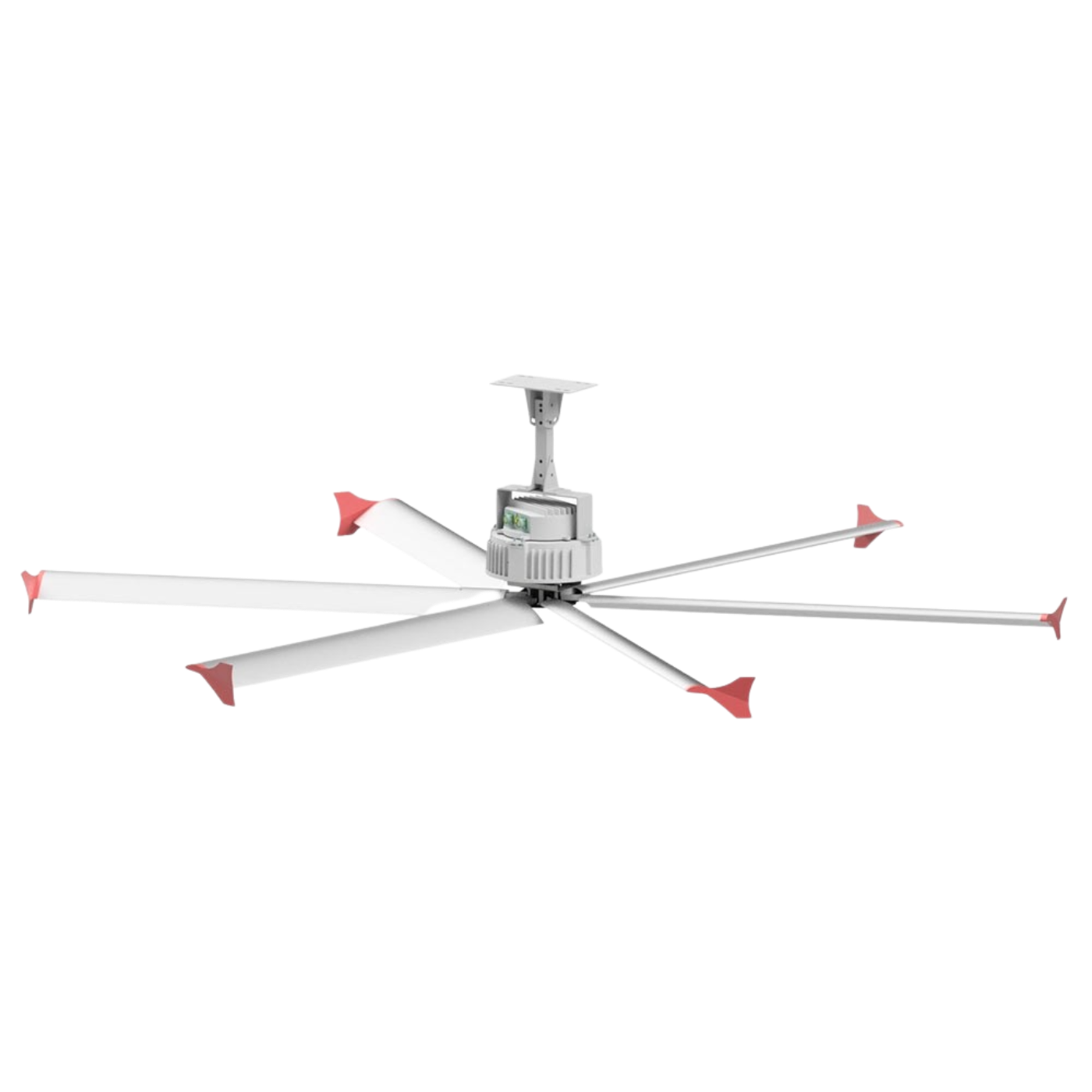

Canarm Hexa-Lite EC HVLS 16 Foot Blade Industrial Fan New - 6L16EC-230-1
Features
- Equipped with six extruded anodized, high performance E420 design aluminum airfoils.
- Contoured for maximum air movement so environments become cooler faster.
- six wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
- 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
- Direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
- Quiet Performance & Minimal Maintenance.
- Conforms to CSA Standard 22.2# 133 and UL507.
- Note: Required controller sold separately.
Specifications
| Model 6L16EC-230-1 | 16 ft blade, 230 volts, single phase |
|---|---|
| Model 6L16EC-230-3 | 16 ft blade, 230 volts, 3 phase |
| Model 6L16EC-460-3 | 16 ft blade, 460 volts, 3 phase |
| Diameter (ft) | 16 |
| Voltage (VAC) | 180-480 (50/60hz) |
| Max RPM | 64 |
| Motor FLA | 5.2 |
| Phase | 1 - 3 |
| HP (KW) | 1.35 (1.0) |
| Area Covered (sq ft) | 20,096 |
| Max Effective Diameter (ft) | 160 |
| Weight ( lbs) | 325 |
Manuals & Documentation
What Our Experts Think
- Efficient Air Circulation: 16-foot blades ensure widespread coverage in industrial and commercial areas.
- Energy-Saving EC Motor: Reduces power consumption while maintaining high performance.
- Durable & Reliable: Built for long-term use in demanding environments.
- Quiet Operation: Powerful airflow with minimal noise disruption.
- Adjustable Speed Control: Customize fan speed for optimal comfort and efficiency.
- Versatile Application: Perfect for warehouses, factories, gyms, and large facilities.
Q&A
Q: What is the Canarm Hexa-Lite EC HVLS 16 Foot Blade Industrial Fan?
A: The Canarm 6L16EC-230-1 is a 16-foot blade HVLS (High Volume Low Speed) industrial fan designed for efficient, large-scale air circulation in commercial and industrial settings.
Q: What are the key features of the 6L16EC-230-1?
A: This fan features a 16-foot blade span, an energy-efficient EC motor, quiet operation, and optimized airflow for improved ventilation and temperature control.
Q: Where can the Canarm Hexa-Lite EC HVLS Fan be used?
A: Ideal for warehouses, manufacturing facilities, gyms, and other large indoor spaces that require consistent and powerful airflow.
Q: How does the Canarm 6L16EC-230-1 benefit users?
A: It enhances comfort, reduces energy costs, eliminates hot spots, and maintains even air distribution while operating with minimal noise.
Q: Is the Canarm Hexa-Lite EC HVLS Fan easy to install?
A: Yes, it is designed for simple installation with low maintenance requirements, making it a reliable solution for large-space ventilation
Maintenance Tips
- Clean Fan Blades: Regularly remove dust and debris to maintain airflow and prevent imbalance.
- Inspect and Lubricate Bearings: Ensure smooth operation by checking for wear and applying lubrication as needed.
- Check Electrical Components: Inspect wiring and connections for any signs of wear, corrosion, or looseness.
- Test Performance Regularly: Run the fan at different speeds to ensure smooth operation and detect any unusual noises.
- Maintain Proper Clearance: Ensure no objects obstruct the fan’s airflow for maximum efficiency.
- Monitor for Vibrations: Tighten loose components to prevent excessive movement and wear.
