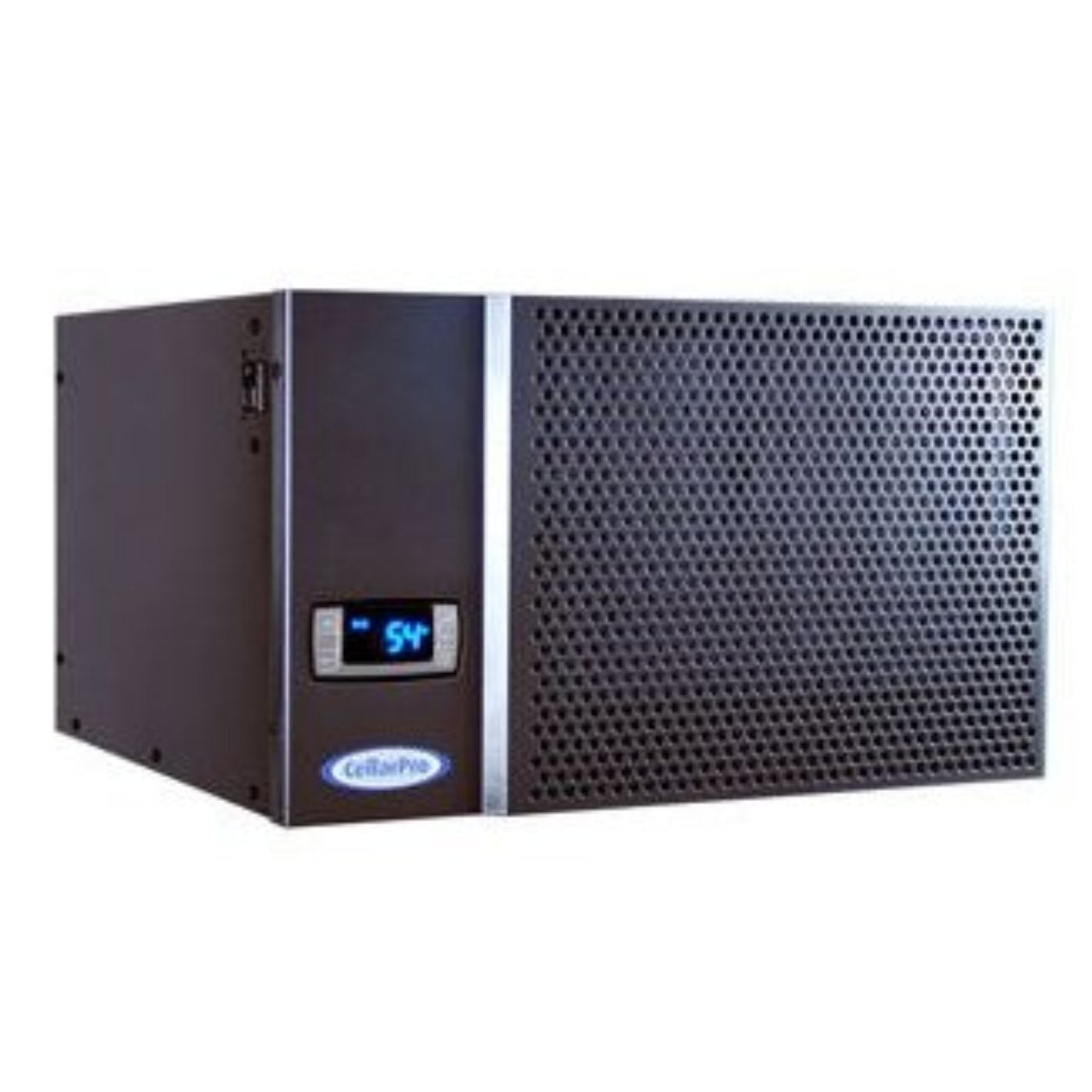

CellarPro 1800QT Wine Cellar Cooling Unit - CP 1800-QT

CellarPro engineered the 1800QT-ECX cooling unit to provide powerful cooling capacity with moderate noise levels to be used in large wine cabinets that are located near common living areas.

1800QT-ECX units are louder than CellarPro 1800QTL-ECX units, but also 30% more powerful.

Dimensions:

18w x 16 1/2d x 10 1/2h (in)

Ultra-Quiet Operation (< 50 dBA)

Designed for wine cellars up to 150 cu ft (min. R-19)


Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

1380 SENSIBLE BTUH @ 55F.
CellarPro's 1800QT-ECX wine cooling units (1/6 Ton Nominal) were engineered to provide outstanding performance and adjustable humidity control for very small wine cellars and larger wine cabinets.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

The cooling unit plugs into a standard wall outlet. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. We recommend using a surge protector rated at 15 amps or more.

Specifications

• Weight: 67 lbs

  Power/Rating:
  115V AC / 60 Hz
  Compressor Amps:
  - Running: 4.3 Amps
  - Startup: 22.2 Amps
  - Total Watts: 403
  - Required: Dedicated 15-Amp Circuit
  - Recommended: Surge Protector
  Decibels: 54 dBA (Rear)

Manuals

Cellar Pro 1800 Owner's Manual
Cellar Pro 1800 Configuration Options
Cellar Pro Cooling Systems - Specs
Cellar Pro Cooling System 1800H Houdini - Specs
Cellar Pro Cooling System 1800H Houdini - Configuration Options
Cellar Pro Cooling System 1800H Houdini - Owners Manual
Comparison chart of Features, Performance, Design, and Components

Mounting Guide (Clips)
Mounting Guide (Shelf)

Front, Rear and Sides Dimensions
Top Dimensions
Bottom Dimensions
