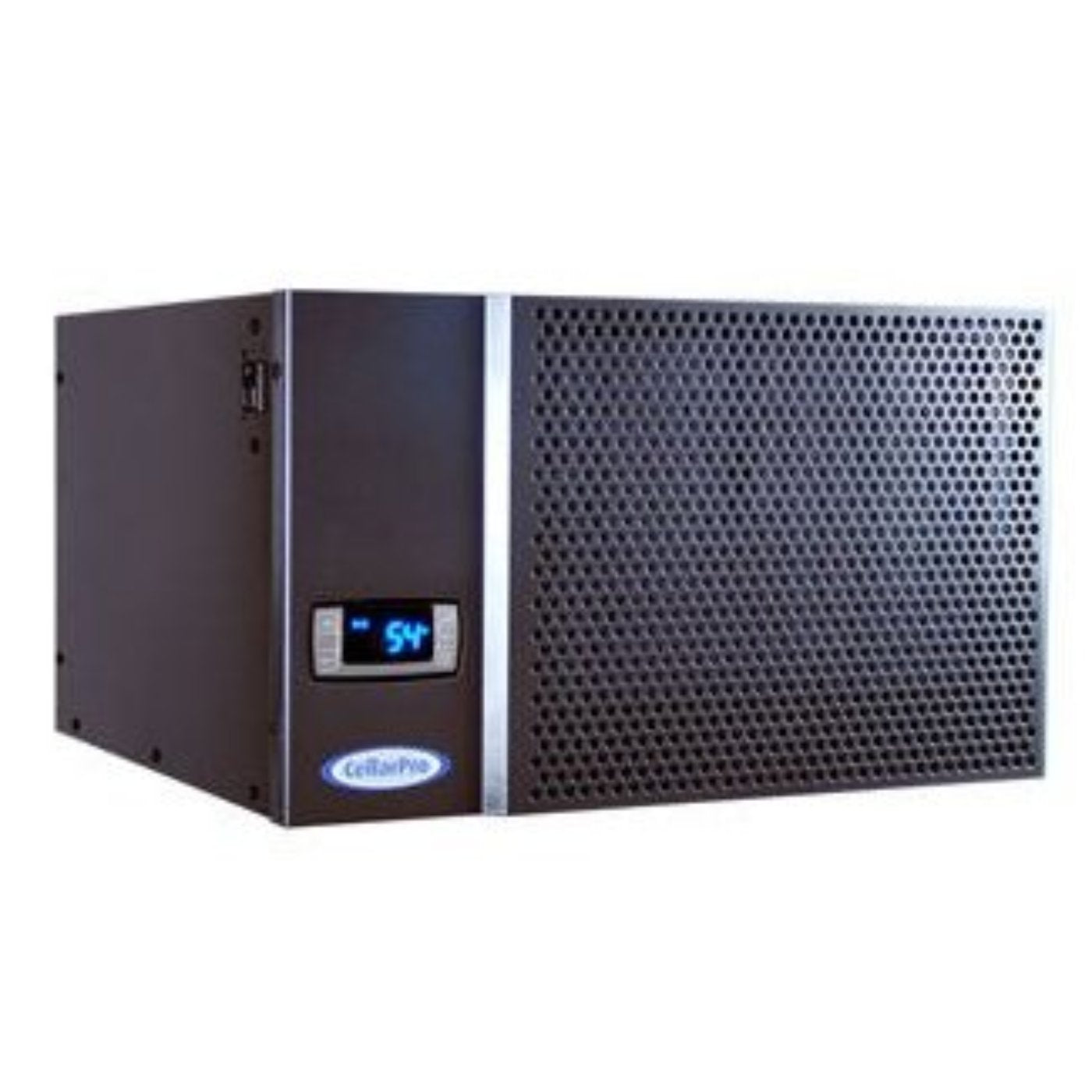

CellarPro 1800QTL Wine Cellar Cooling Unit - CP 1800-QTL

1800QTL-ECX cooling units provide gentle cooling and the quietest noise level among all CellarPro cooling units.

CellarPro engineered the 1800QTL-ECX for small wine cabinets that are placed in common living areas.

Dimensions:

18" W x 10.5" H x 16.5" D

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. Designed for indoor use only, 1800QTL-ECX units are preferred for temperature-controlled conditions that don't exceed 85F.

1065 SENSIBLE BTUH @ 55F.
CellarPro's 1800QTL-ECX wine cooling units (1/8 Ton Nominal) were engineered to provide super-quiet temperature and humidity control for small to medium size wine cabinets.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

The cooling unit plugs into a standard wall outlet. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. We recommend using a surge protector rated at 15 amps or more.

Specifications

Weight: 60 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Running: 2.4 Amps
- Startup: 14.2 Amps
- Total Watts: 191
- Requires: Dedicated 15-Amp Circuit
- Recommended: Surge Protector
Decibels: 41 dBA (Rear)

Manuals

Cellar Pro 1800 Owner's Manual
Cellar Pro 1800 Configuration Options
Cellar Pro Cooling Systems - Specs
Cellar Pro Cooling System 1800H Houdini - Specs
Cellar Pro Cooling System 1800H Houdini - Configuration Options
Cellar Pro Cooling System 1800H Houdini - Owners Manual
Comparison chart of Features, Performance, Design, and Components

Mounting Guide (Clips)
Mounting Guide (Shelf)

Front, Rear and Sides Dimensions
Top Dimensions
Bottom Dimensions

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
