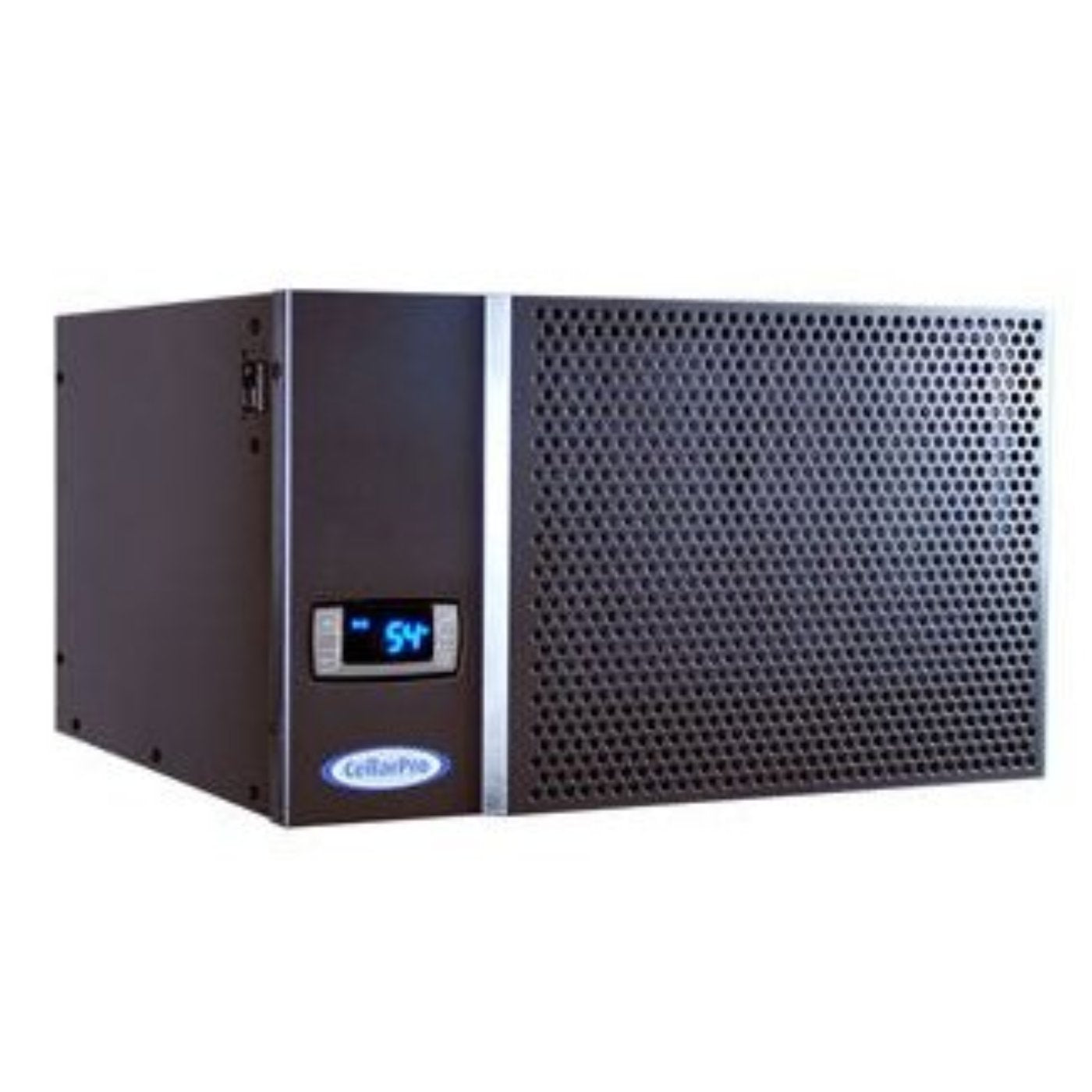

CellarPro 1800XT Wine Cellar Cooling Unit - CP-SC-1800-XT-ECX-110-1086

CellarPro engineered the 1800XT-ECX cooling unit for spaces that need extra BTUH and cooling capacity because of warm environments and/or the demands of a commercial establishment. 1800XT-ECX units are more powerful than CellarPro 1800QTL and 1800QT units.

Dimensions:

18" W x 10.5" H x 16.5" D

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. Designed for indoor use only, 1800XT-ECX units can operate in environments ranging from 95F to 40F out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.

1456 SENSIBLE BTUH @ 55F.
CellarPro 1800XT-ECX cooling units (1/6 Ton Nominal) are suitable for small wine cellars (up to 250 cubic feet), commercial applications and wine cabinets located in garages (in temperatures ranging from 50-95F).

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

The cooling unit plugs into a standard wall outlet. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. We recommend using a surge protector rated at 15 amps or more.

Specifications

Weight: 60 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:

• - Running: 3 Amps
• - Startup: 20.1 Amps
• - Total Watts: 263
• - Requires: Dedicated 15-Amp Circuit
• - Recommended: Surge Protector
• Decibels: 47 dBA (Rear)

Manuals

Cellar Pro 1800 Owner's Manual
Cellar Pro 1800 Configuration Options
Cellar Pro Cooling Systems - Specs
Cellar Pro Cooling System 1800H Houdini - Specs
Cellar Pro Cooling System 1800H Houdini - Configuration Options
Cellar Pro Cooling System 1800H Houdini - Owners Manual
Comparison chart of Features, Performance, Design, and Components

Mounting Guide (Clips)
Mounting Guide (Shelf)

Front, Rear and Sides Dimensions
Top Dimensions

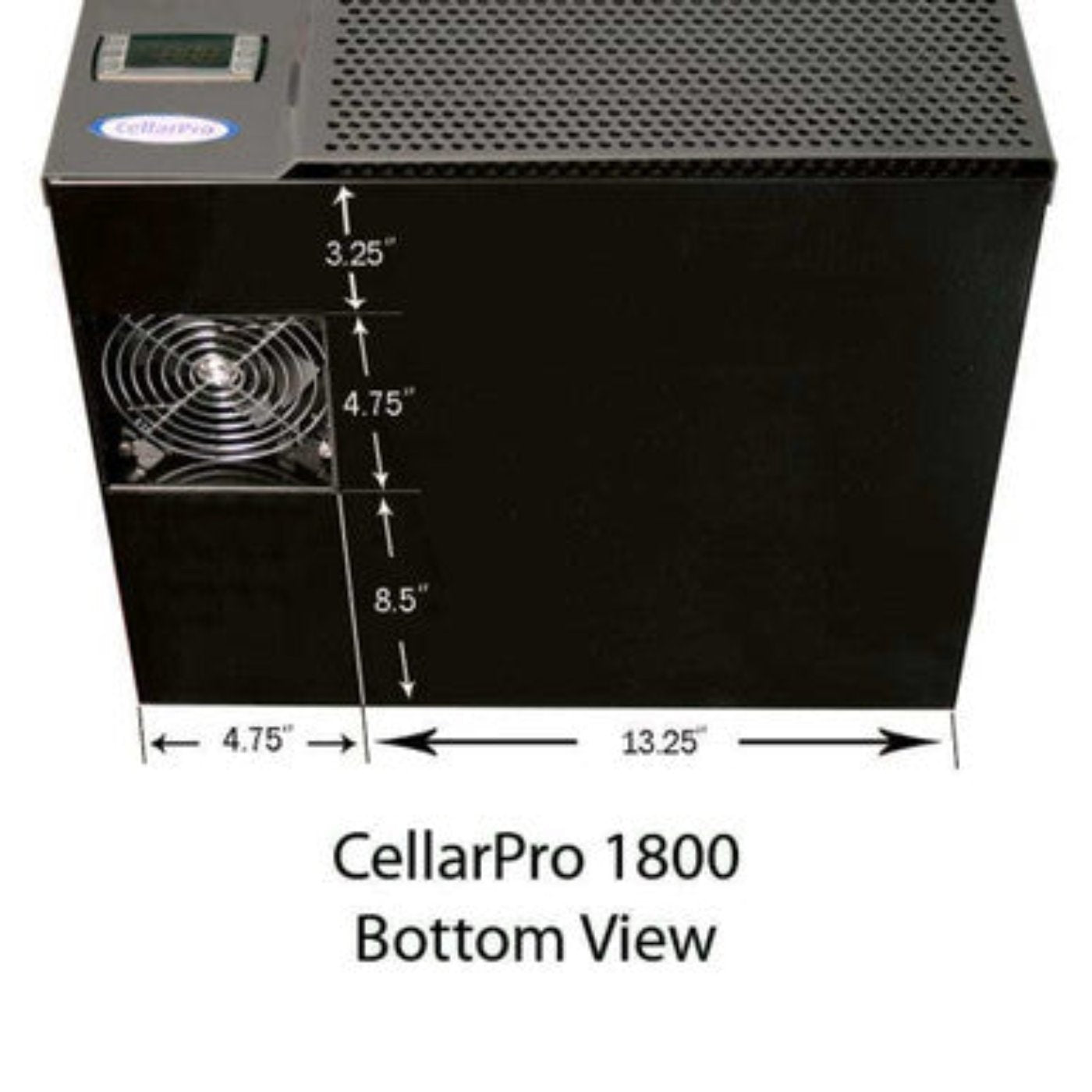

Bottom Dimensions
