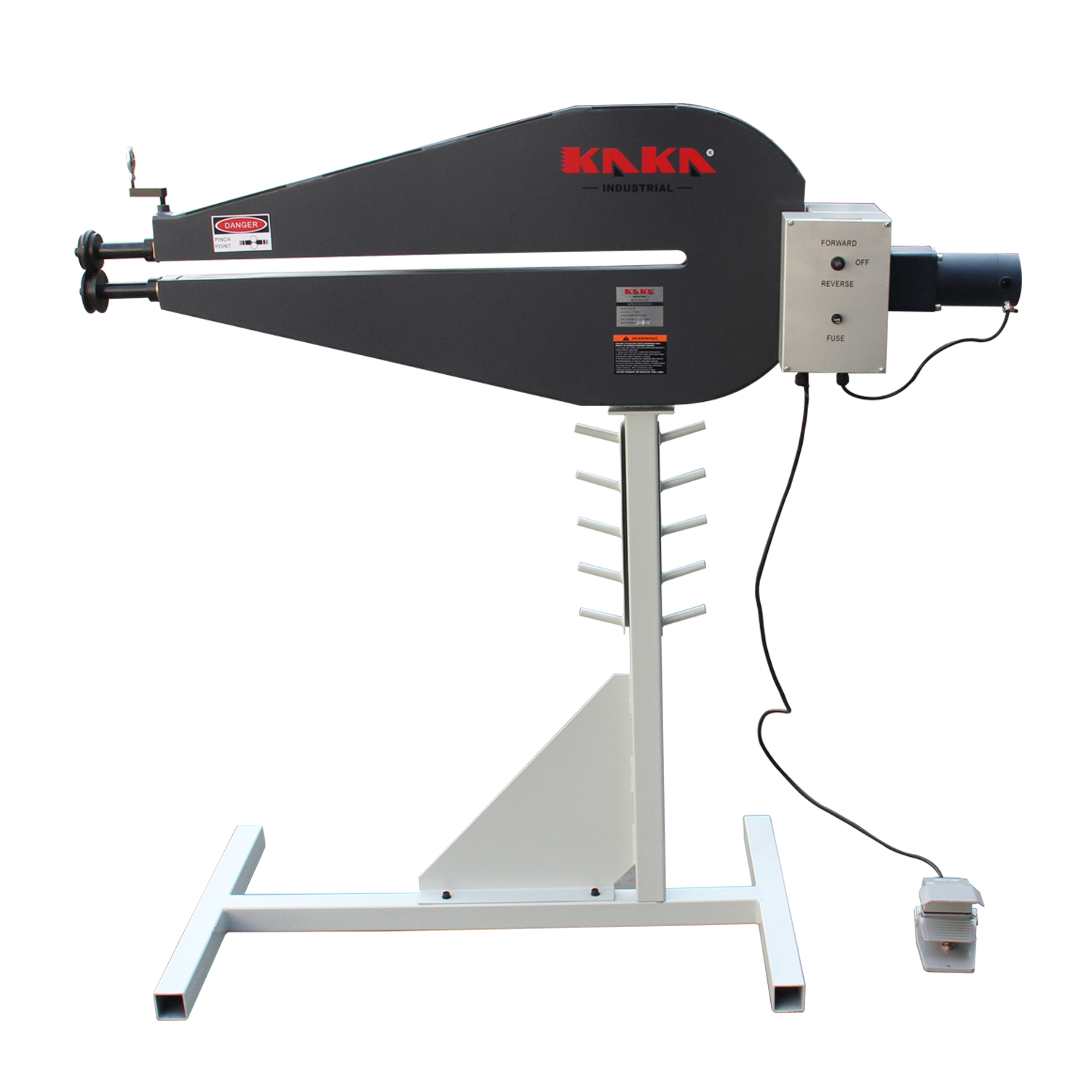

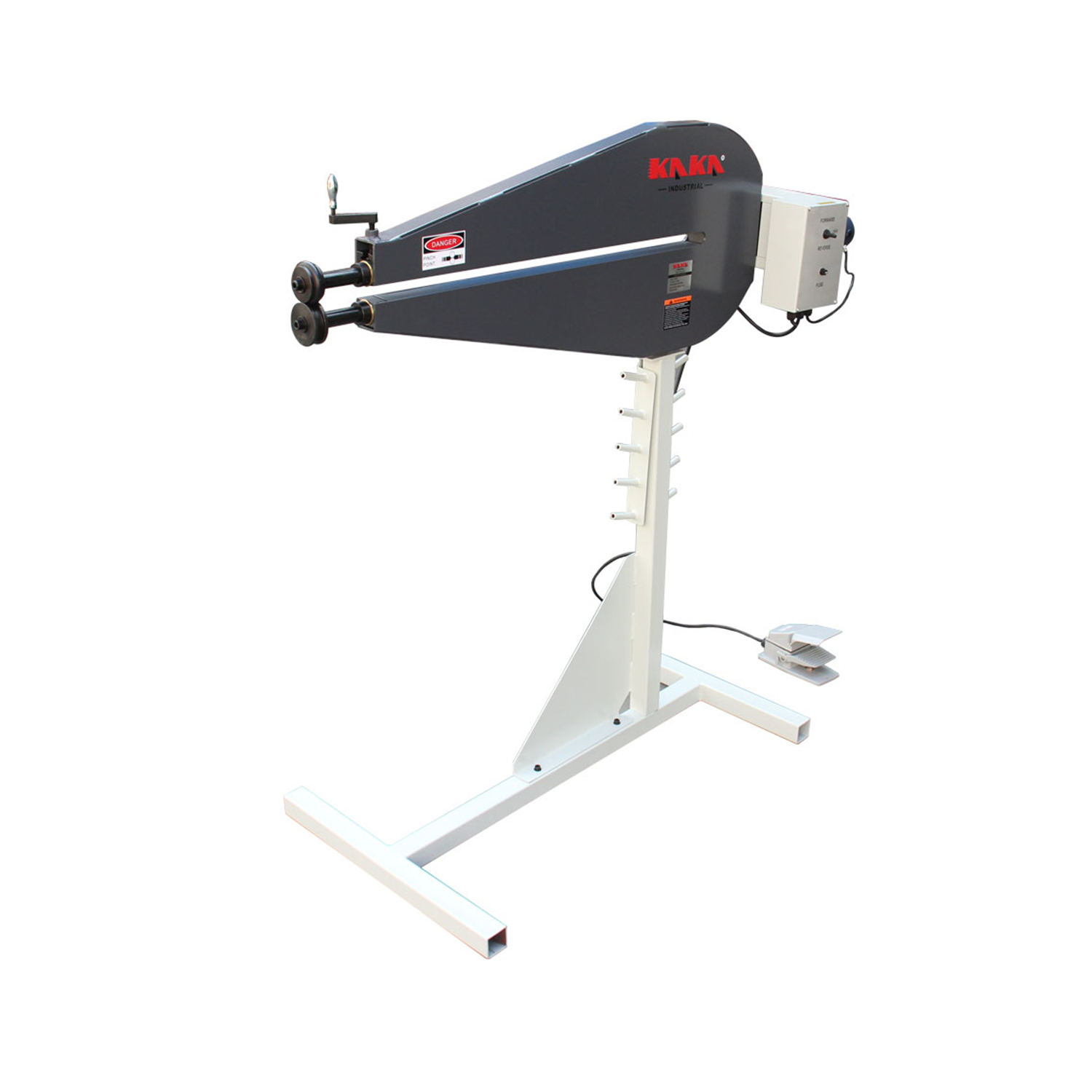

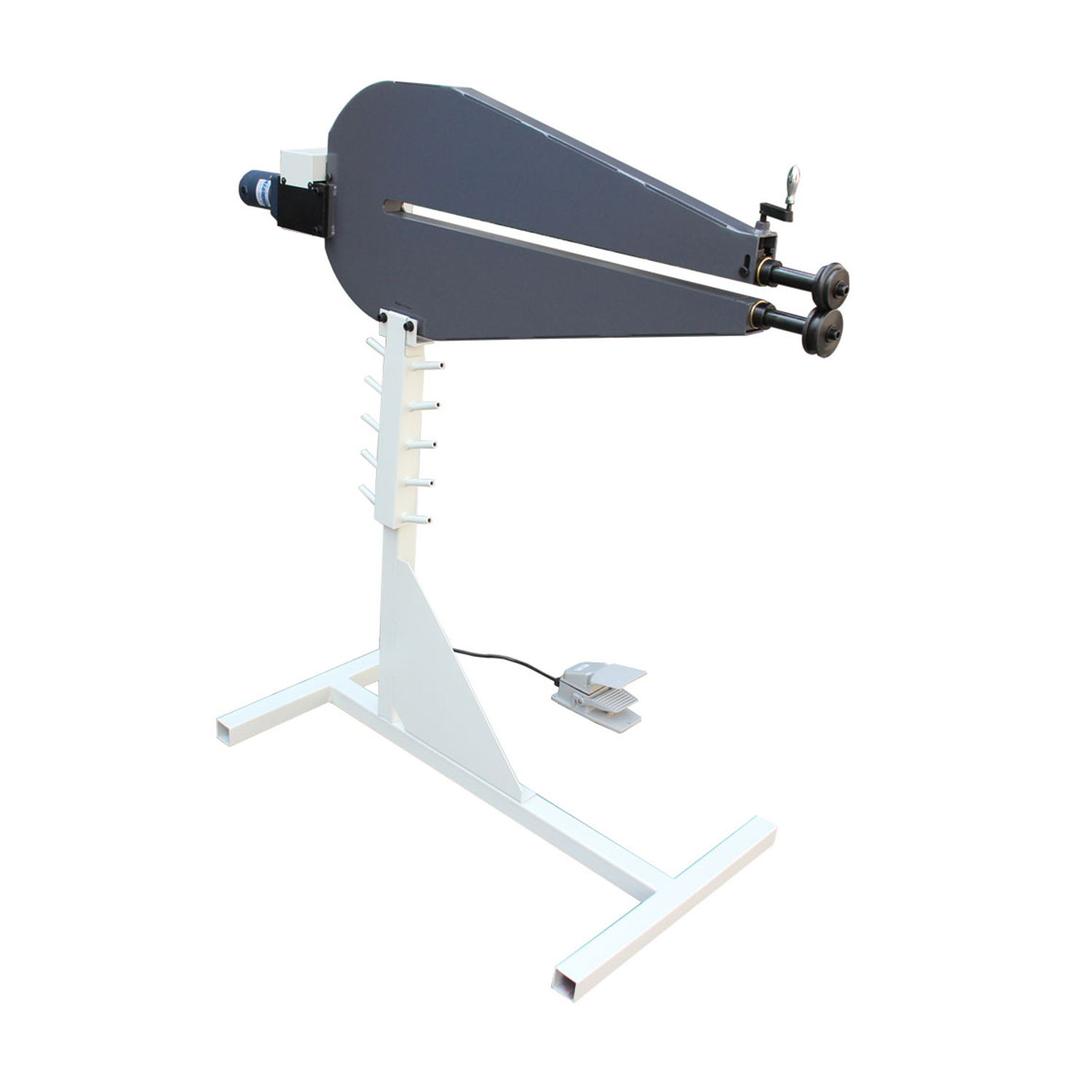

KAKA Industrial RM-36 Power Bead Roller Machine with 36 inch Bead Roller Pro Racer and Restoration Kit 110V-60HZ-1PH - 173806V110

KAKA Industrial RM-36 Power Bead Roller Machine with 36 inch Bead Roller Pro Racer and Restoration Kit 110V-60HZ-1PH - 173806V110

1. The bead bending machine makes swaged plates, connections, and circular pipes, which refer to crushing the thin plates into the ribs in specific shapes.

 2. The rigidity of the plates, pipes or metal components is strengthened.

 3. Rated for up to 16 gauge mild steel and 14 gauge aluminum

 4. Heavy-duty all fabricated plate steel construction

 5. Variable speed foot control for hands-free operation

 6. Oilite bushing at all rotation points for long life

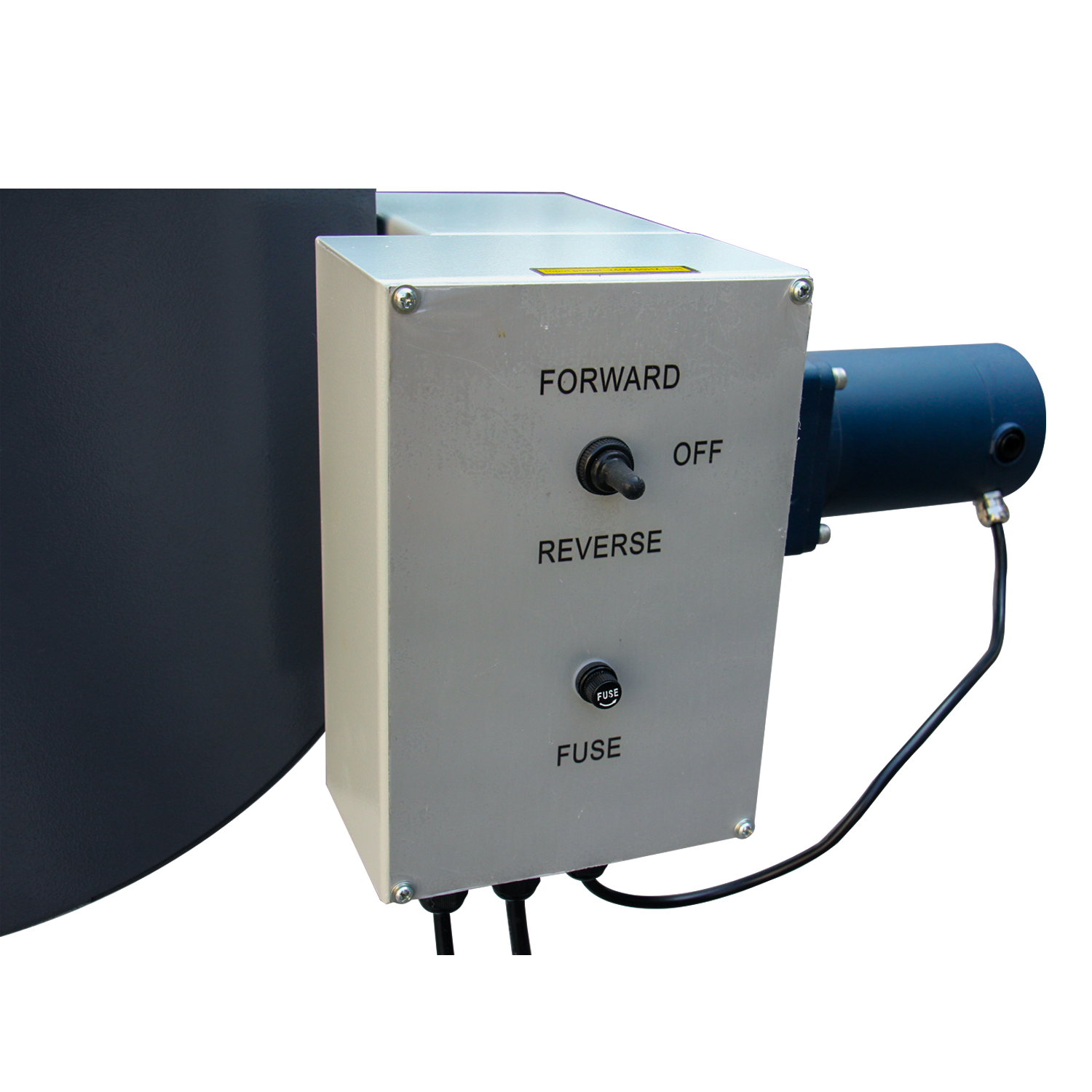

 7. Forwarder and reverse switch for left or right side operation

 8. Heat-treated gears for years of trouble-free operation

 9. Industrial finish for good looks and durability

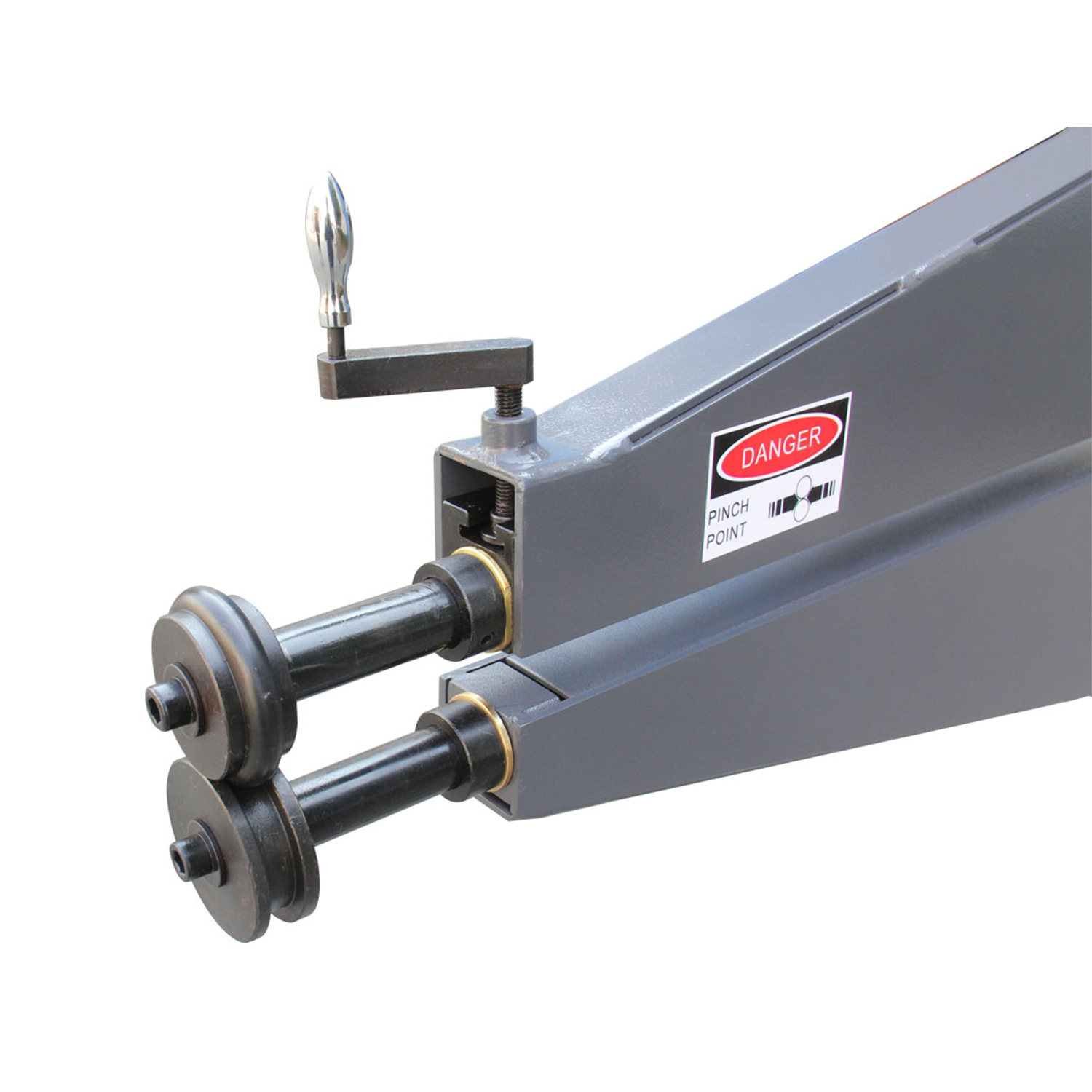

 10. With one set 1/2” round bead steel roller (standard)

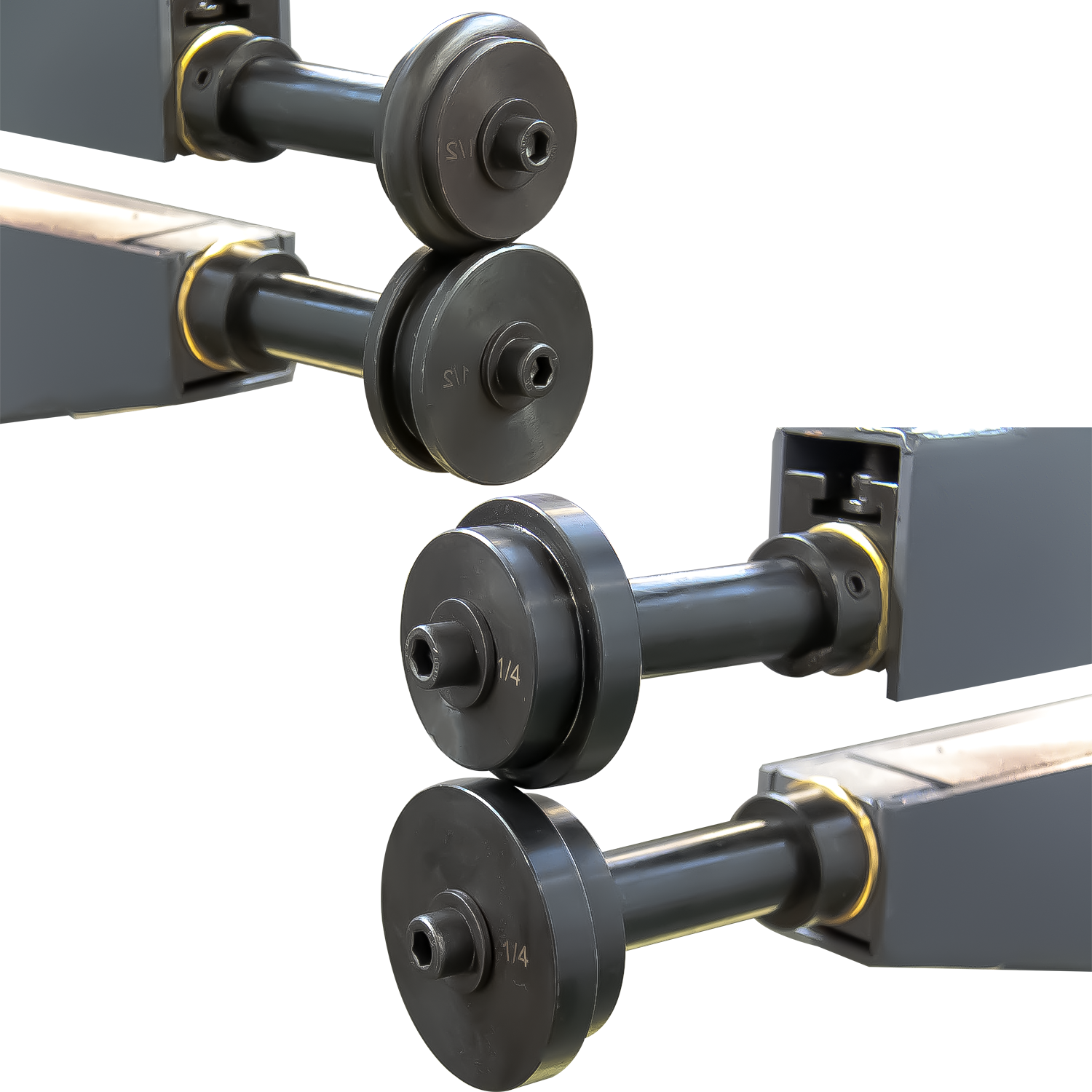

 11. Largest selection of heat-treated rollers to choose

 The shaft size for optional die sets is 3/4" in diameter.

Specifications

Manual

RM-36 Manual

Video

What Our Experts Think

• 36-Inch Throat Depth – Perfect for large sheet metal projects and detailed bead work.
• Powerful 110V Motor – Provides consistent torque and smooth operation.
• Pro Racer & Restoration Kit Included – Ideal for automotive, aviation, and metal fabrication.
• Heavy-Duty Steel Frame – Ensures stability, precision, and durability.
• Adjustable Depth Stops – Allows for consistent, repeatable bead patterns.
• Foot Pedal Control – Offers hands-free operation for better accuracy.

Q&A

Q: What is the KAKA Industrial RM-36 Power Bead Roller Machine?
A: The RM-36 is a 36-inch power bead roller machine designed for sheet metal forming, strengthening, and detailing. It operates on 110V single-phase power and is ideal for professional racing fabrication and restoration projects.

Q: What makes the RM-36 unique?
A: It features a powerful motor for consistent performance, foot pedal control for hands-free operation, and a sturdy frame for durability. It also comes with a Pro Racer and Restoration Kit for added versatility.

Q: What materials can the RM-36 work with?
A: It is designed to shape and reinforce mild steel, aluminum, stainless steel, and other sheet metals.

Q: Is the RM-36 easy to use?
A: Yes, its foot pedal operation, adjustable depth settings, and interchangeable dies make it user-friendly for precise and repeatable bead rolling.

Q: What types of projects is the RM-36 best suited for?
A: It is perfect for automotive panel fabrication, custom metalwork, aircraft restoration, and sheet metal strengthening in racing and industrial applications.

Maintenance Tips

• Keep Rollers Clean – Wipe down rollers after each use to remove dust, metal shavings, and debris.
• Lubricate Moving Parts – Apply machine oil to gears, shafts, and bearings for smooth operation.
• Inspect Roller Alignment – Ensure rollers are properly aligned to maintain consistent bead patterns.
• Check Belt & Motor – Regularly inspect the motor and drive belt for wear, and replace if needed.
• Tighten Fasteners – Periodically check and secure all bolts and screws to maintain machine stability.
• Adjust Roller Pressure – Set appropriate roller pressure for different materials to prevent excessive wear.
• Prevent Rust & Corrosion – Store in a dry environment and apply rust-inhibitor on exposed metal parts.
• Use Proper Die Sets – Always select the correct dies for your project to avoid unnecessary stress on the machine.
• Perform Test Runs – Use scrap material to verify settings and ensure accuracy before starting a project.
• Follow Safety Guidelines – Wear gloves and eye protection, and keep hands clear of rollers during operation.
