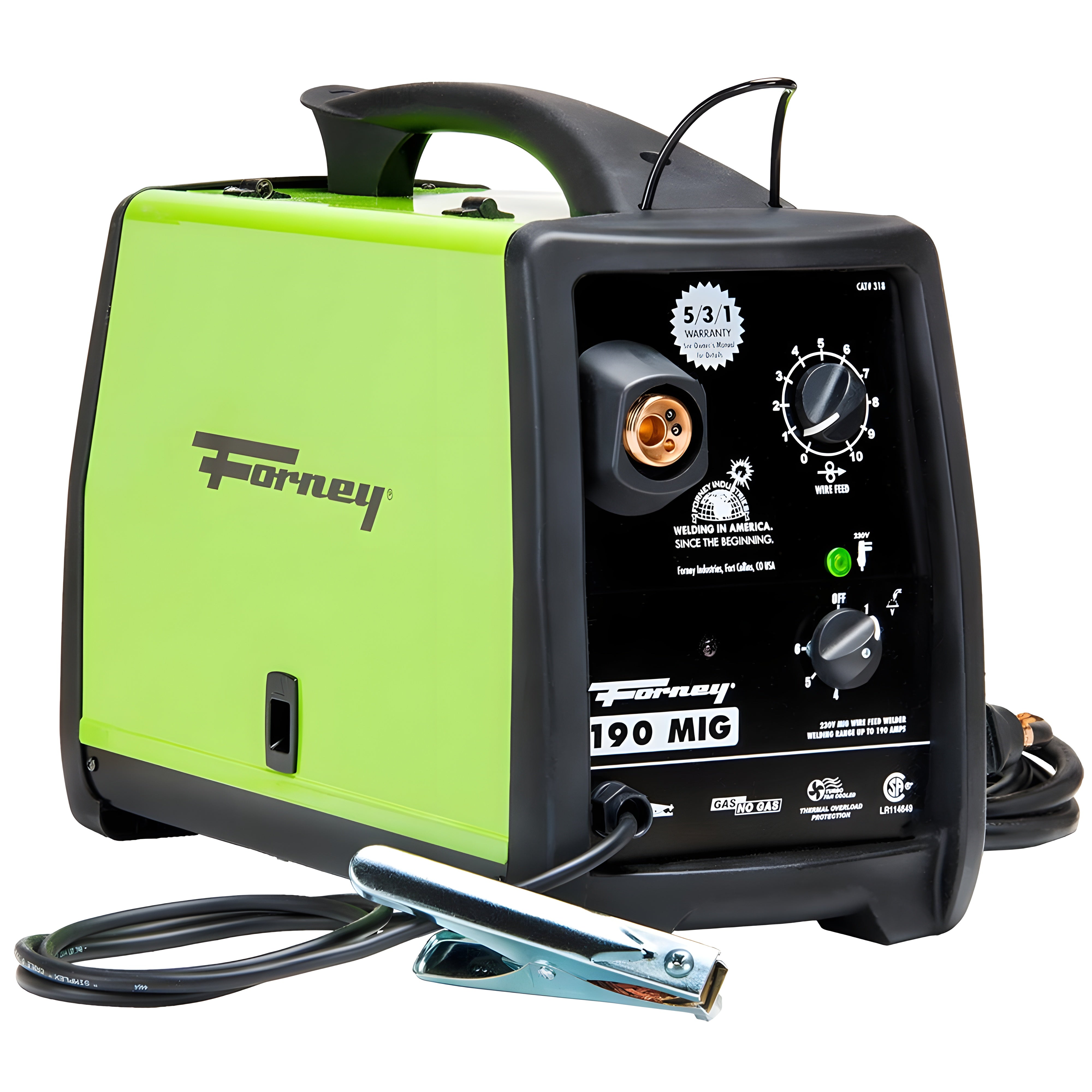

Forney 190 MIG Welder - 318

Forney 190 MIG Welder - 318

Easy to use

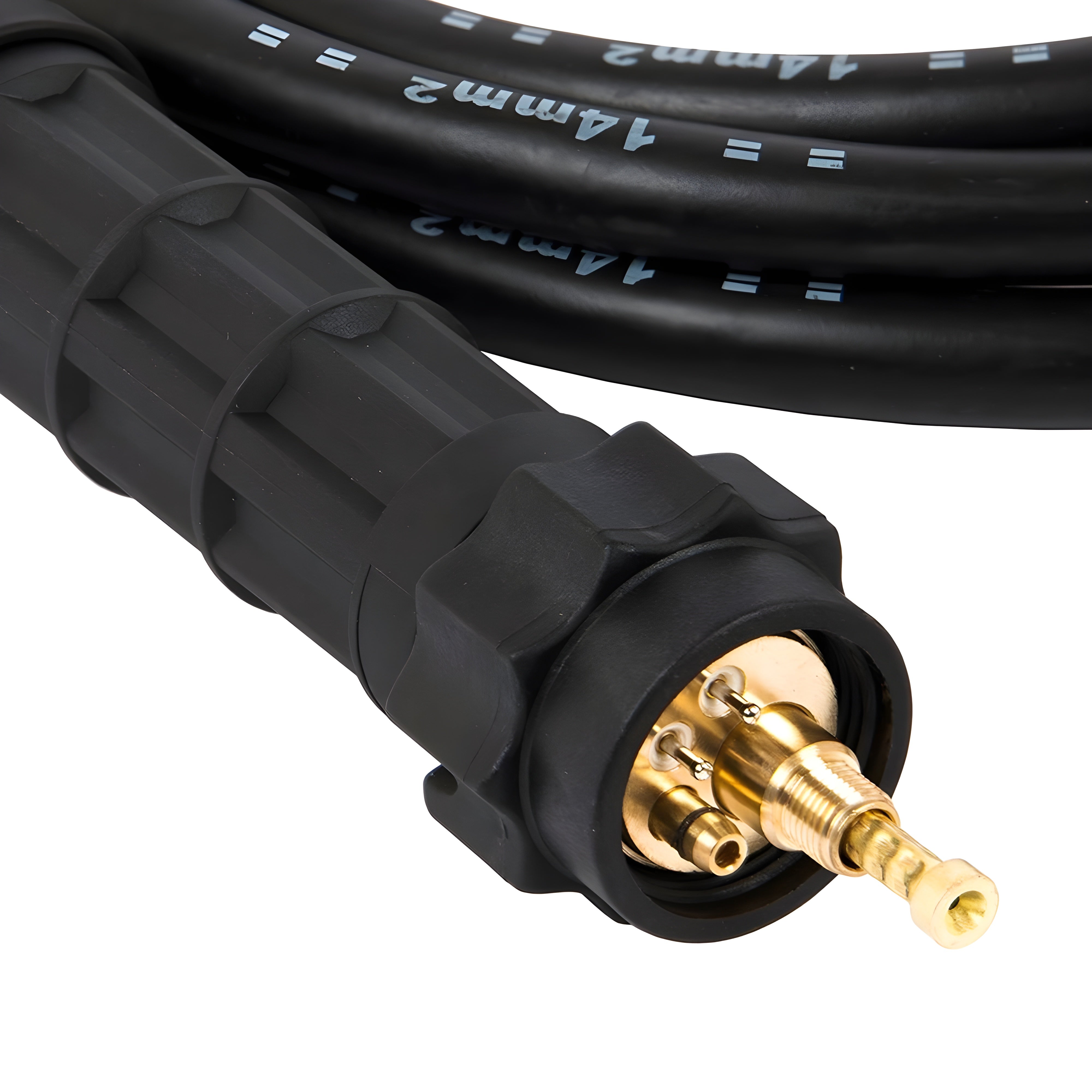

• Euro Connect Torch with Tweco style consumables
• Fast disconnect to swap out torch, clean liner

Better Wire Feeding

• Upgraded cast aluminum wire drive system
• Dual geared idler and drive roll with better de-spooler

More Space

• Larger cabinet for easy access to 4" (1-2 lb.) and 8" (10-11 lb.) spools

Improved Design

• Integrated feet
• Torch wrap included for cable organization
• Torch with built in strain relief which extends cable life

Duty Cycle

• 140A @ 15% Duty Cycle
• 120A @ 25% Duty Cycle
• 80A @ 60% Duty Cycle
• 60A @ 100% Duty Cycle

Applications

• DIY
• Metal Fabrication
• Maintenance & Repair
• Farm & Ranch
• Automotive

Specifications

• Processes: MIG (GMAW); Flux Cored (FCAW)
• Input Power: 230V
• Amperage Range: 35-190A
• Wire Diameter Range: .024" - .035"
• Rated Output: 120A @ 25% Duty Cycle
• Plate Thickness Range: 24 ga. - 3/8"
• Weight: 63 lbs.
• Dimensions: 19" x 9.5" x 16.5"

Includes

• MIG gun with 10' lead
• 10' ground cable & clamp
• 15' input power cable
• Gas hose and regulator

What Our Experts Think

• Versatile Welding: Supports Stick and TIG welding for a range of applications.
• Powerful Performance: Delivers up to 220 amps, ideal for professional and heavy-duty jobs.
• Dual Voltage Compatibility: Operates on both 120V and 240V for maximum flexibility.
• Lightweight & Portable: Compact design with a sturdy handle for easy transport.
• Easy-to-Use Controls: Simple setup with adjustable settings for precision welding.

Q&A

Q: What is the Forney 190 MIG Welder - 318?
A: A compact and powerful MIG welder, ideal for DIYers, hobbyists, and light industrial work.

Q: What materials can it weld?
A: Primarily designed for mild steel and stainless steel, but can also weld aluminum with a spool gun (sold separately).

Q: What is the amperage range?
A: 30–190A, suitable for a wide range of material thicknesses and welding applications.

Q: What power input does it require?
A: 120V for versatility in home or shop settings.

Q: What is the duty cycle?
A: 30% at 190A, allowing you to work for longer periods without frequent breaks.

Q: Does it include a spool gun for aluminum welding?
A: No, but it is compatible with a separate spool gun for aluminum welding.

Q: Is it easy to use?
A: Yes, the Forney 190 has simple controls and an easy-to-read display, making it beginner-friendly.

Q: Does it come with a warranty?
A: Yes, Forney offers a warranty—check manufacturer details for specifics.

Maintenance Tips

• Inspect Cables & Connections: Regularly check for frayed wires, loose connections, and damaged insulation to ensure safety and performance.
• Clean Drive Rollers & Wire Feed System: Remove dust and debris to prevent feeding issues and ensure smooth wire movement.
• Monitor & Replace Contact Tips & Nozzles: Worn tips can cause poor arc stability—replace them regularly for consistent welds.
• Check Ground Clamp: Ensure a clean and secure ground connection to avoid arc instability.
• Inspect Gas Flow & Hoses: Look for leaks and maintain proper shielding gas levels for clean, strong welds.
• Follow Duty Cycle Limits: Prevent overheating by operating within the recommended duty cycle.
• Keep Ventilation Openings Clear: Clean dust from cooling vents to maintain airflow and prevent overheating.
• Store in a Dry, Clean Area: Protect from moisture and dust to extend the lifespan of the unit.
• Perform Routine Maintenance: Regularly check fans, wire drive mechanisms, and internal components for wear or buildup.
