John Boos FTFG-1860 60" W x 18" D Floor Trough - JBFTFG1860

John Boos FTFG-1860 60" W x 18" D Floor Trough - JBFTFG1860

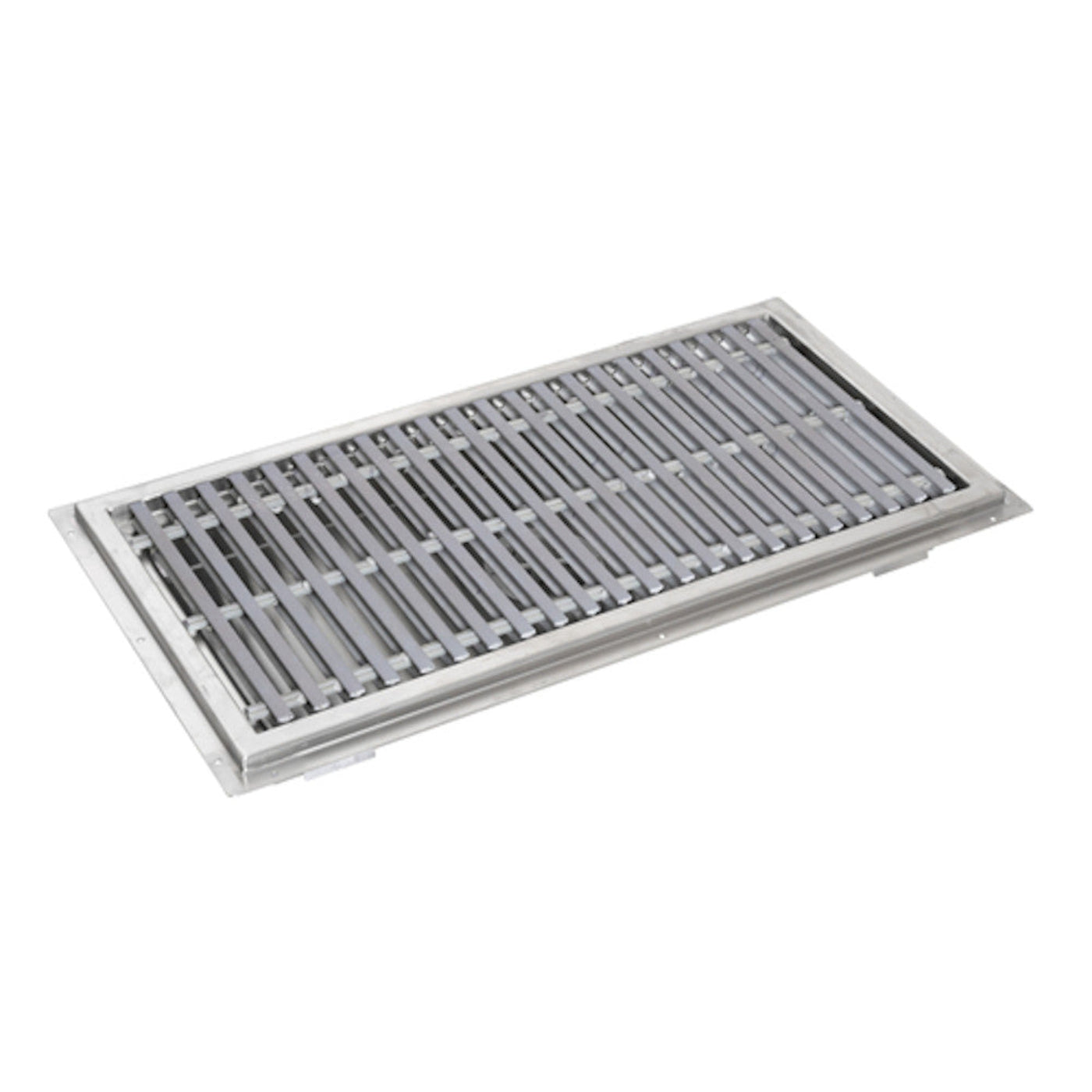

This John Boos FTFG-1860 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable gray fiberglass subway style grating with a non-slip surface on 1-1/2” centers. The Trough is made of 14-gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. The bottom of the FTFG-1860 has 5-degree breaks to ensure proper drainage.

Features

• Accommodates a 4" O.D. diameter drain pipe 3.25" long
• 5-degree breaks in the bottom for positive drainage towards drain
• Removable gray fiberglass subway style grating with non-slip surface on 1-1/2” centers
• Includes drainage basket
• 4” deep all-welded drain pan with built-in pitch
• 14-gauge, type 300 stainless steel construction

Specifications

What our Experts Think

• Dimensions: Measures 60 inches in length and 18 inches in width, providing substantial coverage for effective drainage in high-traffic areas.

• Construction: Crafted from 14-gauge Type 300 series stainless steel, the trough offers exceptional durability and resistance to corrosion, ensuring a long service life in demanding environments.

• Grating: Equipped with subway-style fiberglass grating, the design provides a sturdy and slip-resistant surface, enhancing safety and functionality.

• Drain Pan: Features a 4-inch deep all-welded drain pan with a built-in pitch, facilitating efficient water flow toward the drain and preventing water accumulation.

• Drainage Capacity: Designed to accommodate up to a 4-inch diameter drain pipe, making it suitable for handling substantial water flow typically found in commercial kitchens.

• Strainer: Includes a removable stainless steel perforated strainer to prevent debris from clogging the drain, ensuring smooth and reliable drainage.

Q&A

Q: What are the dimensions of the John Boos FTFG-1860 Floor Trough?

A: The floor trough measures 60 inches in length, 18 inches in width, and 4 inches in height.

Q: What material is the floor trough made from?

A: It is constructed from 14-gauge, type 300-series stainless steel, ensuring durability and resistance to corrosion.

Q: What type of grating does the floor trough feature?

A: The trough is equipped with removable gray fiberglass subway-style grating with a non-slip surface on 1.5-inch centers, providing effective drainage and safety.

Q: What is the capacity of the drain pan?

A: The 4-inch deep, all-welded drain pan is pitched to facilitate positive drainage and accommodates up to a 4-inch diameter drain pipe.

Q: Does the floor trough include a strainer?

A: Yes, it comes with a removable perforated stainless steel strainer to help prevent clogging.

Q: What is the weight of the floor trough?

A: The trough weighs approximately 83 pounds.

Q: Is there a warranty for this product?

A: Yes, the John Boos FTFG-1860 Floor Trough comes with a 1-year warranty against defects in material and workmanship.

Maintenance Tips

• Dimensions: 60" Length x 18" Width x 4" Depth

• Construction:

• Material: Crafted from 14-gauge Type 300-series stainless steel, ensuring durability and resistance to corrosion.

• Design: Features an all-welded, 4" deep drain pan with a built-in 5° pitch, promoting effective drainage towards the drain.

• Grating

• Equipped with removable, non-slip fiberglass subway-style grating with 1.5" centers, facilitating easy cleaning and maintenance.

• Drainage

• Accommodates up to a 4" diameter drain pipe, providing flexibility for various plumbing configurations.

• Includes a removable perforated stainless steel strainer to prevent debris from entering the drainage system.
