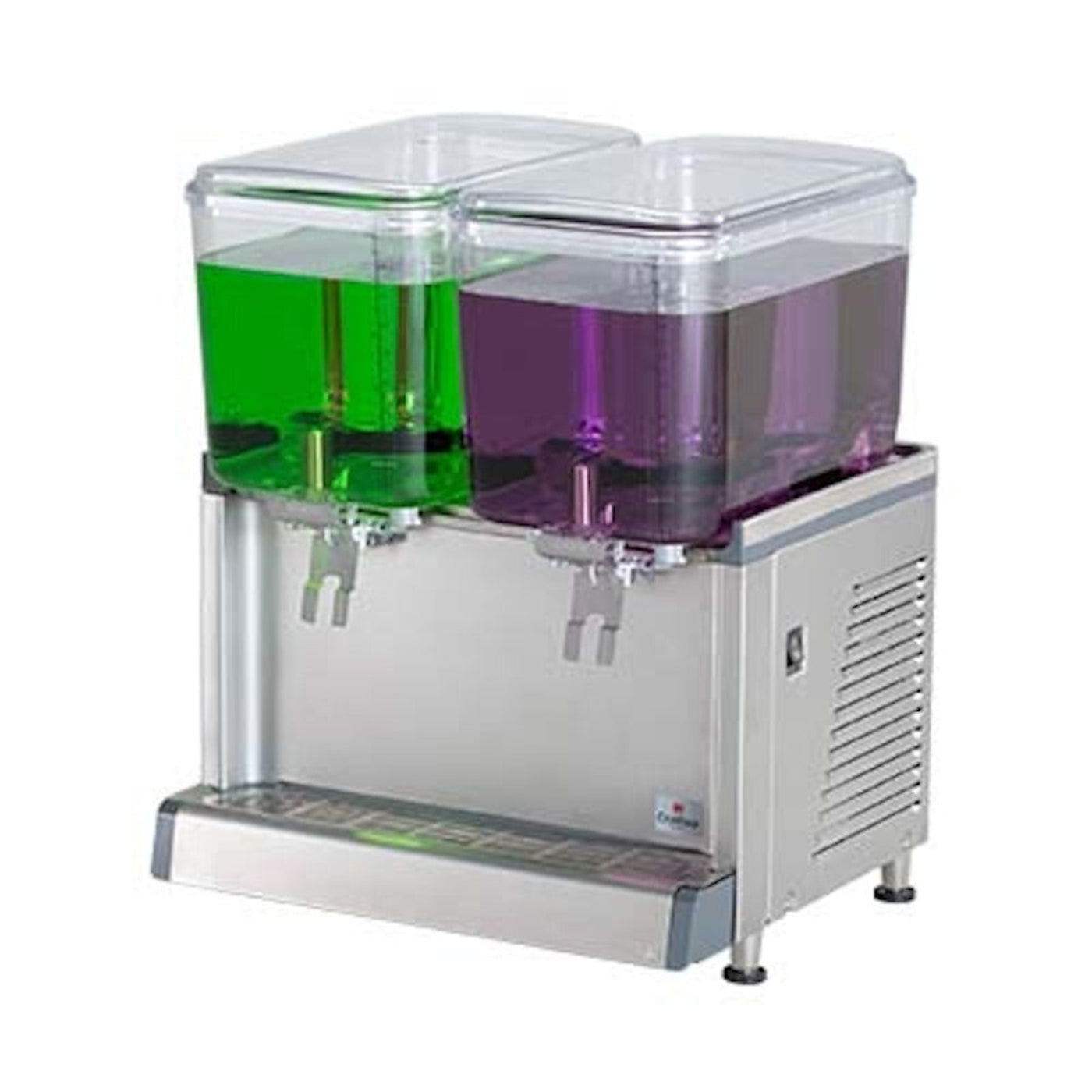

Grindmaster-Cecilware CS-2D-16 Pre-Mix Cold Beverage Dispenser - GRCCS2D16

Grindmaster-Cecilware CS-2D-16 Pre-Mix Cold Beverage Dispenser - GRCCS2D16

Upgrade your cold beverage operation with the Grindmaster-Cecilware CS-2D-16! The CS-2D-16 is a Cratcho Simplicity Bubbler Pre-Mix Cold Beverage Dispenser. It has an agitation function, making it perfect for fresh juices, coffees, or tears with minimal foaming. It has a new easy-off bowl release system for faster and easier assembly and disassembly. It comes with two 4.75-gallon clear plastic bowls. The Beverage Dispenser has a compact footprint to save you counter space.

Features

• Pre-mix dispenser with stainless steel base and clear plastic bowls
• Agitation function for fresh juices, coffees, or teas with minimal foaming system
• New easy-off bowl release system for faster and easier assembly and disassembly
• Compact size of 20.4" (52 cm) wide saves valuable counter space
• Can be placed side by side, due to air intake from bottom and exhaust to back
• Two flavors dispensed with 4.75 gallon (18 L) easy-clean bowls with 9" (23 cm) cup clearance
• User friendly design enables machine to dispense product till the very last drop
• Less wear, providing longer lifetime of parts
• Fewer removable parts to simplify cleaning and reduce maintenance
• Temperature range from 35 - 41° F (1.7 - 5° C)
• 4" legs
• 2" clearance required on sides; 5" clearance required at rear

Specifications

What Our Experts Think

• Dual Bowl Configuration: Comes with two 4.75-gallon clear plastic bowls, perfect for offering two different beverages at once.

• Efficient Agitation System: Features double agitators that mix beverages thoroughly, reducing foam and ensuring consistent quality.

• Space-Saving Design: With a compact size (20.4" width, 17.7" depth, 25.5" height), it's ideal for establishments with limited counter space.

• User-Friendly: Easy-off bowl release system makes assembly and cleaning fast and convenient.

• Durable Construction: Stainless steel base and clear plastic bowls combine durability with a sleek, professional look.

• Consistent Temperature Control: Maintains beverages between 35°F to 41°F for a refreshing drink every time.

• Convenient Cup Clearance: 9" clearance allows for easy dispensing into various cup sizes.

• Reliable Performance: Powered by a 1/10 HP motor at 120V/60/1-phase, it ensures smooth, efficient operation.

Q&A

Q: What is the Grindmaster-Cecilware CS-2D-16?
A: The CS-2D-16 is a pre-mix cold beverage dispenser with two 4.75-gallon bowls. It is designed to serve a variety of cold beverages, making it ideal for commercial use in restaurants, cafes, and convenience stores.

Q: What are the key features of the CS-2D-16?
A: The CS-2D-16 features a temperature range of 35°F to 41°F, ensuring optimal chilling of beverages. It includes agitation for consistent mixing and has a 9-inch cup clearance for different cup sizes. The unit has a compact footprint with a stainless steel base and 4-inch legs for stability.

Q: Is the CS-2D-16 suitable for high-demand environments?
A: Yes, the CS-2D-16 is built to handle high-volume dispensing in commercial settings, ensuring efficient service in busy environments.

Maintenance Tips

• Daily Cleaning:

  • Drip Tray: Empty and wash the drip tray with warm water and mild detergent.

  • Whipper Chambers: Activate the rinse function to flush the whipper chambers with warm water until clear.

  • Hoppers: Remove, clean, and refill hoppers with fresh product.

• Weekly Cleaning:

  • Disassembly: Remove the mixing impeller and bowl gasket

  • Sanitization: Clean all removable parts with a sanitizing solution, rinse thoroughly, and air dry.

  • Reassembly: Reinstall cleaned components securely.

• Preventive Maintenance:

  • Schedule: Perform maintenance every 6 to 12 months, depending on usage.

  • Service Kits: Utilize Grindmaster-Cecilware's preventive maintenance kits, such as part number 250-00126 for the CS-2D-16 model.

  • Professional Service: Consider having maintenance performed by a qualified technician.
