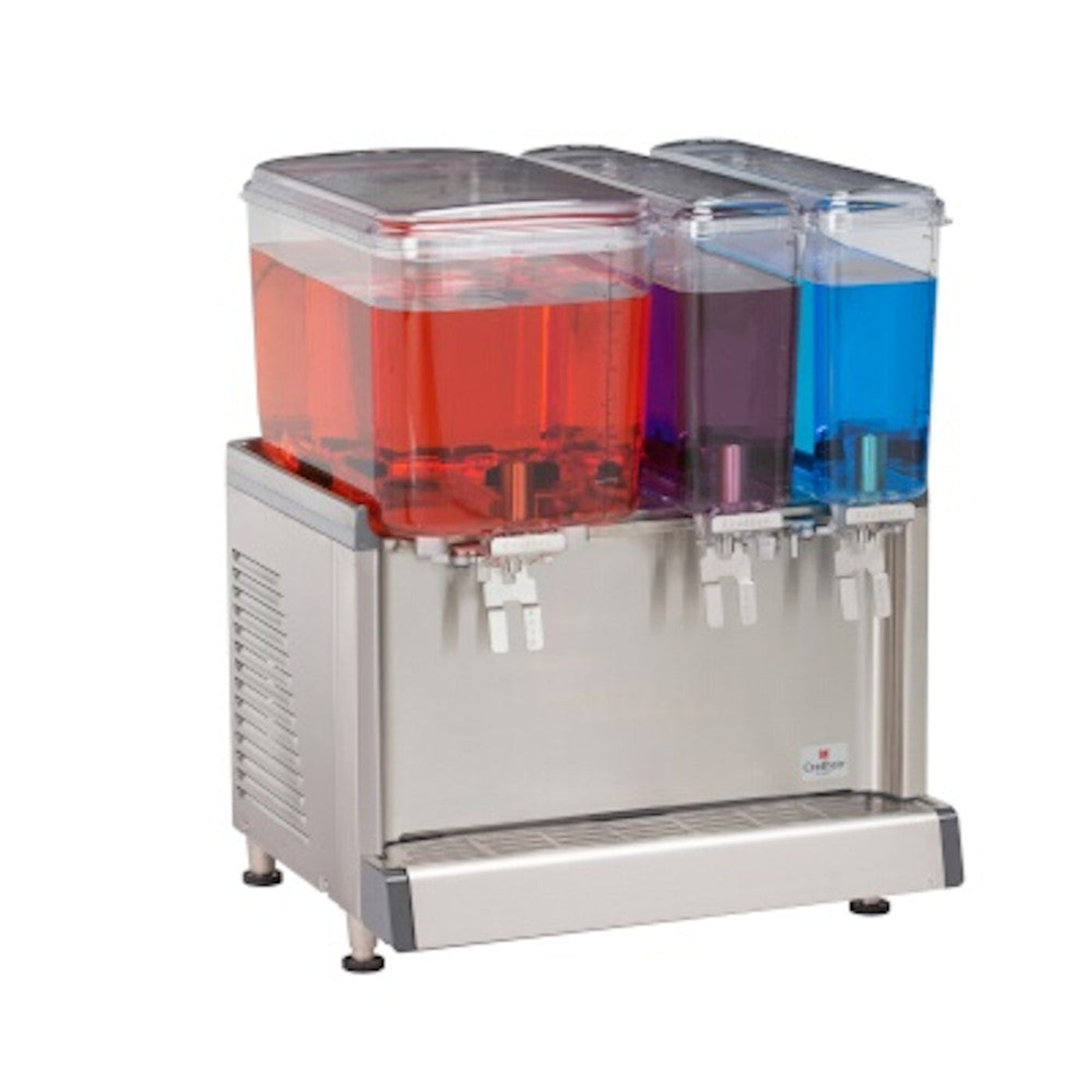

Grindmaster-Cecilware CS-3D-16 Pre-Mix Cold Beverage Dispenser - GRCCS3D16

Grindmaster-Cecilware CS-3D-16 Pre-Mix Cold Beverage Dispenser - GRCCS3D16

Upgrade your cold beverage operation with the Grindmaster-Cecilware CS-3D-16! The CS-3D-16 is a Cratcho Simplicity Bubbler Pre-Mix Cold Beverage Dispenser. It has an agitation function, making it perfect for fresh juices, coffees, or tears with minimal foaming. It has a new easy-off bowl release system for faster and easier assembly and disassembly. It has a 4.75-gallon and two mini 2.4-gallon clear plastic bowls. The Beverage Dispenser has a compact footprint to save you counter space.

The CS-3D-16 is cULus and NSF certified.

Features

• Pre-mix dispenser with stainless steel base and clear plastic bowls
• Agitation function for fresh juices, coffees, or teas with minimal foaming system
• New easy-off bowl release system for faster and easier assembly and disassembly
• Compact size of 20.4" (52 cm) wide saves valuable counter space
• Can be placed side by side, due to air intake from bottom and exhaust to back
• Dispense three flavors in (2) 2.4 gallon (9 L) and one 4.75 gallon (18 L) easy-clean bowls with 9" (23 cm) cup clearance
• User friendly design enables machine to dispense product till the very last drop
• Less wear, providing longer lifetime of parts
• Fewer removable parts to simplify cleaning and reduce maintenance
• Temperature range from 35 - 41° F (1.7 - 5° C)
• 4" legs
• 2" clearance required on sides; 5" clearance required at rear

Specifications

What Our Experts Think

• Triple Bowl Configuration: Equipped with one 4.75-gallon bowl and two 2.4-gallon bowls, allowing for versatile beverage options in one unit.

• Efficient Agitation System: Ensures consistent mixing, ideal for beverages like juices or teas, with minimal foaming.

• Compact Design: With a width of 20.4 inches, depth of 17.7 inches, and height of 25.5 inches, it’s perfect for establishments with limited counter space.

• User-Friendly: Features an easy-off bowl release system for fast assembly and cleaning.

• Durable Construction: Built with stainless steel and clear plastic, combining durability with an attractive design.

• Consistent Beverage Temperature: Keeps beverages at a steady 35°F to 41°F for refreshing drinks.

• Convenient Cup Clearance: 9-inch clearance to fit various cup sizes, making it easy for customers to serve themselves.

• Reliable Performance: Powered by a 1/10 HP motor at 120V/60/1-ph, ensuring smooth operation

Q&A

Q: What is the Grindmaster-Cecilware CS-3D-16?
A: The CS-3D-16 is a commercial pre-mix cold beverage dispenser with three bowls: one 4.75-gallon bowl and two 2.4-gallon bowls. It’s designed to serve a variety of chilled beverages efficiently.

Q: Is the CS-3D-16 suitable for high-demand environments?
A: Yes, it is built for high-volume environments like restaurants, cafes, and convenience stores, where quick and consistent beverage dispensing is essential.

Q: What are the dimensions and weight of the CS-3D-16?
A: The unit measures 20.4 inches in width, 17.7 inches in depth, and 25.5 inches in height, with a weight of approximately 110 lbs. It is designed for countertop use without taking up excessive space.

Maintenance Tips

• Daily Cleaning:

  • Empty the drip pan as needed and wash it daily with dish detergent.

  • Rinse the whipper chambers by activating the rinse switch (located to the right of the dispensing valves when the door is open) to the ON position. Dispense one to two cupfuls until the water runs clear. After cleaning, return the rinse switch to the OFF position

  • Remove the hoppers, clean them thoroughly, and refill with fresh product.

• Weekly Cleaning:

  • Disassembly:

    • Open the door and remove the mixing funnel shroud by pulling it forward while turning it one-quarter turn to the right. Lift it off and set aside.

  • Sanitizing:

    • Prepare a sanitizing solution according to local health department regulations.

    • Remove the whipper chamber by rotating it one-eighth turn to the right and pulling it out.

    • Remove the mixing funnel by lifting its neck out of the whipper chamber, tilting it to the left, and pulling it out of the white ring while holding the water inlet fitting on the back panel.

    • Clean all removed parts with the sanitizing solution, rinse, and air dry.

  • Reassembly:

    • Reinstall the mixing funnel by aligning its large opening upward, tilting it slightly to the left, inserting the water inlet pipe into the fitting on the back panel, and rotating it to the right until seated.

    • Reinstall the whipper chamber by positioning the medium-sized opening upward, tilting it one-eighth turn to the right, placing it over the whipper blade, and turning it left until it locks.

    • Replace the whipper blade by aligning its flat side with the motor shaft's flat side and pushing it firmly into place.

    • Reattach the mixing funnel shroud by placing it on the mixing funnel with its opening to the right, turning it left until it rests inside the back panel's opening.
