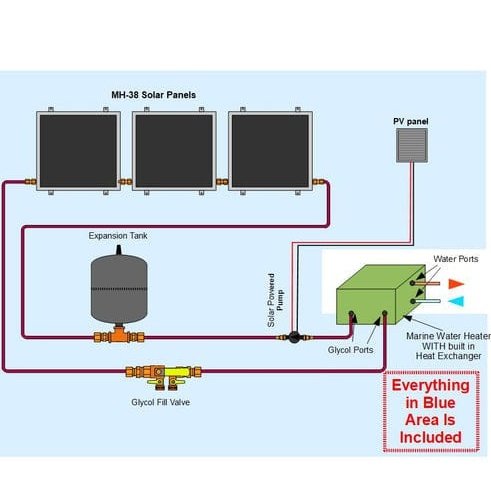

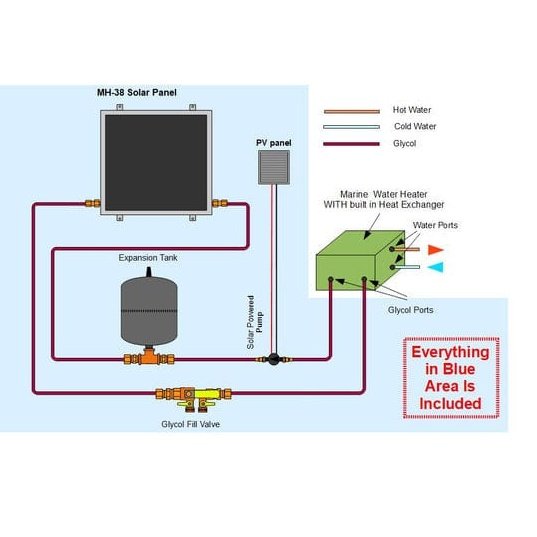

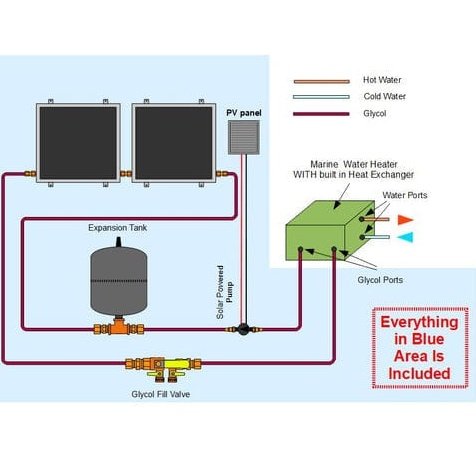

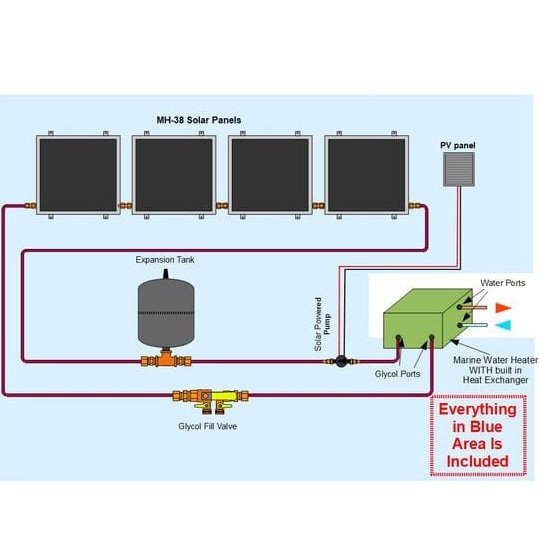

If your boat water heater has a built-in heat exchanger this kit is for you. It contains everything you need to add a high quality freeze protected solar water heater to your boat. It simply connects to the heat exchanger that is already in your water heater. The antifreeze in the solar loop is heated by Heliatos MH-38 solar water heating panels. This panel is robust enough to be mounted on a vehicle at highway speeds, has unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.

The MH-38  panels include special features to prevent corrosion even in the harshest marine environments:

• Powder-coated frame and backing, gives the appearance of white enamel
• Zinc-phosphate internal corrosion protection
• Sealed construction
• Stainless steel hardware

These panels have unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.

Specifications

SW-38 Solar Panel

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

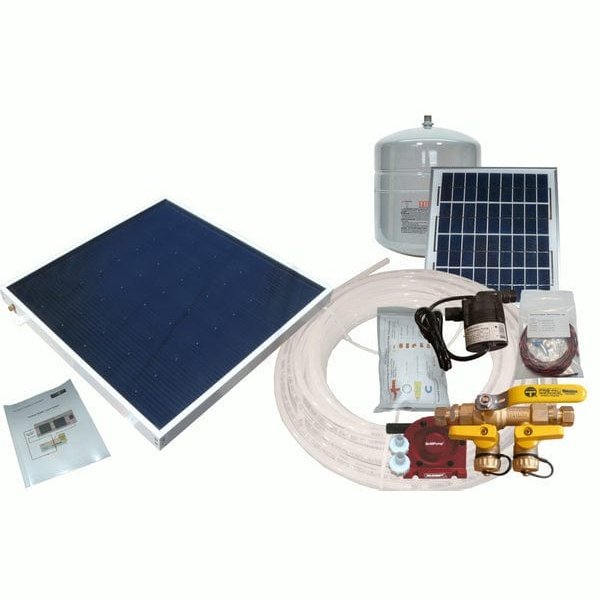

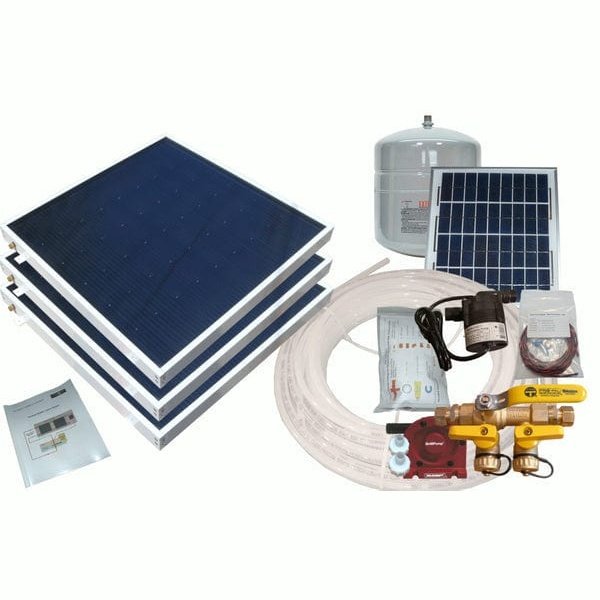

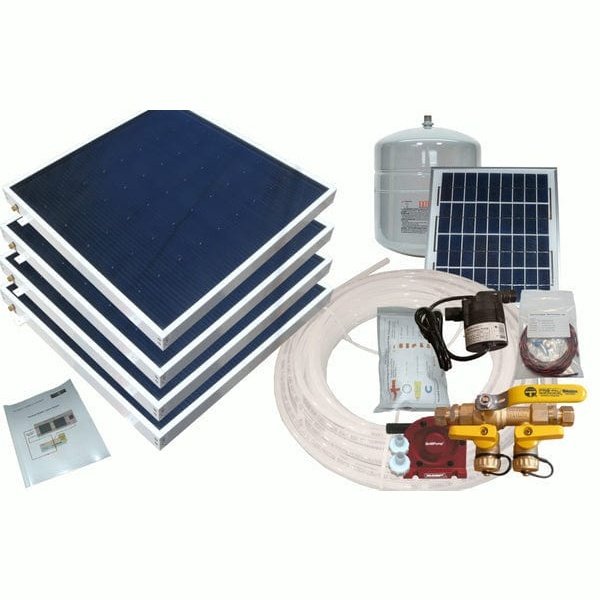

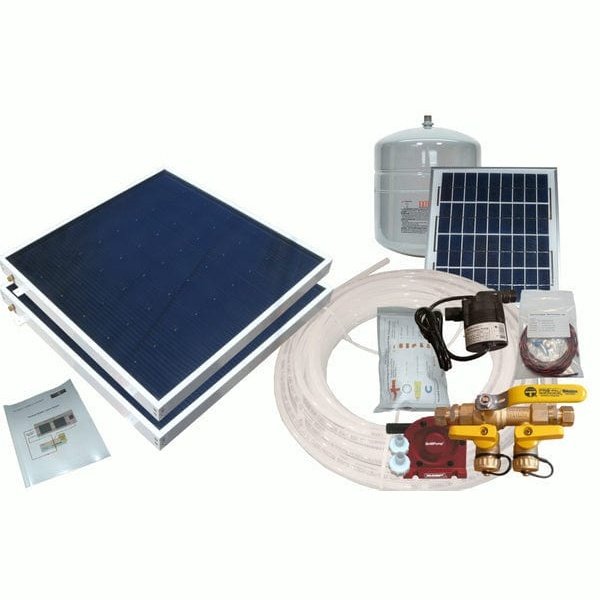

Each Kit Comes With:

• Your selected quantity Heliatos MH-38 Solar Water Heating Panel

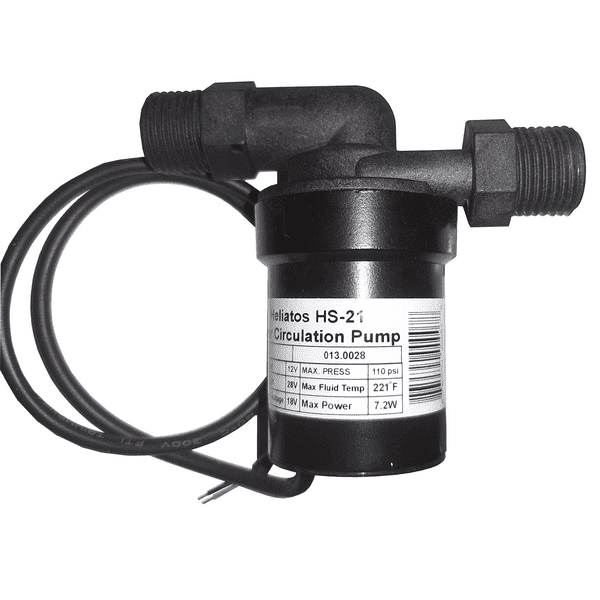

• 1 Heliatos HS-21 solar circulation pump

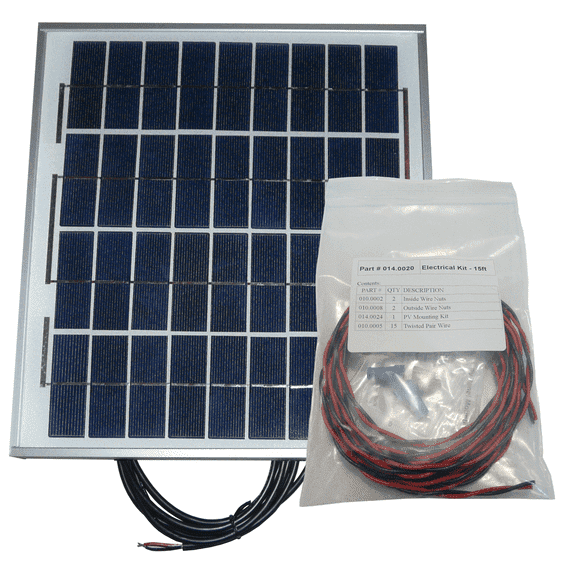

• 1 10Watt PV Solar panel to power the pump
• Wire and PV panel mounting tabs
• 25 ft of 1/4' PEX tubing
• Amtrol #15 Expansion Tank

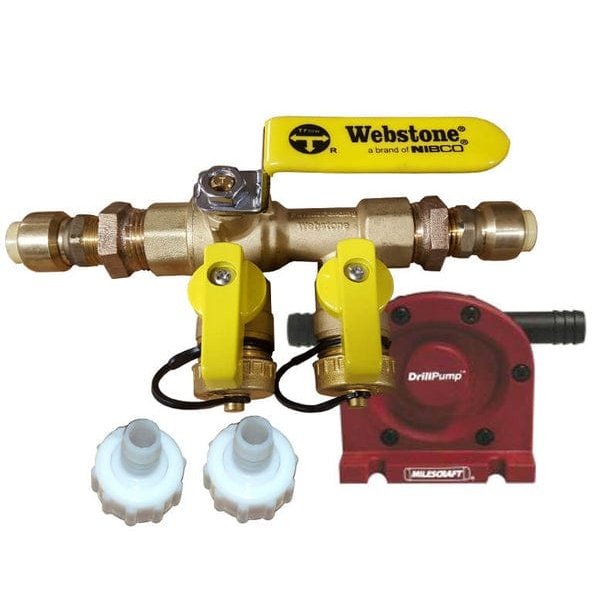

• RV/Marine Glycol Fill and Purge Valve with Drill Pump and Instructions
• 1 Complete Set of Fittings and Adapters
• Assumes RV water heater with 1/2' NPT connections (most common)
• Contact us for non-standard Water Heaters or Connections
• Clear and easy to follow installation instructions

In the Box

• Fasteners to attach the panels
• Insulation for the tubing
• Your existing Marine water heater
• Tools needed for installation

Manual

• Installation Instructions
