Heliatos RV Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

Heliatos RV Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

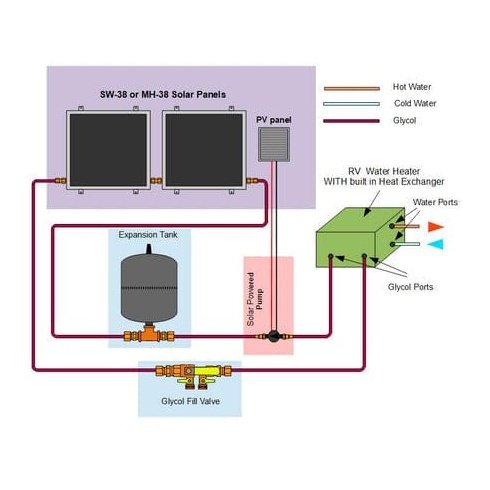

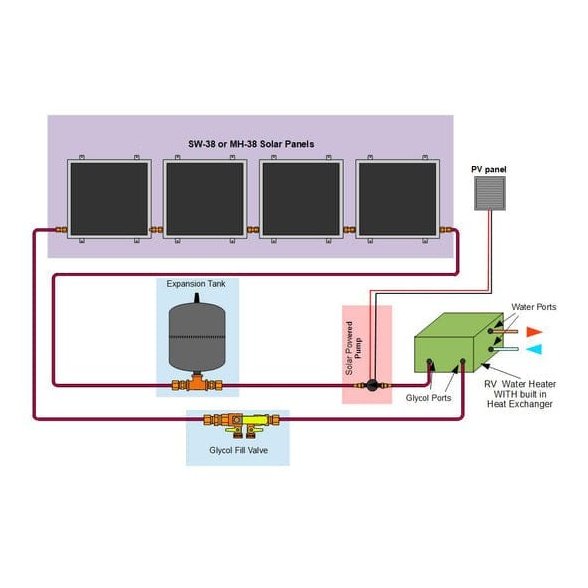

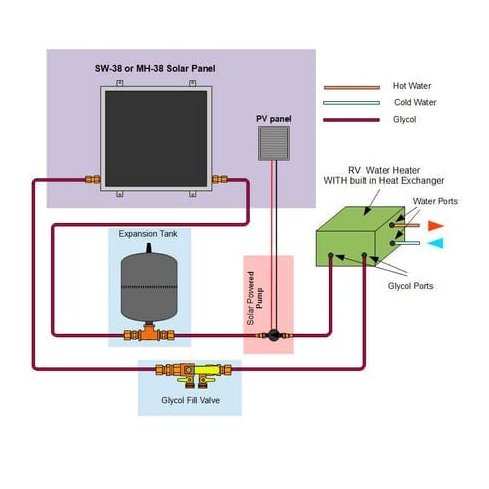

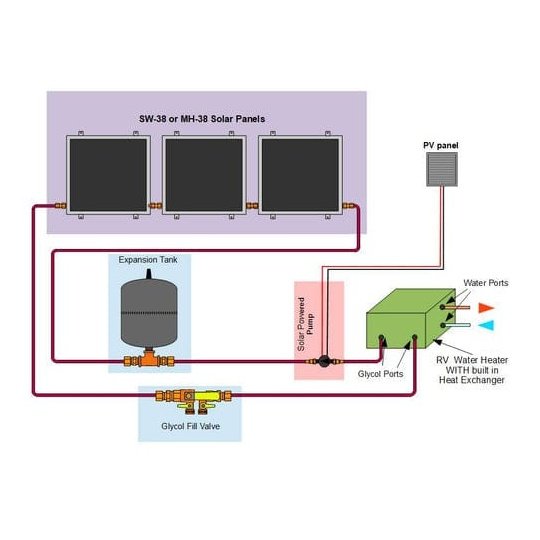

This RV water heater kit includes all the components necessary to easily integrate a top-notch freeze protected solar water heater, specifically designed for vehicles and equipped with a built-in heat exchanger. With the Heliatos SW-38 heating panels, the solar loop's antifreeze is heated to a high temperature, ensuring reliable performance even at high speeds. The panels' sturdy aluminum structure and unbreakable twinwall polycarbonate glazing make them lightweight at just 12 lbs, without sacrificing durability.

Specifications

SW-38 Solar Panel

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

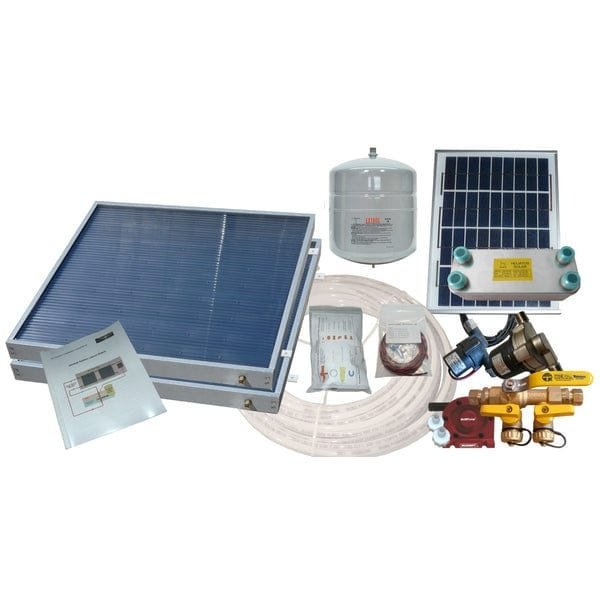

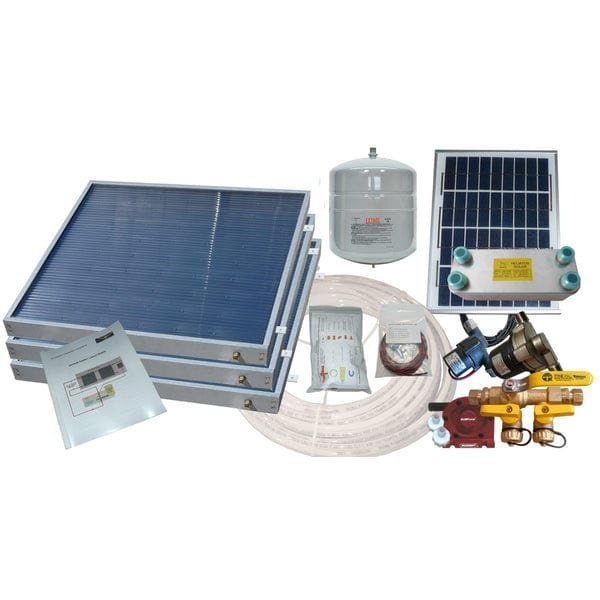

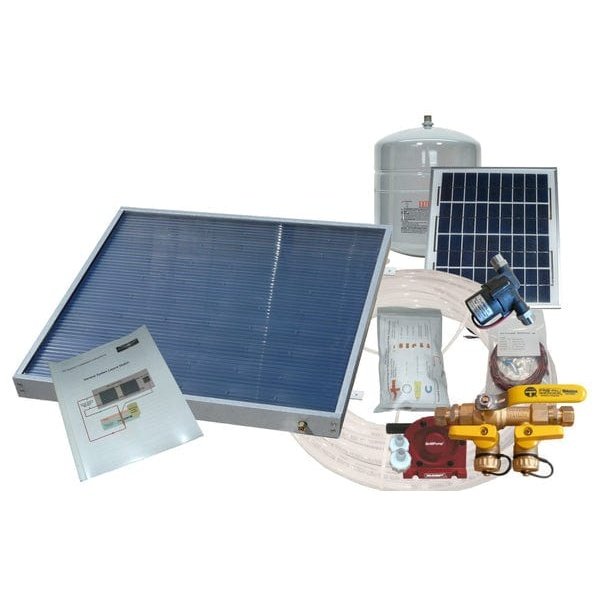

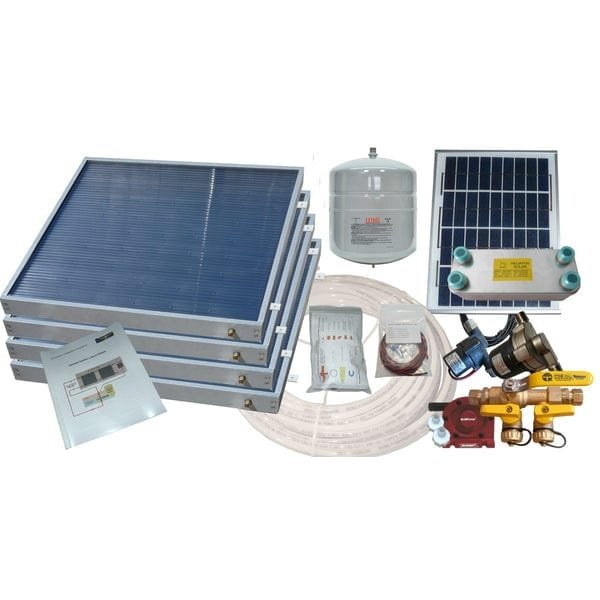

In the Box

• Your selected quantity of Heliatos SW-38 Solar Water Heating Panel

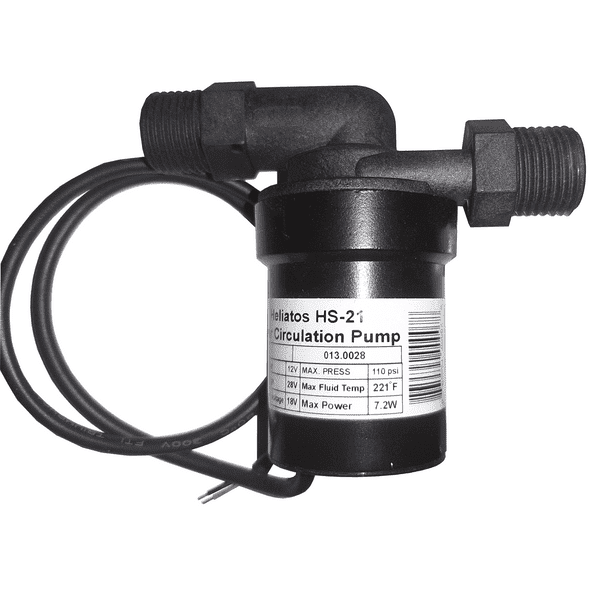

• 1 Heliatos HS-21 solar circulation pump

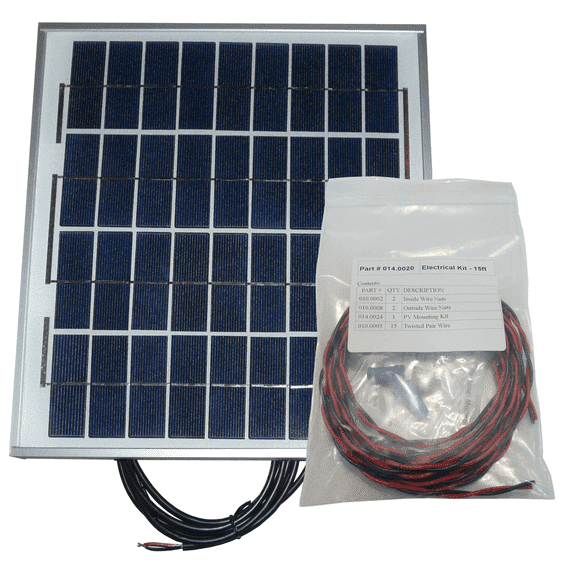

• 1 10 Watt PV Solar panel to power the pump
• Wire and PV panel mounting tabs
• 25 ft of 1/4' PEX tubing
• Amtrol #15 Expansion Tank

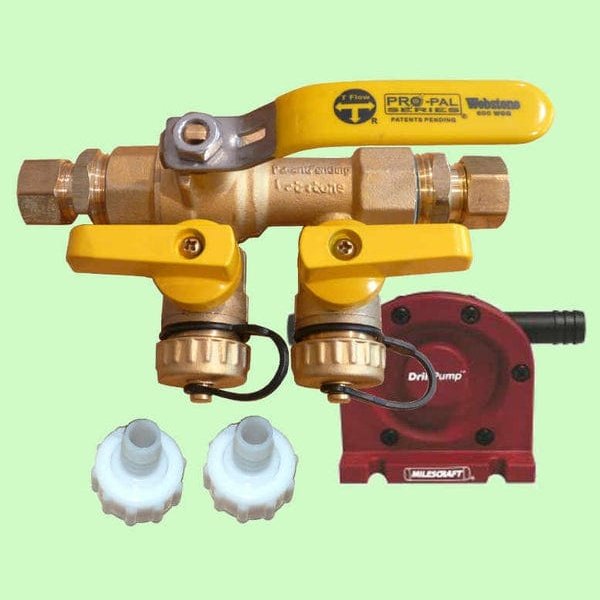

• RV Glycol Fill and Purge Valve with Drill Pump and Instructions
• 1 Complete Set of Fittings and Adapters
• Assumes RV water heater with 1/2' NPT connections (most common)
• Contact us for non-standard Water Heaters or Connections

All You Have To Supply Is

• Fasteners to attach the panels
• Insulation for the tubing
• Your existing RV water heater
• Tools needed for installation

Video

Download

• Installation Instructions
