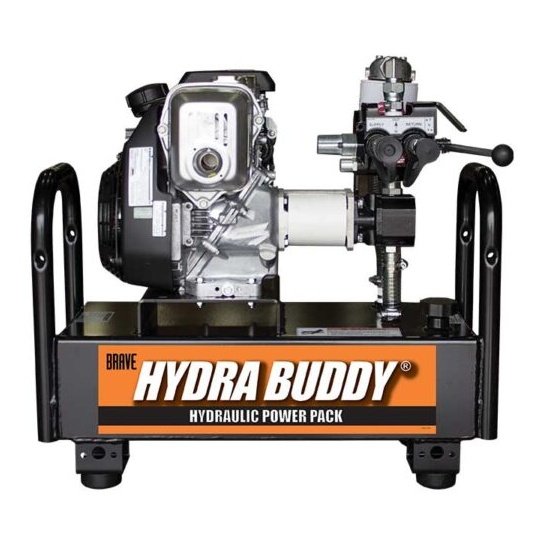

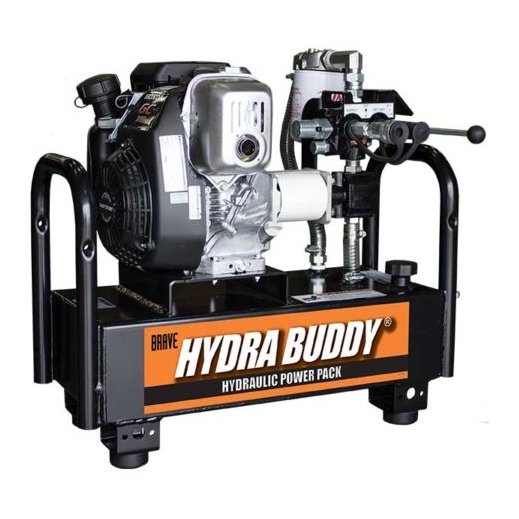

Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC)

Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC)

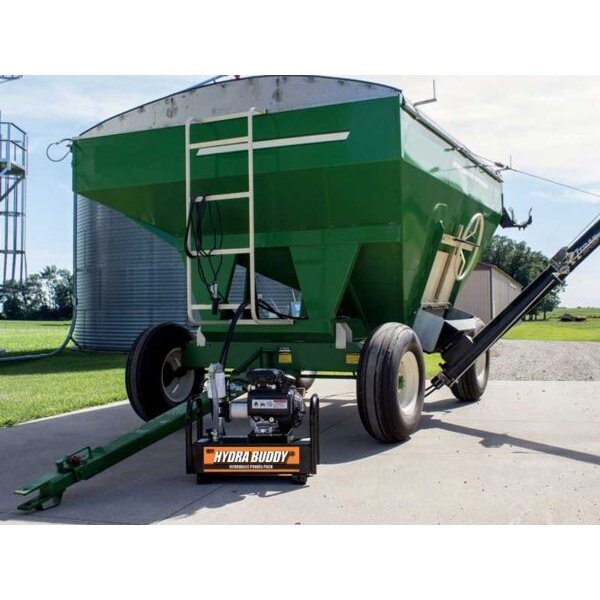

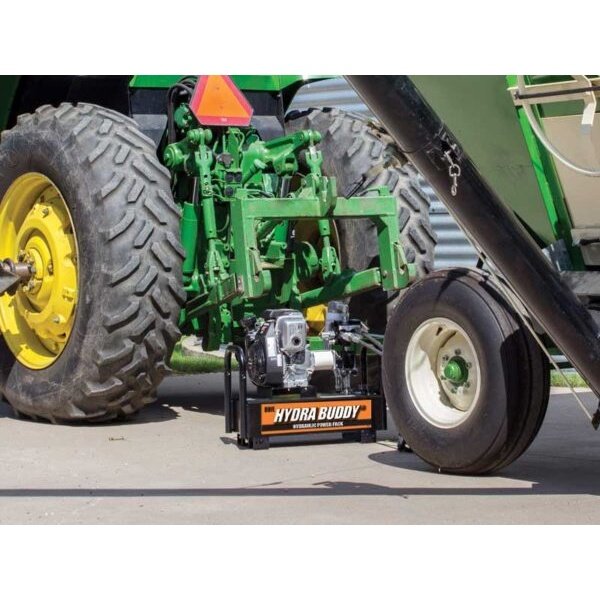

The Hydra Buddy™ replaces tractor power for augers, conveyors, dump wagons and more. These portable power units save you time & money by using less fuel and less maintenance than a tractor.

This Hydra Buddy™ unit comes with the standard Honda® GC160 motor. The 'big brother' of this unit (the HBH13GX) comes with the commercial Honda® GX160 engine.

With a 7 GPM Haldex Single-Stage Pump (900 PSI), will deliver a constant flow and pressure without spikes. Comes standard with 1/2” Stainless Steel Ports with Quick Disconnect Couplers which will minimize any downtime when changing applications.

The large 5.6-gallon hydraulic tank provides ample fluid for your applications.

Specifications

• Shipping: Free (standard ground shipping)
• UPC: 011343000244
• Engine: Honda GC160
• Pump Capacity: 7 GPM
• Pump Ports: 1/2' (14 O-Ring)
• Pump Direction: Counterclockwise
• Hydraulic Fluid Type: AW32, ASLE H-150 or ISO 32
• Hydraulic Tank: 5.6 gal
• Hydraulic Tank: 3/16' Steel
• Tank Drain Port: Yes - 1/2' NPT
• Hydraulic Valve Rating: 900 PSI
• Valve Type: One-Way Detent, One Way Spring Return
• Hydraulic Valve Inlet: 3/4-14 NPT
• Hydraulic Valve Outlet: 3/4-14 NPT
• Filter Type: Parker 12AT25CN25BBN
• Quick Disconnects: ISO 7241-1 Series A
• Unit Dimensions: 27'L x 14'W x 25'H
• Weight: 133 lbs
• Warranty: 2 Year

Warranty

2-Year Limited Warranty

Hydra Buddy Brochure

What Our Experts Think

The Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC) is a versatile and reliable solution for hydraulic power in remote and demanding environments. Here’s why it stands out:

• Powerful Honda 16HP Engine: Delivers robust performance for various hydraulic applications.
• Portable and Compact: Lightweight design allows for easy transport and setup in different locations.
• Durable and Reliable: Built with high-quality materials to withstand challenging conditions and heavy use.
• Variable Hydraulic Output: Provides precise control, ideal for a wide range of hydraulic tools and equipment.
• User-Friendly Design: Simple controls and minimal maintenance ensure smooth operation and efficiency.

An excellent choice for contractors, landscapers, and industries requiring portable hydraulic power for remote operations.

Q&A

Q: What engine powers this portable hydraulic unit?
A: It features a Honda GX160 engine for reliable and efficient performance.

Q: What hydraulic flow does it provide?
A: It delivers up to 16 GPM (Gallons Per Minute) for effective hydraulic power.

Q: Is it designed for portability?
A: Yes, it is lightweight and comes with a durable frame for easy transport.

Q: What applications is it best suited for?
A: Ideal for log splitters, trenchers, and other hydraulic-powered equipment.

Q: What are the main features?
A: Compact design, robust Honda engine, adjustable hydraulic pressure, and portability.

Q: Can it handle demanding hydraulic tasks?
A: Yes, it is built to handle heavy-duty hydraulic applications with precision and efficiency.

Q: Is it easy to operate?
A: Yes, the user-friendly controls and durable construction ensure ease of use in various environments..

Maintenance Tips

1. Regular Oil Checks: Inspect and maintain hydraulic fluid levels regularly. Replace fluid and filter as recommended by the manufacturer.
2. Inspect Hoses and Fittings: Check hydraulic hoses and fittings for leaks, cracks, or wear. Replace any damaged components immediately.
3. Clean Cooling System: Ensure the cooling system is free of debris and properly maintained to prevent overheating.
4. Lubricate Moving Parts: Apply grease to pivot points and other moving components to reduce wear and ensure smooth operation.
5. Engine Maintenance: Regularly check and maintain the engine, including oil levels, air filter, and spark plug condition.
6. Monitor Pressure Levels: Regularly check hydraulic pressure levels to ensure they are within the recommended range.
7. Electrical System: Inspect and maintain electrical connections and wiring for proper functionality and safety.
8. Secure Fasteners: Ensure bolts, nuts, and other fasteners are tight to prevent loosening during operation.
9. Storage: Store the unit in a dry, secure location to prevent damage from environmental factors.
10. Professional Servicing: Schedule regular maintenance and inspections with a qualified technician for optimal performance and safety.
