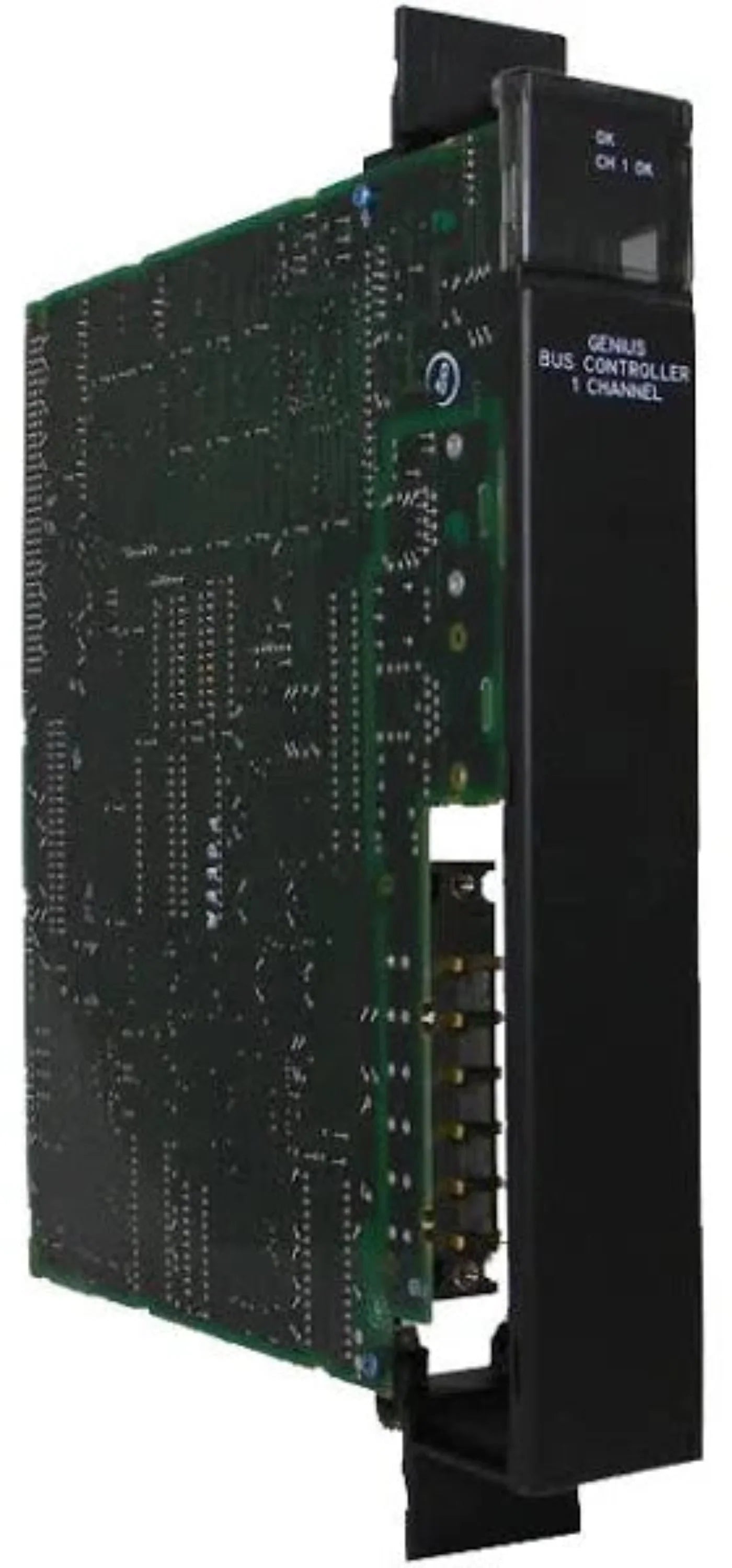

Fanuc Corporation GE Fanuc Controller Module - IC697BEM731

Fanuc Corporation  GE Fanuc Controller Module - IC697BEM731

What our Experts Think

• Single-Channel Genius Bus Controller: Occupies one slot in the rack, facilitating communication between the PLC CPU and up to 30 I/O devices on the Genius I/O bus.

• Flexible Communication Rates: Supports data rates of 153.6K, 76.8K, and 38.4K baud, with communication distances ranging from 2,000 to 7,500 feet depending on the baud rate.

• Integrated Hand-Held Monitor Port: Includes a port for connecting hand-held monitors, enabling easy configuration and diagnostics.

• Advanced Diagnostic Capabilities: Provides comprehensive diagnostics for I/O devices and supports redundancy in blocks, cables, and CPUs.

• Software Configuration: Configured via MS-DOS or Windows-based programming software for flexible setup and adjustments.

Q&A

Q: What is the IC697BEM731 Controller Module?
A: The IC697BEM731 is a GE Fanuc controller module designed for use with the Series 90-70 PLC systems. It provides advanced processing capabilities and communication support within automation systems.

Q: What systems is it compatible with?
A: This module is compatible with GE Fanuc Series 90-70 PLC systems, commonly used in industrial automation, control, and monitoring applications.

Q: What does the controller module do?
A: The IC697BEM731 serves as a communication and control interface, enabling the PLC to exchange data and instructions with connected devices, ensuring seamless system operation.

Q: Why choose the IC697BEM731?
A: It offers reliable performance, fast communication, and supports multiple I/O operations, enhancing the efficiency and functionality of industrial control systems.

Q: Is this an OEM product?
A: Yes, the IC697BEM731 is a genuine GE Fanuc part, ensuring compatibility, durability, and long-term reliability for your automation needs.

Maintenance Tips

• Visual Inspection: Periodically inspect the module for any visible damage, such as burnt components, broken connectors, or signs of overheating. Ensure the PCB is free from cracks and damage.

• Clean the Module: Use dry compressed air or an anti-static brush to remove any dust or debris. Avoid using liquid cleaners, as they can damage sensitive components or cause short circuits.

• Verify Input/Output Signals: Ensure that the input and output signals are within the specified voltage ranges. Incorrect signal levels can lead to malfunctioning of the controller or connected devices.

• Check Connectors and Wiring: Ensure all wiring is properly connected and free from corrosion or damage. Loose or worn-out connectors can cause communication errors or power loss.

• Run Diagnostic Tests: Utilize diagnostic tools or software to check the performance and status of the controller. Look for any error codes or signs of malfunctioning.

• Monitor Power Supply: Check that the power supply is providing the correct voltage. Fluctuations or incorrect voltage can cause instability or damage to the module.

• Inspect for Overheating: Make sure the module is operating within the recommended temperature range. Overheating can affect performance and reduce the module's lifespan. Ensure proper ventilation is provided.

• Test Communication Ports: Inspect communication ports for any damage or blockages. Communication failures can disrupt data transfer between modules and other connected devices.

• Inspect PCB and Solder Joints: Check the printed circuit board (PCB) for wear, corrosion, or faulty solder joints. Poor soldering can result in unreliable performance or failure.

• ESD Protection: Always handle the module with electrostatic discharge (ESD) protection, such as wrist straps or anti-static mats, to prevent damage to sensitive components.
