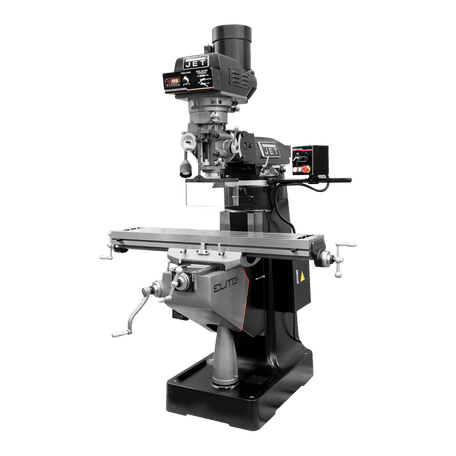

JET Elite EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X, Y-Axis JET Powerfeeds - JT9-894310

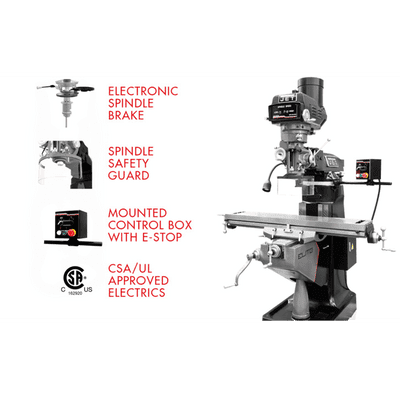

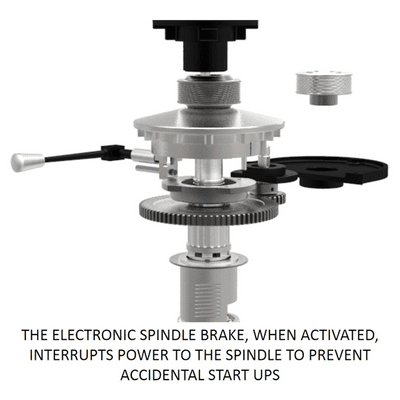

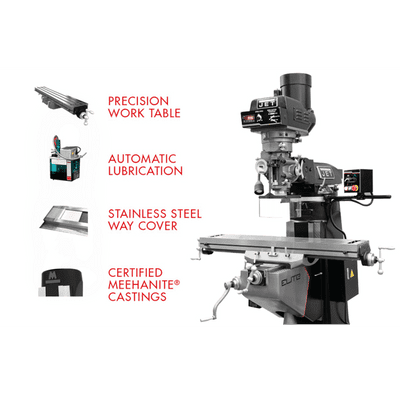

Discover the pinnacle of precision and performance with the JET Elite EVS-949 Mill. Engineered for excellence, this mill is crafted with Certified Meehanite® castings, ensuring robust durability and reliable operation across a wide range of materials. Equipped with an electronic spindle brake to prevent accidental starts and a hardened, ground table for precision milling, the EVS-949 sets a new standard in machining.

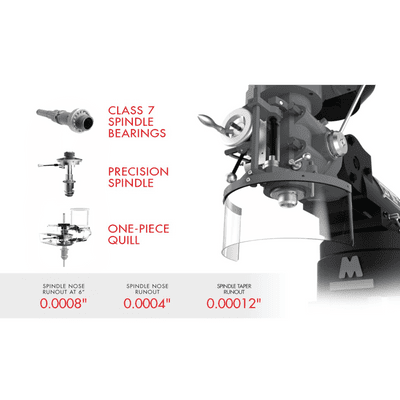

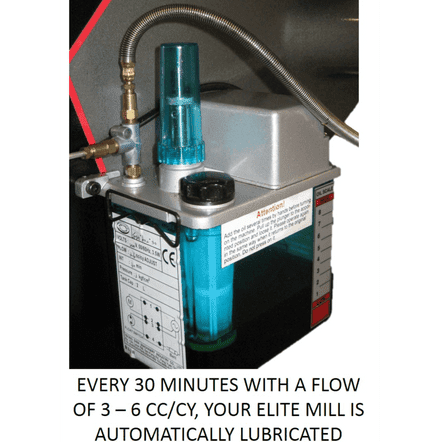

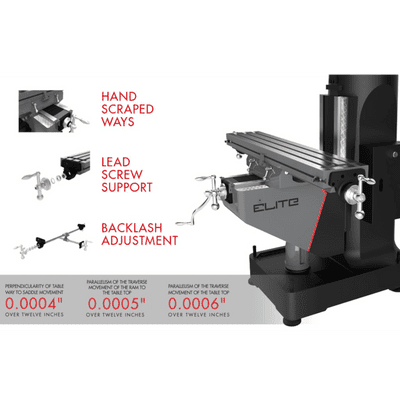

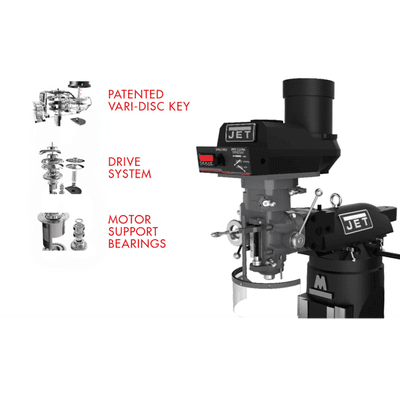

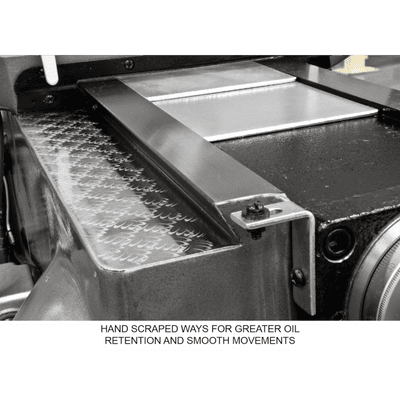

Featuring our patented vari-disc key for superior wear resistance, the fully hardened Chromium Molybdenum spindle meets stringent tolerance requirements. Precision is further enhanced by class 7210 (P4, ABEC-7) precision angular bearings, delivering an industry-leading spindle taper runout of just 0.00012". Hand-scraped Y- and Z-axis ways provide optimal oil retention and smooth movement, complemented by automated lubrication every 30 minutes.
Features
-
Ball Bearing Motor Support: Ensures quiet, accurate operation at any speed.
-
Heat Treated Lead Screws: Polished and supported by thrust bearings for smooth table movements.
-
Seamless Steel Quill: Induction hardened, chromed, and precision ground for enhanced strength and accuracy.
-
Stainless Steel Y-Axis Way Cover: Provides extended protection compared to standard covers.
-

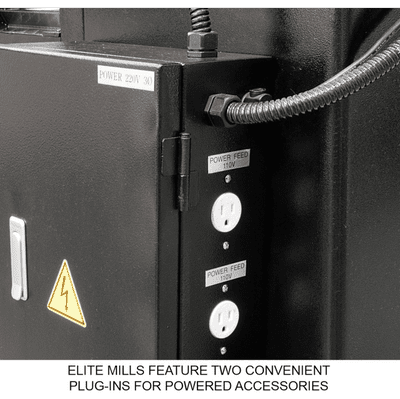

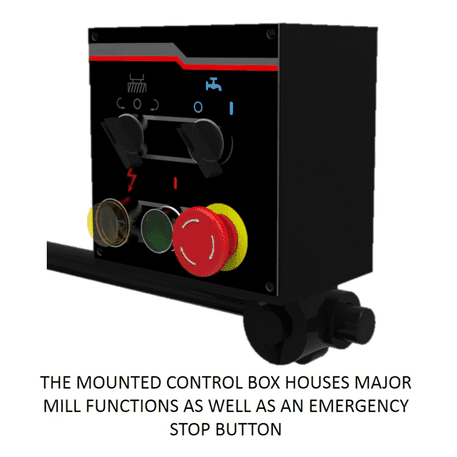

Mounted Control Box: Houses major functions and includes an emergency stop button for enhanced safety.
-
Advanced Double Nut Design: Controls table and saddle backlash for precise lateral movements.
-
Variable Speed Pulleys: Ground and balanced for reduced vibration and smooth speed transitions.
Specifications
| Spindle Travel: | 5 inches |
|---|---|
| Style: | Variable Speed |
| Number of Axis: | 2 (X, Y) |
| Table Size: | 9 x 49 inches |
| Weight: | 2300 lbs |
| Spindle Taper: | R-8 |
| Max Distance Spindle to Table: | 18-3/4 inches |
| Amperage Draw @ 230V 3Ph: | 18 |
| Distance Spindle to Column (Max.): | 21-2/5 inches |

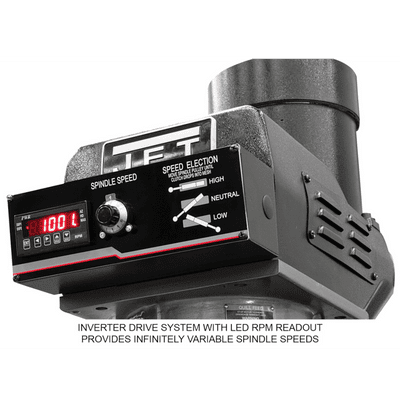

| Range of Spindle Speeds: | 60 - 5,000 RPM |
| Quill Diameter: | 3-3/8 inches |
| Collet Capacity: | 1/8 - 7/8 inches |
| Quill Down Feed Rates: | 0.0015 - 0.003 - 0.006 IPR |
| Table Longitudinal Travel: | 36 inches |
| Table Cross Travel: | 12 inches |
| T-Slot Centers: | 2-1/2 inches |
| Work Table Weight Capacity: | 550 lbs |
| Travel of Knee: | 16 inches |
| Travel of Ram: | 14 inches |
| Motor: | 3 HP, 230V, 3 Ph |
| Overall Dimensions: | 68 x 63 x 84 inches |
