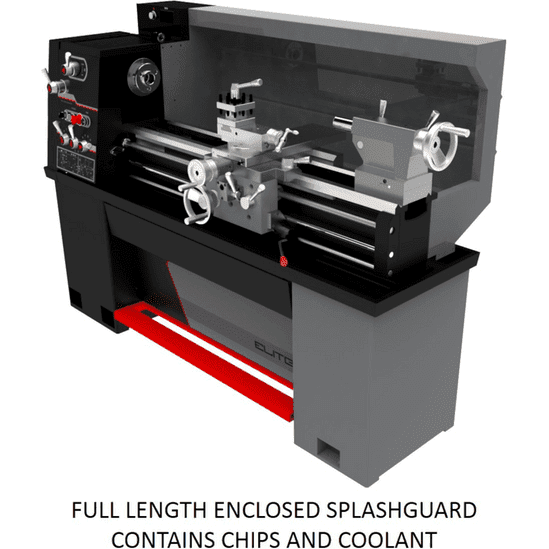

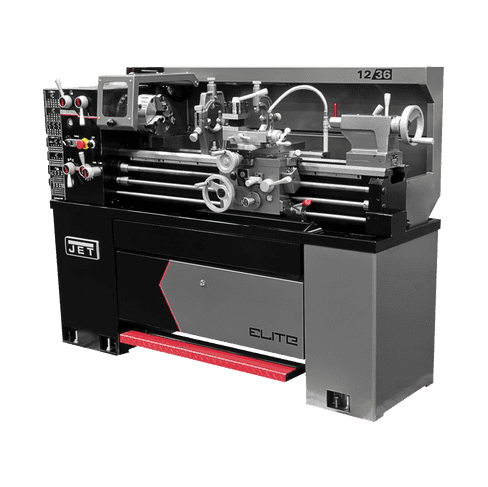

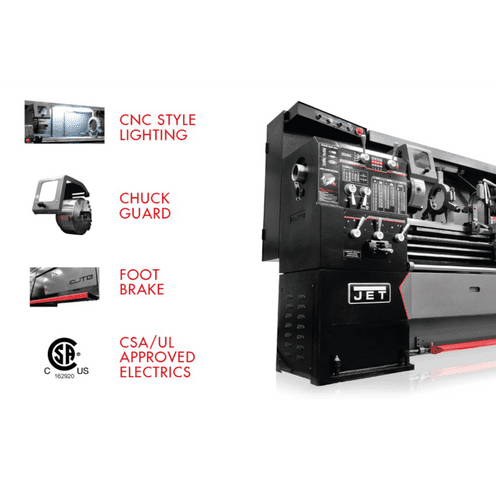

Elite EVS 14 x 40 Geared Head Lathes combine large features in a compact design, making them ideal for schools, small shops, and engineering labs. Crafted with certified Meehanite® castings, these lathes ensure durability and precision in every operation. With an electro-magnetic brake, a three jaw chuck, ball bearing-mounted steady and follow rests, and CNC style lighting with an enclosed splash guard, Elite EVS Lathes are designed for those who demand excellence.
Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite® castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!
4-Position Carriage Stop
Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine

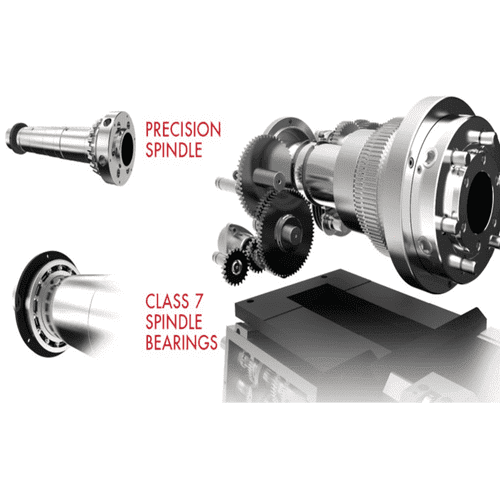

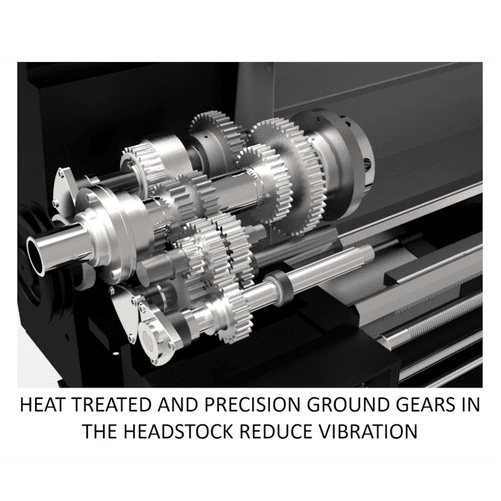

Hardened and ground gears in headstock reduce vibration and deflection

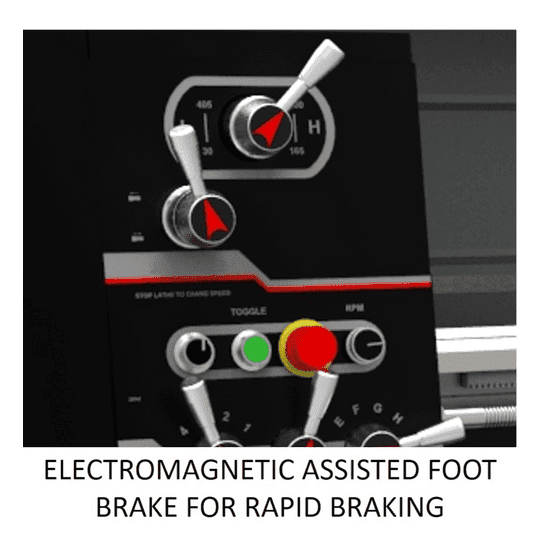

Heavy-duty stand with full length foot brake
Inverter drive system provides infinitely variable spindle speeds
LED RPM readout allows for precise turning speeds

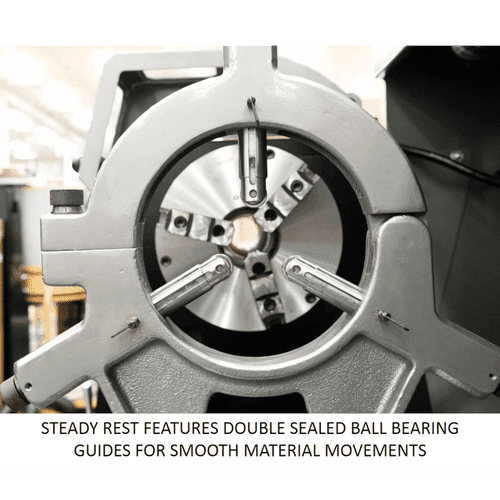

Steady Rest-Ball Bearing
Variable spindle speeds

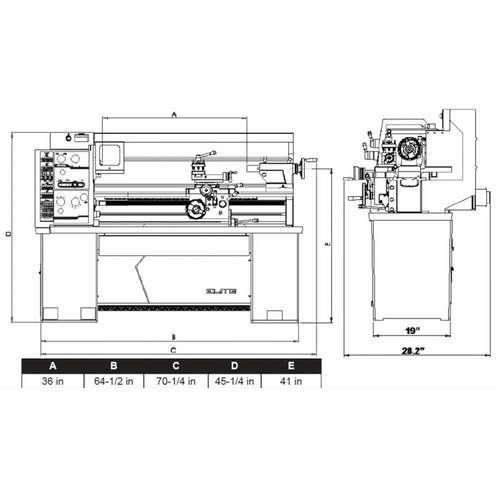

| Size: | 14 x 40 |
|---|---|
| Style (Type): | Elite EVS |
| Swing Over Bed: | 14 inches |
| Swing Over Cross Slide: | 8-5/8 |
| Swing Through Gap: | 20 inches |
| Length of Gap: | 9 inches |
| Spindle Bore: | 1-1/2 |
| Spindle Mount | D1-4 |
| Weight: | 1653 lbs |
All Elite Machinery is backed by a 3 Year Parts and Labor Warranty. The Elite 3-Year Warranty is backed by JET with over 55 years of providing unparalleled service and support. Contact 1-855-336-4032 for more information.
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
