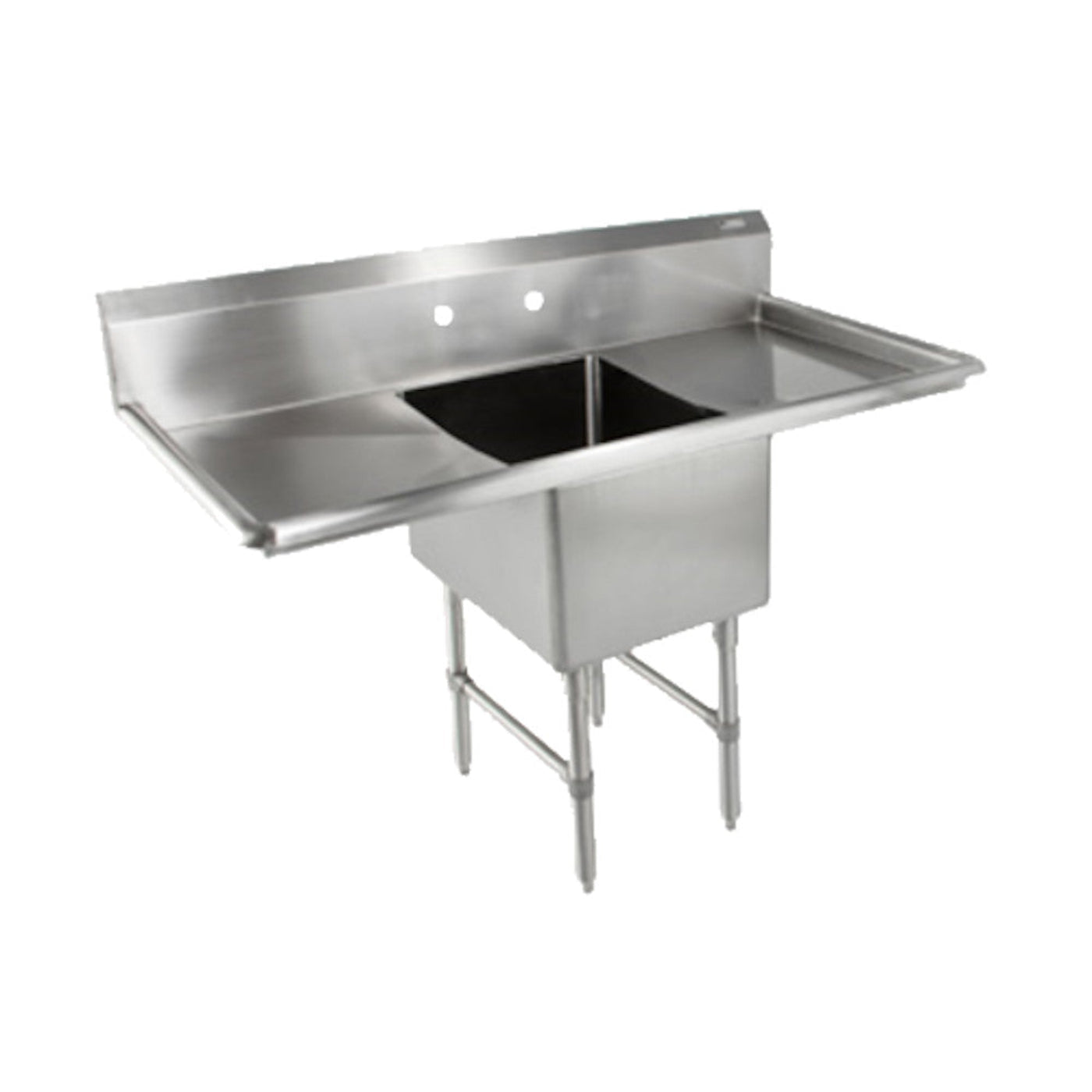

John Boos 1B18244-2D24 One Compartment Sink with Two 24" Drainboards - JB1B182442D24

John Boos 1B18244-2D24 One Compartment Sink with Two 24" Drainboards - JB1B182442D24

This John Boos 1B18244-2D24 is the ideal compartment sink for washing dishes, rinsing food products, or cleaning art supplies. With one sink-compartment and two 24" drainboard, this Sink provides operators with a convenient workspace. The drainboards serve as the perfect place to let items air dry. The Sink's durable stainless steel design makes it perfect for almost any commercial or industrial environment. Its top and bowl are constructed of 16 gauge stainless steel and polished with a #4 satin finish. The corners of the sink have been coved both vertically and horizontally at a 3/4" radius. The outside corners have been coved to provide a safe, clean, and polished edge. This 1B18244-2D24 includes a 10" high boxed backsplash to protect the wall and surrounding areas from water damage. This John Boos One-Compartment "B" Series Sink with Drainboard does not include a faucet.

Features

• (1) 18" W x 24" front-to-back x 14" deep sink compartment
• (2) 24" left and right drainboards
• 16 gauge stainless steel bowl and top
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" turned down rear lip
• 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bullnosed to provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Stainless steel sink tops are tig welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel frame is mig welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable bullet feet

Specifications

What our Experts Think

• Overall Dimensions: 69 inches (width) x 29.5 inches (depth) x 44 inches (height).

• Bowl Specifications: Single compartment measuring 18 inches (width) x 24 inches (front-to-back) x 14 inches (depth).

• Drainboards: Equipped with 24-inch drainboards on both the left and right sides, providing ample space for drying and staging items.

• Material: Constructed from 16-gauge Type 300 series stainless steel with a polished satin finish, ensuring longevity and ease of cleaning.

• Backsplash: Features a 10-inch high boxed backsplash with a 2-inch return to the wall at a 45° angle, helping to prevent splashes and maintain cleanliness.

• Faucet Mounting: Comes with one set of splash mount faucet holes with 8-inch centers, facilitating the installation of compatible faucets.

• Drainage: Includes a 3.5-inch die-stamped drain opening at the bottom of the bowl for efficient drainage.

• Support Structure: Built with stainless steel legs and adjustable side bracing, providing sturdy support and stability.

• Adjustable Feet: Features adjustable bullet feet, allowing for leveling on uneven surfaces

• Certifications: NSF and CSA-Sanitation certified, meeting rigorous health and safety standards suitable for commercial use.

Q&A

Q: What are the dimensions of the John Boos 1B18244-2D24 sink?

A: The sink measures 69 inches in width, 29.5 inches in depth, and 44 inches in height.

Q: What is the size of the sink compartment?

A: The compartment is 18 inches wide, 24 inches front-to-back, and 14 inches deep.

Q: What material is the sink made from?

A: It is constructed from 16-gauge, type 300-series stainless steel with a #4 polish, satin finish, ensuring durability and resistance to corrosion.

Q: Does the sink include drainboards?

A: Yes, the sink features 24-inch left and right drainboards, providing ample space for drying and staging items.

Q: What is the height of the backsplash?

A: The sink has a 10-inch high boxed backsplash with a 45-degree top and 2-inch return, helping to contain splashes and keep surrounding areas clean.

Q: Are faucet holes included with this sink?

A: Yes, the sink comes with a set of splash-mount faucet holes with 8-inch centers, facilitating easy faucet installation.

Q: What type of legs does the sink have?

A: The sink is supported by 1.625-inch diameter stainless steel legs, providing sturdy support

Maintenance Tips

• Overall Dimensions: 69" Width x 29.5" Depth x 44" Height

• Bowl Specifications

• Size: 18" Width x 24" Front-to-Back x 14" Depth

• Design: Features coved corners for easy cleaning.

• Construction

• Material: Crafted from 16-gauge Type 300-series stainless steel with a polished satin finish, ensuring durability and resistance to corrosion.

• Legs: Equipped with 1.625" diameter stainless steel legs for sturdy support.

• Bracing: Includes adjustable side bracing to enhance stability

• Feet: Features adjustable bullet feet to level the sink on uneven floors.
