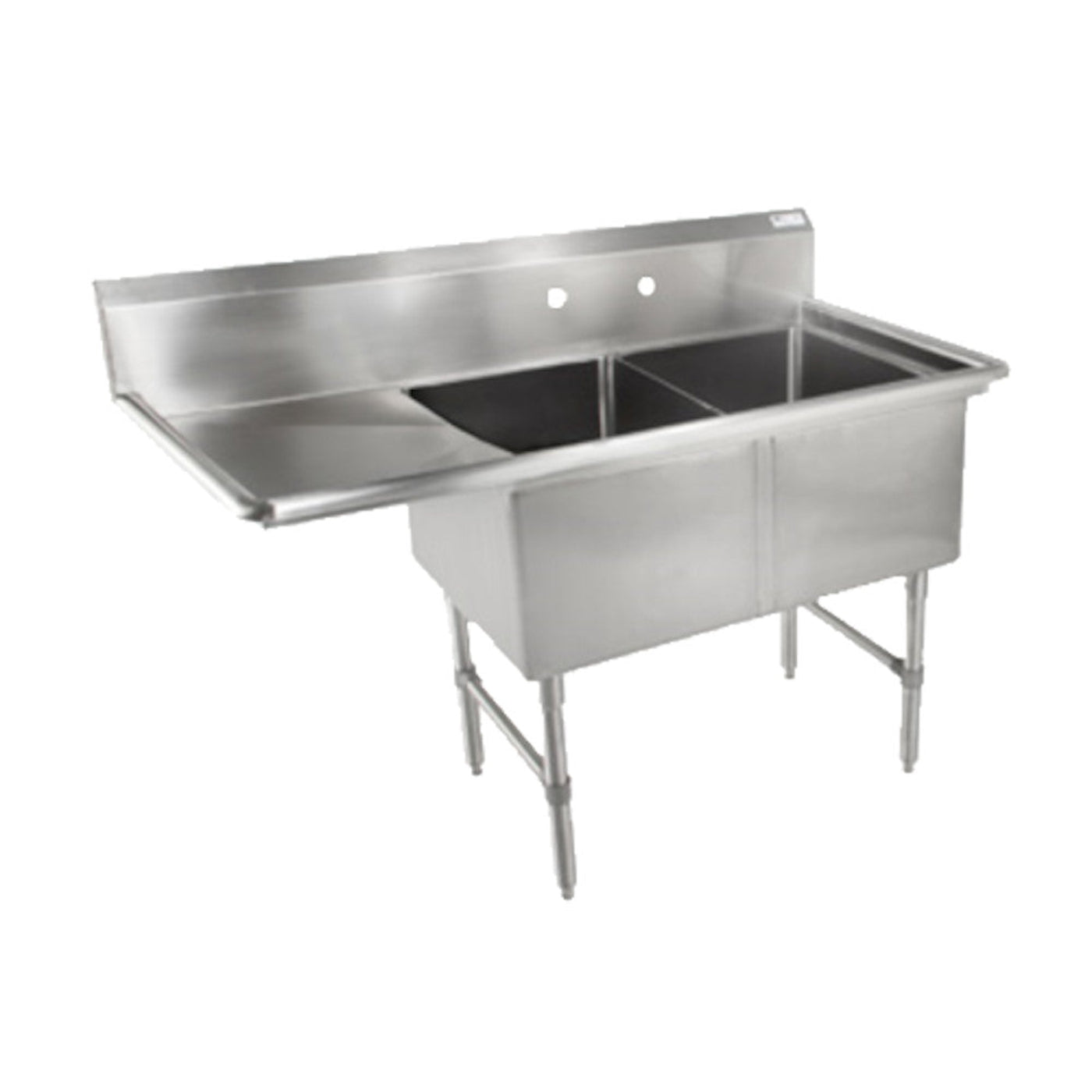

John Boos 2B244-1D24L Two Compartment Sink with 24" Left Drainboard - JB2B2441D24L

John Boos 2B244-1D24L Two Compartment Sink with 24" Left Drainboard - JB2B2441D24L

Ideal for rinsing hands, washing fruits and vegetables, filling water containers, and more, this John Boos 2B244-1D24L is made to fit the needs of a variety of applications. It has two compartment sinks and a 24" drainboard. Its sturdy stainless steel construction is durable, making it perfect for commercial or industrial environments. It has a 16 gauge stainless steel bowl and top. The top has been finished with a #4 satin polish. The bowl is 14" deep with coved corners at a 3/4" radius. The corners are coved on the exterior as well to provide a safe, clean, and polished edge. This 2B244-1D24L does not include a faucet, but has 1-1/8" faucet holes in its 10" high boxed backsplash.

Features

• (2) 24" W x 24" front-to-back x 14" deep compartment
• (1) 24" left drainboard
• 16 gauge stainless steel bowl and top
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" turned down rear lip
• 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Stainless steel sink tops are tig welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel frame is mig welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable bullet feet

Specifications

What our Experts Think

• Overall Dimensions: 76 inches (width) x 29.5 inches (depth) x 44 inches (height).

• Sink Compartments: Two compartments, each measuring 24 inches (width) x 24 inches (front-to-back) x 14 inches (depth), providing ample space for washing and rinsing.

• Drainboard: Equipped with a 24-inch left-side drainboard, ideal for drying and staging dishes and utensils.

• Material: Constructed from 16-gauge Type 300 series stainless steel, ensuring durability, resistance to corrosion, and ease of cleaning.

• Backsplash: Features a 10-inch high boxed backsplash with a 2-inch return to the wall, helping to prevent splashes and maintain a clean work environment.

• Faucet Mounting: Includes one set of splash mount faucet holes with 8-inch centers, allowing for the installation of compatible faucets (faucets sold separately).

• Drain Openings: Comes with 3.5-inch die-stamped drain openings in each compartment for efficient drainage.

• Support Structure: Built with stainless steel legs and side crossrails, providing sturdy support and stability during use.

• Adjustable Feet: Features adjustable bullet feet for leveling on uneven surfaces, ensuring a stable setup.

• Certifications: NSF and CSA-Sanitation certified, meeting stringent public health and safety standards suitable for commercial use.

Q&A

Q: What are the dimensions of the John Boos 2B244-1D24L two-compartment sink with a 24" left drainboard?

A: The sink has an overall width of 76 inches, depth of 29.5 inches, and height of 44 inches. Each of the two sink compartments measures 24 inches in width, 24 inches in front-to-back depth, and 14 inches in depth.

Q: What material is the sink made from?

A: The sink is constructed from 16-gauge, type 300-series stainless steel, ensuring durability and resistance to corrosion.

Q: Does the sink include a backsplash?

A: Yes, it features a 10-inch high boxed backsplash with a 45-degree top and 2-inch return, facilitating wall placement and helping to contain splashes.

Q: Are faucet holes included with the sink?

A: Yes, the sink comes with a set of splash-mount faucet holes with 8-inch centers, accommodating various faucet installations.

Q: What type of drain openings does the sink have?

A: Each compartment is equipped with a 3.5-inch die-stamped drain opening, facilitating efficient drainage.

Q: What type of support does the sink have?

A: The sink is supported by 1-5/8-inch diameter stainless steel legs with adjustable side bracing and 1-inch adjustable bullet feet, allowing for stability and customization to uneven floor surfaces.

Maintenance Tips

• Overall Dimensions: 76" Width x 29.5" Depth x 44" Height

• Bowl Specifications

• Dimensions: Each bowl measures 24" Width x 24" Front-to-Back x 14" Depth

• Material: Constructed from 16-gauge Type 300-series stainless steel, ensuring durability and resistance to corrosion

• Drainboard

• Location: Left side

• Dimensions: 24" Width

• Features: Provides space for drying and staging dishes

• Backsplash

• Specifications: 10" high boxed backsplash with a 45° top and 2" return, effectively preventing splashes and facilitating cleaning

• Faucet Mounting: Pre-punched with a set of splash-mount faucet holes with 8" centers (faucets sold separately)

• Construction

• Material: Made from 16-gauge Type 300-series stainless steel with a polished satin finish

• Base: Equipped with stainless steel legs with side crossrails for sturdy support
