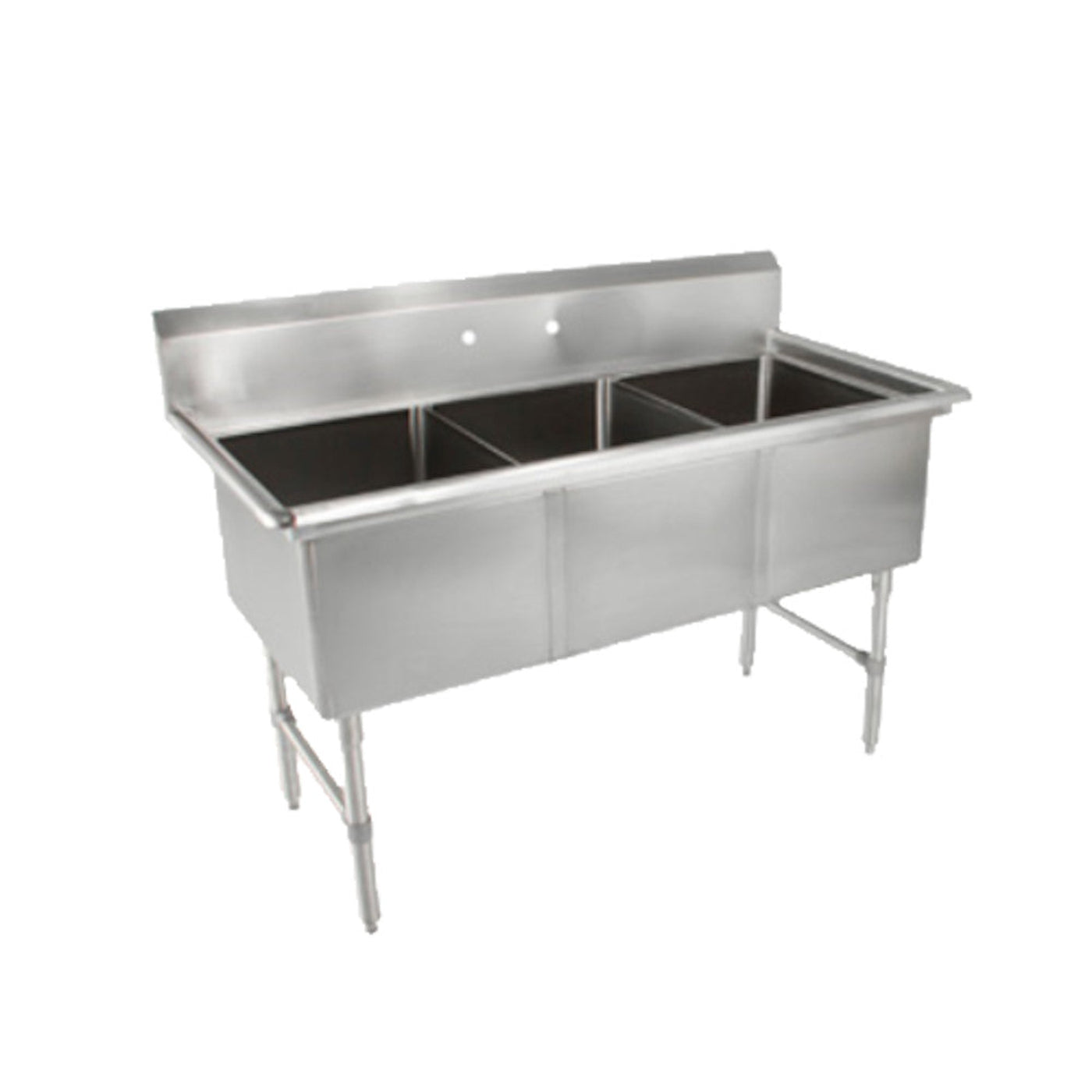

John Boos 3B244 Sink with Three 24" x 24" Compartments - JB3B244

John Boos 3B244 Sink with Three 24" x 24" Compartments - JB3B244

This John Boos 3B244 Sink is made to fit the needs of a variety of applications. Its sturdy stainless steel construction is durable, making it perfect for commercial or industrial environments. It has a 16 gauge stainless steel bowl and top. The top has been finished with a #4 satin polish. The bowl is 14" deep with coved corners at a 3/4" radius. The corners are coved on the exterior as well to provide a safe, clean, and polished edge. This 3B244 does not include a faucet, but has 1-1/8" faucet holes in its 10" high boxed backsplash.

Features

• (3) 24" W x 24" front-to-back x 14" deep compartment
• 16 gauge stainless steel bowl and top
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" turned down rear lip
• 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Stainless steel sink tops are tig welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel frame is mig welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable bullet feet

Specifications

What our Experts Think

• Overall Dimensions: 77" width x 29-1/2" depth x 44" height, offering a substantial work area.

• Sink Compartments

• Three bowls, each 24" x 24" front-to-back x 14" deep, ideal for handling large volumes of dishware

• Backsplash: Equipped with a 10" high boxed backsplash with a 45° top and 2" return, helping to maintain a clean work environment by containing splashes.

• Faucet Mounting: Comes with two sets of splash mount faucet holes with 8" centers, providing flexibility for faucet placement

• Drain Openings: Features 3-1/2" die-stamped drain openings in each compartment for efficient drainage

• Construction: Built from 16-gauge Type 300 series stainless steel, ensuring durability and resistance to rust and stains.

• Legs and Bracing: Includes stainless steel legs with adjustable side bracing and bullet feet, allowing for stability on uneven surfaces

• Certifications: NSF and CSA-Sanitation certified, meeting stringent public health and safety standards.

Q&A

Q: What are the overall dimensions of this sink?
A: The sink measures 77 inches in width, 29.5 inches in depth, and 44 inches in height.

Q: Does the sink include faucet holes?
A: Yes, it comes with two sets of splash-mount faucet holes with 8-inch centers, accommodating standard commercial faucets.

Q: Is this sink suitable for commercial use?
A: Absolutely. The John Boos 3B244 sink is NSF and CSA-Sanitation certified, ensuring it meets strict health and safety standards for commercial kitchen environments.

Q: How is the sink supported?
A: It is supported by stainless steel legs with adjustable side bracing and bullet feet, allowing for stability and height customization to suit various kitchen setups.

Maintenance Tips

• Overall Dimensions: 77" Width x 29.5" Depth x 44" Height

• Compartment Specifications:

• Quantity: Three compartments

• Size: Each measures 24" Width x 24" Front-to-Back x 14" Depth

• Design: Coved corners for easy cleaning and debris prevention

• Backsplash

• Height: 10" high boxed backsplash with a 45° top and 2" return

• Function: Prevents water splashes onto the wall, maintaining a clean work area

• Faucet Holes

• Configuration: Two sets of splash mount faucet holes with 8" centers

• Purpose: Allows for flexible faucet installation to suit various needs

• Drain Openings

• Size: 3.5" die-stamped drain openings in each compartment
