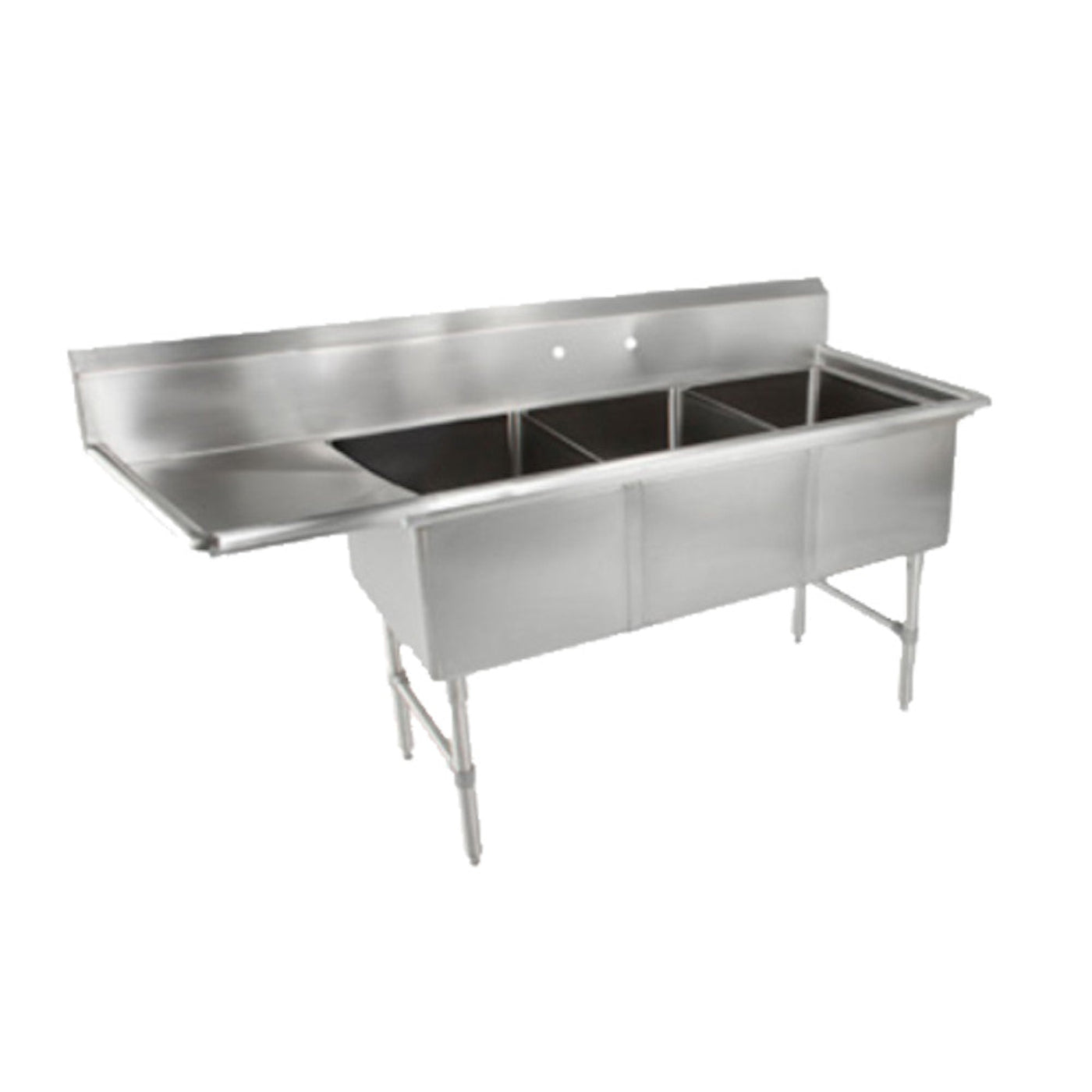

John Boos 3B244-1D24L Three-Compartment Sink with 24" Left Drainboard - JB3B2441D24L

John Boos 3B244-1D24L Three-Compartment Sink with 24" Left Drainboard - JB3B2441D24L

Ideal for rinsing fruits and vegetables, washing dishes, and more, this John Boos 3B244-1D24L is made to fit the needs of a variety of applications. It has three compartments and a 24" drainboard. Its sturdy stainless steel construction is durable, making it perfect for commercial or industrial environments. It has a 16 gauge stainless steel bowl and top. The top has been finished with a #4 satin polish. The bowl is 14" deep with coved corners at a 3/4" radius. The corners are coved on the exterior as well to provide a safe, clean, and polished edge. This 3B244-1D24L does not include a faucet, but has 1-1/8" faucet holes in its 10" high boxed backsplash.

Features

• (3) 24" W x 24" front-to-back x 14" deep compartments
• (1) 24" left drainboard
• 16 gauge stainless steel bowl and top
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" turned down rear lip
• 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Stainless steel sink tops are tig welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel frame is mig welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable bullet feet

Specifications

What our Experts Think

• Overall Dimensions: 100 inches (width) x 29.5 inches (depth) x 44 inches (height).

• Compartment Dimensions: Each of the three sink compartments measures 24 inches (width) x 24 inches (front-to-back) x 14 inches (depth), providing ample space for dishwashing and food preparation tasks.

• Left Drainboard: Equipped with a 24-inch left-side drainboard for drying and staging items, enhancing workflow efficiency.

• Construction: Crafted from 16-gauge Type 300 series stainless steel with a polished satin finish, ensuring durability and ease of cleaning.

• Backsplash: Features a 10-inch high boxed backsplash with a 45-degree top and 2-inch return, helping to prevent splashes and maintain cleanliness

• Faucet Mounting: Includes two sets of splash mount faucet holes with 8-inch centers, allowing for flexible faucet installation (faucets not included)

• Drain Openings: Comes with 3.5-inch die-stamped drain openings in each compartment for efficient drainage.

• Support Structure: Built with stainless steel legs, front and side crossrails, and adjustable side bracing, providing sturdy support and stability.

• Adjustable Feet: Features adjustable bullet feet for leveling on uneven surfaces.

• Certifications: NSF and CSA-Sanitation certified, meeting stringent public health and safety standards suitable for commercial use.

Q&A

Q: What are the dimensions of the John Boos 3B244-1D24L three-compartment sink with a 24" left drainboard?

A: The sink has an overall width of 100 inches, depth of 29.5 inches, and height of 44 inches. Each of the three sink compartments measures 24 inches in width, 24 inches in front-to-back depth, and 14 inches in depth.

Q: What material is the sink made from?

A: The sink is constructed from 16-gauge, type 300-series stainless steel, ensuring durability and resistance to corrosion.

Q: Does the sink include a backsplash?

A: Yes, it features a 10-inch high boxed backsplash with a 45-degree top and 2-inch return, facilitating wall placement and helping to contain splashes

Q: Are faucet holes included with the sink?

A: Yes, the sink comes with two sets of splash-mount faucet holes with 8-inch centers, accommodating various faucet installations.

Q: What type of drain openings does the sink have?

A: Each compartment is equipped with a 3.5-inch die-stamped drain opening, facilitating efficient drainage.

Q: What type of support does the sink have?

A: The sink is supported by stainless steel legs with adjustable side bracing and bullet feet, allowing for stability and customization to uneven floor surfaces.

Maintenance Tips

• Regular Cleaning

• Clean the stainless steel surfaces with a mild detergent and soft cloth to remove residues and prevent staining

• Avoid using abrasive cleaners or pads that could scratch the surface

• Drain Maintenance

• Regularly inspect and clean the drain openings to prevent clogs and ensure efficient drainage

• Structural Inspection

• Periodically check the stability of the legs and bracing, tightening any loose components as needed

• Adjust the bullet feet to maintain a level work surface, especially if the sink is relocated
