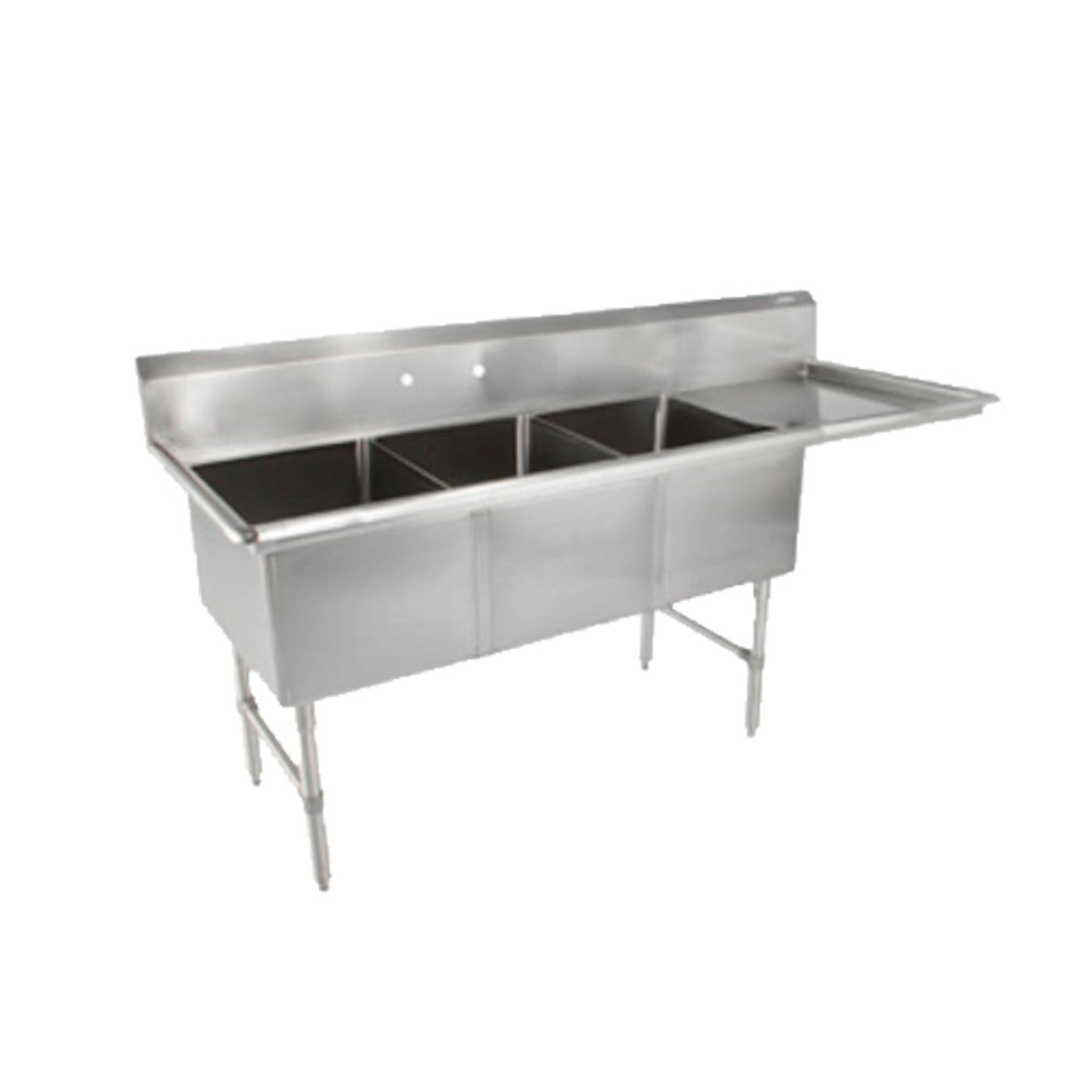

John Boos 3B244-1D24R Three Compartment Sink with 24" Right Drainboard - JB3B2441D24R

John Boos 3B244-1D24R Three Compartment Sink with 24" Right Drainboard - JB3B2441D24R

Ideal for rinsing fruits and vegetables, washing dishes, and more, this John Boos 3B244-1D24R is made to fit the needs of a variety of applications. It has three compartments and a 24" drainboard. Its sturdy stainless steel construction is durable, making it perfect for commercial or industrial environments. It has a 16 gauge stainless steel bowl and top. The top has been finished with a #4 satin polish. The bowl is 14" deep with coved corners at a 3/4" radius. The corners are coved on the exterior as well to provide a safe, clean, and polished edge. This 3B244-1D24R does not include a faucet but has 1-1/8" faucet holes in its 10" high boxed backsplash. It has a 24" right drainboard.

Features

• (3) 24" W x 24" front-to-back x 14" deep compartments
• (1) 24" right drainboard
• 16 gauge stainless steel bowl and top
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" turned down rear lip
• 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Stainless steel sink tops are tig welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel frame is mig welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable bullet feet

Specifications

What our Experts Think

• Overall Dimensions: 100 inches in width, 29.5 inches in depth, and 44 inches in height.

• Sink Compartments: Three compartments, each measuring 24 inches in width, 24 inches in front-to-back depth, and 14 inches in depth, providing generous space for washing, rinsing, and sanitizing.

• Drainboard: Equipped with a 24-inch right-side drainboard, facilitating convenient drying and stacking of cleaned items.

• Backsplash: Features a 10-inch high boxed backsplash with a 45-degree top and a 2-inch return to the wall, helping to maintain cleanliness and protect walls from water splashes.

• Faucet Accommodations: Includes two sets of splash-mounted faucet holes with 8-inch centers (faucets not included), allowing for flexible faucet installation.

• Construction Material: Made from 16-gauge, type 300 stainless steel with a polished satin finish, ensuring durability and resistance to corrosion.

• Legs and Bracing: Supported by stainless steel legs with adjustable side bracing and bullet feet, providing stability and accommodating uneven flooring.

Q&A

Q: What is the purpose of the 10-inch high boxed backsplash?
A: The 10-inch high boxed backsplash with a 45-degree top and 2-inch return helps protect walls from water splashes and facilitates easy cleaning.

Q: Are the faucet holes pre-drilled in this sink?
A: Yes, the sink comes with two sets of splash-mounted faucet holes with 8-inch centers, allowing for convenient faucet installation.

Q: How does the right-side drainboard enhance functionality?
A: The 24-inch right-side drainboard provides ample space for air-drying dishes and utensils, improving workflow efficiency in a commercial kitchen setting.

Q: What type of drains does this sink accommodate?
A: Each compartment has a 3.5-inch die-stamped drain opening, suitable for standard commercial sink drains.

Maintenance Tips

• Backsplash

• Height: 10-inch boxed backsplash

• Design: Features a 45-degree top with a 2-inch return, designed to protect walls from water splashes.

• Faucet Accommodations

• Mounting Holes: Two sets of splash-mounted faucet holes with 8-inch centers, facilitating the installation of compatible faucets (faucets not included).

• Construction

• Material: Constructed from 16-gauge type 300 stainless steel, ensuring durability and resistance to corrosion.

• Welding: TIG-welded with exposed welds polished to match adjacent surfaces, providing a seamless and professional appearance.
