John Boos 4B18244-2D18 Four-Compartment Sink with Two 18" Drainboards - JB4B182442D18

John Boos 4B18244-2D18 Four-Compartment Sink with Two 18" Drainboards - JB4B182442D18

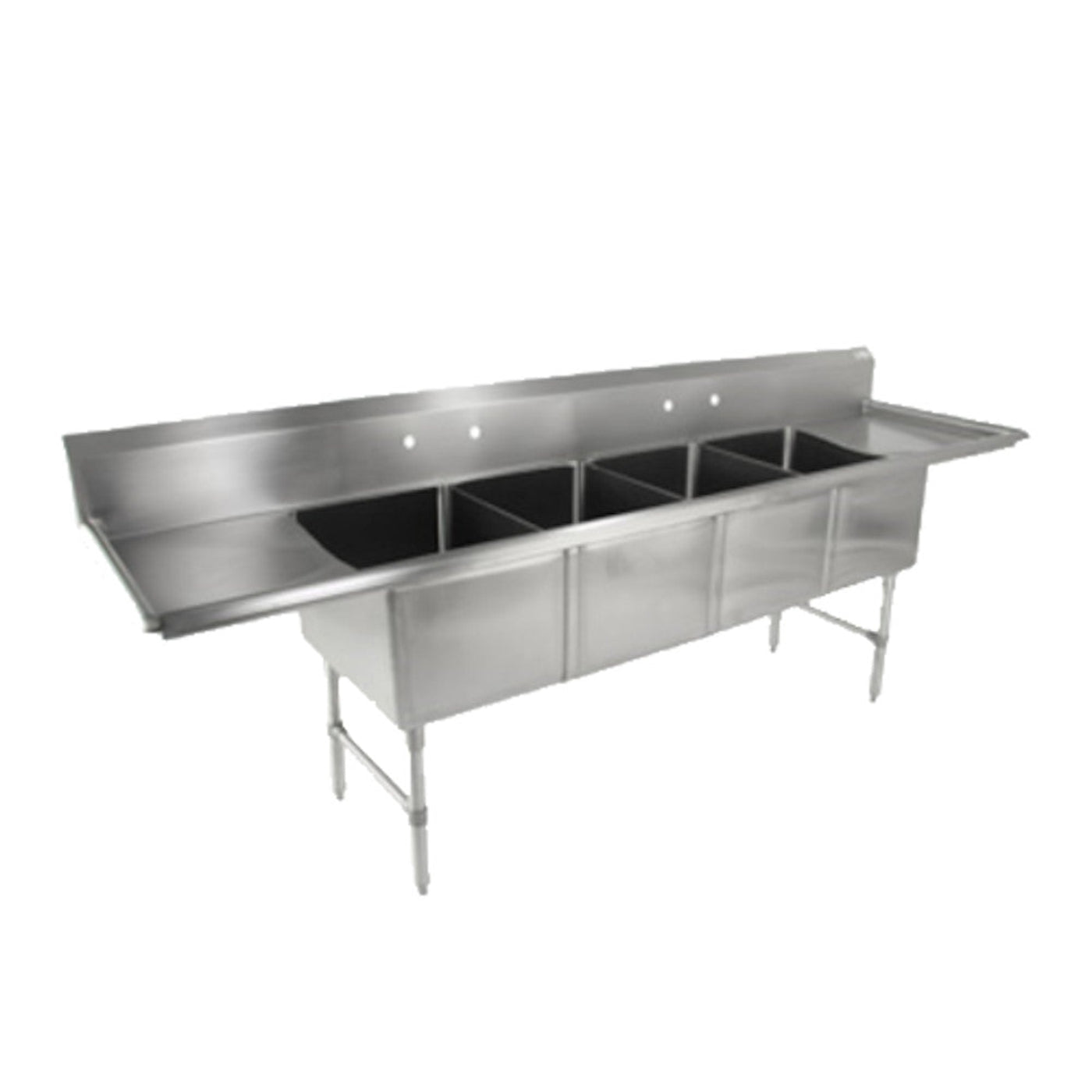

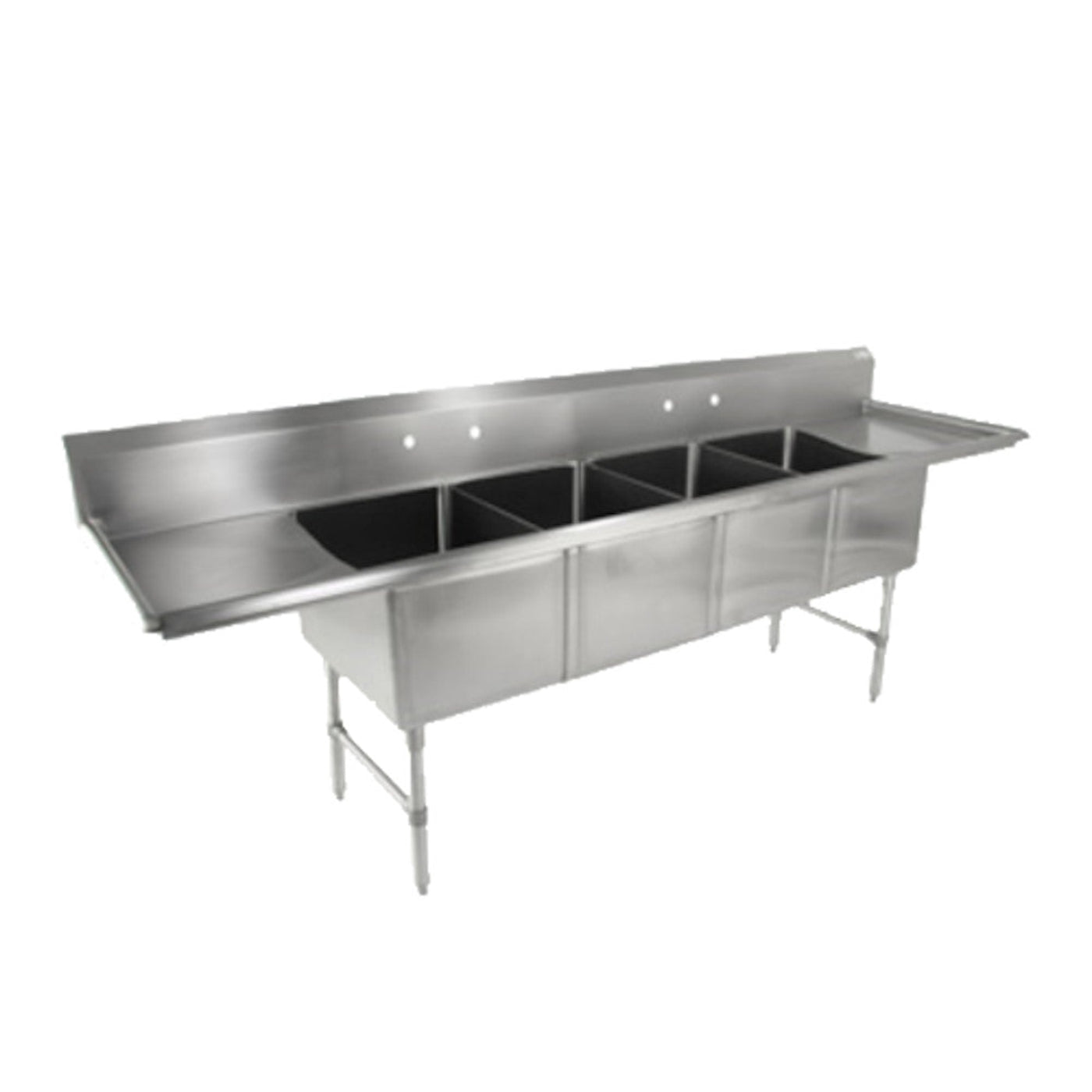

This John Boos 4B18244-2D18 Four-Compartment Sink has a durable, stainless steel construction. With a 300 stainless steel top, it has been polished with a #4 satin finish. It has stainless steel, 14" deep bowls. The sink corners are at a 3/4" radius. Its bowls have 3-1/2" diameter die-stamped openings to aid drainage. This Corner Sink has stainless steel legs, gussets, and adjustable bullet feet. It has a full length 10" high boxed backsplash to prevent potential spills and splashes. This 4B18244-2D18 comes with two 18" drainboards.

Features

• (4) 18" W x 18" front-to-back x 14" deep compartment
• (2) 18" left and right drainboards
• 16 gauge stainless steel bowl and top
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" turned down rear lip
• 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Stainless steel sink tops are tig welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel frame is mig welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable stainless steel bullet feet

Specifications

What our Experts Think

• Overall Dimensions: 111 inches in width, 29.5 inches in depth, and 44 inches in height

• Sink Compartments: Four compartments, each measuring 18 inches in width, 24 inches in front-to-back depth, and 14 inches in depth, offering generous space for washing, rinsing, and sanitizing.

• Drainboards: Equipped with two 18-inch drainboards, facilitating convenient drying and stacking of cleaned items

• Backsplash: Features a 10-inch high boxed backsplash with a 45-degree top and a 2-inch return to the wall, helping to maintain cleanliness and protect walls from water splashes.

• Faucet Accommodations: Includes two sets of splash-mounted faucet holes with 8-inch centers (faucets not included), allowing for flexible faucet installation.

• Construction Material: Made from 16-gauge, type 300 stainless steel with a polished satin finish, ensuring durability and resistance to corrosion.

• Legs and Bracing: Supported by stainless steel legs with adjustable side bracing and bullet feet, providing stability and accommodating uneven flooring.

• Certifications: NSF and CSA-Sanitation certified, meeting stringent public health and safety standards.

Q&A

Q: What is the purpose of the 10-inch high boxed backsplash?
A: The 10-inch high boxed backsplash with a 45-degree top and 2-inch return helps protect walls from water splashes and facilitates easy cleaning.

Q: Are the faucet holes pre-drilled in this sink?
A: Yes, the sink comes with two sets of splash-mounted faucet holes with 8-inch centers, allowing for convenient faucet installation.

Q: How do the dual 18-inch drainboards enhance functionality?
A: The two 18-inch drainboards, located on either side of the sink, provide ample space for air-drying dishes and utensils, improving workflow efficiency in a commercial kitchen setting.

Q: What type of drains does this sink accommodate?
A: Each compartment has a 3.5-inch die-stamped drain opening, suitable for standard commercial sink drains.

Maintenance Tips

• Overall Dimensions: 111 inches wide, 29.5 inches deep, and 44 inches high.

• Sink Compartments

• Quantity: Four.

• Dimensions: Each compartment measures 18 inches wide, 24 inches front-to-back, and 14 inches deep, providing ample space for washing, rinsing, and sanitizing.

• Drainboards

• Quantity: Two.

• Size: Each drainboard is 18 inches long, offering convenient areas for drying and stacking clean items.

• Backsplash

• Height: 10 inches.

• Design: Features a boxed backsplash with a 45-degree top and a 2-inch return, designed to protect walls from water splashes.
