John Boos 91.5" W x 30" D Dishtable/Pot Sink 18" Drainboards - JBDT3B182442D18R

John Boos 91.5" W x 30" D Dishtable/Pot Sink 18" Drainboards - JBDT3B182442D18R

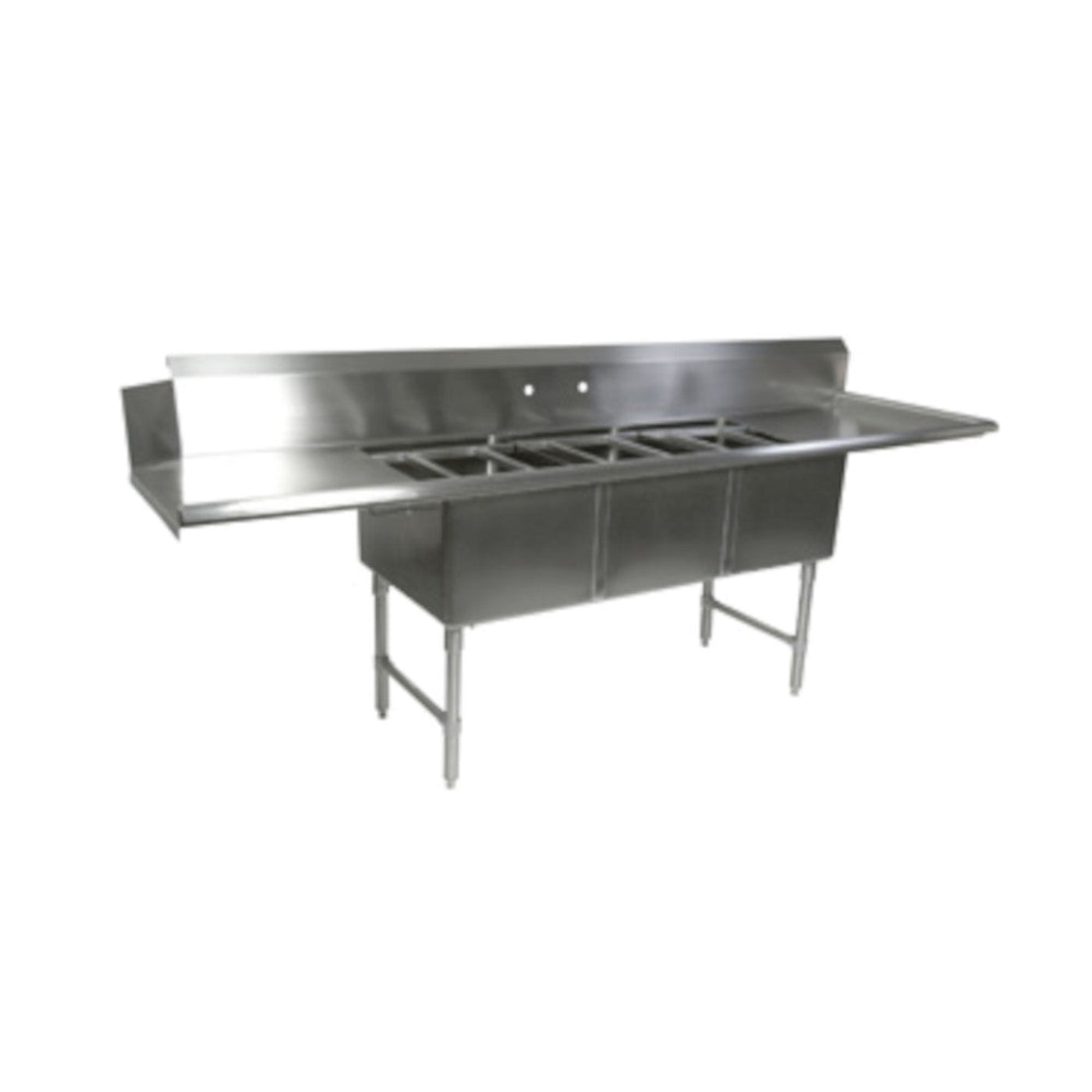

This John Boos DT3B18244-2D18R Dishtable / Pot Sink is durable, easy to use, and perfect for commercial or industrial applications. With a 16 gauge stainless steel construction, it's top and bowls have been finished with a #4 satin polish. It has stainless steel legs, gussets, feet, and bracing. Its corners have been coved at a 3/4" radius. The sink tops are TIG welded and the bases are MIG welded. The exposed welds have been polished to match the adjacent surfaces. This DT3B18244-2D18R has a 3-1/2" diameter die stamped opening in the bottom of the bowls to aid drainage. While the backsplash does have 8" on-center with 1-1/8" faucet holes, this Dishtable / Pot Sink does not come with a faucet. (Faucet must be purchased separately).

Features and Benefits

• (3) sink compartments
• (2) 18" drainboards
• Dish machine attachment on left side
• 16 gauge stainless steel
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening/
• Full length 10" high boxed backsplash
• 2" return to wall at 45 degree
• 1" turned down rear lip
• 8" on-center with 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed
• Bull-nosed corners provide safe, clean, and polished edge
• Standard stainless steel legs are 1-5/8" in diameter
• Legs located directly under sink bowls, providing increased stability and max weight support
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surface
• Stainless steel bases are MIG welded
• Material
• 16 gauge type 300 stainless steel bowls and top with #4 polish, satin finish
• 1-5/8" Round O.D. stainless steel legs
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable stainless steel bullet feet

• Model: DT3B18244-2D18R
• Compartment Dimensions: 18" W x 24" front-to-back x 14" deep
• Overall Dimensions: 36" H x 91.5" W x 30" D
• Approximate Weight: 218 lbs.

What Our Experts Think

• Excellent for heavy-duty use in commercial kitchens, schools, or foodservice environments

• Three deep sink bowls make multitasking and pot washing efficient

• 18" drainboards on both sides offer added space for drying or staging

• TIG and MIG welded construction enhances long-term durability

• Stainless steel finish is both attractive and easy to maintain

Q&A

Q: What are the sink dimensions?
A: Each of the three bowls is 18" x 24" x 14" deep, providing ample space for large pots and pans.

Q: Are the drainboards included on both sides?
A: Yes, this unit features 18" drainboards on both the left and right sides.

Q: What kind of finish does the sink have?
A: It has a #4 satin polish finish on both the top and bowls for a sleek and clean appearance.

Q: What type of welding is used in construction?
A: The sink tops are TIG welded, while the base uses MIG welding for enhanced structural integrity.

Q: Is this sink NSF certified?
A: Most John Boos commercial sinks are NSF certified. Please verify with the supplier for certification confirmation.

Maintenance Tips

• Rinse after each use to prevent buildup and staining

• Use a non-abrasive stainless steel cleaner weekly for polish and protection

• Check weld seams periodically for any signs of corrosion or wear

• Avoid leaving acidic substances (like tomato sauce or citrus juice) in contact with the surface

• Keep drainboards clear to allow for efficient water flow and drying
