John Boos E1S8-1620-12 One-Compartment E-Series Sink - JBE1S8162012

John Boos E1S8-1620-12 One-Compartment E-Series Sink - JBE1S8162012

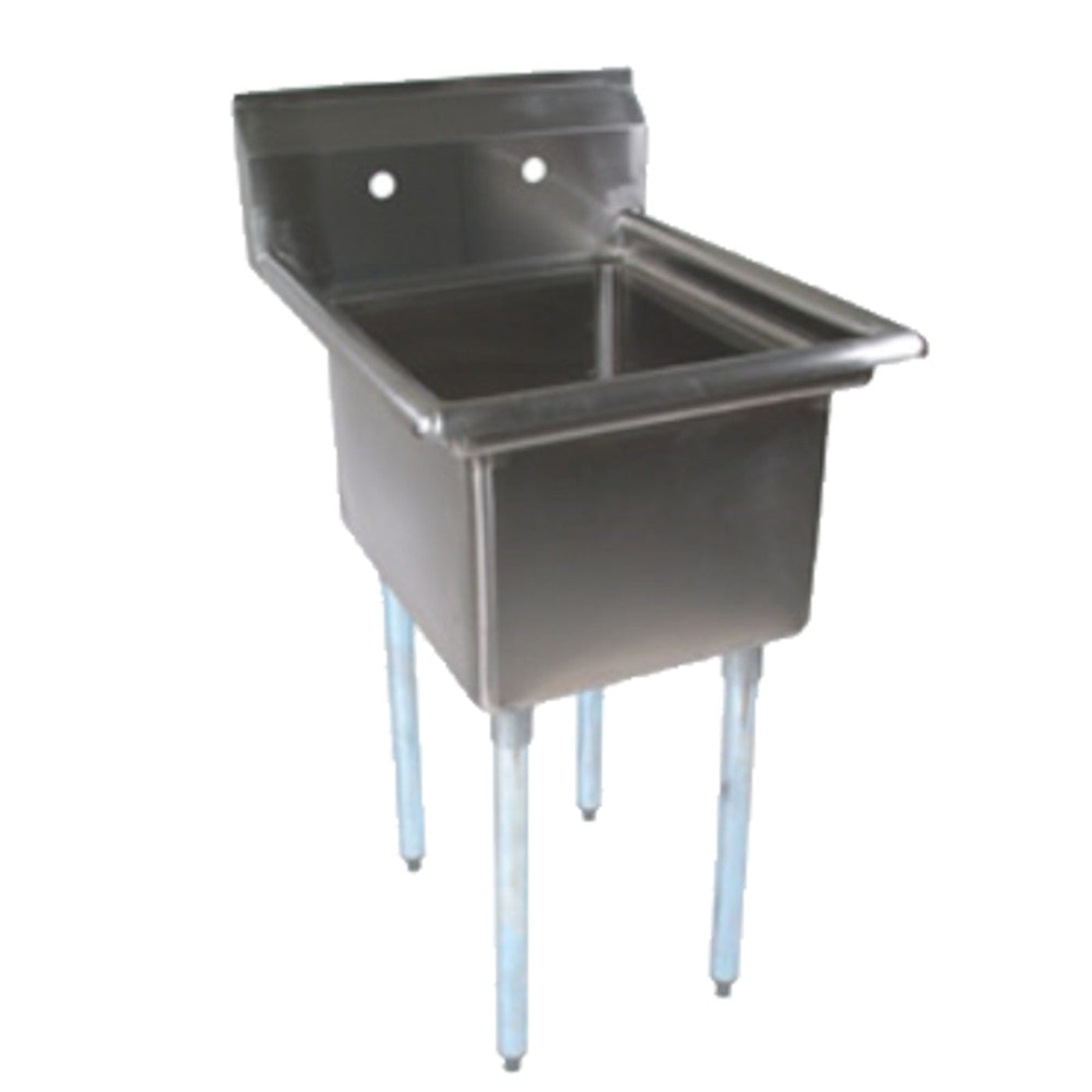

This John Boos E1S8-1620-12 E-Series Sink is durable, easy to use, and designed for commercial or industrial applications. It has a stainless and galvanized steel construction with an 18 gauge type 300 stainless steel bowl and top. Both the bowl and top have been polished with a #4 satin finish. The legs, base, and gussets are galvanized steel. The adjustable bullet feet are made of plastic. This E1S8-1620-12 E-Series Sink has a full length 10" high boxed backsplash. It has 1" faucet holes in the backsplash, but the faucet is not included. Faucet must be purchases separately.

Features

• (1) sink compartment
• 18 gauge stainless steel
• Type 300 stainless steel with #4 polish, satin finish
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degrees
• 1" tile edge
• 1" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard galvanized legs are 1-5/8" in diameter
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Galvanized steel base
• Material
• 18 gauge type 300 stainless steel top and bowls with #4 polish, satin finish
• 1-5/8" Round O.D. galvanized steel legs
• Galvanized steel gussets
• 1" plastic bullet feet

Specifications

What our Experts Think

• Dimensions: Overall size of 21" in width, 25.5" in depth, and 43.75" in height. The sink compartment measures 16" in width, 20" in front-to-back length, and 12" in depth.

• Construction: Made from 18-gauge Type 300 series stainless steel with a polished satin finish, ensuring durability and ease of cleaning.

• Backsplash: Features a 9.75" high boxed backsplash with a 2" return to the wall at a 45° angle, providing protection against splashes and spills.

• Faucet Mounting: Equipped with one set of splash mount faucet holes with 8" centers, facilitating easy installation of compatible faucets

• Drainage: Includes a 3.5" die-stamped drain opening at the bottom of the bowl, ensuring efficient drainage.

• Legs and Gussets: Constructed with galvanized steel legs and gussets, providing sturdy support.

• Feet: Comes with adjustable plastic bullet feet, allowing for leveling on uneven surfaces

Q&A

Q: What are the dimensions of the John Boos E1S8-1620-12 One-Compartment E-Series Sink?
A: The sink measures 21 inches in width, 25.5 inches in depth, and 43.75 inches in height.

Q: What are the dimensions of the sink compartment?
A: The compartment is 16 inches wide, 20 inches front-to-back, and 12 inches deep.

Q: What material is the sink made from?
A: It is constructed from 18-gauge, type 300-series stainless steel with a polished satin finish, ensuring durability and resistance to corrosion.

Q: Does the sink include any drainboards?
A: No, this model does not include drainboards.

Q: What is the height of the backsplash?
A: The sink features a 9.75-inch high boxed backsplash with a 2-inch return to the wall at a 45-degree angle.

Q: Are faucet holes included with this sink?
A: Yes, the sink comes with one set of splash-mount faucet holes with 8-inch centers.

Maintenance Tips

• Overall Dimensions: 21" Width x 25.5" Depth x 43.75" Height

• Compartment Specifications:

• Dimensions: 16" Width x 20" Front-to-Back x 12" Depth

• Design: Features coved corners for easy cleaning and maintenance.

• Construction

• Material: Crafted from 18-gauge Type 300-series stainless steel with a polished satin finish, ensuring both durability and a professional appearance

• Base: Equipped with galvanized steel legs and gussets for sturdy support, along with adjustable plastic bullet feet to accommodate uneven floor surfaces.
