John Boos Three-Compartment E-Series Sink 18" L & R Drainboards - JBE3S8162012T18

John Boos Three-Compartment E-Series Sink 18" L & R Drainboards - JBE3S8162012T18

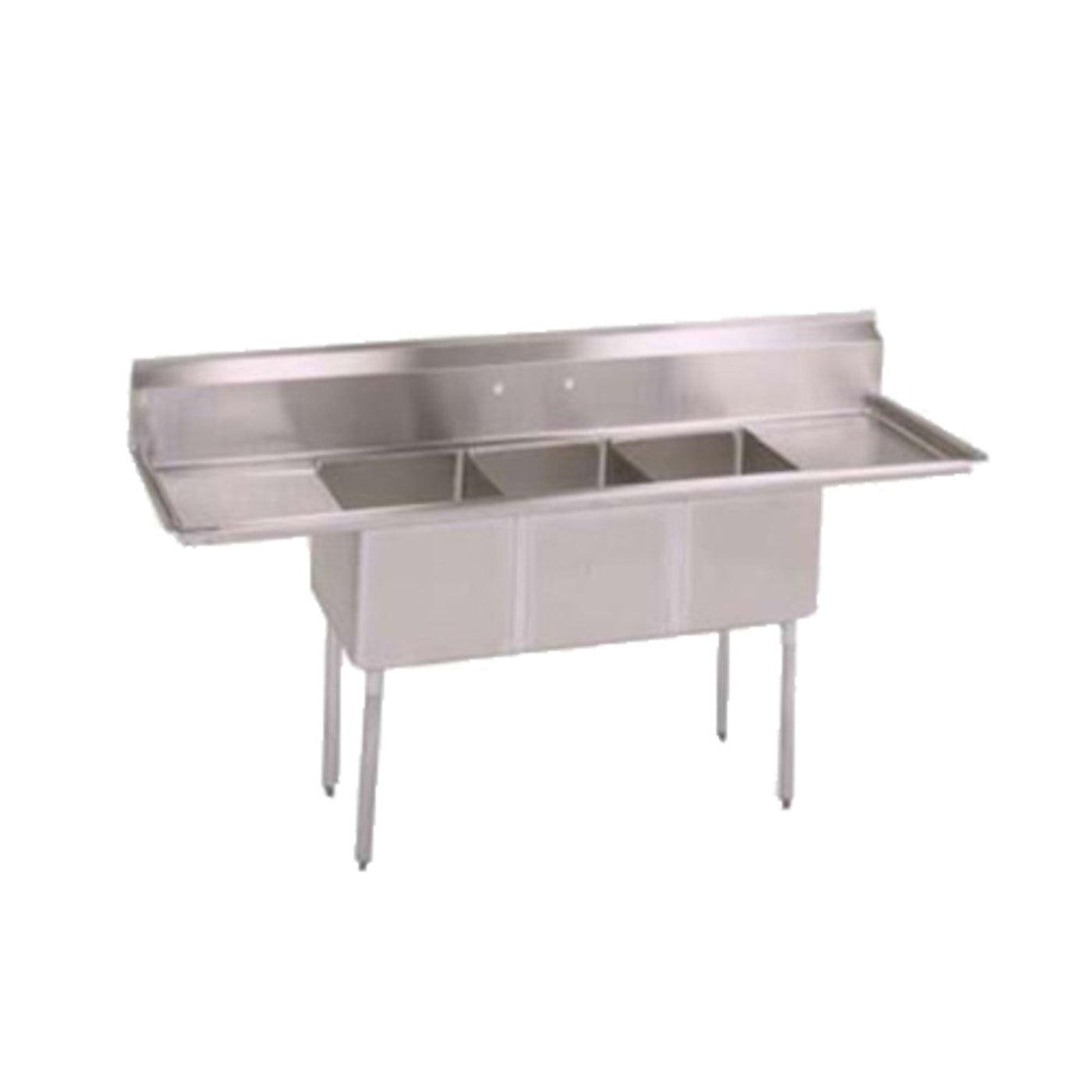

This John Boos E3S8-1620-12T18 is a three-compartment E-Series Sink. Designed for commercial or industrial applications, it has been engineered for endurance and ease of use. It has three compartments sinks, each measuring 10" W x 14" front-to-back x 10" deep. The compartment bowls and sink are made of 18 gauge type 300 stainless steel. They have been finished with a #4 polish, satin finish. The Sink has a 10" high boxed backsplash running the entire length of its back. The backsplash has 1" faucet holes for a faucet to be added (The faucet is NOT included). This E3S8-1620-12T18 has galvanized steel gussets and legs. It comes with two 18" drainboards.

Features and Benefits

• (3) sink compartments
• (2) 18" left and right drainboards
• 18 gauge stainless steel
• Type 300 stainless steel with #4 polish, satin finish
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" tile edge
• 1" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard galvanized legs are 1-5/8" in diameter
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Galvanized steel base
• Material
• 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
• 1-5/8" Round O.D galvanized legs
• Galvanized steel gussets
• 1" plastic bullet feet
• NOTE: Faucet NOT included
• Model: E3S8-1620-12T18
• Compartment Dimensions: 16" W x 20" front-to-back x 12" deep
• Dimensions: 43.75" H x 68.5" W x 25.5" D
• Approximate Weight: 87 lbs.

What Our Experts Think

• Engineered for demanding commercial environments like restaurants, cafeterias, and utility rooms

• Features 3 deep compartments ideal for the classic wash, rinse, sanitize sequence

• Built with 18-gauge type 300 stainless steel to ensure industrial-grade strength and longevity

• Dual 18" drainboards on both sides enhance workflow by offering ample drying or staging space

• Compact yet functional footprint—perfect for operations needing efficiency in tight spaces

Q&A

Q: What are the individual sink bowl dimensions?
A: Each compartment measures 10" wide x 14" front-to-back x 10" deep.

Q: Is this NSF certified?
A: Yes, this unit meets NSF standards for health and safety in commercial kitchens.

Q: What type of stainless steel is used?
A: It’s constructed from durable 18-gauge type 300 stainless steel.

Q: Are the drainboards fully welded or separate?
A: The 18" left and right drainboards are fully integrated for structural strength and convenience.

Maintenance Tips

• Wipe down daily with a non-abrasive sponge and mild soap

• Dry after cleaning to avoid spotting or corrosion

• Avoid steel wool or harsh chemicals that could damage the finish

• Periodically check seams and corners for residue buildup

• Consider using rubber sink mats to protect the basin during heavy-duty use
