John Boos Three-Compartment E-Series Sink, 18" L & R Drainboards - JBE3S81814T18

John Boos Three-Compartment E-Series Sink, 18" L & R Drainboards - JBE3S81814T18

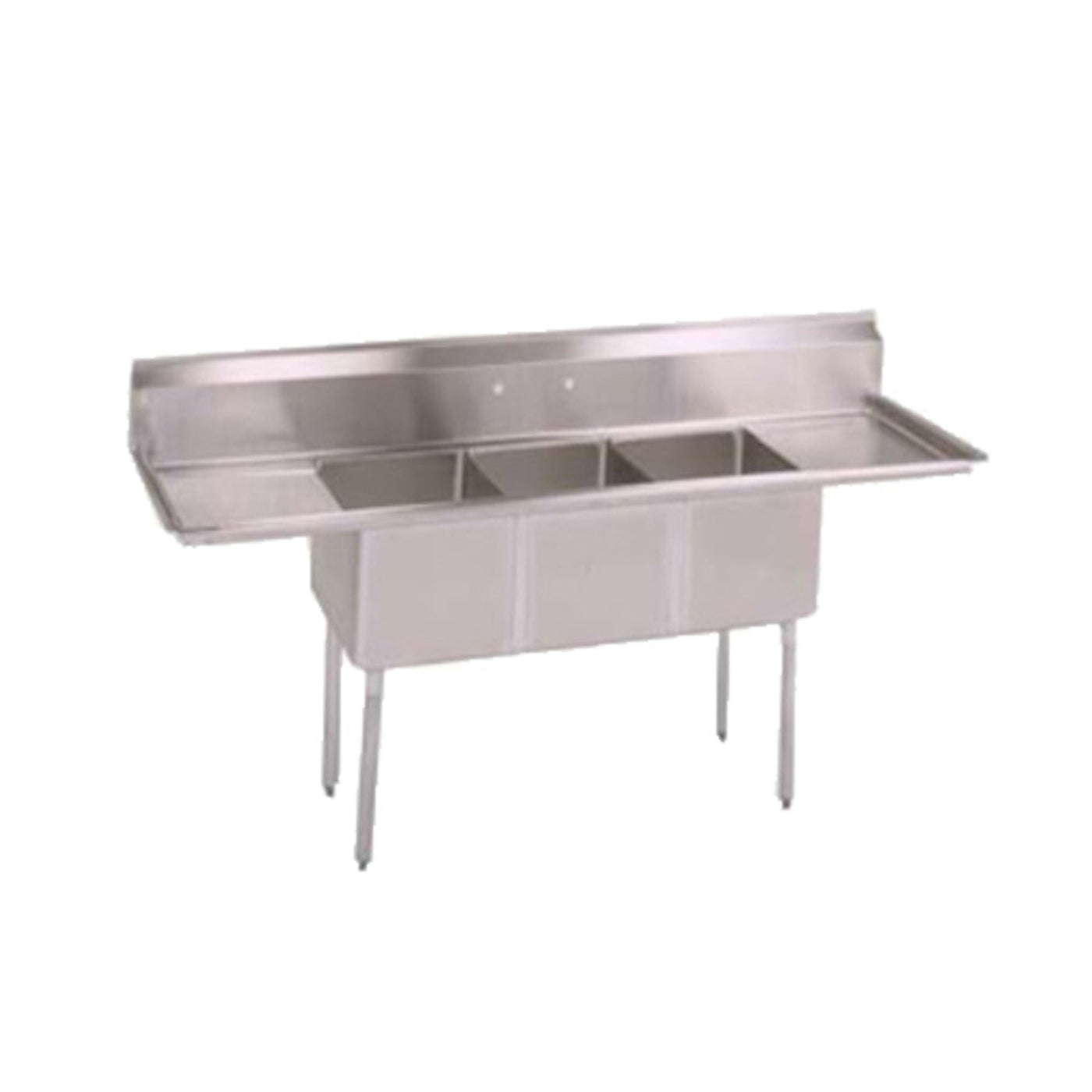

This John Boos E3S8-18-14T18 is a three-compartment E-Series Sink. Designed for commercial or industrial applications, it has been engineered for endurance and ease of use. It has three compartments sinks, each measuring 10" W x 14" front-to-back x 10" deep. The compartment bowls and sink are made of 18 gauge type 300 stainless steel. They have been finished with a #4 polish, satin finish. The Sink has a 10" high boxed backsplash running the entire length of its back. The backsplash has 1" faucet holes for a faucet to be added (The faucet is NOT included). This E3S8-18-14T18 has galvanized steel gussets and legs. It does include two 18" drainboards.

Features and Benefits

• (3) sink compartments
• (2) 18" left and right drainboards
• 18 gauge stainless steel
• Type 300 stainless steel with #4 polish, satin finish
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" tile edge
• 1" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard galvanized legs are 1-5/8" in diameter
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Galvanized steel base
• Material
• 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
• 1-5/8" Round O.D galvanized legs
• Galvanized steel gussets
• 1" plastic bullet feet
• NOTE: Faucet NOT included
• Model: E3S8-18-14T18
• Compartment Dimensions: 18" W x 18" front-to-back x 14" deep
• Dimensions: 43.75" H x 90" W x 23.5" D
• Approximate Weight: 101 lbs.

What Our Experts Think

• Built for commercial durability with industrial-grade 18-gauge, type 300 stainless steel

• Three separate 10" x 14" x 10" sink bowls streamline the wash-rinse-sanitize process

• Compact 18" left and right drainboards provide efficient prep and drying space

• Ideal for foodservice, utility rooms, or commissaries needing a space-saving layout

• NSF-certified for health code compliance in professional kitchen environments

Q&A

Q: What are the dimensions of each bowl?
A: Each sink compartment measures 10" wide x 14" front-to-back x 10" deep.

Q: Are both drainboards 18 inches long?
A: Yes, it includes left and right drainboards, each 18 inches in length.

Q: Is this made from stainless steel?
A: Yes, it's constructed from heavy-duty 18-gauge, type 300 stainless steel.

Q: Is this NSF certified?
A: Yes, it’s NSF-certified and meets commercial foodservice standards.

Maintenance Tips

• Clean regularly with a mild detergent and warm water to maintain a hygienic surface

• Avoid bleach or harsh abrasives to protect the stainless steel integrity

• Dry thoroughly after use to prevent water spots and corrosion

• Use sink grids to reduce wear and tear on the sink surface

• Inspect drainboard welds regularly to ensure long-term structural stability
