John Boos Three-Compartment E-Series Sink, 24" L & R Drainboards - JBE3S82414T24

John Boos Three-Compartment E-Series Sink, 24" L & R Drainboards - JBE3S82414T24

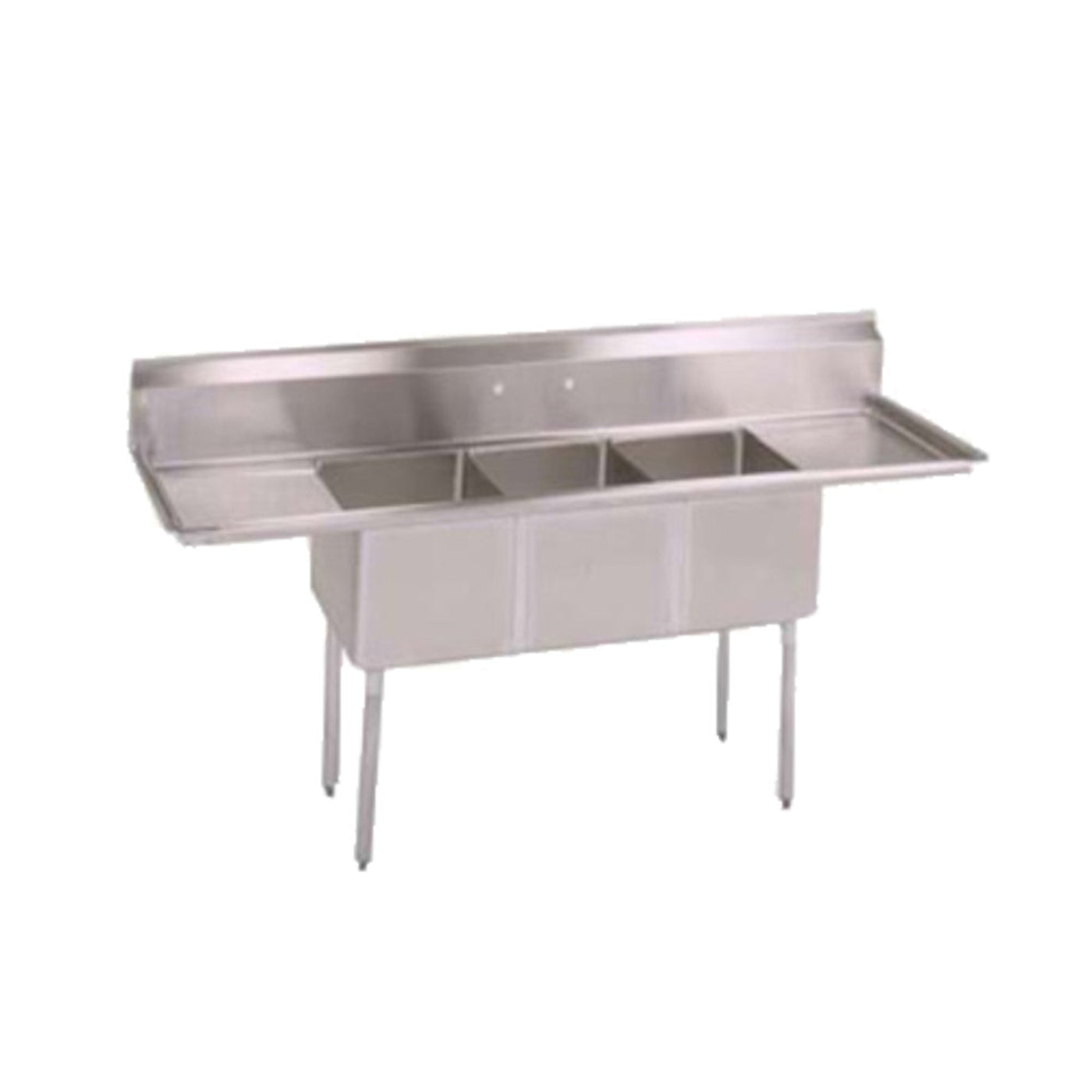

This John Boos E3S8-24-14T24 is a three-compartment E-Series Sink. Designed for commercial or industrial applications, it has been engineered for endurance and ease of use. It has three compartments sinks, each measuring 10" W x 14" front-to-back x 10" deep. The compartment bowls and sink are made of 18 gauge type 300 stainless steel. They have been finished with a #4 polish, satin finish. The Sink has a 10" high boxed backsplash running the entire length of its back. The backsplash has 1" faucet holes for a faucet to be added (The faucet is NOT included). This E3S8-24-14T24 has galvanized steel gussets and legs. It includes two 24" drainboards.

Features and Benefits

• (3) sink compartments
• (2) 24" left and right drainboard
• 18 gauge stainless steel
• Type 300 stainless steel with #4 polish, satin finish
• 14" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 1" tile edge
• 1" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard galvanized steel legs are 1-5/8" in diameter
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Galvanized steel base
• Material
• 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
• 1-5/8" Round O.D galvanized legs
• Galvanized steel gussets
• 1" adjustable plastic bullet feet
• NOTE: Faucet NOT included
• Model: E3S8-24-14T24
• Compartment Dimensions: 24" W x 24" front-to-back x 14" deep
• Dimensions: 43.75" H x 120" W x 29.5" D
• Approximate Weight: 140 lbs.

What Our Experts Think

• Designed for heavy-duty use in commercial and industrial kitchens

• Features three deep compartments to efficiently separate washing, rinsing, and sanitizing tasks

• Spacious 24-inch left and right drainboards provide ample workspace for prep and drying

• Built with high-quality stainless steel for lasting durability and corrosion resistance

• Trusted craftsmanship from John Boos, known for premium foodservice equipment

Q&A

Q: What are the dimensions of each compartment?
A: Each compartment measures 10" wide x 14" front-to-back x 10" deep.

Q: How large are the drainboards?
A: This sink includes 24-inch left and right drainboards.

Q: Is this sink suitable for commercial kitchens?
A: Yes, it is ideal for commercial or industrial kitchen use due to its robust construction.

Q: What type of stainless steel is used?
A: The sink is made with durable stainless steel, typically 18-gauge type 300 for long-lasting use.

Maintenance Tips

• Rinse thoroughly and wipe dry after each use to prevent mineral buildup

• Use a stainless steel-safe cleaner weekly to maintain its polished finish

• Avoid abrasive scrubbing tools like steel wool that could scratch the surface

• Inspect regularly for leaks, corrosion, and secure fittings to ensure optimal performance
