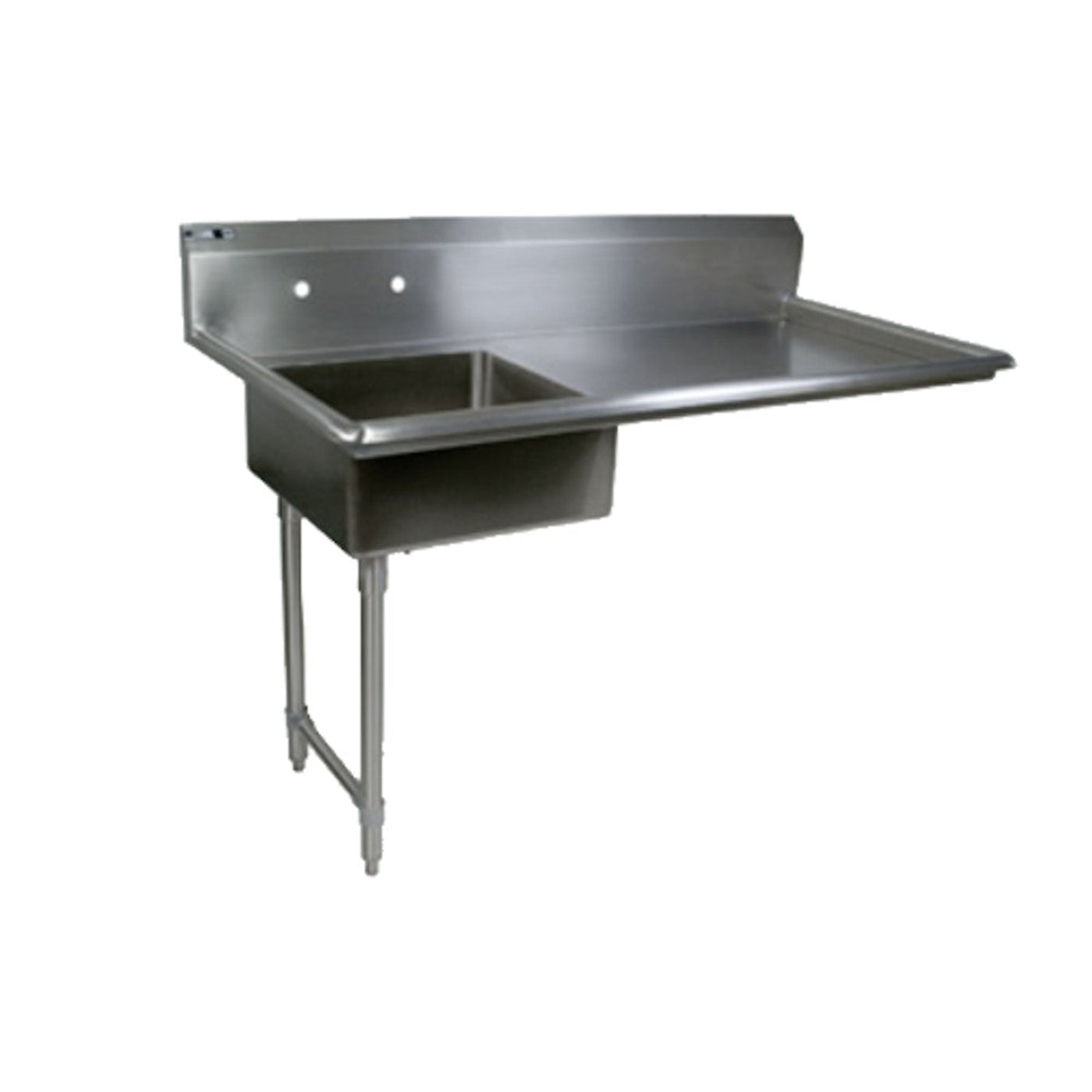

John Boos EDTS8-S30-50UCL Soiled Straight 50" W x 30" D Undercounter Dishtable - JBEDTS8S3050UCL

John Boos EDTS8-S30-50UCL Soiled Straight 50" W x 30" D Undercounter Dishtable - JBEDTS8S3050UCL

Durable and easy to use, this John Boos EDTS8-S30-50UCL Undercounter Dishtable has a soiled, straight design. With a left-to-right operation, it includes a single pre-rinse sink and area for soiled dishes. It has a 10" high boxed backsplash with a 2" return to wall at 45-degrees and a 3/4" turned down rear lip. The backsplash protects the wall and surrounding areas from potential damage or stains. This Undercounter Dishtable has 18 gauge, type 300 stainless steel bowls and top. The legs and bracing are galvanized steel while the bullet feet are made of plastic. This EDTS8-S30-50UCL has a 20" W x 20" front-to-back x 8" deep pre-rinse sink compartment.

Features and Benefits

• Soiled, straight design
• For left-to-right operation
• (1) pre-rinse sink
• (1) set of splash mount faucet holes with 8" centers
• 18 gauge stainless steel construction
• Type 300 stainless steel with #4 polish, satin finish
• 8" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degrees
• 3/4" turned down rear lip
• 8" O.C. with 1-1/8" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide sage, clean, and polished edge
• Standard galvanized legs are 1-5/8" in diameter, providing increased stability and max weight support
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Galvanized legs
• 1-1/4" Round O.D. galvanized bracing
• Stainless steel gussets
• 1" adjustable plastic bullet feet
• Model: EDTS8-S30-50UCL
• Pre-Rinse Sink Dimensions: 20" W x 20" front-to-back x 8" deep
• Overall Dimensions: 44" H x 50" W x 30" D
• Approximate Weight: 55 lbs.

What Our Experts Think

• Great solution for compact dishwashing areas in commercial kitchens

• Left-to-right workflow supports efficient kitchen movement

• Includes pre-rinse sink for convenient pre-cleaning of dishes

• 10" boxed backsplash minimizes mess and protects walls

• Built from durable stainless steel for long-term, heavy-duty use

Q&A

Q: What are the overall dimensions of this dishtable?
A: It measures 50 inches wide by 30 inches deep.

Q: Does it come with a pre-rinse sink?
A: Yes, it includes a built-in pre-rinse sink for soiled dishes.

Q: What is the backsplash design like?
A: It features a 10" high boxed backsplash with a 2" return to the wall at a 45-degree angle and a 3/4" turned-down rear lip for splash protection.

Q: Is this dishtable NSF certified?
A: Certification is not specified here—please check with the supplier if NSF certification is required.

Maintenance Tips

• Clean the backsplash and sink area daily to avoid buildup

• Use soft cloths and stainless-safe cleaners to prevent surface damage

• Avoid leaving standing water in the sink to prolong lifespan

• Routinely inspect for clogs or debris in the pre-rinse area

• Apply stainless steel polish for added protection and a professional finish
