John Boos FTSG-1236 36" W x 12" D Floor Trough - JBFTSG1236

John Boos FTSG-1236 36" W x 12" D Floor Trough - JBFTSG1236

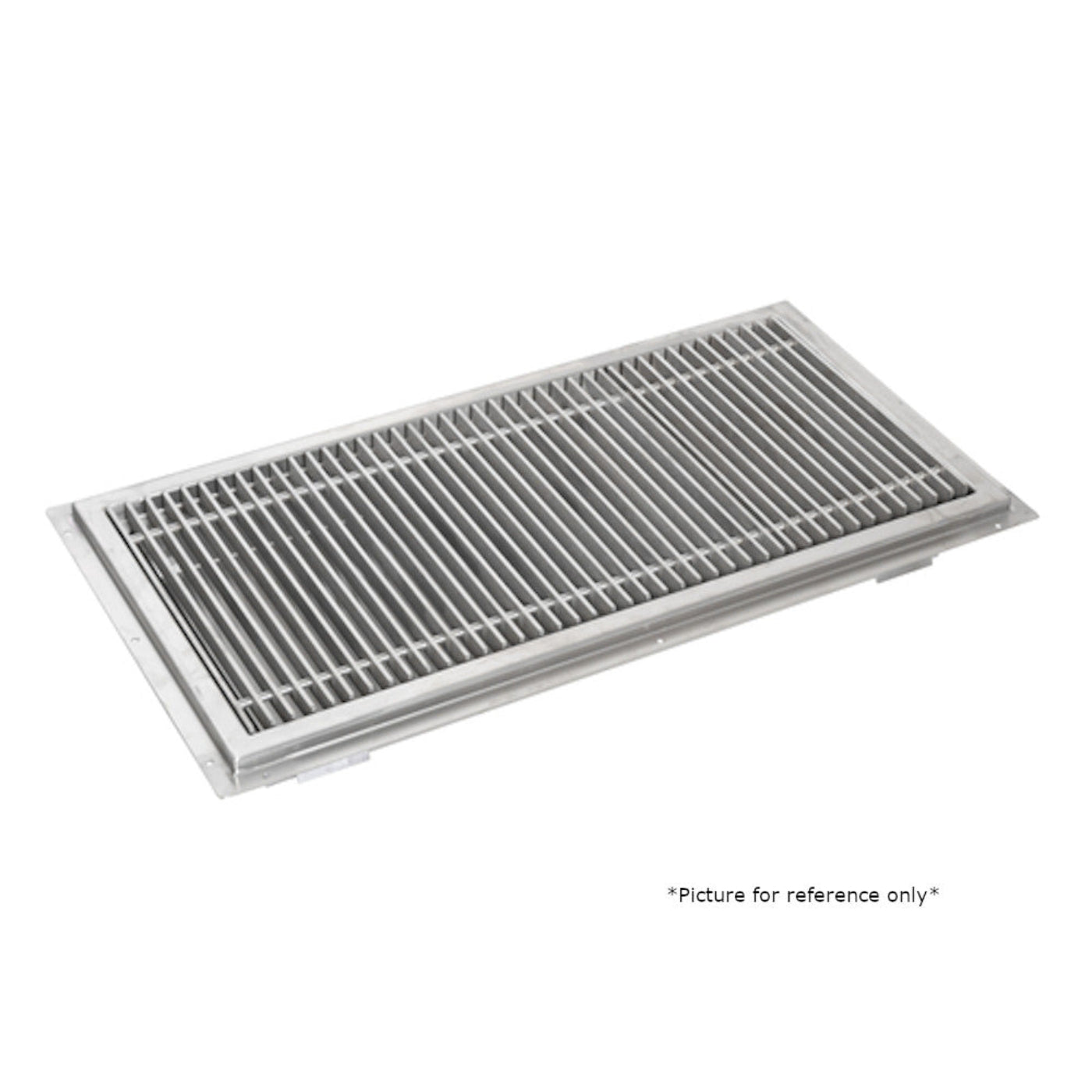

This John Boos FTSG-1236 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility for scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1236 is TIG welded with its exposed welds being polished to match the adjacent surfaces.

Features

• Accomodates a 4" O.D. diameter drain pipe 3.25" long
• Removable grate with 1/8" stainless steel bars on 3/4" centers
• 5-degree breaks in bottom for positive drainage towards drain
• Includes drainage grate with 1/4" holes
• All TIG welded
• Exposed welds are polished to match adjacent surface
• 14 gauge, type 300 stainless steel construction

Specifications

What our Experts Think

• Dimensions: 36 inches in length, 12 inches in width, and 4 inches in depth, providing a compact yet effective drainage solution.

• Construction: Crafted from 14-gauge, type 300 stainless steel, ensuring durability and resistance to corrosion.

• Design

• Features a subway-style stainless steel grating, allowing for efficient water flow and debris capture.

• The all-welded drain pan includes a built-in pitch to facilitate proper drainage.

• Drainage Capacity: Accommodates up to a 4-inch diameter pipe, suitable for handling substantial water flow.

• Maintenance: Comes with a stainless steel removable perforated strainer, simplifying cleaning and maintenance.

Q&A

Q: What size drain pipe does this floor trough accommodate?
A: The unit is designed to accommodate up to a 4-inch diameter drain pipe.

Q: Is the grating removable for cleaning purposes?
A: Yes, the subway-style stainless steel grating is removable, facilitating easy cleaning and maintenance.

Q: What is the purpose of the built-in pitch in the drain pan?
A: The built-in pitch ensures positive drainage by directing water flow efficiently toward the drain, preventing standing water.

Q: Is the perforated strainer included with the floor trough?
A: Yes, the floor trough includes a stainless steel removable perforated strainer to catch debris and prevent clogging

Maintenance Tips

• Dimensions: 36 inches wide, 12 inches deep, and 4 inches high.

• Construction: Crafted from 14-gauge type 300 stainless steel, ensuring strength and resistance to corrosion.

• Grating: Equipped with a subway-style stainless steel grate, providing a sturdy surface and facilitating effective drainage.

• Drain Pan: Features a 4-inch deep, all-welded drain pan with a built-in pitch to promote efficient water flow.

• Drain Compatibility: Accommodates up to a 4-inch diameter drain pipe, suitable for standard plumbing configurations.

• Strainer: Includes a stainless steel removable perforated strainer to catch debris and prevent clogging.
