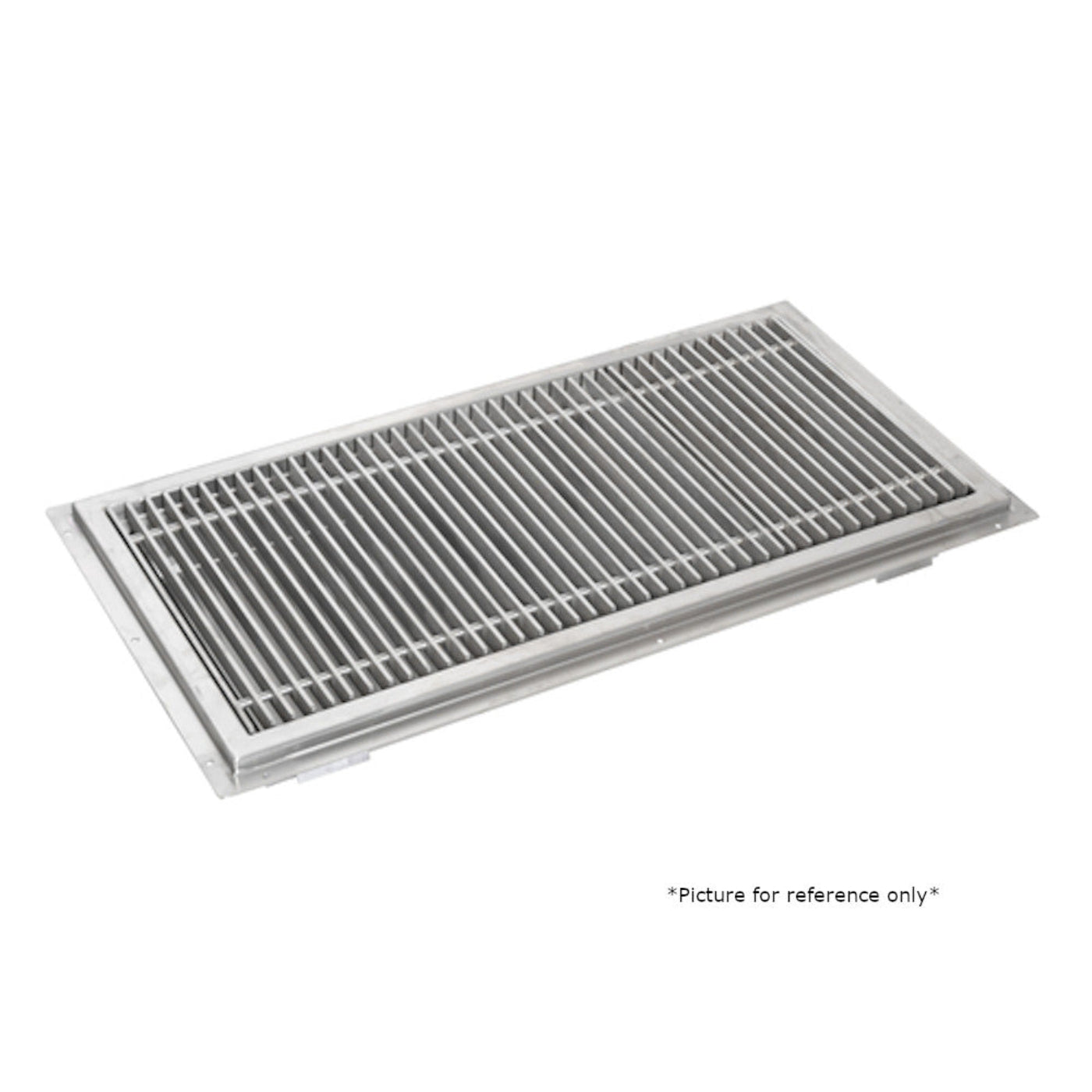

John Boos FTSG-1824 24" W x 18" D Floor Trough - JBFTSG1824

John Boos FTSG-1824 24" W x 18" D Floor Trough - JBFTSG1824

This John Boos FTSG-1824 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1824 is TIG welded with its exposed welds being polished to match the adjacent surfaces.

Features

• Accomodates a 4" O.D. diameter drain pipe 3.25" long
• Removable grate with 1/8" stainless steel bars on 3/4" centers
• 5-degree breaks in bottom for positive drainage towards drain
• Includes drainage grate with 1/4" holes
• All TIG welded
• Exposed welds are polished to match adjacent surface
• 14 gauge, type 300 stainless steel construction

Specifications

What our Experts Think

• Dimensions: Measuring 24 inches in width and 18 inches in depth, this floor trough provides substantial coverage for effective drainage in high-traffic areas.

• Construction: Crafted from 14-gauge Type 300 series stainless steel, the trough ensures strength and resistance to corrosion, making it suitable for demanding kitchen environments.

• Grating: Features subway-style stainless steel grating, offering a sturdy and slip-resistant surface that complements the overall design.

• Drain Pan: The 4-inch deep all-welded drain pan includes a built-in pitch, facilitating efficient water flow toward the drain and preventing standing water.

• Drainage Capacity: Accommodates up to a 4-inch diameter pipe, suitable for handling substantial water flow typically found in commercial settings.

• Strainer: Comes with a removable stainless steel perforated strainer to prevent debris from clogging the drainage system, ensuring smooth operation.

Q&A

Q: What are the dimensions of the John Boos FTSG-1824 Floor Trough?

A: The floor trough measures 24 inches in length, 18 inches in width, and 4 inches in height.

Q: What material is the floor trough made from?

A: It is constructed from 14-gauge, type 300-series stainless steel, ensuring durability and resistance to corrosion.

Q: What type of grating does the floor trough feature?

A: The trough is equipped with subway-style stainless steel grating, providing effective drainage and ease of maintenance

Q: What is the capacity of the drain pan?

A: The 4-inch deep, all-welded drain pan is pitched to facilitate positive drainage and accommodates up to a 4-inch diameter drain pipe

Q: Does the floor trough include a strainer?

A: Yes, it comes with a removable perforated stainless steel strainer to help prevent clogging.

Q: What is the weight of the floor trough?

A: The trough weighs approximately 37 pounds

Q: Is there a warranty for this product?

A: Yes, the John Boos FTSG-1824 Floor Trough comes with a 1-year warranty against defects in material and workmanship

Maintenance Tips

• Regular Cleaning

• Clean the stainless steel surfaces and grating with a mild detergent and soft cloth to remove residues and prevent staining.

• Avoid abrasive cleaners or pads that could scratch the surface.

• Drain Maintenance

• Regularly inspect and clean the removable perforated strainer and drain pan to prevent clogs and ensure efficient drainage

• Structural Inspection

• Periodically check the integrity of the welded drain pan and grating, ensuring they remain securely in place and free from damage.
