John Boos FTSG-1836 36" W x 18" D Floor Trough - JBFTSG1836

John Boos FTSG-1836 36" W x 18" D Floor Trough - JBFTSG1836

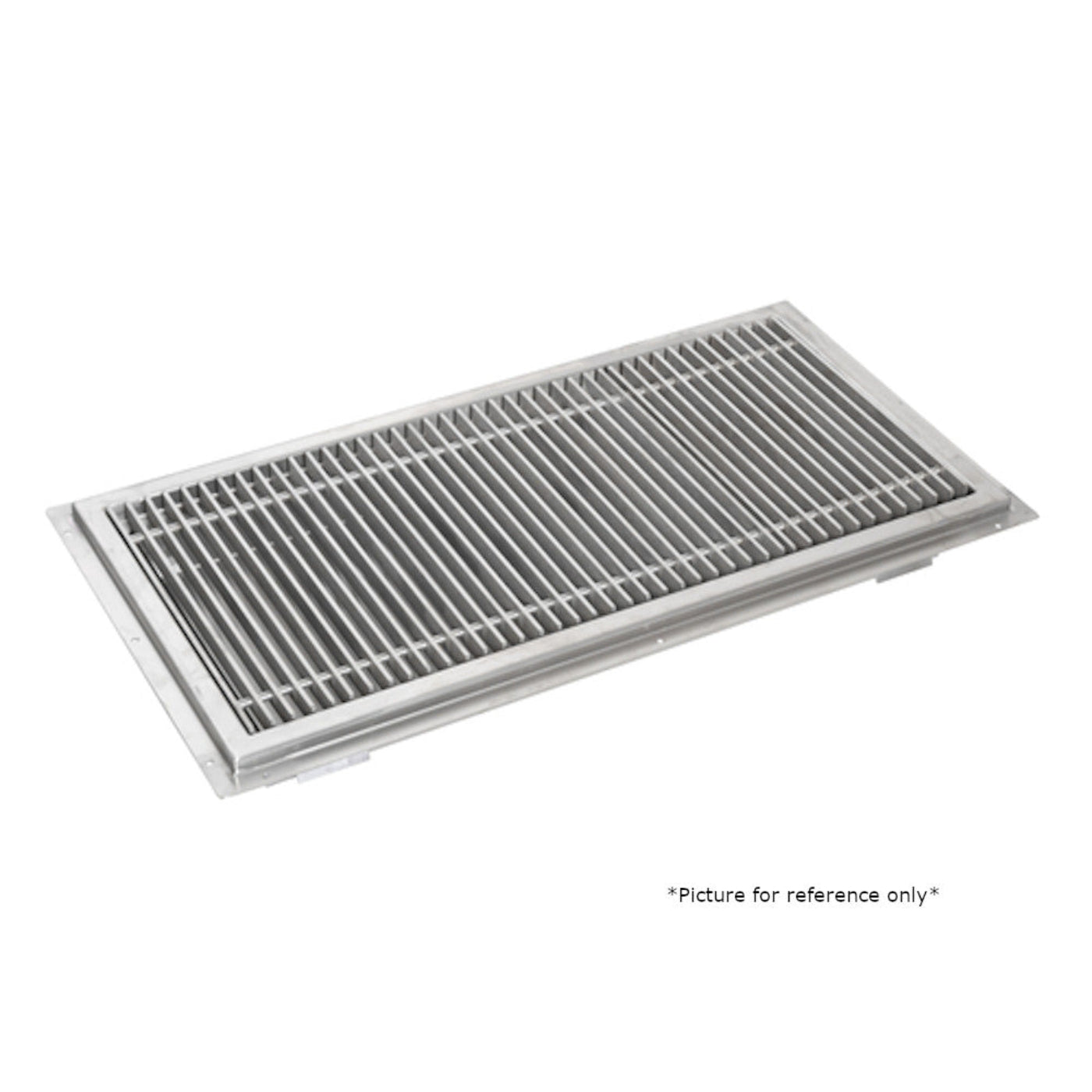

This John Boos FTSG-1836 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1836 is TIG welded with its exposed welds being polished to match the adjacent surfaces.

Features

• Accomodates a 4" O.D. diameter drain pipe 3.25" long
• Removable grate with 1/8" stainless steel bars on 3/4" centers
• 5-degree breaks in bottom for positive drainage towards drain
• Includes drainage grate with 1/4" holes
• All TIG welded
• Exposed welds are polished to match adjacent surface
• 14 gauge, type 300 stainless steel construction

Specifications

What our Experts Think

• Dimensions: 36 inches in width, 18 inches in depth, and 4 inches in pan depth, providing an effective drainage area.

• Construction: Made from 14-gauge, type 300 stainless steel, ensuring durability and resistance to corrosion.

• Grating: Features subway-style stainless steel grating, allowing for efficient water flow and debris capture.

• Drain Pan: The 4-inch deep all-welded drain pan includes a built-in pitch to facilitate proper drainage.

• Drainage Capacity: Accommodates up to a 4-inch diameter pipe, suitable for handling substantial water flow.

• Maintenance: Includes a stainless steel removable perforated strainer, simplifying cleaning and maintenance.

Q&A

Q: What size drain pipe does this floor trough accommodate?
A: The unit is designed to accommodate up to a 4-inch diameter drain pipe.

Q: Is there a strainer included with the floor trough?
A: Yes, it includes a stainless steel removable perforated strainer to prevent debris from entering the drainage system.

Q: What is the purpose of the built-in pitch in the drain pan?
A: The built-in pitch ensures positive drainage by directing water flow efficiently toward the drain, preventing standing water.

Q: Is the grating removable for cleaning purposes?
A: Yes, the subway-style stainless steel grating is removable, facilitating easy cleaning and maintenance.

Maintenance Tips

• Dimensions: 36 inches wide, 18 inches deep, and 4 inches high.

• Construction: Crafted from 14-gauge type 300 stainless steel, ensuring durability and resistance to corrosion.

• Grating: Equipped with subway-style stainless steel grating, providing a sturdy surface and effective drainage.

• Drain Pan: Features a 4-inch deep, all-welded drain pan with a built-in pitch to promote efficient water flow.

• Drain Compatibility: Accommodates up to a 4-inch diameter drain pipe, suitable for standard plumbing configurations.

• Strainer: Includes a stainless steel removable perforated strainer to catch debris and prevent clogging.
