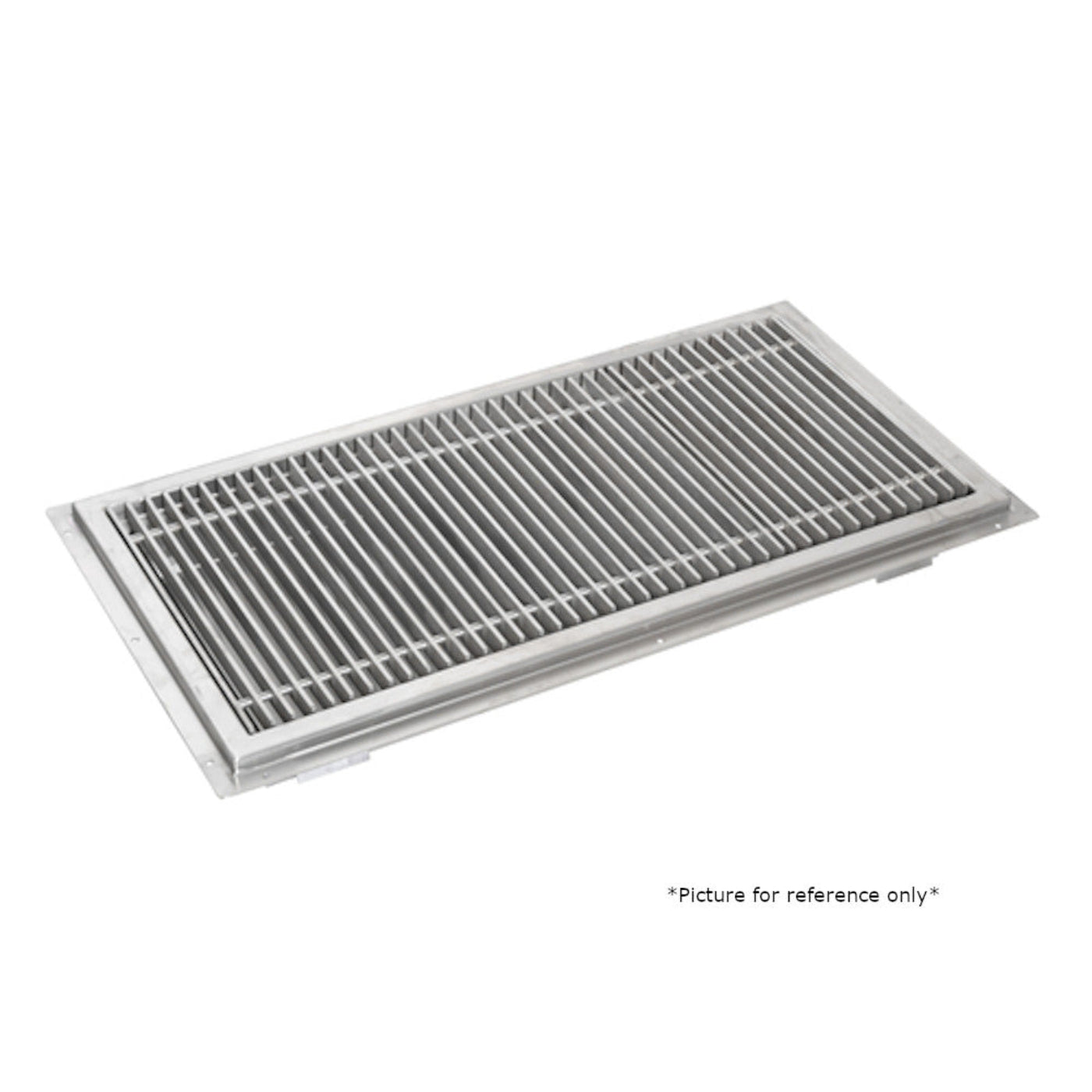

John Boos FTSG-1848 48" W x 18" D Floor Trough - JBFTSG1848

John Boos FTSG-1848 48" W x 18" D Floor Trough - JBFTSG1848

This John Boos FTSG-1848 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1848 is TIG welded with its exposed welds being polished to match the adjacent surfaces.

Features

• Accomodates a 4" O.D. diameter drain pipe 3.25" long
• Removable grate with 1/8" stainless steel bars on 3/4" centers
• 5-degree breaks in bottom for positive drainage towards drain
• Includes drainage grate with 1/4" holes
• All TIG welded
• Exposed welds are polished to match adjacent surface
• 14 gauge, type 300 stainless steel construction

Specifications

What our Experts Think

• Dimensions: 48 inches in width and 18 inches in depth, providing substantial coverage for effective floor drainage.

• Construction: Made from 14-gauge Type 300 stainless steel, ensuring strength and resistance to corrosion.

• Grating: Features subway-style stainless steel grating, offering a sturdy and slip-resistant surface.

• Drain Pan: The 4-inch deep all-welded drain pan includes a built-in pitch to facilitate efficient water flow toward the drain

• Drainage Capacity: Accommodates up to a 4-inch diameter pipe, suitable for handling substantial water flow

• Strainer: Comes with a removable stainless steel perforated strainer to prevent debris from clogging the drainage system.

Q&A

Q: What are the dimensions of the John Boos FTSG-1848 Floor Trough?
A: The floor trough measures 48 inches in width and 18 inches in depth.

Q: What material is the John Boos FTSG-1848 Floor Trough made of?
A: It is constructed from 14-gauge type 300 stainless steel, ensuring durability and corrosion resistance.

Q: What type of grating does this floor trough feature?
A: The trough includes a subway-style stainless steel grating, designed for strength and efficient drainage.

Q: How deep is the drain pan, and does it have any special features?
A: The drain pan is 4 inches deep and features an all-welded construction with a built-in pitch to facilitate effective fluid drainage.

Q: What size drain pipe can the John Boos FTSG-1848 accommodate?
A: It is designed to accommodate drain pipes up to 4 inches in diameter.

Q: Is there a strainer included with this floor trough?
A: Yes, it includes a stainless steel removable perforated strainer to prevent debris from entering the drainage system.

Q: What are the ideal applications for the John Boos FTSG-1848 Floor Trough?
A: This floor trough is suitable for high-traffic areas such as commercial kitchens, food processing facilities, and industrial settings requiring efficient drainage solutions.

Maintenance Tips

• Dimensions: 48 inches in width, 18 inches in depth, and 4 inches in height.

• Construction:

• Made from 14-gauge Type 300 stainless steel, ensuring strength and corrosion resistance.

• Features a 4-inch deep, all-welded drain pan with a built-in pitch for effective water drainage.

• Grating

• Equipped with subway-style stainless steel grating that is removable for easy cleaning

• The grating design prevents larger debris from entering the drainage system.
