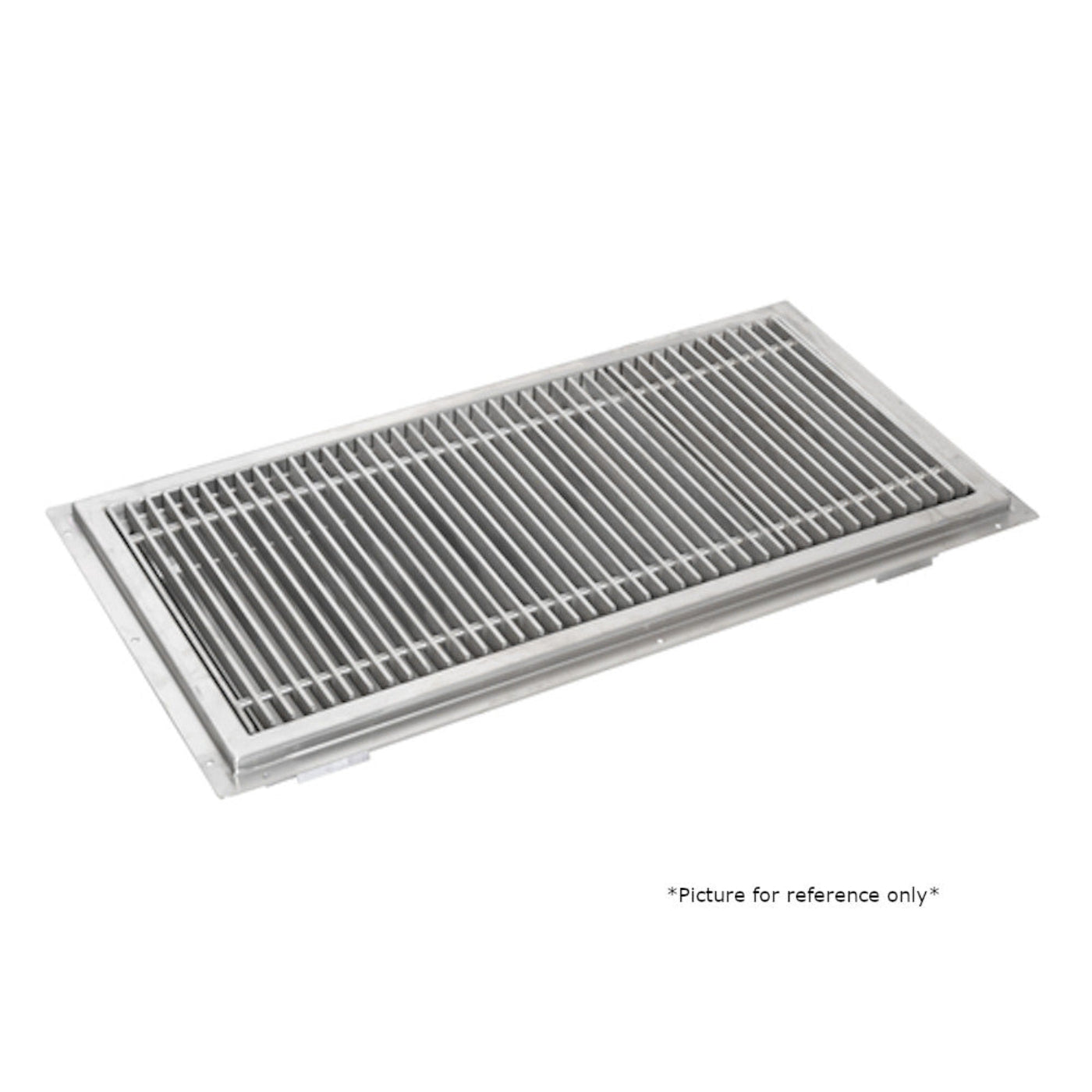

John Boos FTSG-1860 60" W x 18" Floor Trough - JBFTSG1860

John Boos FTSG-1860 60" W x 18" Floor Trough - JBFTSG1860

This John Boos FTSG-1860 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1860 is TIG welded with its exposed welds being polished to match the adjacent surfaces.

Features

• Accomodates a 4" O.D. diameter drain pipe 3.25" long
• Removable grate with 1/8" stainless steel bars on 3/4" centers
• 5-degree breaks in bottom for positive drainage towards drain
• Includes drainage grate with 1/4" holes
• All TIG welded
• Exposed welds are polished to match adjacent surface
• 14 gauge, type 300 stainless steel construction

Specifications

What our Experts Think

• Dimensions: Measures 60 inches in width and 18 inches in depth, providing substantial coverage for floor drainage needs.

• Construction: Crafted from 14-gauge 300 series stainless steel, offering durability and resistance to corrosion, suitable for high-traffic kitchen areas.

• Design:

• Grating: Features subway-style stainless steel grating that is both sturdy and easy to clean.

• Drain Pan: Equipped with a 4-inch deep all-welded drain pan that includes a built-in pitch, facilitating efficient water flow towards the drain.

• Capacity: Designed to accommodate up to a 4-inch diameter pipe, ensuring effective drainage for various kitchen operations.

• Maintenance: Comes with a removable perforated stainless steel strainer, simplifying the cleaning process and preventing debris from entering the drain.

Q&A

Q: What is the John Boos FTSG-1860 Floor Trough?
A: It's a commercial-grade floor trough designed to efficiently drain standing water, enhancing safety and sanitation in professional kitchens.

Q: What are its dimensions and construction materials?
A: The trough measures 60 inches in width, 18 inches in depth, and 4 inches in height. It's constructed from durable 14-gauge, type 300 series stainless steel.

Q: What type of grating does it feature?
A: It includes a removable subway-style stainless steel grating, designed for durability and ease of cleaning.

Q: How does the drainage system work?
A: The trough has a built-in pitch for effective water flow and accommodates up to a 4-inch diameter drain pipe. It also comes with a removable perforated strainer to prevent debris from clogging the drain.

Q: Is this floor trough suitable for heavy-duty use?
A: Yes, its robust stainless steel construction and design make it ideal for high-traffic commercial environments.

Maintenance Tips

• Dimensions: 60" Width x 18" Depth x 4" Height

• Construction

• Material: 14-gauge Type 300-series stainless steel

• Design: All TIG welded with exposed welds polished to match adjacent surfaces

• Drainage

• Pan Depth: 4" deep all-welded drain pan with built-in pitch for optimal drainage

• Drain Pipe Compatibility: Accommodates up to a 4" diameter drain pipe

• Grate: Removable subway-style stainless steel grating with 3/8" diameter rods and 3/16" x 1" bar stock on 3/4" centers

• Drain Basket: Includes a perforated stainless steel drain basket
