John Boos GT-100 Grease Interceptor with 100 lb. Capacity - JBGT100

John Boos GT-100 Grease Interceptor with 100 lb. Capacity - JBGT100

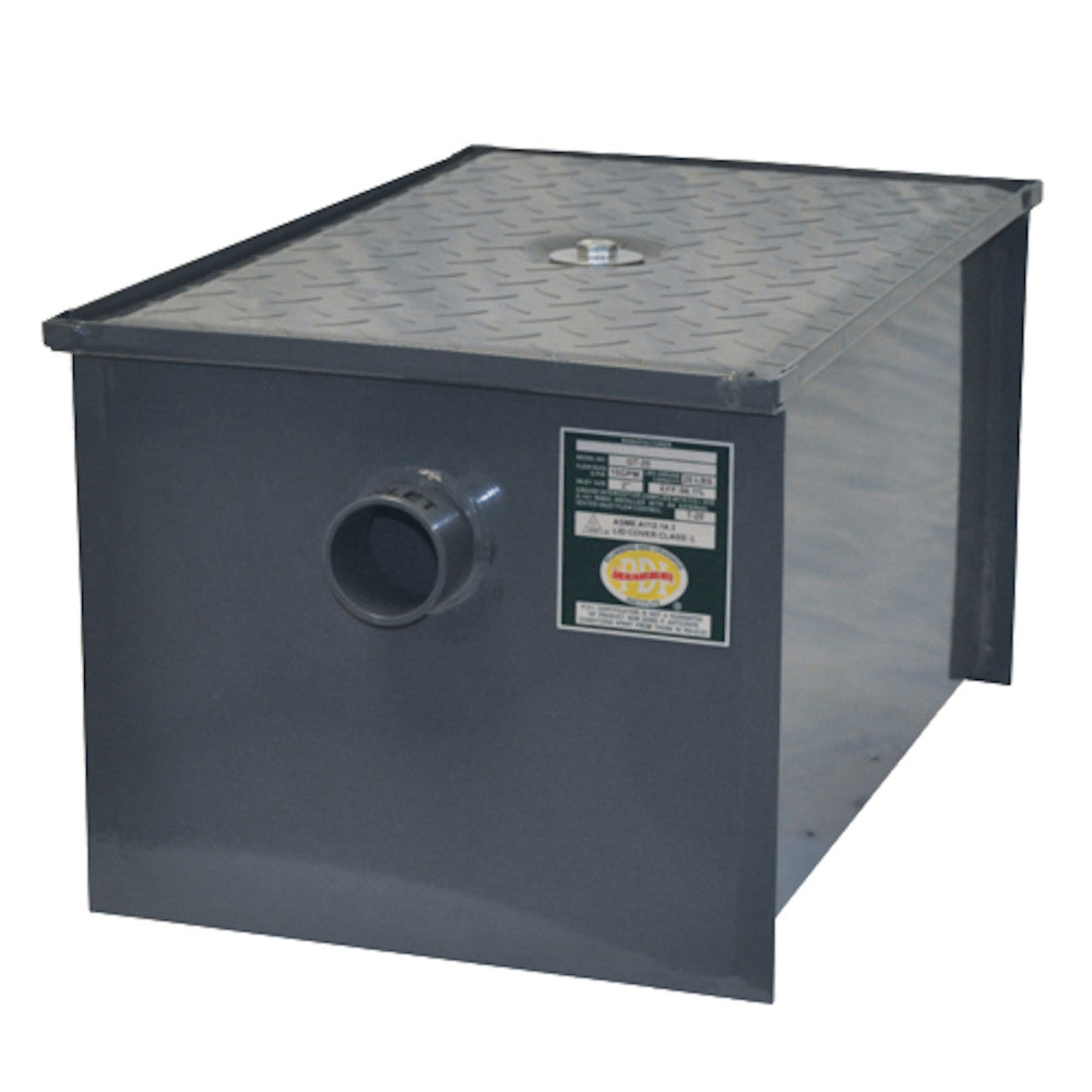

This John Boos GT-100 Grease Interceptor has the capacity to hold up to 100 pounds of grease. It has a 50 gallon per minute flow rate. This Interceptor has a 1/8" thick carbon steel body with a removable baffle. The body has been TIG welded. There are no-hub connections. A T-vent, integral trap and vented inlet flow control device. This GT-100 has an easily removable cover and a 4" inlet/outlet.

Features

• 1/8" thick carbon steel body
• Removable baffle
• No-skid cover
• Easily removable cover
• TIG welded body
• 4" inlet/outlet
• No-hub connections
• T-vent included
• Integral trap
• Vented inlet flow control device

Specifications

What our Experts Think

• Grease Capacity: Capable of handling up to 100 pounds of grease.

• Flow Rate: Manages wastewater flow up to 50 gallons per minute (GPM).

• Construction: Fabricated from durable 1/8-inch thick carbon steel, ensuring longevity and resistance to wear.

• Inlet/Outlet Size: Equipped with 4-inch no-hub connections for straightforward installation.

• Removable Baffle: Facilitates easy cleaning and maintenance by trapping FOG effectively.

• No-Skid Cover: Features a removable, non-slip cover with a locking mechanism to ensure safety and ease of access.

• T-Vent Included: Comes with a T-Vent to aid in proper air circulation within the system

• Certifications: PDI certified, meeting industry standards for performance and reliability.

Q&A

Q: What is the John Boos GT-100 Grease Interceptor used for?
A: The John Boos GT-100 is designed to remove fats, oils, and grease from wastewater in commercial kitchens, preventing pipe blockages and ensuring compliance with plumbing regulations.

Q: What are the key features of the GT-100 model?
A: This grease interceptor features a 100-pound grease capacity, a 50-gallon per minute flow rate, a removable baffle for efficient grease separation, a non-skid removable cover with a locking mechanism, and a T-Vent for proper air flow

Q: What are the inlet and outlet specifications?
A: The GT-100 is equipped with 4-inch inlet and outlet no-hub connections, facilitating straightforward installation and compatibility with standard plumbing systems.

Q: What materials are used in the construction of this grease interceptor?
A: Constructed from durable 1/8-inch thick carbon steel, the GT-100 is TIG-welded for strength and designed to withstand the demands of high-volume commercial kitchen environments.

Q: What are the dimensions and weight of the GT-100?
A: The interceptor measures 30.5 inches in length, 22.25 inches in width, and 21.5 inches in height, with an approximate weight of 175 pounds.

Maintenance Tips

• Grease Capacity: 100 pounds

• Flow Rate: 50 gallons per minute

• Inlet/Outlet Size: 4 inches with no-hub connections

• Construction: Durable 1/8-inch thick carbon steel

• Removable Components: Includes a removable baffle and an easy-to-remove, no-skid cover for straightforward cleaning and maintenance

• Certifications: PDI certified, ensuring compliance with performance standards
