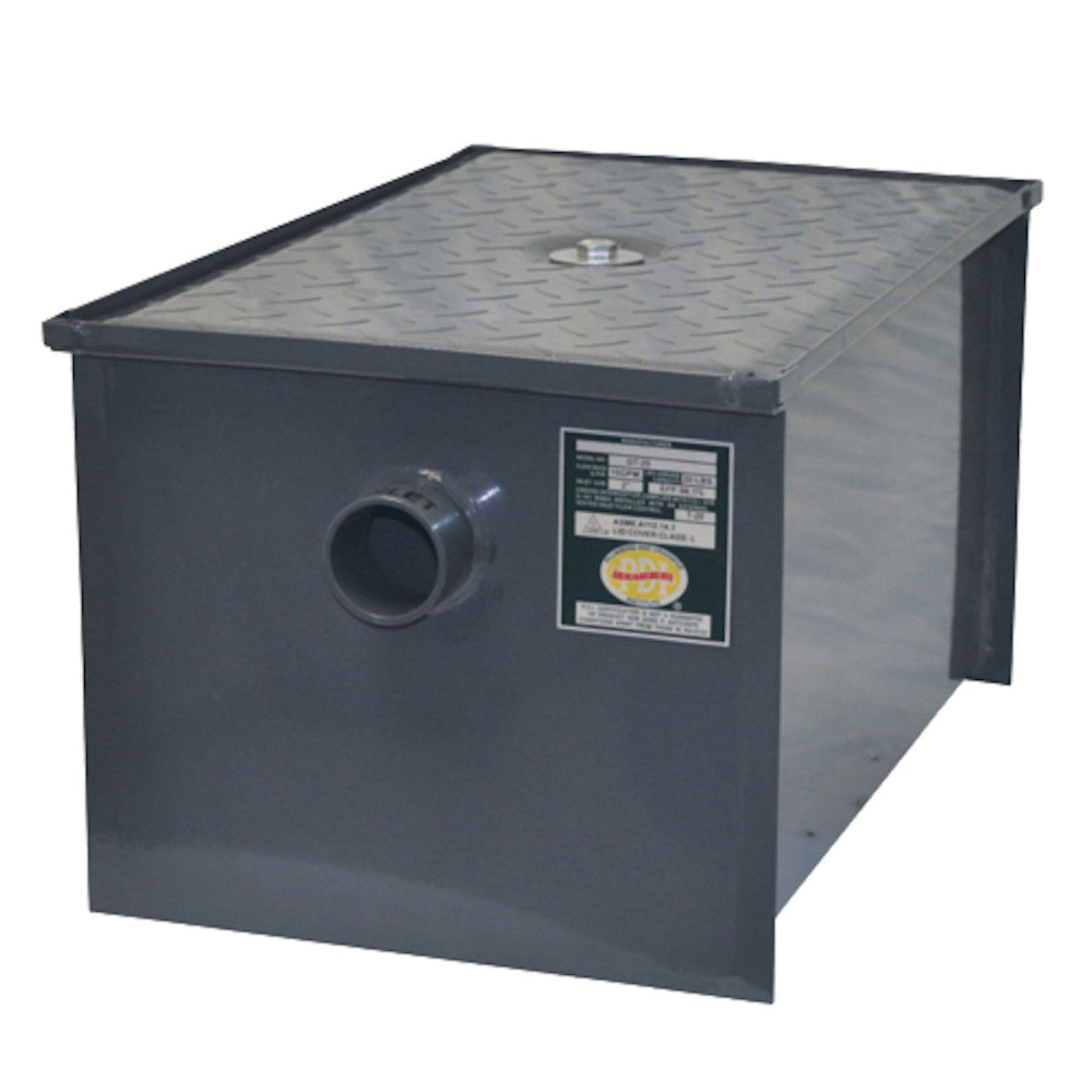

John Boos GT-70 Grease Interceptor with 70 lb. Capacity - JBGT70

John Boos GT-70 Grease Interceptor with 70 lb. Capacity - JBGT70

This John Boos GT-70 Grease Interceptor has the capacity to hold up to 70 pounds of grease. It has a 36 gallon per minute flow rate. This Interceptor has a 1/8" thick carbon steel body with a removable baffle. The body has been TIG welded. There are no-hub connections. A T-vent, integral trap and vented inlet flow control device. This GT-70 has an easily removable cover and a 4" inlet/outlet.

Features

• 1/8" thick carbon steel body
• Removable baffle
• No-skid cover
• Easily removable cover
• TIG welded body
• 4" inlet/outlet
• No-hub connections
• T-vent included
• Integral trap
• Vented inlet flow control device

Specifications

What our Experts Think

• Grease Capacity: Holds up to 70 pounds of grease, suitable for high-volume establishments.

• Flow Rate: Handles up to 35 gallons per minute (GPM), ensuring effective grease separation without hindering wastewater flow.

• Construction: Made from 1/8-inch thick carbon steel, offering durability and resistance to rust and corrosion.

• Inlet and Outlet: Equipped with 3-1/2-inch inlet and outlet ports featuring no-hub connections for secure and straightforward installation.

Q&A

Q: What is the John Boos GT-70 Grease Interceptor?
A: The John Boos GT-70 is a commercial-grade grease interceptor designed to efficiently separate grease from wastewater, preventing blockages in plumbing systems.

Q: What is its grease capacity and flow rate?
A: It has a grease capacity of 70 pounds and supports a flow rate of 35 gallons per minute, suitable for establishments with significant grease discharge.

Q: What are its dimensions?
A: The interceptor measures 18 inches in width, 28.5 inches in depth, and 19.3 inches in height, fitting into standard plumbing setups

Q: What materials is it made from?
A: Constructed from 1/8-inch thick carbon steel, the GT-70 is built for durability and longevity in demanding commercial environments.

Q: How does it facilitate maintenance?
A: It features a removable baffle and a no-skid cover that is easily removed, simplifying cleaning and maintenance tasks

Q: Does it comply with industry standards?
A: Yes, the John Boos GT-70 is PDI (Plumbing and Drainage Institute) certified, ensuring it meets recognized performance and quality standards.

Q: What are the inlet and outlet specifications?
A: The interceptor is equipped with 3-1/2-inch inlet and outlet ports featuring no-hub connections, facilitating straightforward installation.

Q: Is it suitable for various kitchen applications?
A: Absolutely, the GT-70 is ideal for use with prep sinks, pot sinks, and dishwashers, effectively managing grease from diverse kitchen operations.

Maintenance Tips

• Regular Grease Removal:

• Frequency: Inspect the grease interceptor daily and remove accumulated grease as needed, typically when it reaches 25-30 lbs to maintain optimal performance.

• Method: Carefully lift the removable baffle and extract the grease using appropriate containers. Dispose of the grease in accordance with local regulations.

• Cleaning the Interceptor:

• Disassembly: Remove the baffle and cover as per the manufacturer's instructions.

• Cleaning Process: Clean all components with warm water and a mild detergent to eliminate grease residues. Avoid using harsh chemicals that could damage the unit.

• Drying: Ensure all parts are thoroughly dried before reassembly to prevent moisture-related issues.
