John Boos Soiled Straight 60"W x 30"D Undercounter Dishtable - JBJDTS2060UCL

John Boos Soiled Straight 60"W x 30"D Undercounter Dishtable - JBJDTS2060UCL

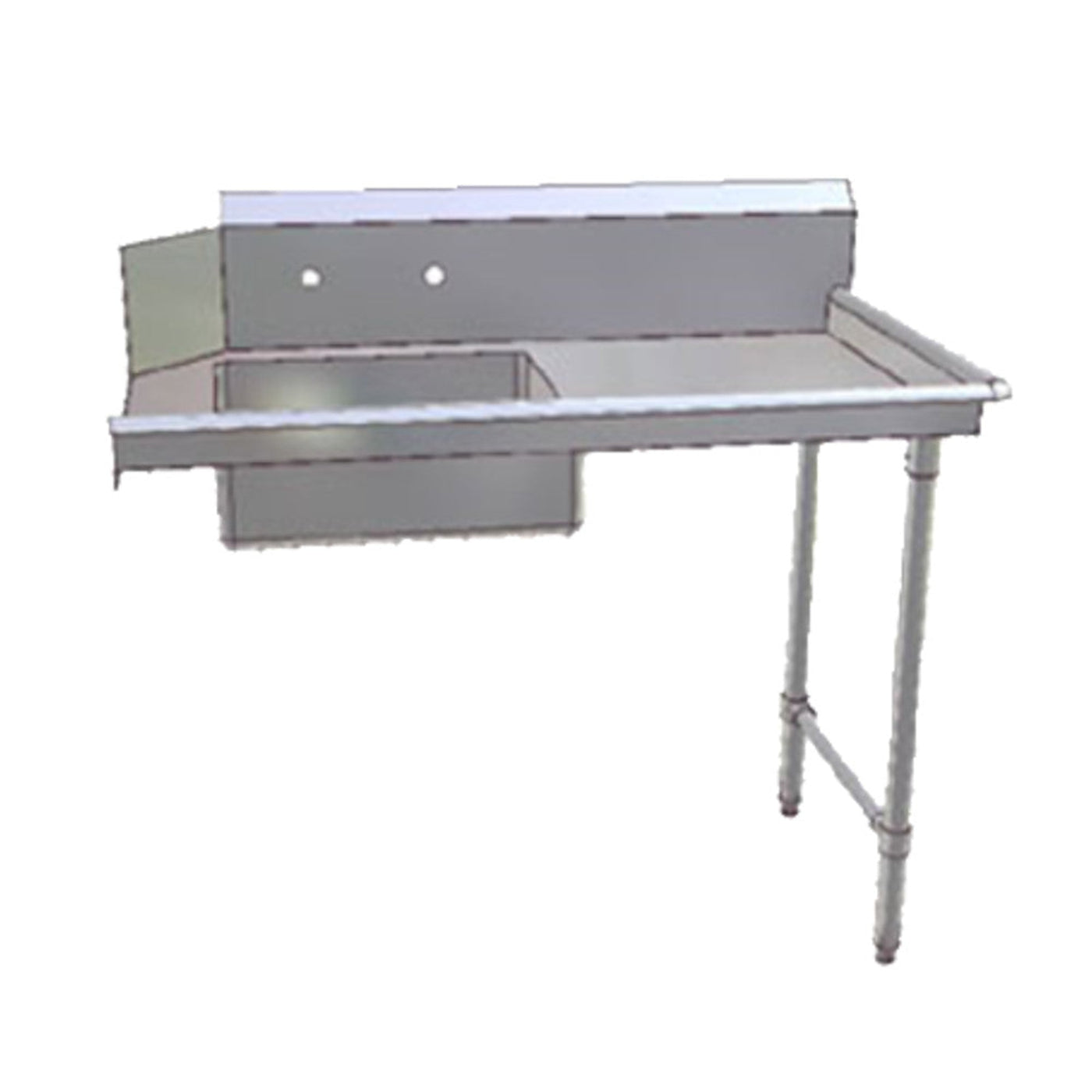

Durable and easy to clean, this John Boos JDTS-20-60UCL Undercounter Dishtable has a soiled, straight design. It is engineered for left-to-right operations. With a stainless steel construction, its top and pre-rinse sink bowl have been finished with a #4 satin polish. It has 10" high backsplash with 1-1/8" faucet holes and 8" centers (Faucet not included). This Dishtable has coved corners at a 3/4" radius. The top has been TIG welded and the base is MIG welded. Exposed welds have been polished to match adjacent surfaces. This JDTS-20-60UCL has stainless steel bracing, gussets, legs, and bullet feet.

Features and Benefits

• Soiled, straight design
• For left-to-right operation
• 20" x 20" x 8" deep pre-rinse sink
• (1) set of splash mount 1-1/8" faucet holes with 8" centers in backsplash
• 16 gauge, type 300 stainless steel bowls and top with #4 polish, satin finish top and bowls
• 8" deep bowls
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degree
• 3/4" turned down rear lip
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard 1-5/8" diameter stainless steel legs provide increased stability and max weight support
• Stainless steel tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Stainless steel bases are MIG welded
• 1-1/4" Round O.D. stainless steel bracing
• Stainless steel gussets
• 1" adjustable stainless steel bullet feet
• Model: JDTS-20-60UCL
• Pre-Rinse Sink Dimensions: 20" W x 20" front-to-back x 8" deep pre-rinse sink
• Dimensions: 44" H x 60" W x 30" D
• Approximate Weight: 66 lbs.

What Our Experts Think

• Ideal for commercial dishrooms requiring a left-to-right workflow

• Durable stainless steel build withstands heavy daily use

• Integrated pre-rinse sink enhances cleaning efficiency

• 10" high backsplash keeps walls protected from splashes

• Faucet-ready with 1-1/8" holes on 8" centers (faucet not included)

Q&A

Q: What are the overall dimensions of this dishtable?
A: The dishtable measures 60 inches wide by 30 inches deep.

Q: Is it built for a left-to-right operation?
A: Yes, it is specifically designed for left-to-right dishwashing flow.

Q: What kind of finish does the table have?
A: Both the top and the sink bowl have a #4 satin polish finish for a clean, professional look.

Q: Are the faucet holes pre-drilled?
A: Yes, it includes 1-1/8" faucet holes on 8" centers.

Q: Is the faucet included?
A: No, the faucet is not included with this unit.

Maintenance Tips

• Wipe down with mild detergent and soft cloth after each use

• Avoid abrasive pads to preserve the satin finish

• Regularly inspect and clean the pre-rinse sink and drain

• Use stainless steel polish occasionally to maintain shine

• Check faucet mounting holes for debris to ensure secure installation
