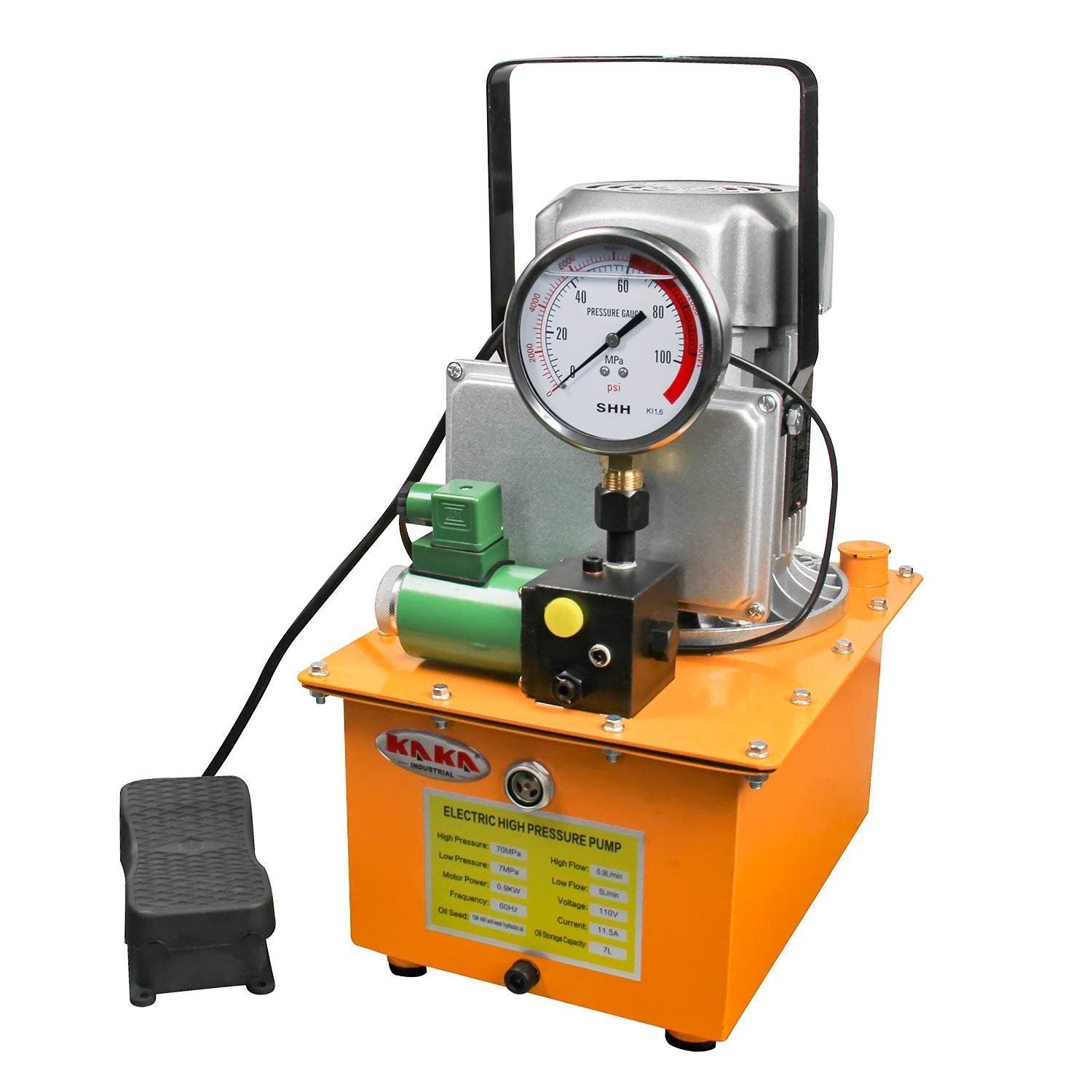

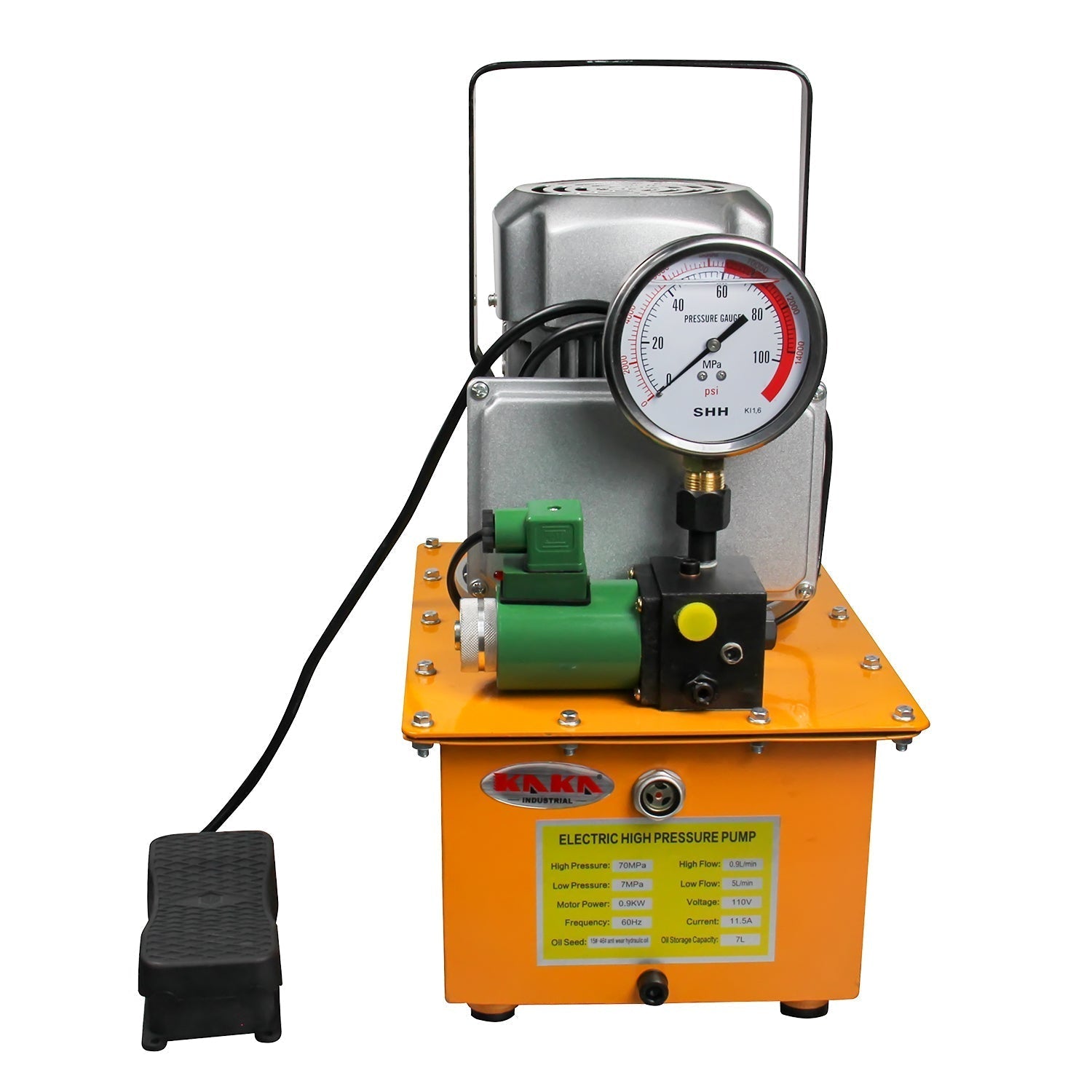

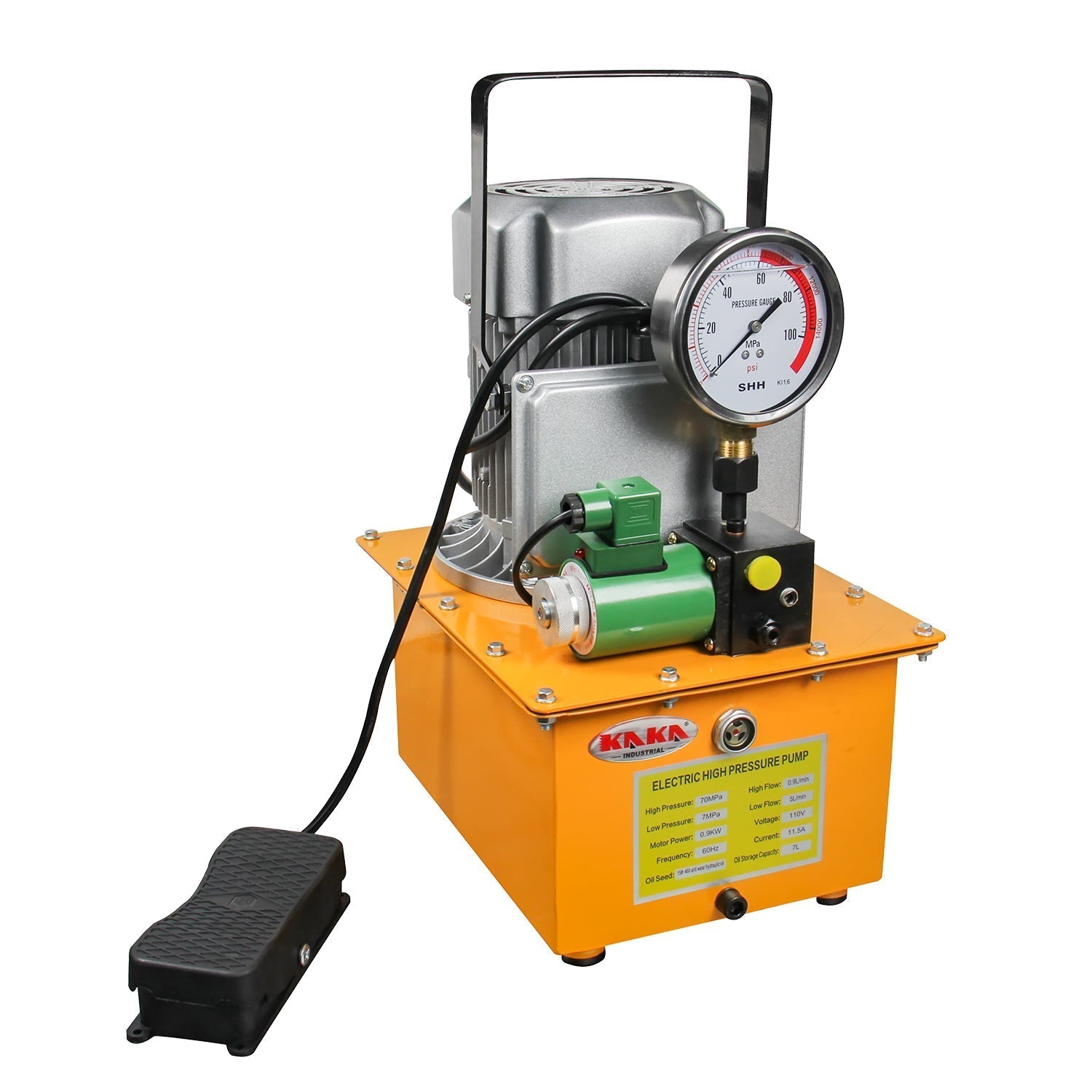

KAKA Industrial ZCB-700D 10000 PSI Hydraulic Electric Pump 750W Single Acting 110V Solenoid Pedal 7L Hydraulic Power Pack Cylinder - 162206V110

KAKA Industrial ZCB-700D 10000 PSI Hydraulic Electric Pump 750W Single Acting 110V Solenoid Pedal 7L Hydraulic Power Pack Cylinder - 162206V110

• The low-pressure output adopts plunger type to increase the effective pressure.

• High and low speed two stage design is for quick oil output.
• Over pressure safety valve unit could avoid over pressure damage. The pump automatically release once reach 700kg/cm².
• Automatic pressure maintenance ensures the continuous force during use.

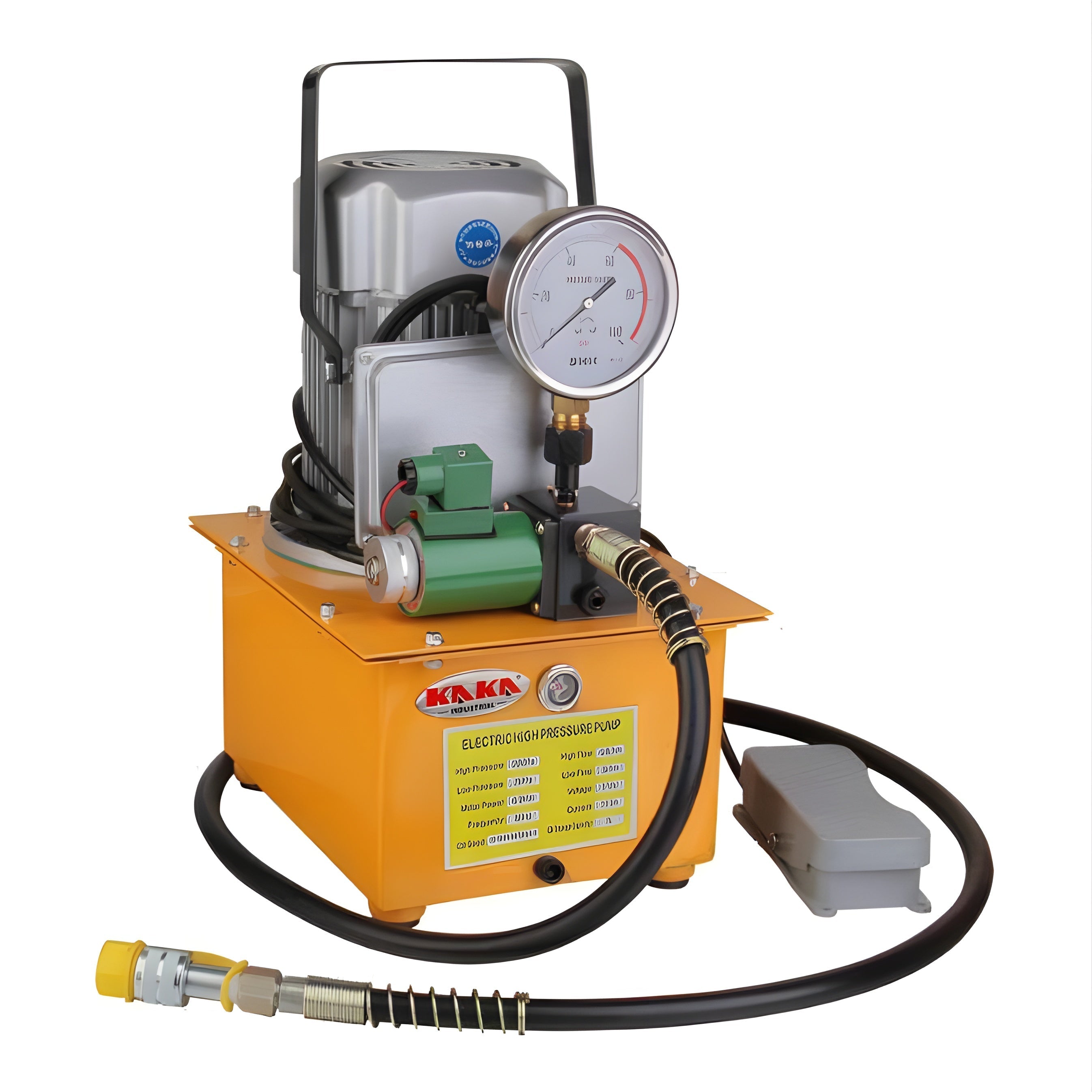

• Oil pipe fitted with ZG3/8 quick coupler and dust cap.

Model ZCB-700D

Working Power 110V Single phase

Power Rating 750W

Max Pressure Rating(Mpa) 70

Pressure Rating(Mpa)  Low 7

                                     High 70

Rated Output(L/min)     Low 5

                                      High 0.9

Oil Capacity (L) 7

packing dimensions(inch) 14.37 x 10.83 x 17.91

gross weight(lb) 62

Remarks Single active

Video

What Our Experts Think

• High Pressure – Delivers up to 10,000 PSI, providing powerful performance for various hydraulic applications.

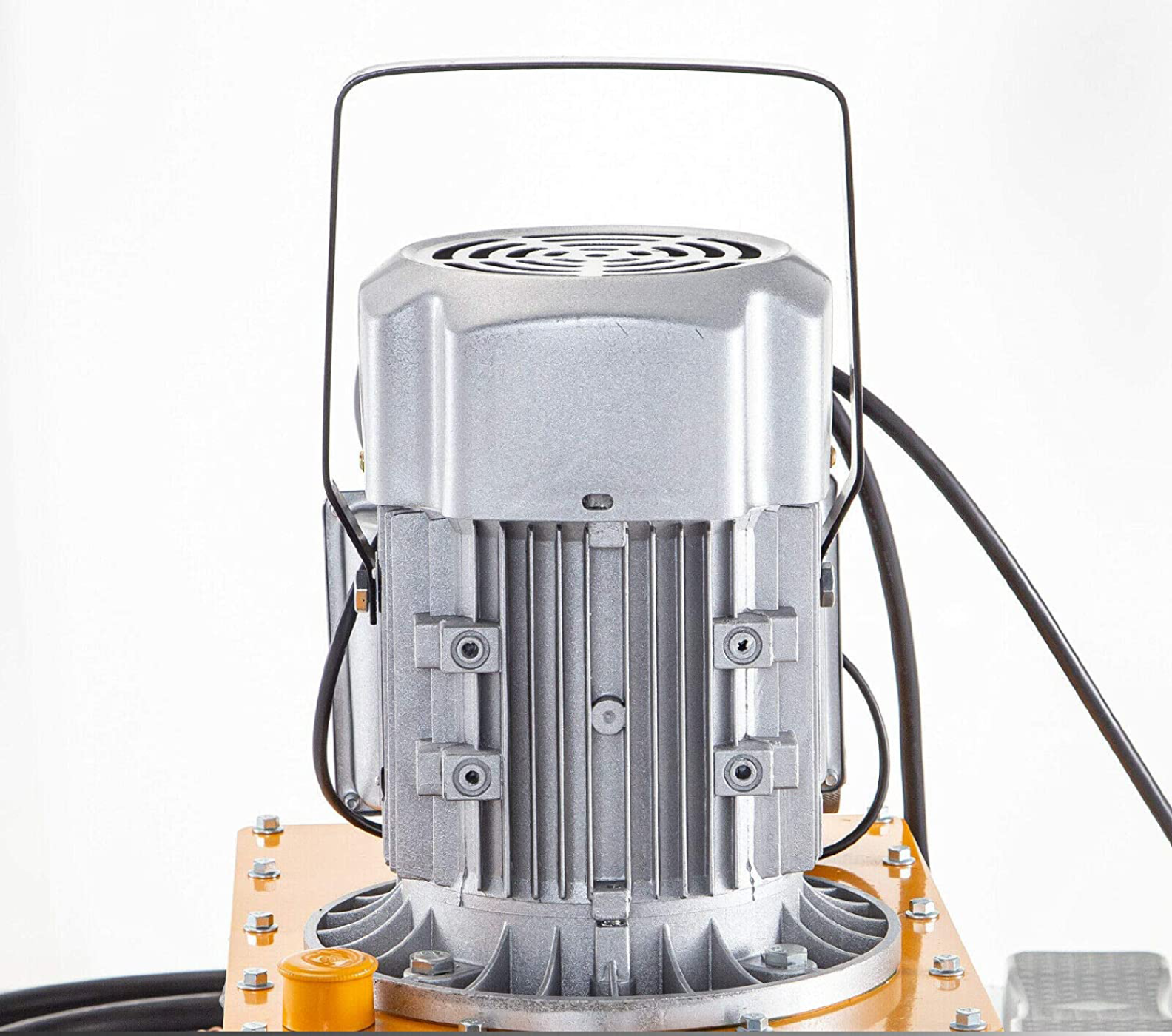

• Efficient Motor – Equipped with a 750W electric motor, ensuring reliable operation and fast performance with 110V power supply.
• Single Acting Function – Designed for single-acting cylinders, offering smooth operation and effective control in hydraulic tasks.
• User-Friendly Pedal Control – Features a solenoid pedal for easy and precise control, improving efficiency in heavy-duty applications.
• Compact & Durable – With a 7L reservoir, it offers a compact design without sacrificing capacity or durability, perfect for industrial use.

Q&A

Q: What is the KAKA Industrial ZCB-700D Hydraulic Electric Pump - 162206V110?
A: The KAKA Industrial ZCB-700D is a 10000 PSI hydraulic electric pump with a 750W motor, designed for single-acting cylinders. It operates at 110V and features a solenoid pedal and a 7L hydraulic power pack for efficient hydraulic power delivery.

Q: What is the purpose of this hydraulic pump?
A: It is used to power hydraulic systems, providing high-pressure fluid to operate hydraulic cylinders, ideal for tasks like lifting, pressing, and clamping in industrial and construction applications.

Q: What is the maximum pressure of this pump?
A: The pump can reach a maximum pressure of 10,000 PSI, making it suitable for heavy-duty applications requiring high hydraulic force.

Q: What does the 7L hydraulic power pack mean?
A: The 7L hydraulic power pack refers to the pump's oil reservoir capacity, allowing it to handle extended operations without frequent refills.

Q: How is the pump controlled?
A: The pump is equipped with a solenoid pedal, providing convenient and precise control for starting and stopping the pump during operation.

Q: Why choose the KAKA Industrial ZCB-700D Hydraulic Electric Pump?
A: It offers high pressure, reliable performance, and convenient control, making it ideal for industrial workshops, construction sites, and hydraulic-powered equipment.

Maintenance Tips

• Keep It Clean – Regularly wipe down the pump to prevent dirt, debris, and oil buildup.
• Check Hydraulic Fluid – Monitor fluid levels and top off with the recommended type of hydraulic oil if necessary.
• Inspect Hoses & Connections – Check for leaks or wear on hoses, fittings, and connections, and replace damaged parts.
• Lubricate Moving Parts – Apply oil to the pump's moving components to ensure smooth operation.
• Monitor Pressure Settings – Ensure the pump operates within the 10,000 PSI capacity and avoid overloading.
• Check Motor & Pedal – Regularly inspect the electric motor and solenoid pedal for proper function.
• Rust Prevention – Store in a dry area and apply anti-corrosion spray to prevent rust.
