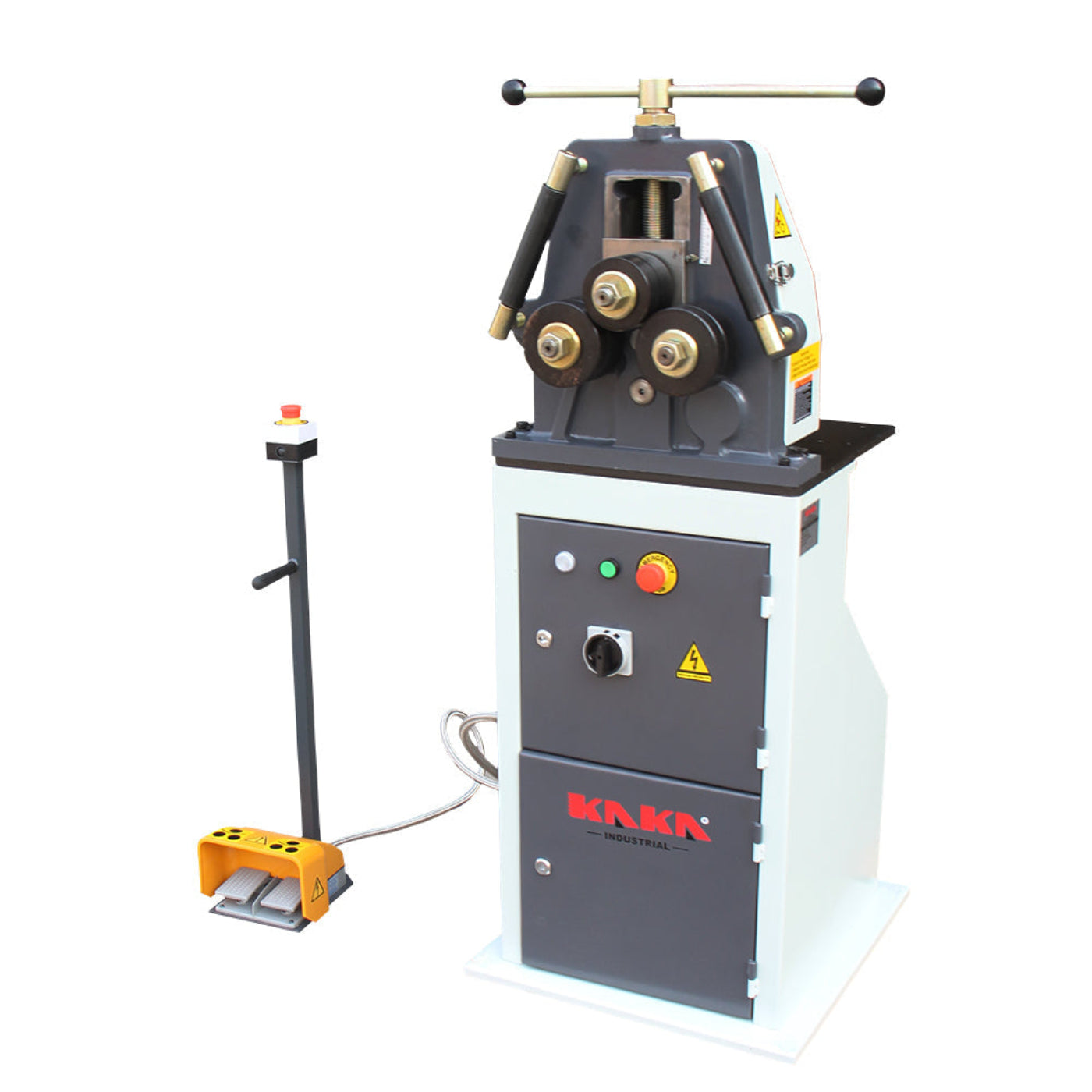

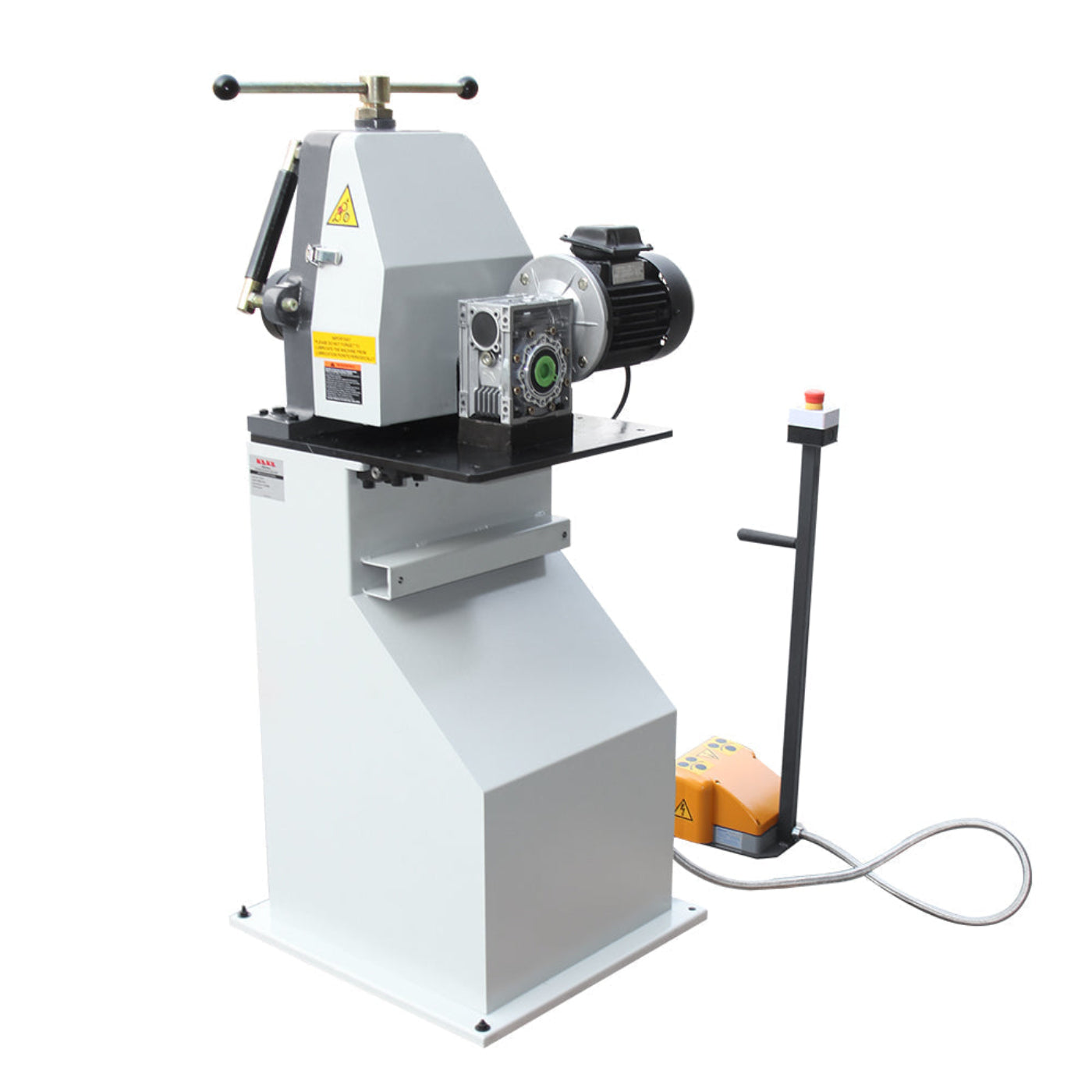

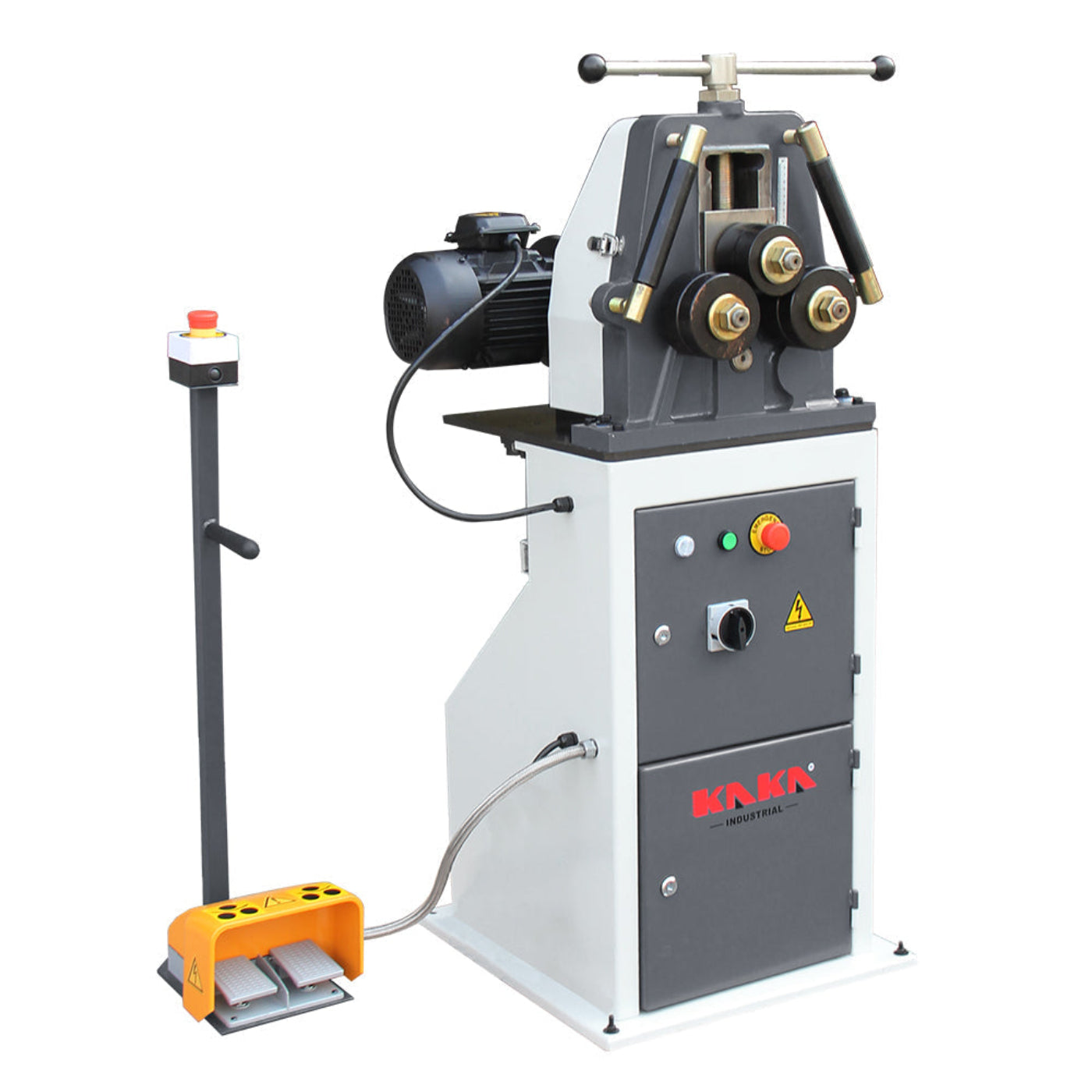

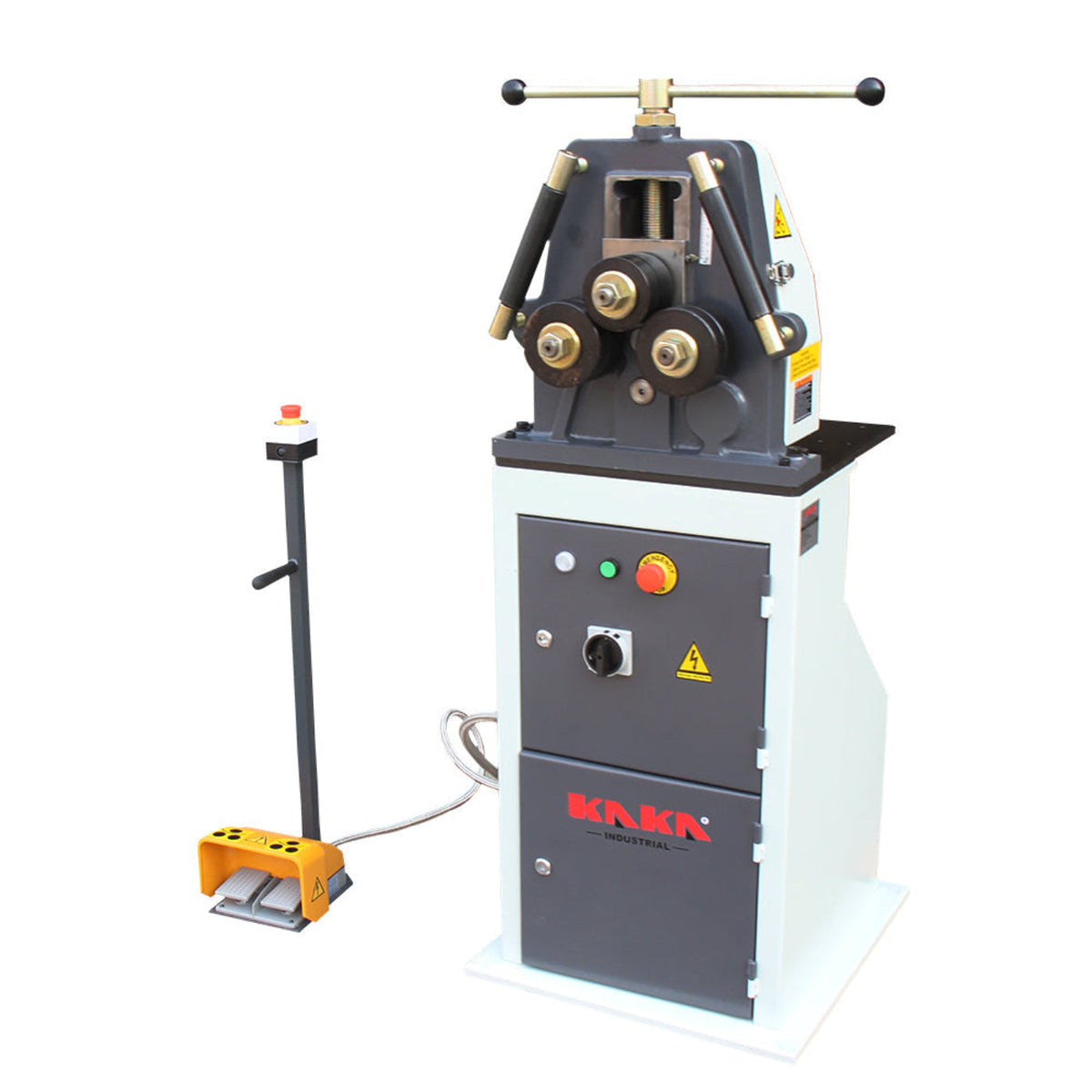

Kaka Industrial ERBM-10HV Electric Pinch Roll Bender machine, 230V460V-60HZ-3PH - 191010V230V460

Kaka Industrial ERBM-10HV Electric Pinch Roll Bender machine, 230V460V-60HZ-3PH - 191010V230V460

Features

• Horizontal and Vertical operation.

• With standard foot pedal

Specifications

Item No.	191010V230
Model	ERBM-10HV
Dia. Of roller	1.18”
Power	1.1 kW/1.5HP
Spindle speed	@60Hz 21r/min
Packing size	37"x31"x53"
N.W./G.W.	517/627 lbs
Max. capacity (one set standardroller)	Size	Min dia.
	20x5 mm 30x10 mm	190 mm 500 mm
	20x5 mm 50x10 mm	160 mm 400 mm
	10x10 mm 20x20 mm	160 mm 500 mm

Standard accessories

1. Foot pedal
2. One set standard roller

Manual

ERBM-10HV Manual

What Our Experts Think

• Electric-Powered for Efficiency: Operates on 230V/460V, 3-phase power, delivering consistent and powerful bending performance.

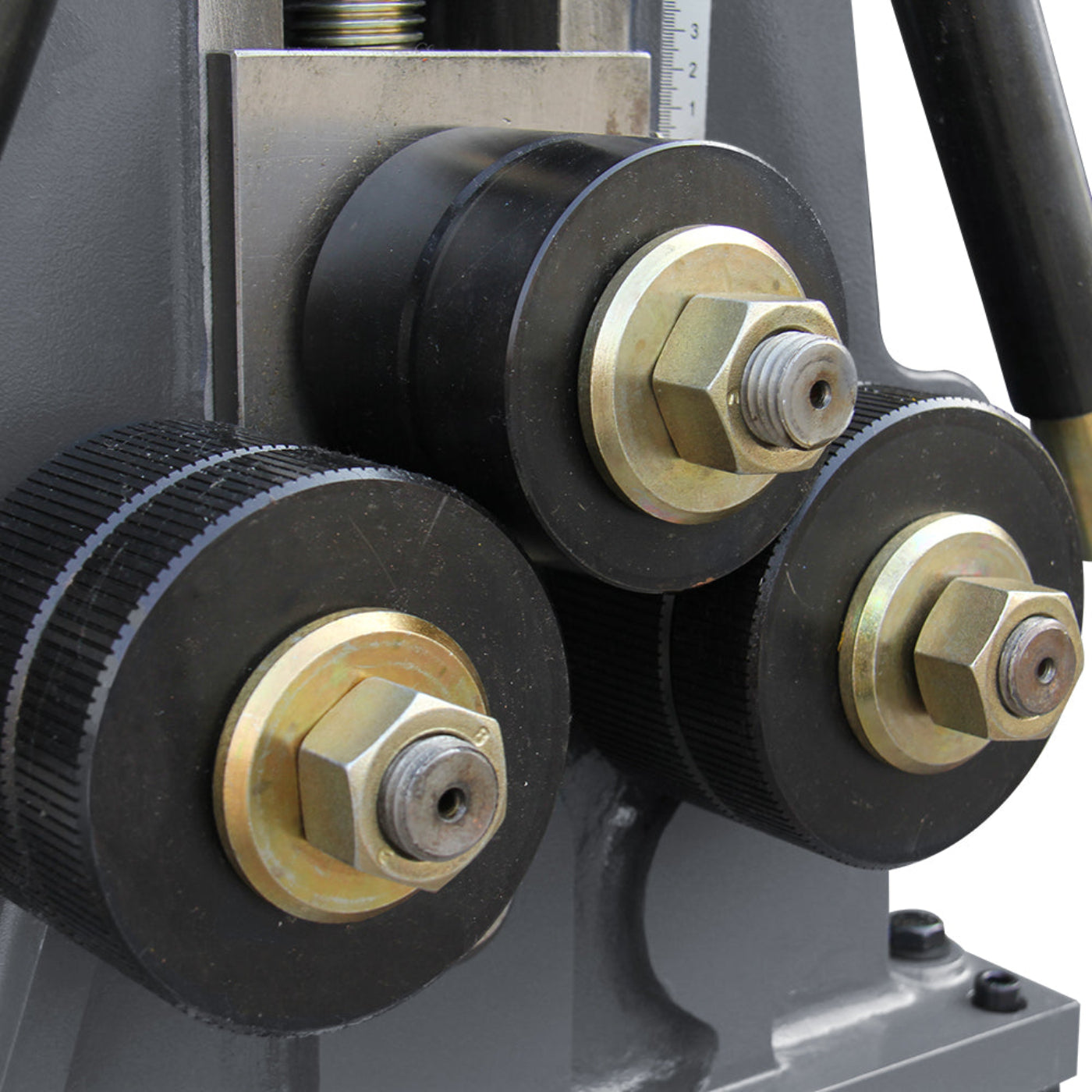

• Pinch Roll Mechanism: Ensures precise, repeatable bends with minimal material distortion.
• Heavy-Duty Steel Frame: Built for long-term durability and industrial use.
• Horizontal & Vertical Operation: Offers versatile positioning for different project requirements.
• Precision Bending Control: Delivers smooth, uniform results, making it ideal for metalworking professionals.
• Wide Application Range: Perfect for fabrication shops, custom metalwork, and industrial manufacturing.

Q&A

Q: What is the KAKA Industrial ERBM-10HV Electric Pinch Roll Bender Machine?
A: The ERBM-10HV is a heavy-duty electric pinch roll bender designed for precision bending of metal pipes, tubes, and profiles. It operates on 230V/460V, 60Hz, 3-phase power, making it ideal for industrial applications.

Q: What makes the ERBM-10HV unique?
A: It features electric-powered rollers for consistent bending, a pinch roll system for enhanced control, and horizontal/vertical operation modes for versatile bending applications.

Q: What materials can the ERBM-10HV bend?
A: It is designed to bend steel, aluminum, copper, and other metal tubes, pipes, and profiles, depending on the material thickness and roller setup.

Q: What is the bending capacity of the ERBM-10HV?
A: The exact capacity varies based on the material and roller configuration, but it is engineered for precision bending in heavy-duty applications.

Q: Is the ERBM-10HV easy to use?
A: Yes, it features user-friendly electric controls, an adjustable roller system, and a sturdy construction, making it efficient and reliable for professionals.

Q: What types of projects is the ERBM-10HV best suited for?
A: It is perfect for industrial fabrication, metalworking shops, structural bending, automotive frames, railings, and custom metal forming applications.

Maintenance Tips

• Keep It Clean – Regularly remove dust, debris, and metal shavings from the rollers and machine frame to maintain smooth operation.
• Lubricate Moving Parts – Apply grease or machine oil to gears, bearings, and pivot points to reduce wear and ensure efficient performance.
• Inspect Rollers – Check for wear, cracks, or buildup on the rollers, and clean or replace them as needed for accurate bending.
• Monitor Electrical Components – Ensure all wiring, motor connections, and control switches are in good condition to prevent malfunctions.
• Check Gearbox & Drive System – Inspect the gearbox and drive components for any signs of wear or unusual noises, and keep them properly lubricated.
• Ensure Proper Alignment – Verify that the rollers are correctly aligned before bending to achieve precise and consistent results.
• Avoid Overloading – Do not exceed the machine’s rated bending capacity to prevent stress on the frame and motor.
• Tighten Fasteners – Periodically inspect and secure all bolts, screws, and locking mechanisms to maintain machine stability.
• Prevent Rust – Store the machine in a dry environment and apply rust-preventative oil to exposed metal surfaces when not in use.
• Perform Regular Test Runs – Conduct periodic test bends with scrap material to ensure the machine is operating correctly before working on critical projects.
