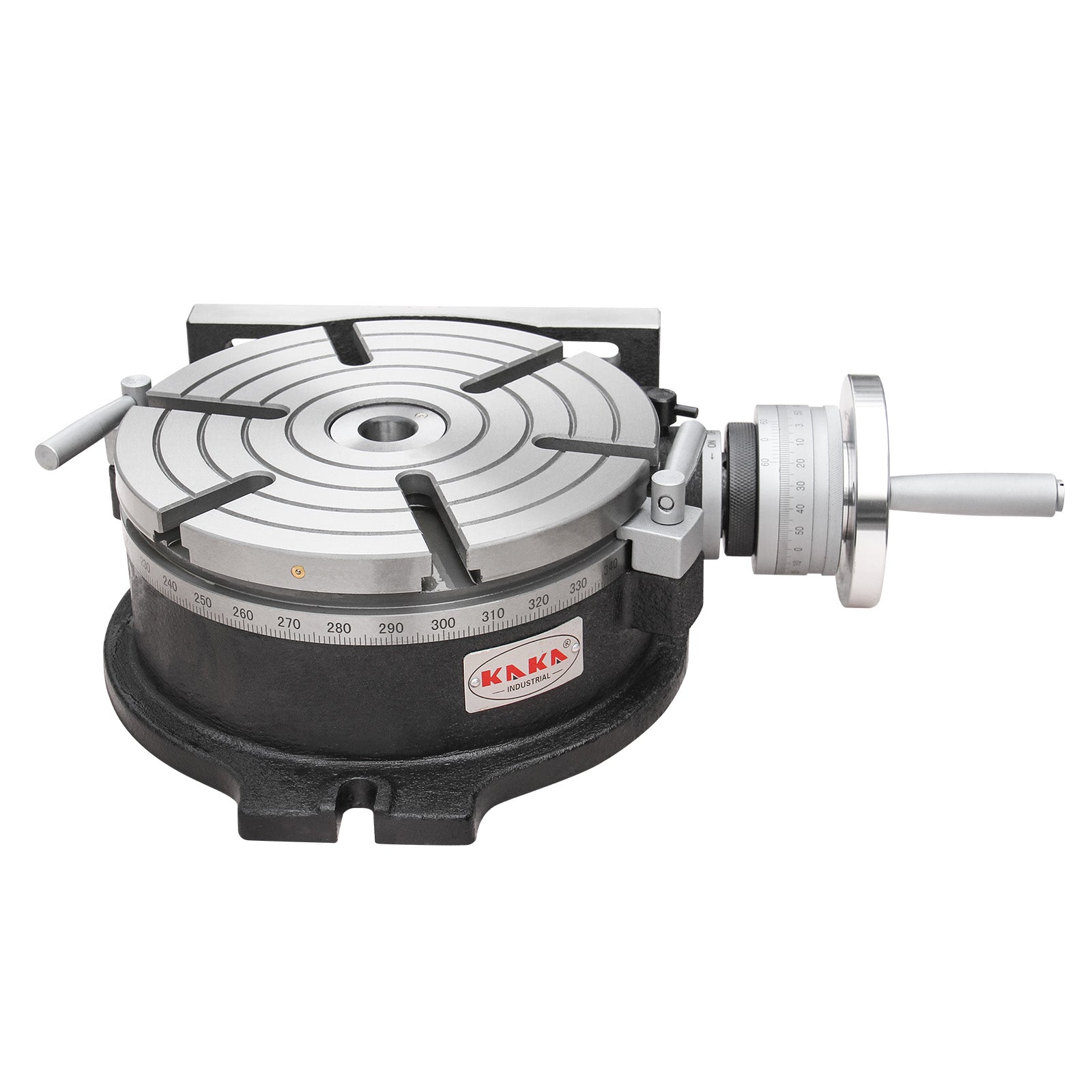

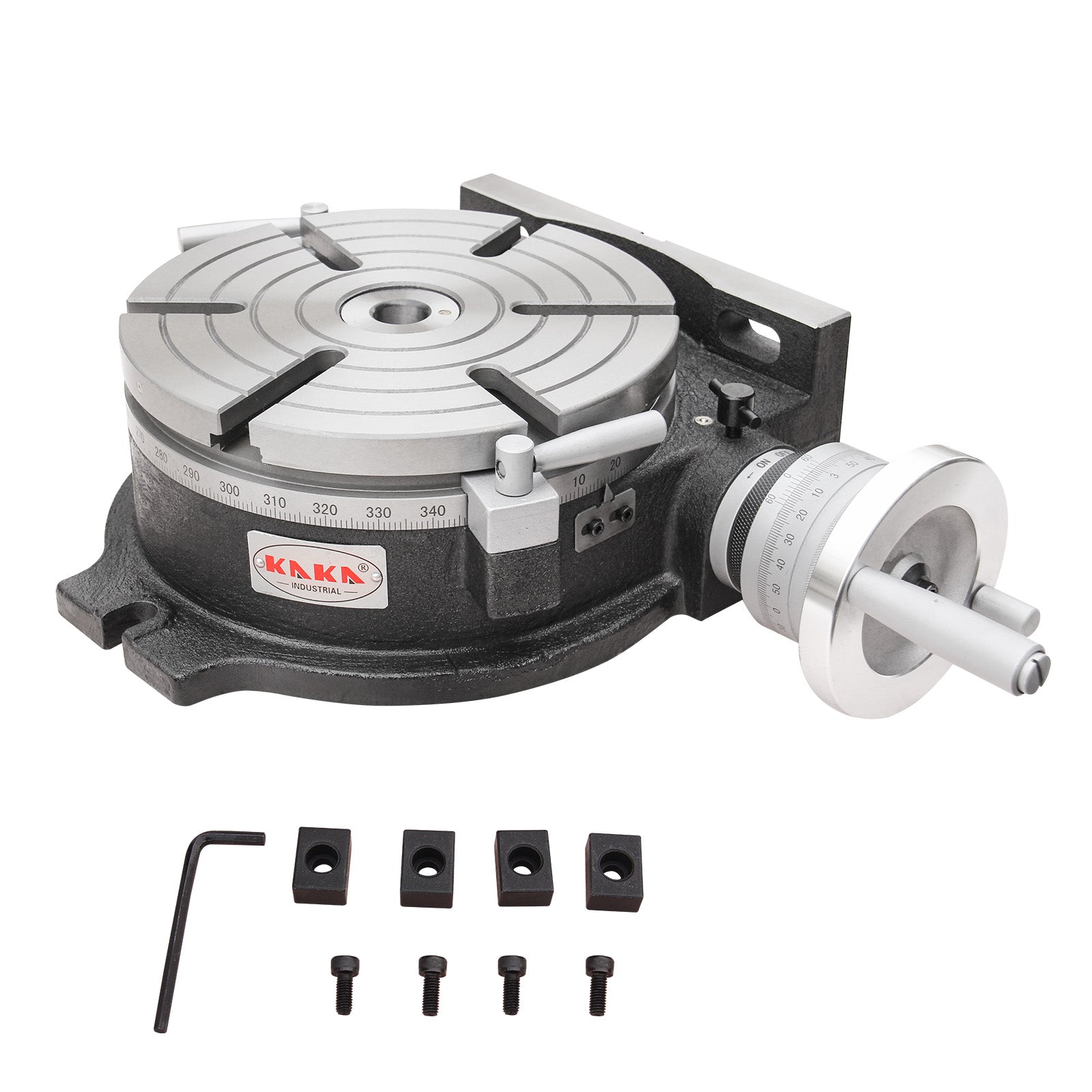

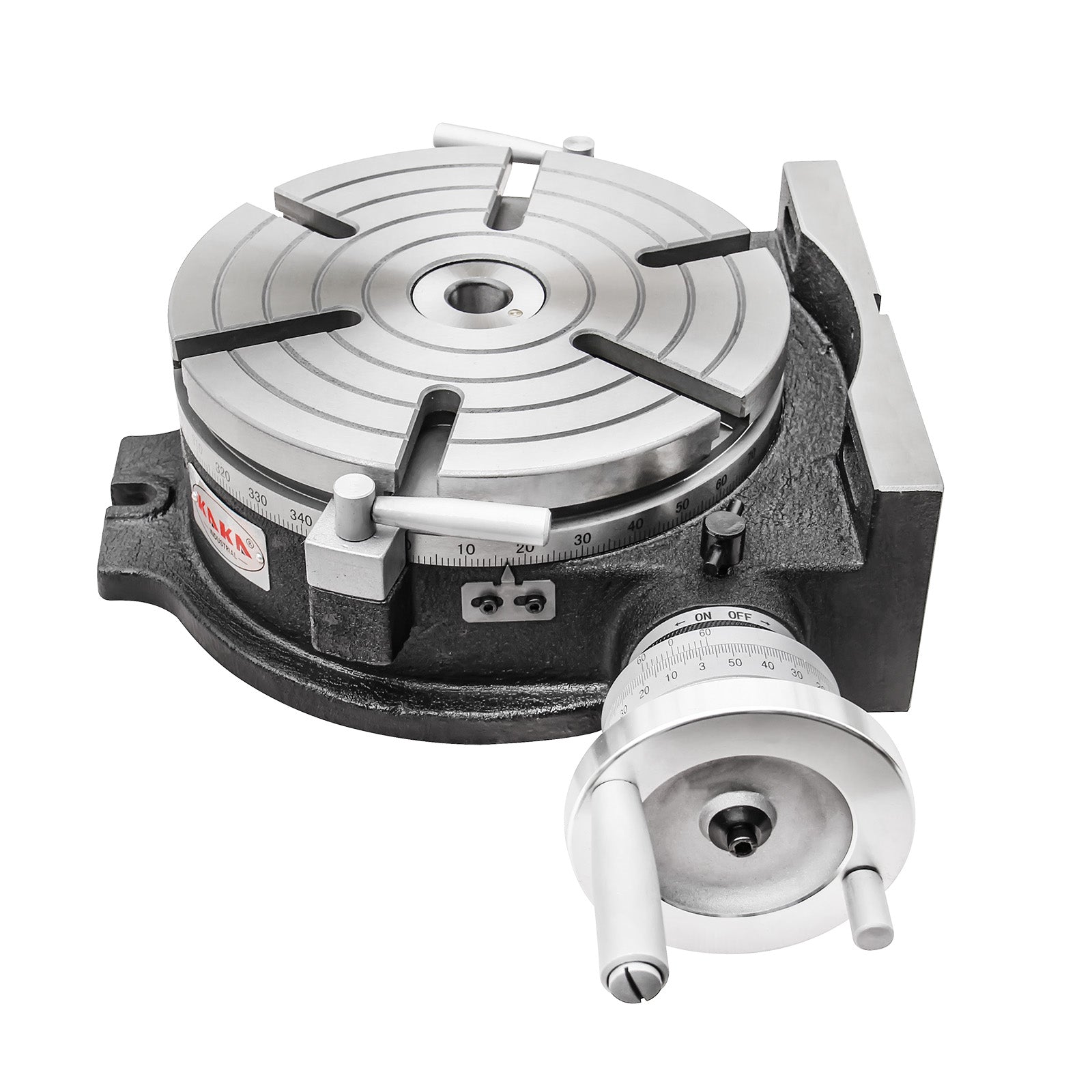

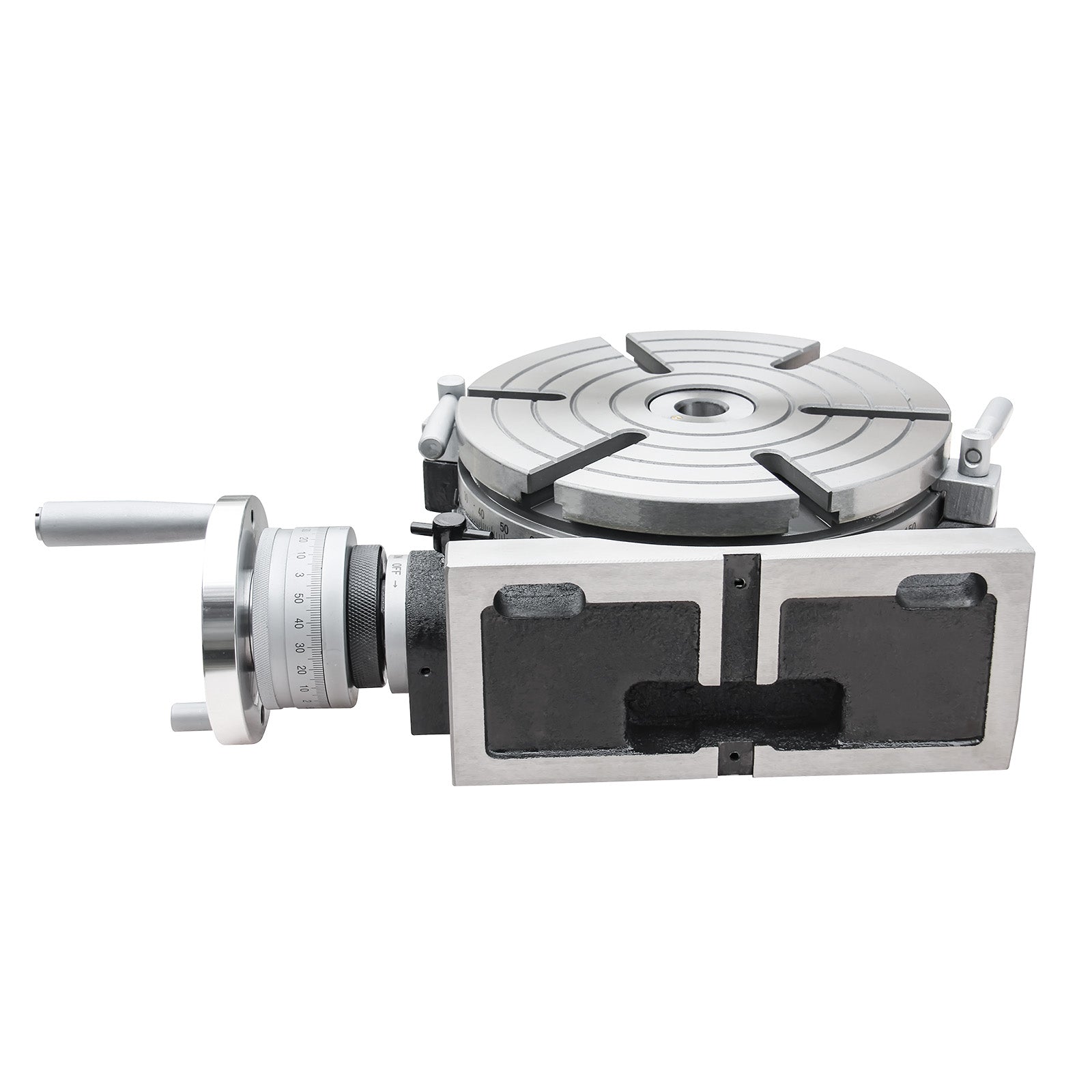

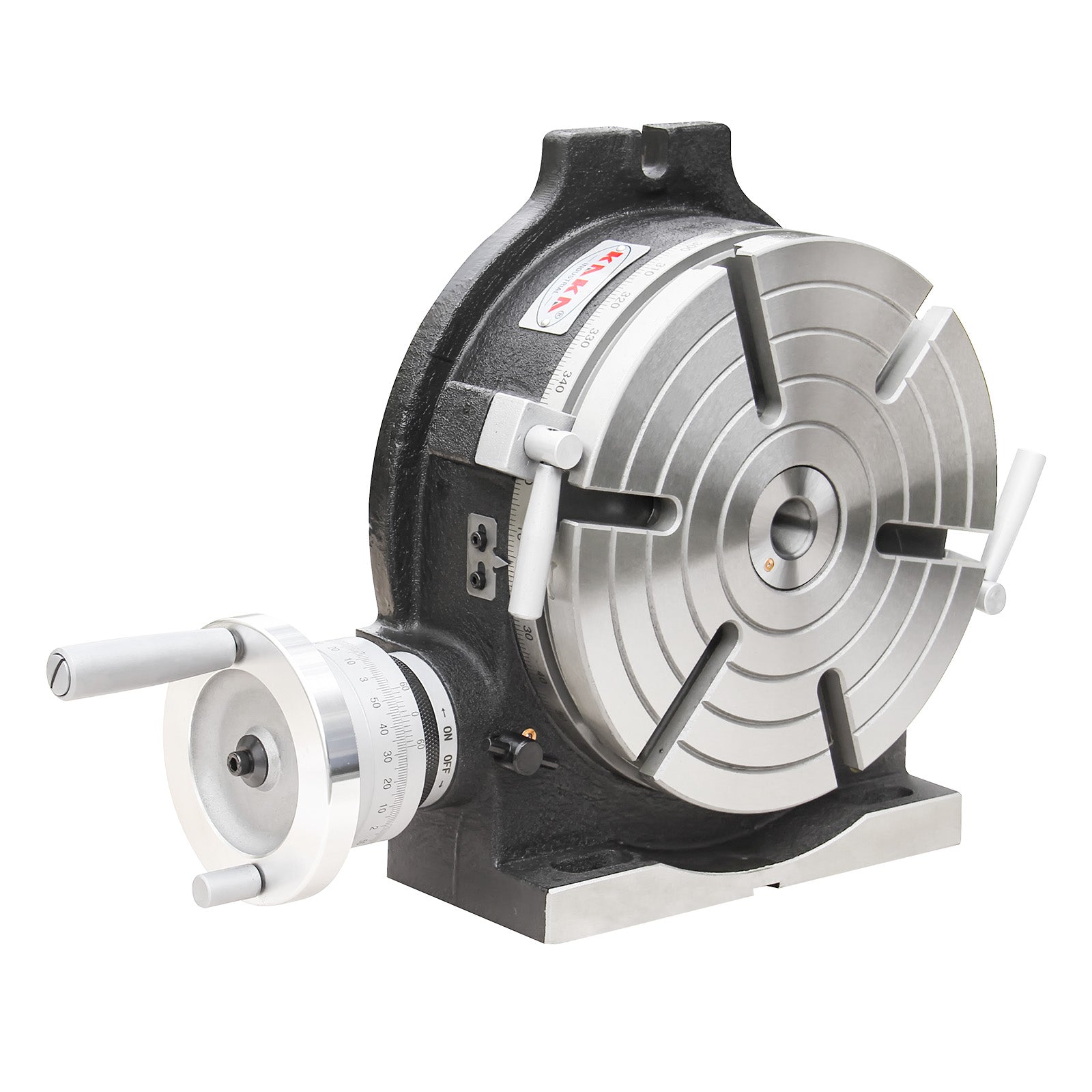

Kaka Industrial HV-10 Rotary Table, 10" Horizontal/Vertical – 161110

Kaka Industrial HV-10, 10" Horizontal Vertical Rotary Table TSL Vertical & Horizontal MT3 Center Sleeve Rotary Table 6 slot Precision Milling Table 360 Degrees Precision Rotary Table - 161110

TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine. With optional tailstock, the rotary table can be used on complex work for circle index boring and milling.

1.Rigid cast iron body.Dual positive-action lock

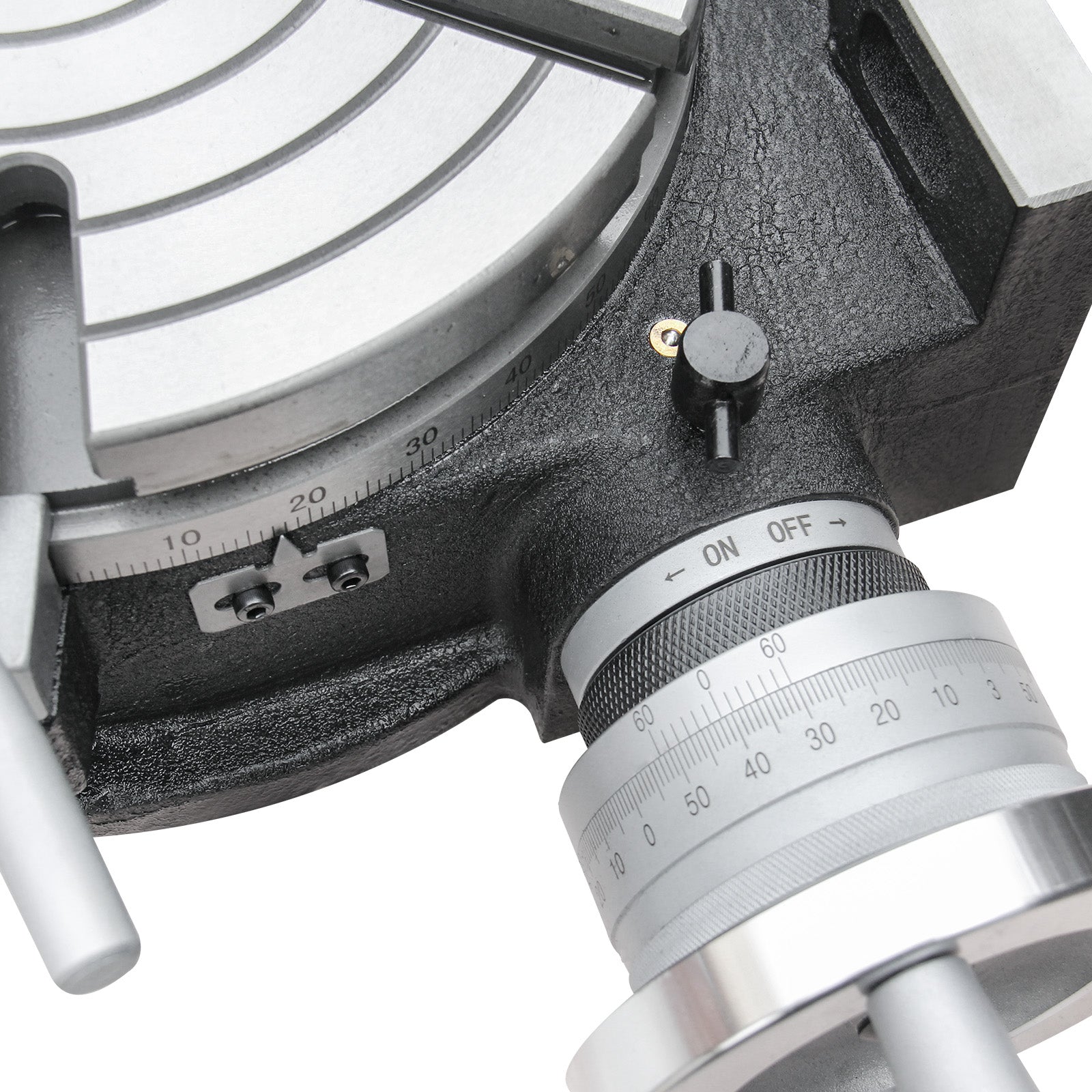

2.One rotation of handle equals 4 on collar

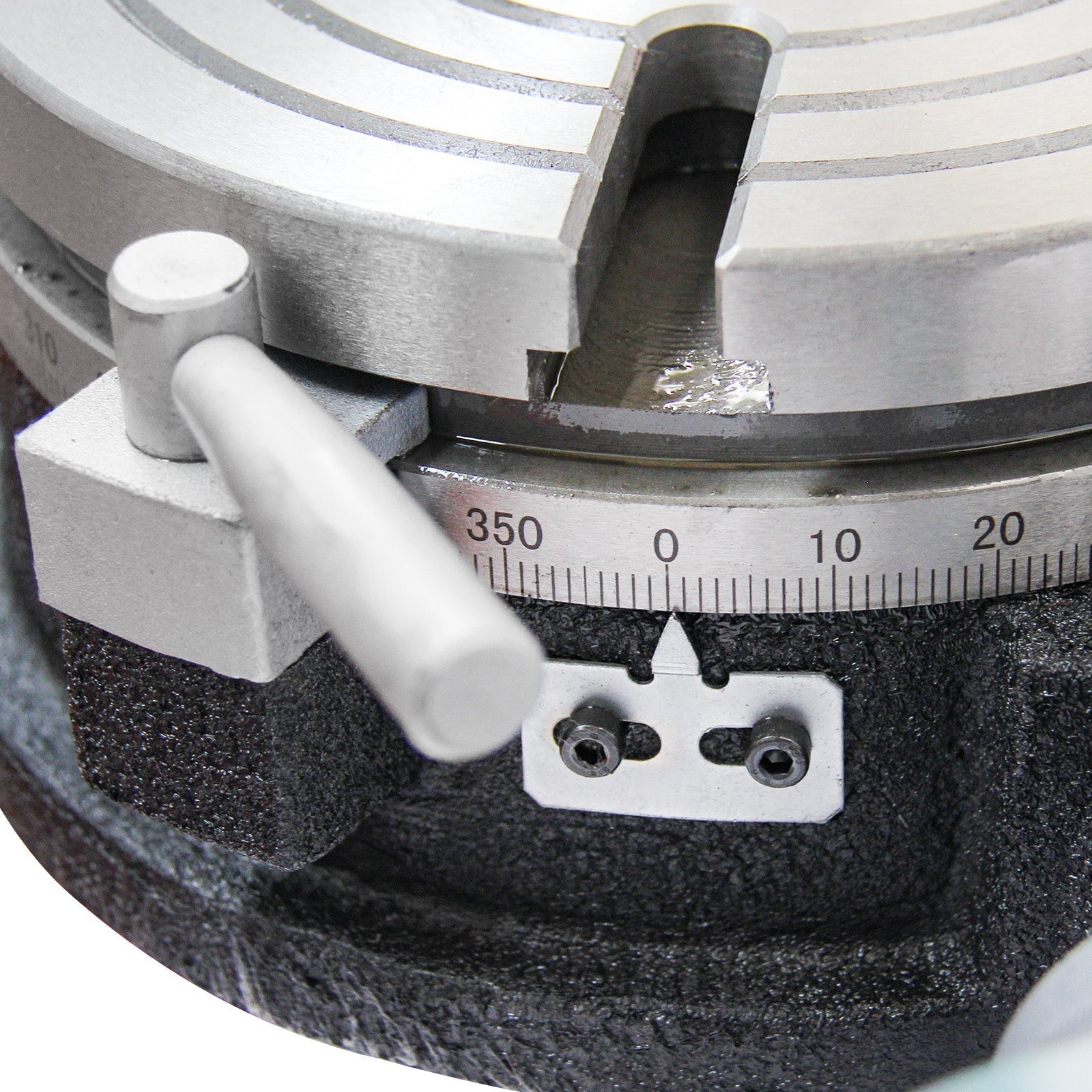

3.Min.10 second vernier reading
4.Gear ratio HV-4 1:72 HV6,HV-8,HV-10,HV-12 1:90
5.Harden and precision ground.Stain chrome dial

What Our Experts Think

• Dual Functionality: Can be used in both horizontal and vertical positions for versatile milling operations.
• 10" Precision Rotary Table: Provides 360-degree rotation for accurate positioning and machining.
• TSL Vertical & Horizontal Design: Ensures stability and adaptability for various milling tasks.
• MT3 Center Sleeve: Compatible with a range of accessories for enhanced functionality.

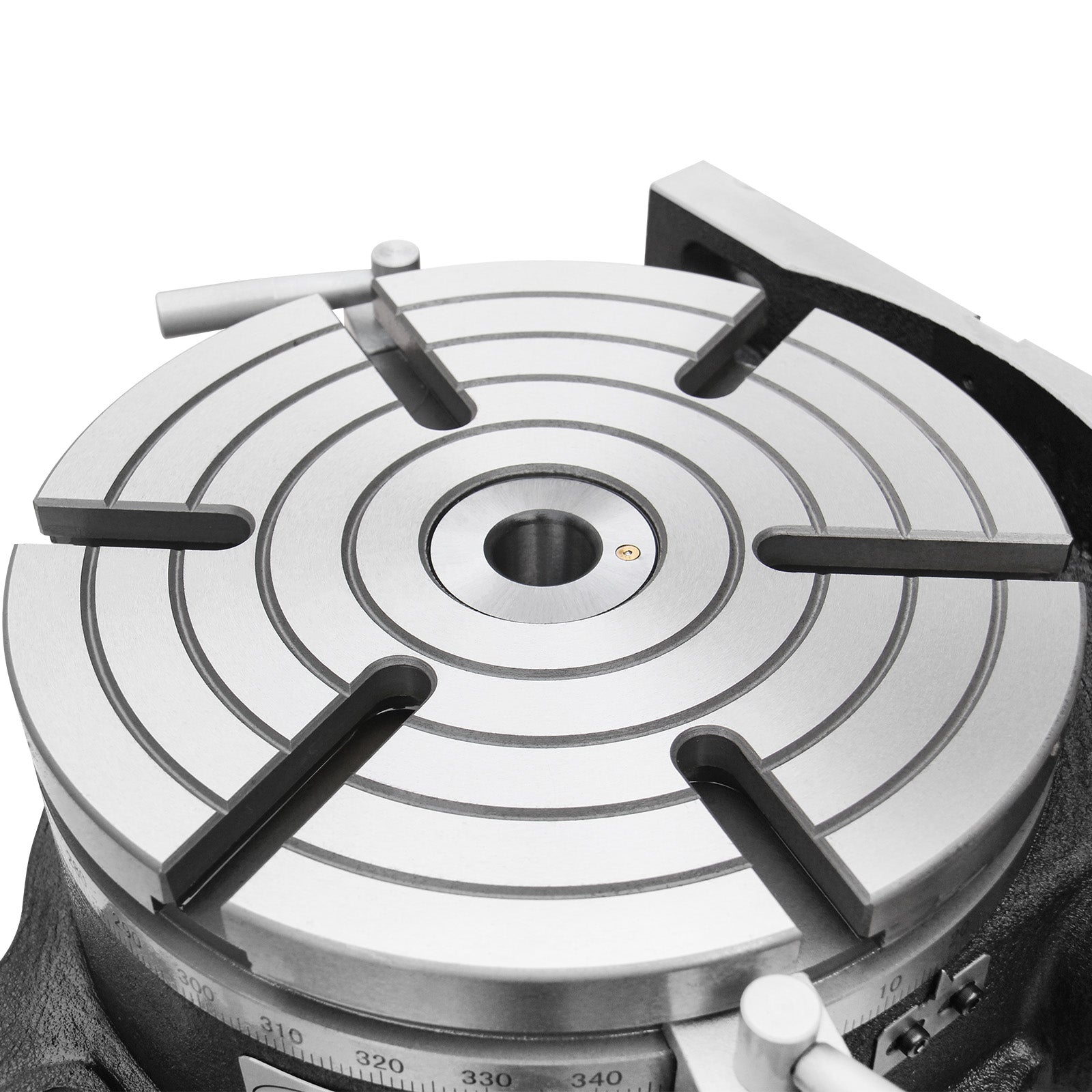

• 6-Slot Table: Allows secure clamping of workpieces for precision machining.
• Durable & Heavy-Duty Construction: Built to withstand demanding industrial and workshop applications.

Q&A

Q: What is the size of this rotary table?
A: It features a 10-inch diameter with a precision-engineered surface for accurate machining.

Q: Can this table be used in both horizontal and vertical positions?

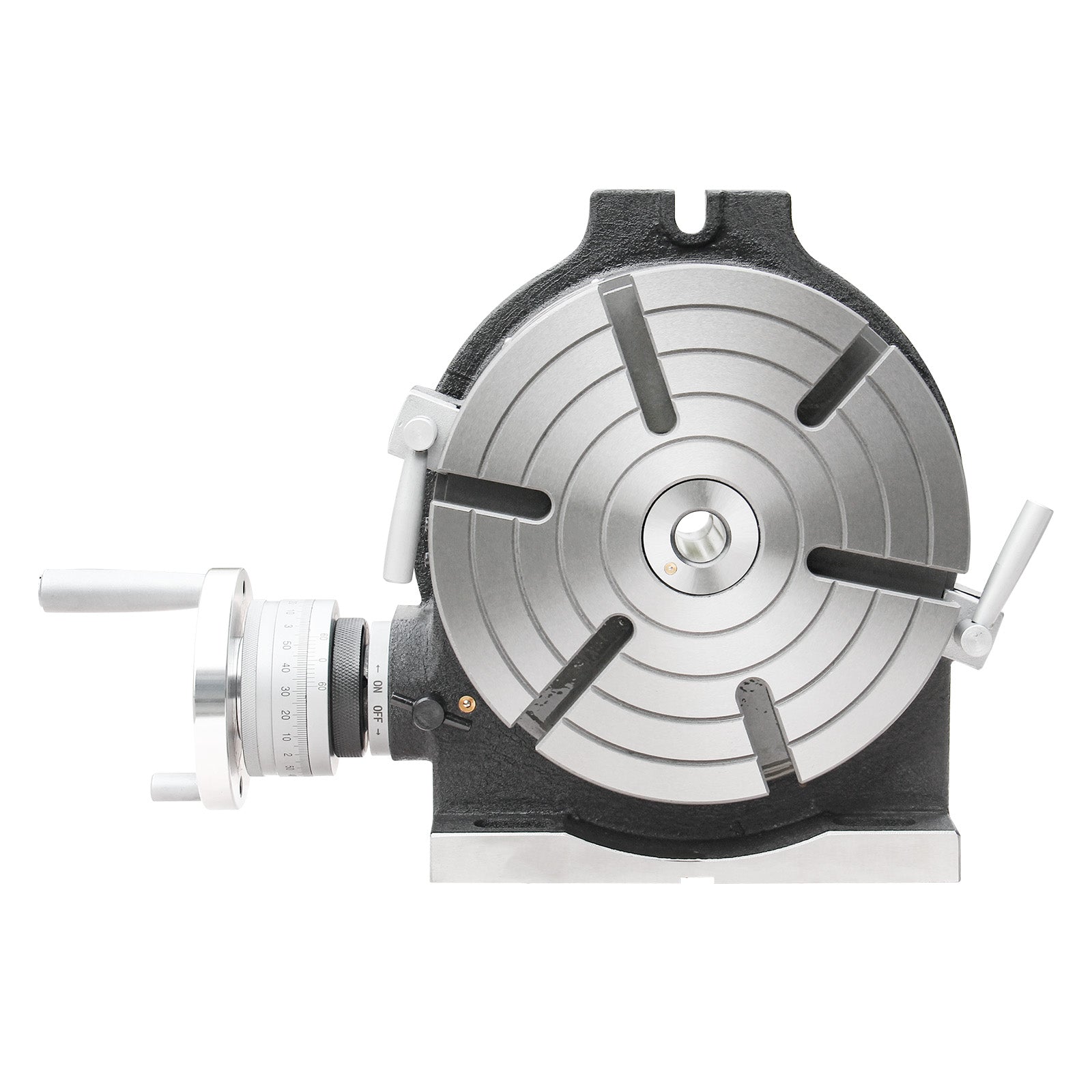

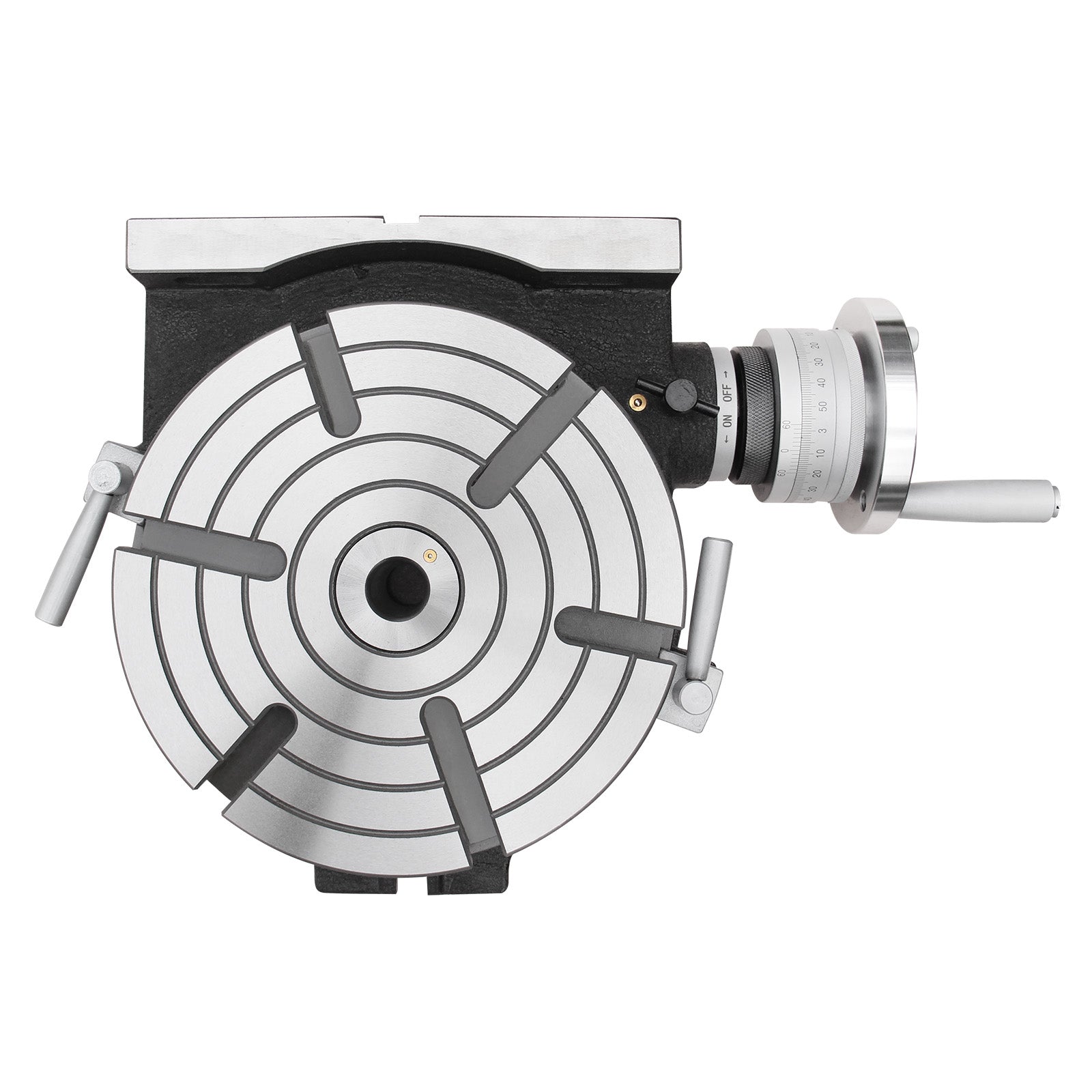

A: Yes, it supports both horizontal and vertical mounting for versatile milling operations.

Q: What is the slot configuration?
A: It has six T-slots, allowing secure clamping of workpieces for stable machining.

Q: What is the accuracy of the rotation?
A: The 360-degree scale ensures high precision, ideal for milling, drilling, and indexing.

Q: What spindle taper does it use?
A: It comes with an MT3 center sleeve, providing compatibility with standard tooling.

Q: Is this rotary table durable?
A: Yes, it is made from high-quality cast iron for maximum strength and longevity.

Maintenance Tips

• Lubricate Gears & Bearings – Apply machine oil regularly to prevent wear and ensure smooth rotation.
• Keep It Clean – Remove metal chips, dust, and debris after each use to maintain precision.
• Check for Wear – Inspect the table surface, slots, and gears for signs of damage or misalignment.
• Adjust Tension Properly – Ensure the locking mechanism and worm gear tension are set correctly for accurate positioning.
• Store in a Dry Environment – Protect against rust by keeping the table in a moisture-free area and using a rust inhibitor if needed.
