KAKA Industrial PBB-4012 40" Pan and Box Brake Foot Clamp w/ Max Box Depth 2.5" - 173150

KAKA Industrial PBB-4012, 40-Inch Pan and Box Brake Foot Clamp, Max Clamping Bar Lift 1-7/8 Inch, Max Box Depth 2.5 Inch, Folding Angle 0-135 Degree,Nose Radius 1/32 Inch, Sheet Metal Folding Machine - 173150

About KAKA Industrial: A Company Delivers High Quality Products with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised

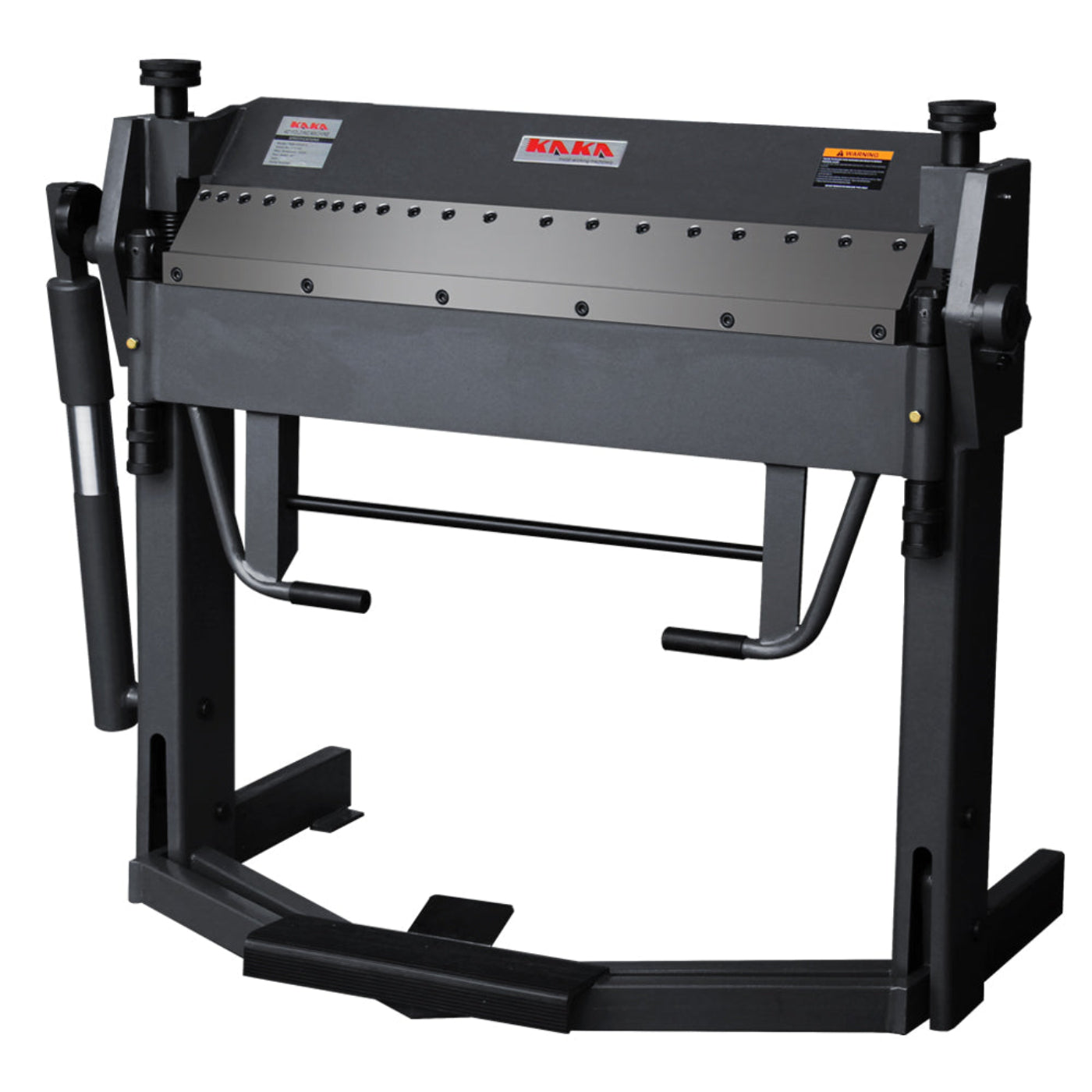

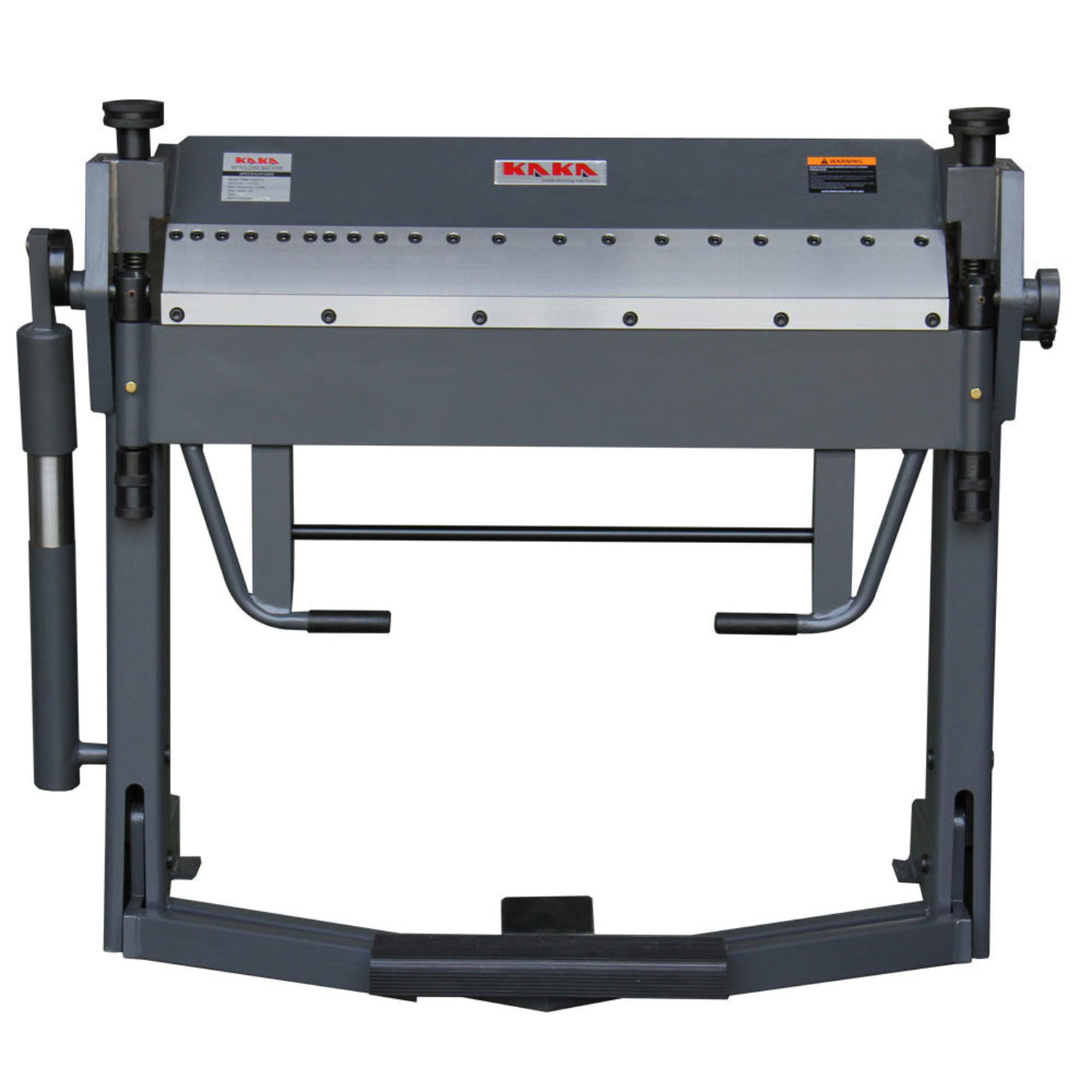

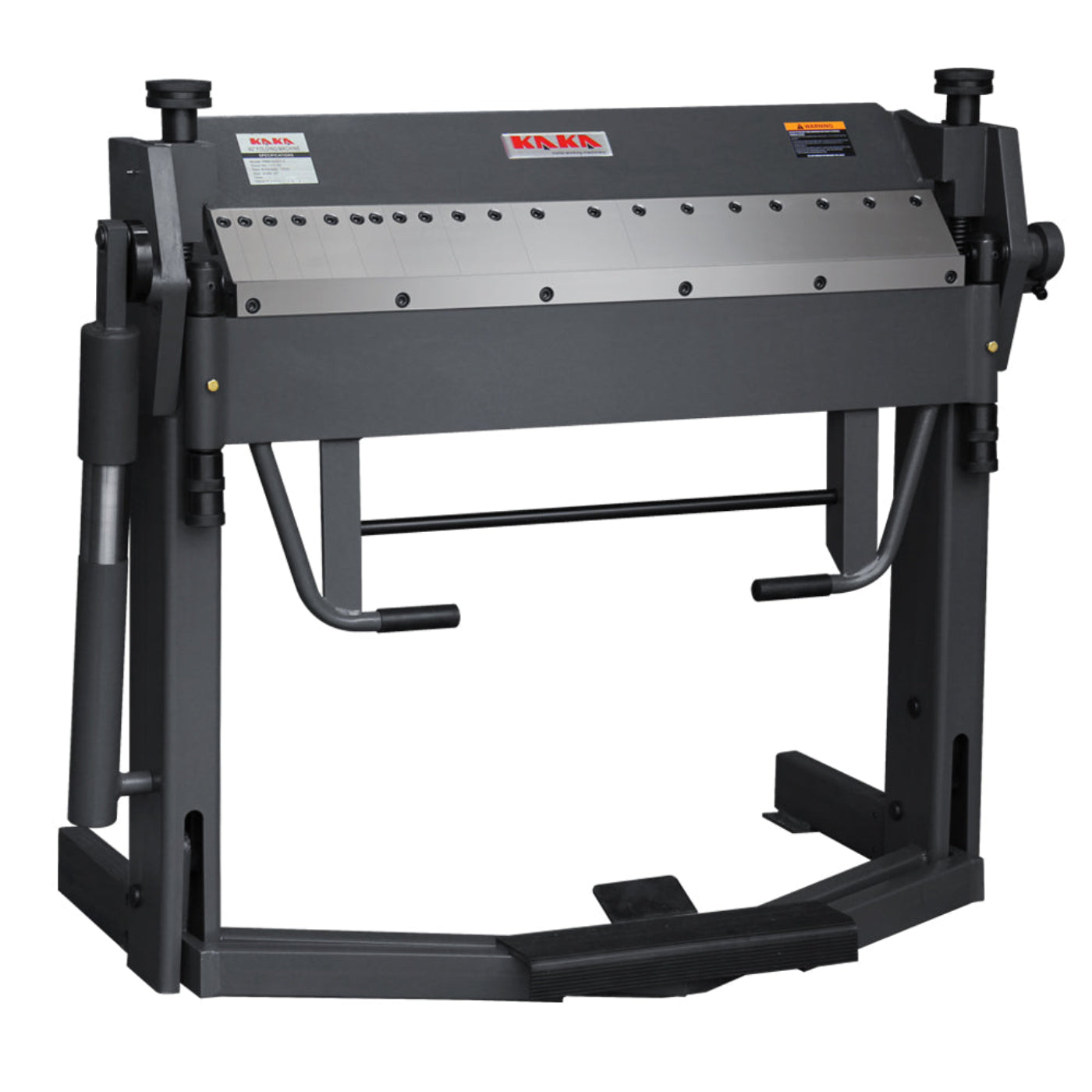

KAKA Industrial 40-Inch Pan and Box Brake Foot clamp Overview
The PBB-4012 is designed to clamp the sheet metal with a convenient foot control.Precision, durability, long service life and easy operation are the principle benefits for the 40-inch pan and box brake foot clamp. Repeatable bends can be easily achieve by the stop ring and spring inside cylinder help to lift the bending beam.

Are You Ready to Possess a High Precision, Great Durability and Versatility, Long Service Life Box and Pan Brake Foot Clamp?
The heavy truss rods and braces that were assembled inside this foot clamp enhance the great strength and durability. The welded steel Pate covers all body sections make sure the foot clamp can be operated in a long term demanding conditions. A convenient foot control and clamping device will free your back and arms which the working project in process.

Specifications

Manual

PBB-4012 Manual

What Our Experts Think

• 40-Inch Working Capacity – Ideal for bending and folding large metal sheets, making it perfect for both small and medium-scale projects.
• Max Clamping Bar Lift of 1-7/8 Inch – Allows for effective material clamping and control during the folding process, ensuring high precision.

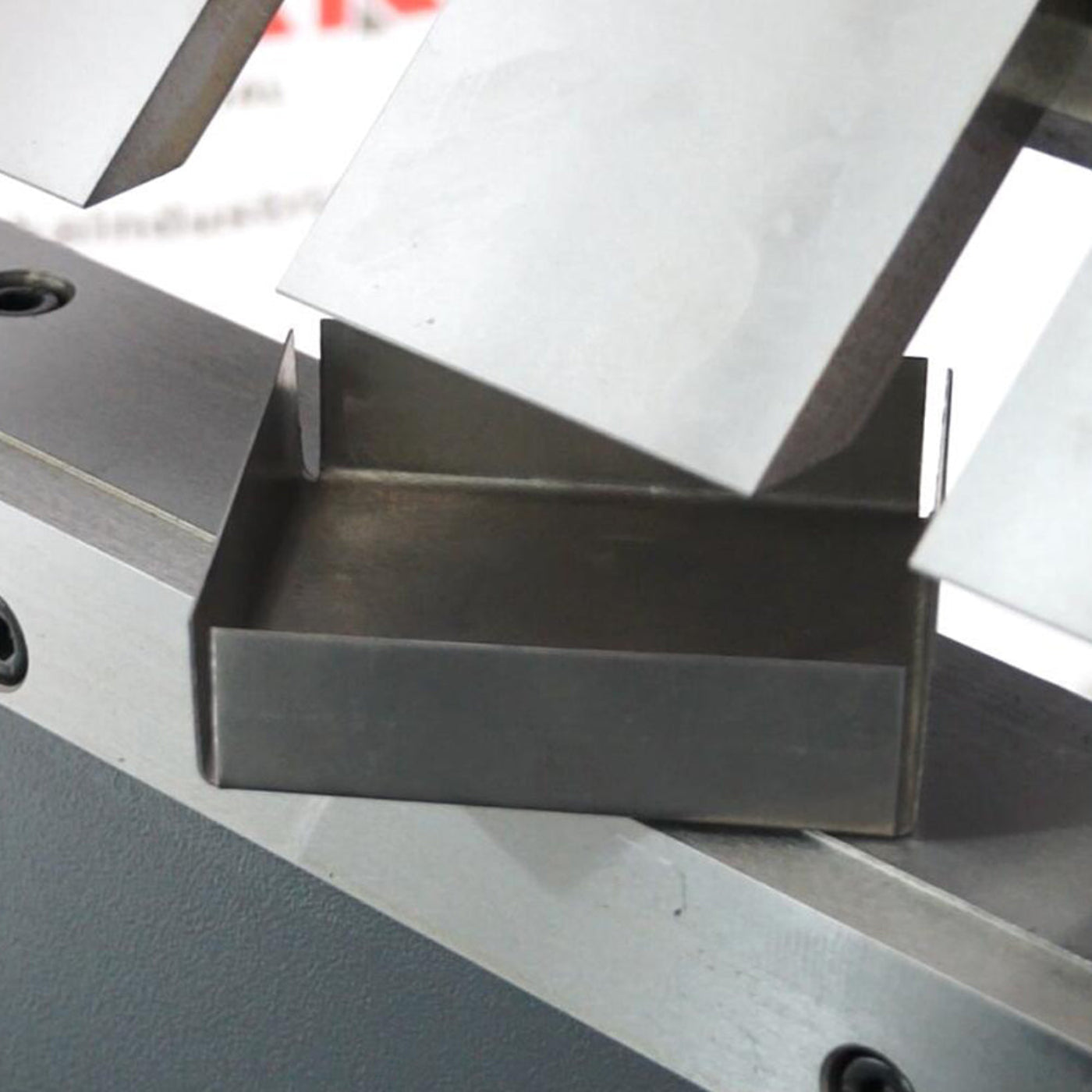

• Max Box Depth of 2.5 Inches – Designed to handle deeper box formations, offering versatility in your bending capabilities.
• Adjustable Folding Angle (0-135 Degrees) – Provides flexibility for creating various bends and angles, allowing for custom metal shaping.
• Nose Radius of 1/32 Inch – Ensures precise and smooth edges for high-quality results on each fold.
• Foot Clamp Mechanism – Allows for hands-free operation, providing better control and efficiency during bending tasks.
• Heavy-Duty Construction – Built to withstand continuous use in industrial and commercial environments, ensuring long-lasting durability.

Q&A

Q: What is the KAKA Industrial PBB-4012 Pan and Box Brake Foot Clamp?
A: The KAKA Industrial PBB-4012 is a 40-inch pan and box brake with a foot clamp, designed for precise sheet metal folding. It features a maximum clamping bar lift of 1-7/8 inch, a folding angle range of 0-135 degrees, and a nose radius of 1/32 inch, making it ideal for fabricating boxes, pans, and other metal components.

Q: What is the maximum box depth this brake can handle?
A: The PBB-4012 can handle a maximum box depth of 2.5 inches, making it suitable for producing small to medium-sized boxes and pans.

Q: What materials can be used with the PBB-4012 pan and box brake?
A: This brake is designed for use with sheet metals such as steel, aluminum, and other common metal alloys used in fabrication and industrial applications.

Q: What is the folding angle range of the KAKA PBB-4012?
A: The PBB-4012 has a folding angle range of 0-135 degrees, providing flexibility for different bending and forming needs.

Q: What is the nose radius of this brake?
A: The PBB-4012 has a precise nose radius of 1/32 inch, ensuring clean, sharp bends for accurate sheet metal work.

Q: What is the benefit of the foot clamp on the PBB-4012?
A: The foot clamp feature allows for hands-free operation, enhancing efficiency and precision while bending or forming sheet metal.

Q: What is the maximum clamping bar lift on this machine?
A: The PBB-4012 offers a maximum clamping bar lift of 1-7/8 inch, providing secure holding for various sheet metal thicknesses.

Q: Is the KAKA Industrial PBB-4012 suitable for commercial use?
A: Yes, the PBB-4012 is ideal for commercial and industrial use, such as in fabrication shops, metalworking environments, and HVAC manufacturing, where precise sheet metal folding is required.

Q: What industries benefit most from this pan and box brake?
A: Ideal for industries such as metal fabrication, HVAC, automotive, and construction, where precise, heavy-duty sheet metal bending and folding are essential.

Maintenance Tips

• Clean After Each Use – Wipe down the brake, clamping bar, and work surface to remove metal shavings, dust, and debris, preventing buildup and rust.
• Lubricate Moving Parts – Apply a small amount of machine oil to the pivot points, foot clamp, and other moving components to ensure smooth operation.
• Check for Loose Fasteners – Inspect all bolts, screws, and clamps to ensure they are tightened to prevent instability and ensure safety during use.
• Inspect the Clamping Bar and Bending Blade – Regularly check for wear or damage to the clamping bar and bending blade; replace them as needed to maintain performance.
• Ensure Proper Alignment – Verify that the brake’s bending mechanism is aligned properly for accurate and consistent bends.
