KAKA PBB-5014A 50" Pan & Box Brake, 0-135° Folding

KAKA Industrial PBB-5014A, 50-Inch Pan and Box Brake Foot Clamp, Max Clamping Bar Lift 1.9 Inch, Max Box Depth 2 Inch, Folding Angle 0-135 Degree, Sheet Metal Folding Machine - 173162

About KAKA Industrial: A Company Delivers High Quality Products with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised

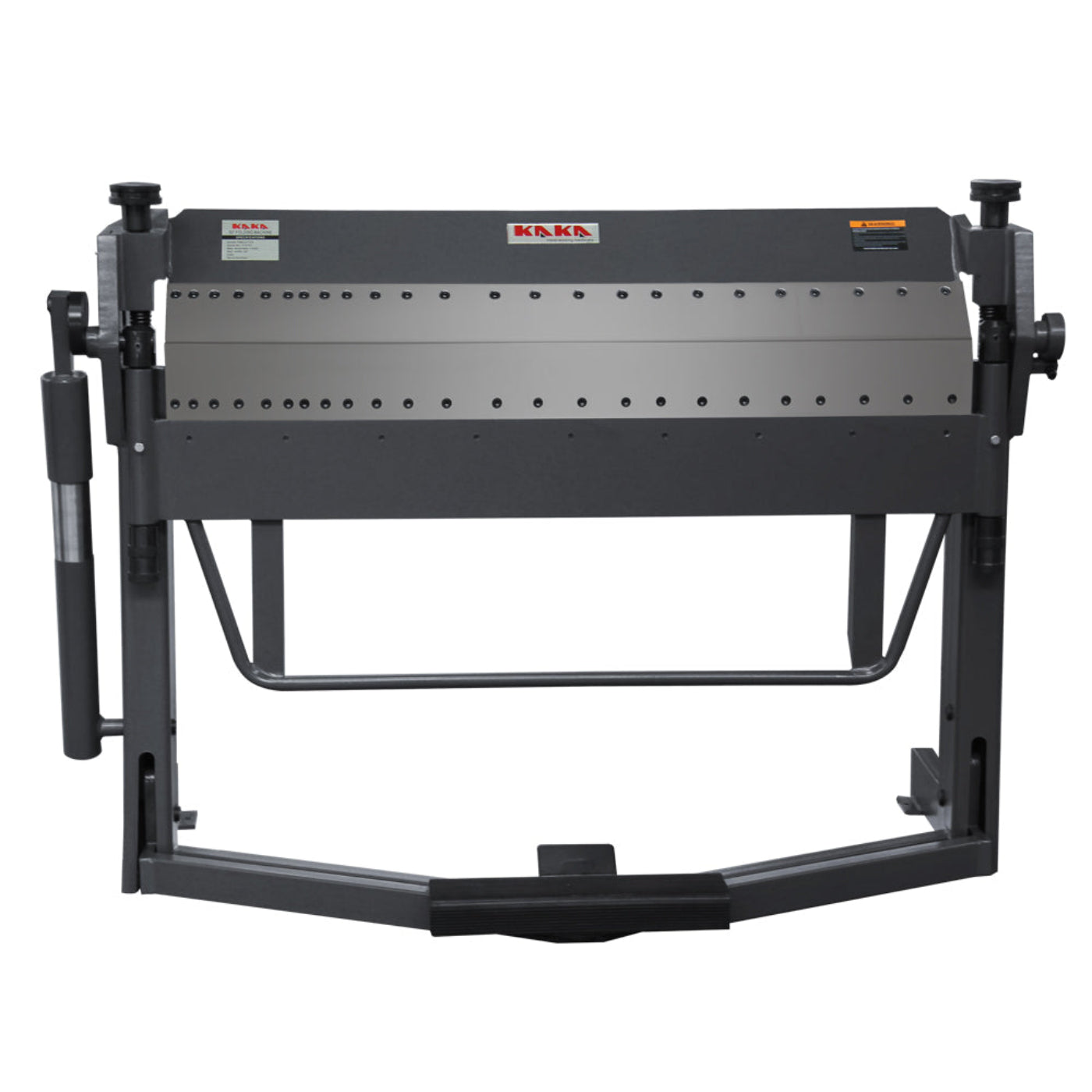

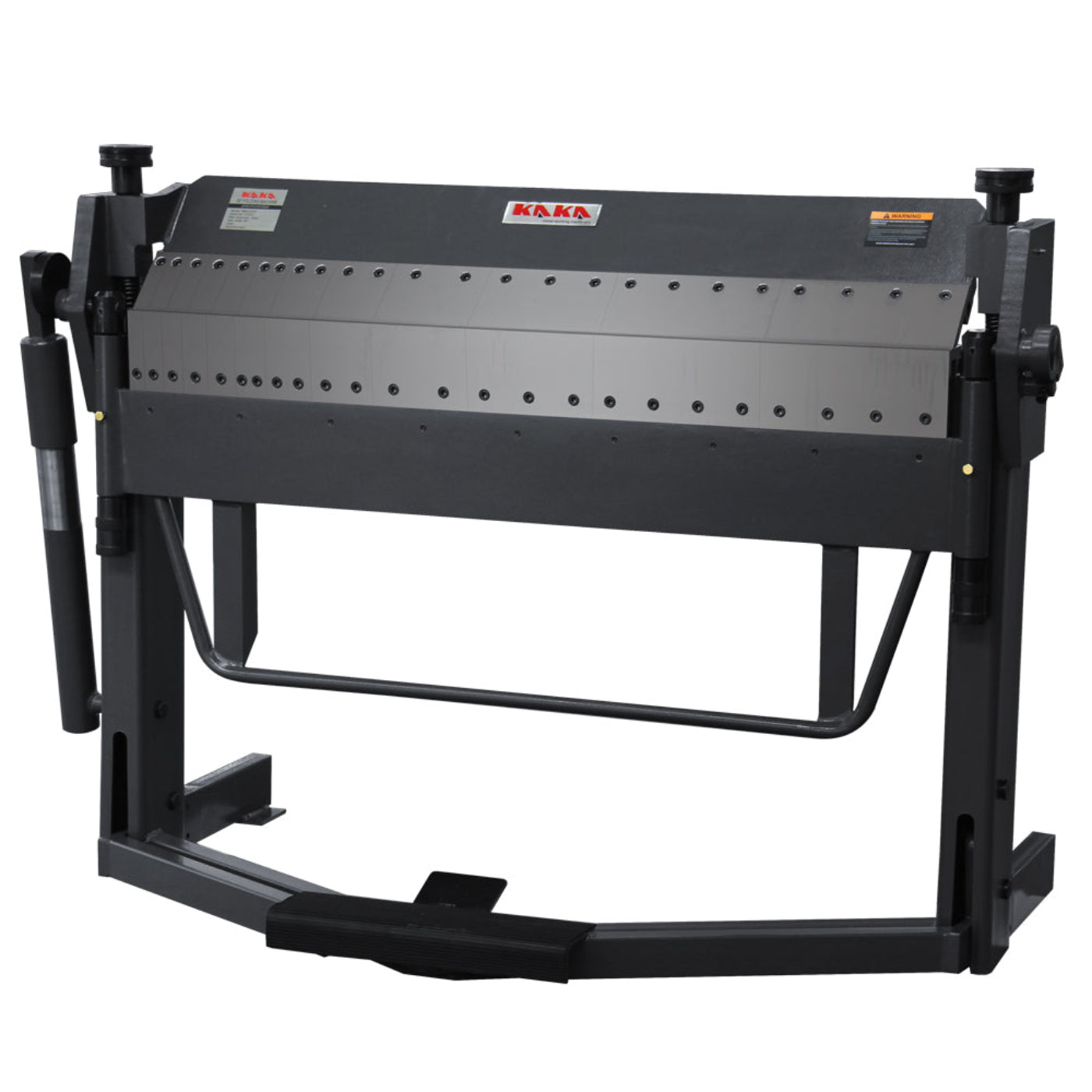

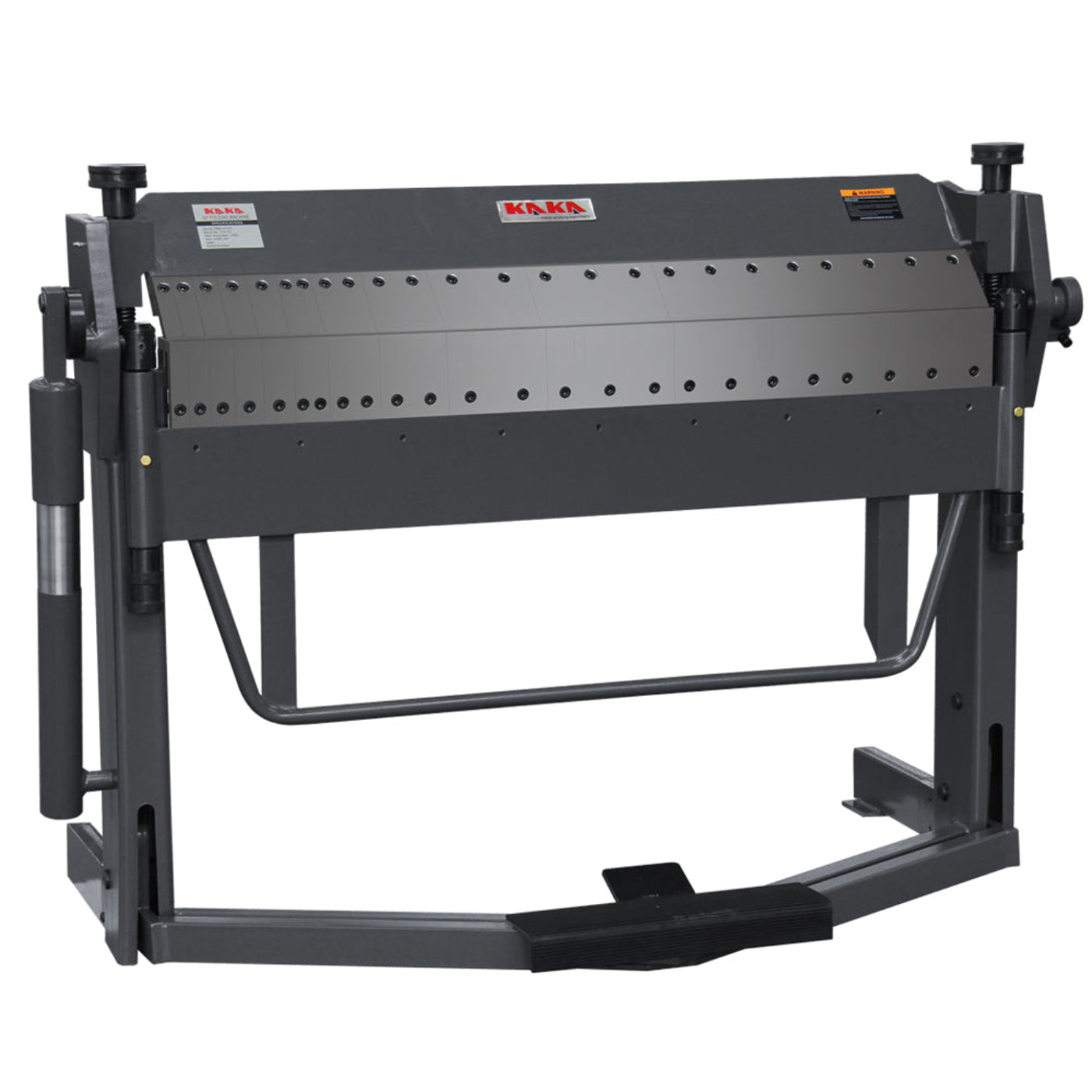

KAKA Industrial 50-Inch Pan and Box Brake Foot clamp Overview
The PBB-5014A is designed to clamp the sheet metal with a convenient foot control.Precision, durability, long service life and easy operation are the principle benefits for the 50-inch pan and box brake foot clamp. Repeatable bends can be easily achieve by the stop ring and spring inside cylinder help to lift the bending beam.

Are You Ready to Possess a High Precision, Great Durability and Versatility, Long Service Life Box and Pan Brake Foot Clamp?
The heavy truss rods and braces that were assembled inside this foot clamp enhance the great strength and durability. The welded steel Pate covers all body sections make sure the foot clamp can be operated in a long term demanding conditions.A convenient foot control and clamping device will free your back and arms which the working project in process. Black ceramic-coated fingers prevent the rust from the fingers and harden-processed edge segments prolong the service time. It is overall a fantastic pan and box brake foot clamp you want to add to the cart now!

Features

1. With foot control. It is easy for operation and relax hands for adjusting the material.
2. Compression spring for top counterbalance.
3. Cam lock and rebound spring for bending beam counterbalance.
4. Bow handle for bending beam rotation
5. Adjustable bending angle stop with scale up to 135°.
6. Segmented top beam tools.
7. They have the function of air spring which can be installed inside the arm (optional).

Specifications

What Our Experts Think

• Heavy-Duty Metal Forming Tool – The KAKA Industrial PBB-5014A is a 50-inch Pan and Box Brake Foot Clamp, designed to provide precise folding and bending capabilities for sheet metal. It is a high-performance folding machine used in metalworking to create complex shapes, including pan and box bends, for a wide range of sheet metal projects.

• Large Folding Capacity – This machine has a 50-inch working width, making it suitable for large and medium-sized metal sheets. The 50-inch capacity enables it to handle a variety of materials, including mild steel, aluminum, and stainless steel, offering versatility in metalworking.

• Max Clamping Bar Lift – The maximum clamping bar lift of 1.9 inches provides strong control over the material, ensuring that it is securely held in place while the operator performs the bending or folding process.

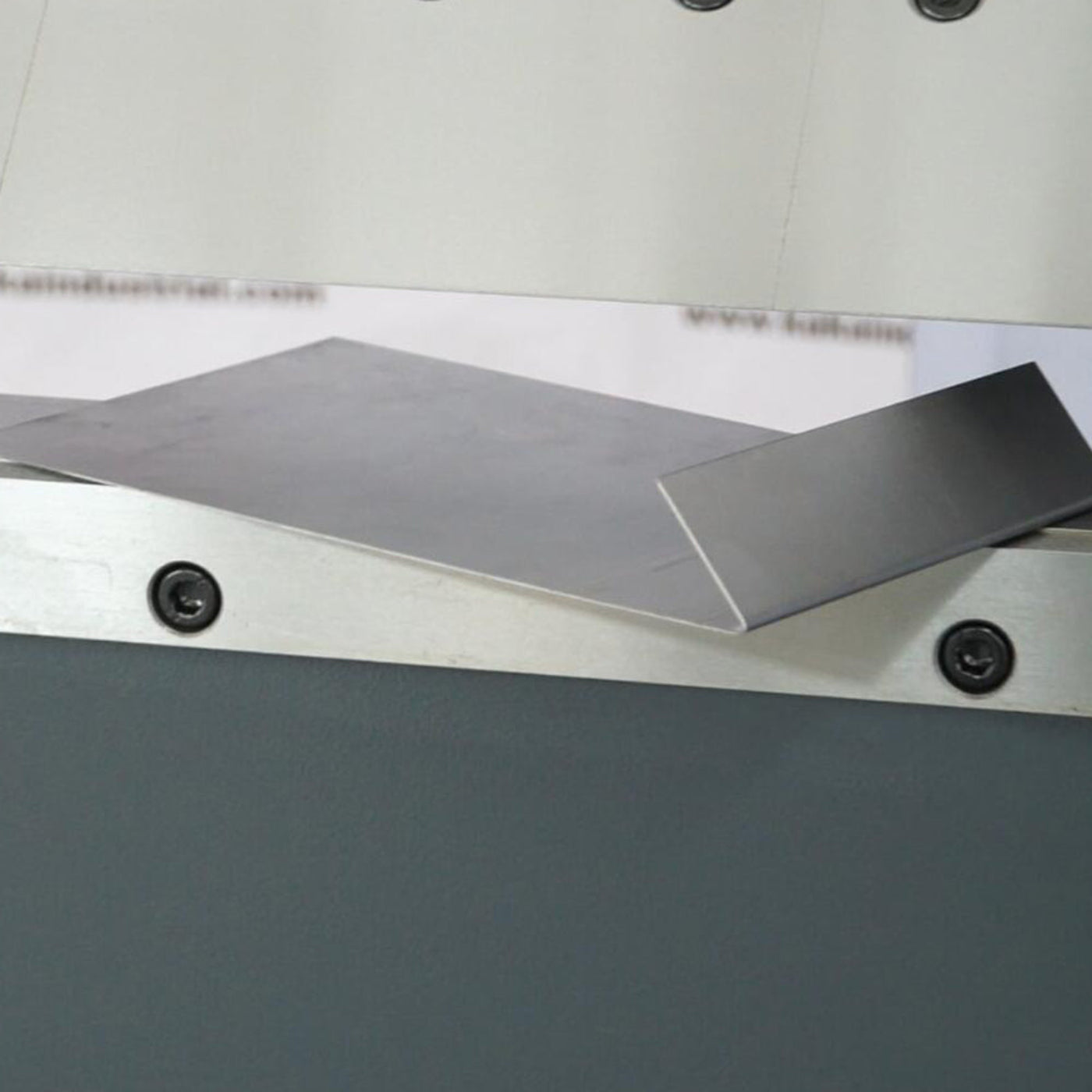

• Folding Angle Range – The adjustable folding angle of 0° to 135° allows for a wide range of bending angles, offering flexibility for various types of metalworking applications. Whether you need a shallow or deep bend, this machine provides the precision and accuracy needed for consistent results.

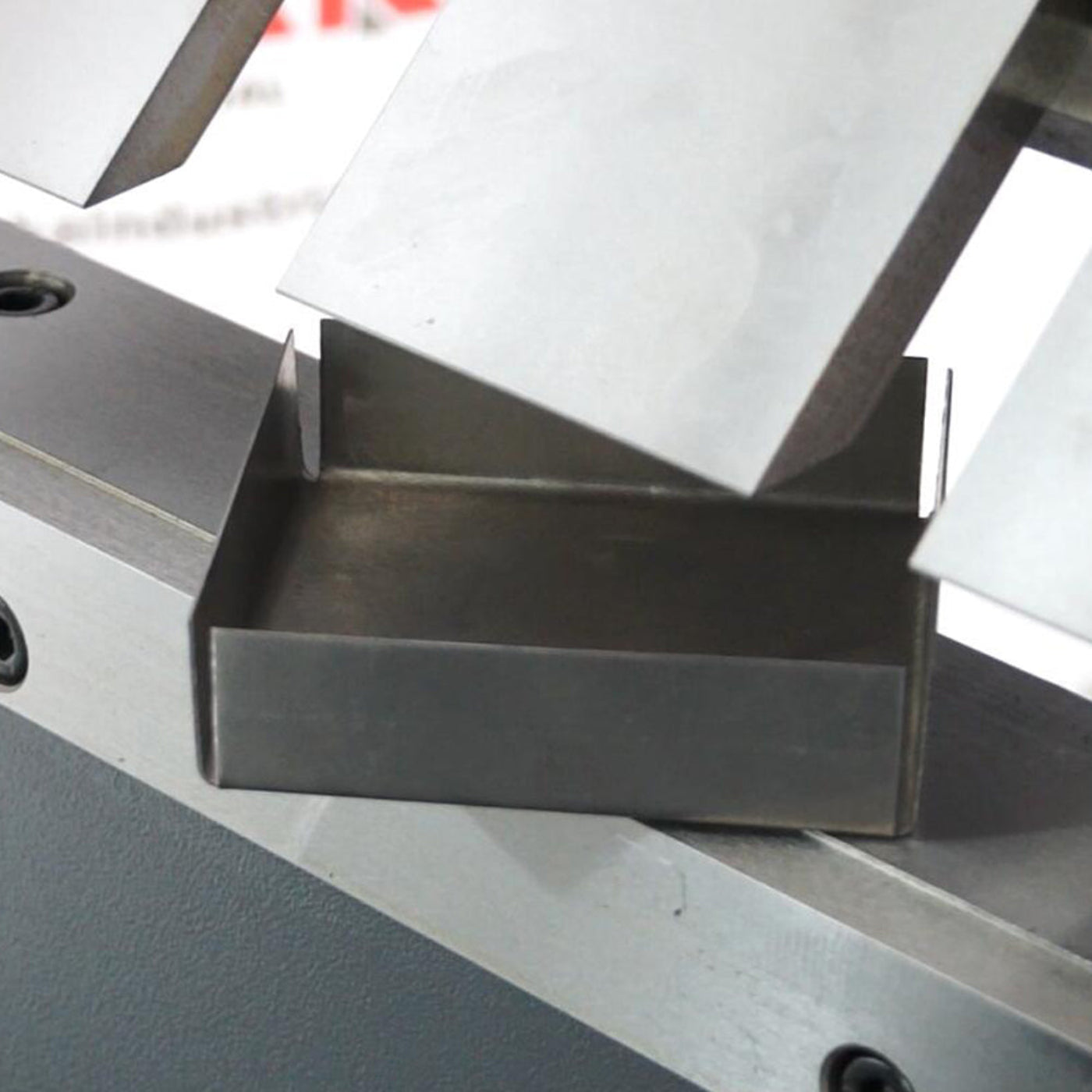

• Max Box Depth – The maximum box depth of 2 inches allows the machine to create deep folds for making complex boxes, pans, and similar shapes. This is essential when working with materials that require deep, intricate folds to form specific components.

• Foot Clamp Operation – The foot clamp design allows for hands-free operation, enabling the operator to control the bending process with their foot. This enhances safety and efficiency by allowing the operator to maintain full control of the workpiece while also using both hands for guiding and adjusting the sheet metal.

• Solid Construction – Built with heavy-duty materials, this Pan and Box Brake is engineered for long-term durability and reliable performance. The robust design ensures that it can withstand high levels of stress and pressure during heavy-duty bending and folding operations.

• Ideal for Precision Metalworking – This machine is ideal for precision metal forming tasks such as HVAC ductwork, automotive parts, signage, and other custom sheet metal fabrications. Its versatility and solid construction make it a go-to solution for professionals in various industries.

Q&A

Q: What is the KAKA Industrial PBB-5014A Pan and Box Brake used for?
A: The KAKA PBB-5014A is a sheet metal folding machine designed for bending and forming metal sheets, ideal for creating boxes, pans, and other metal shapes.

Q: What are the key features of the KAKA PBB-5014A?
A: It features a 50-inch working width, a foot clamp for secure handling, and can fold at angles from 0° to 135°. It has a maximum clamping bar lift of 1.9 inches and a maximum box depth of 2 inches.

Q: What is the folding angle range of the KAKA PBB-5014A?
A: The PBB-5014A offers a folding angle range from 0° to 135°, allowing for versatile bending of metal sheets.

Q: What is the maximum sheet thickness the KAKA PBB-5014A can handle?
A: This machine can handle a variety of sheet metals, with a max box depth of 2 inches for precise folds.

Q: Is the KAKA PBB-5014A suitable for heavy-duty tasks?
A: Yes, it is built for industrial-grade tasks, offering high precision and efficiency in metal bending applications.

Maintenance Tips

• Lubricate Moving Components – Apply oil to the clamping bar, foot clamp, and folding angle mechanism for smooth and efficient operation.
• Inspect Clamping Bar and Jaws – Regularly check the clamping bar and jaws for wear and damage; replace them if necessary to ensure a secure grip on sheet metal.
• Clean After Use – Remove metal dust, debris, and other residues from the machine to prevent buildup that could interfere with folding and clamping.
• Check Folding Angle Mechanism – Ensure the folding angle mechanism works smoothly across the 0-135 degree range for accurate bends.
• Tighten Fasteners – Periodically inspect all bolts, screws, and nuts to ensure they are tightly secured to maintain proper function and safety.
