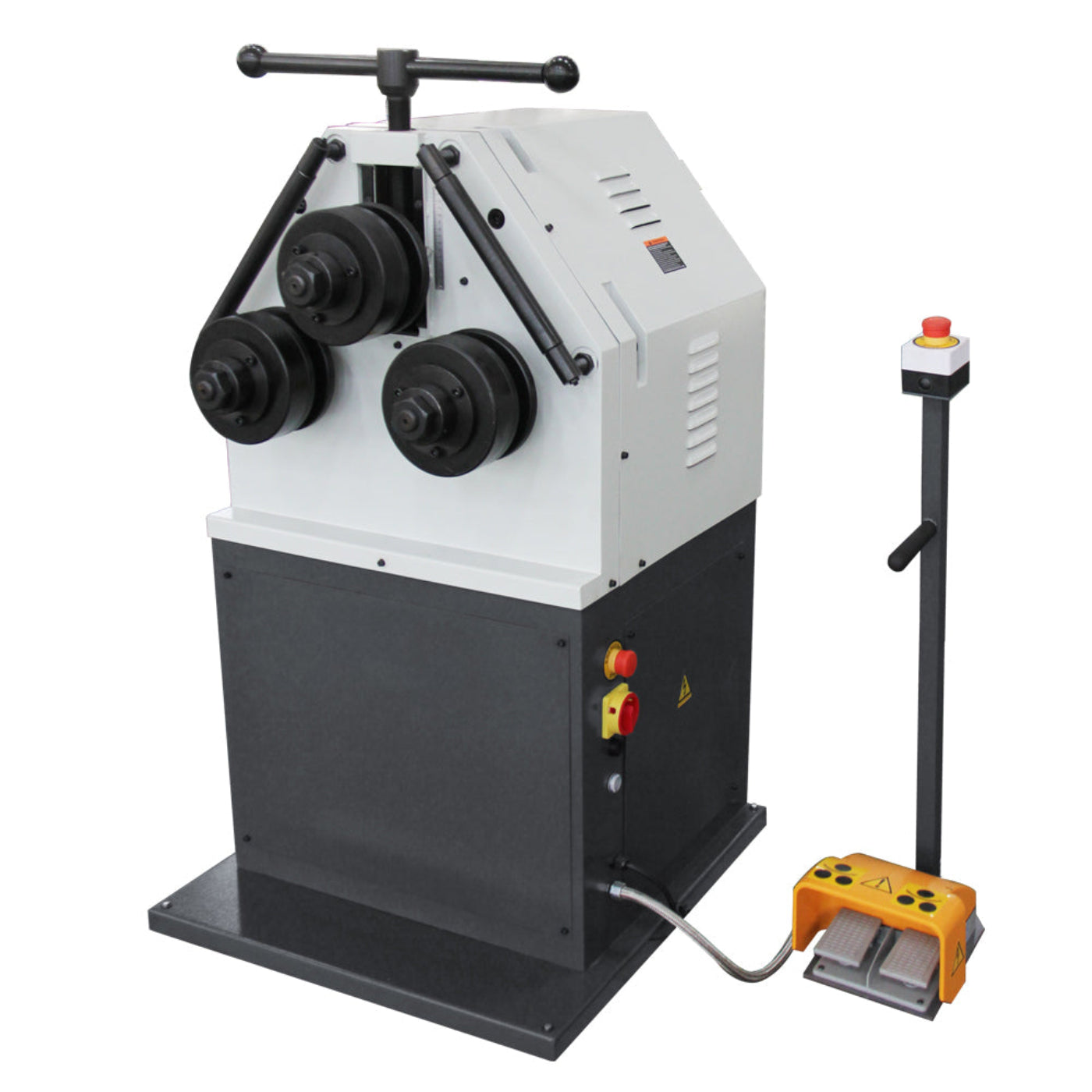

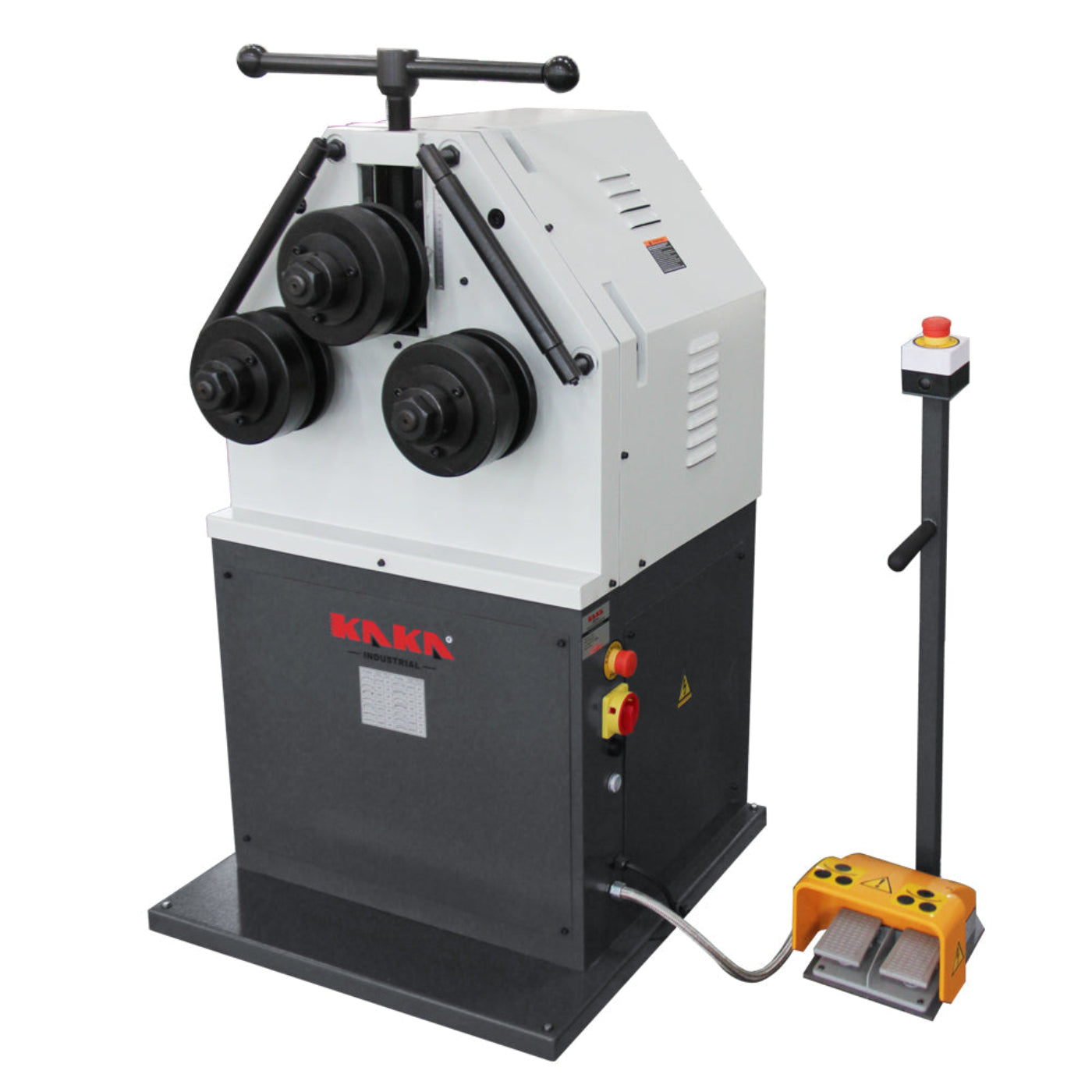

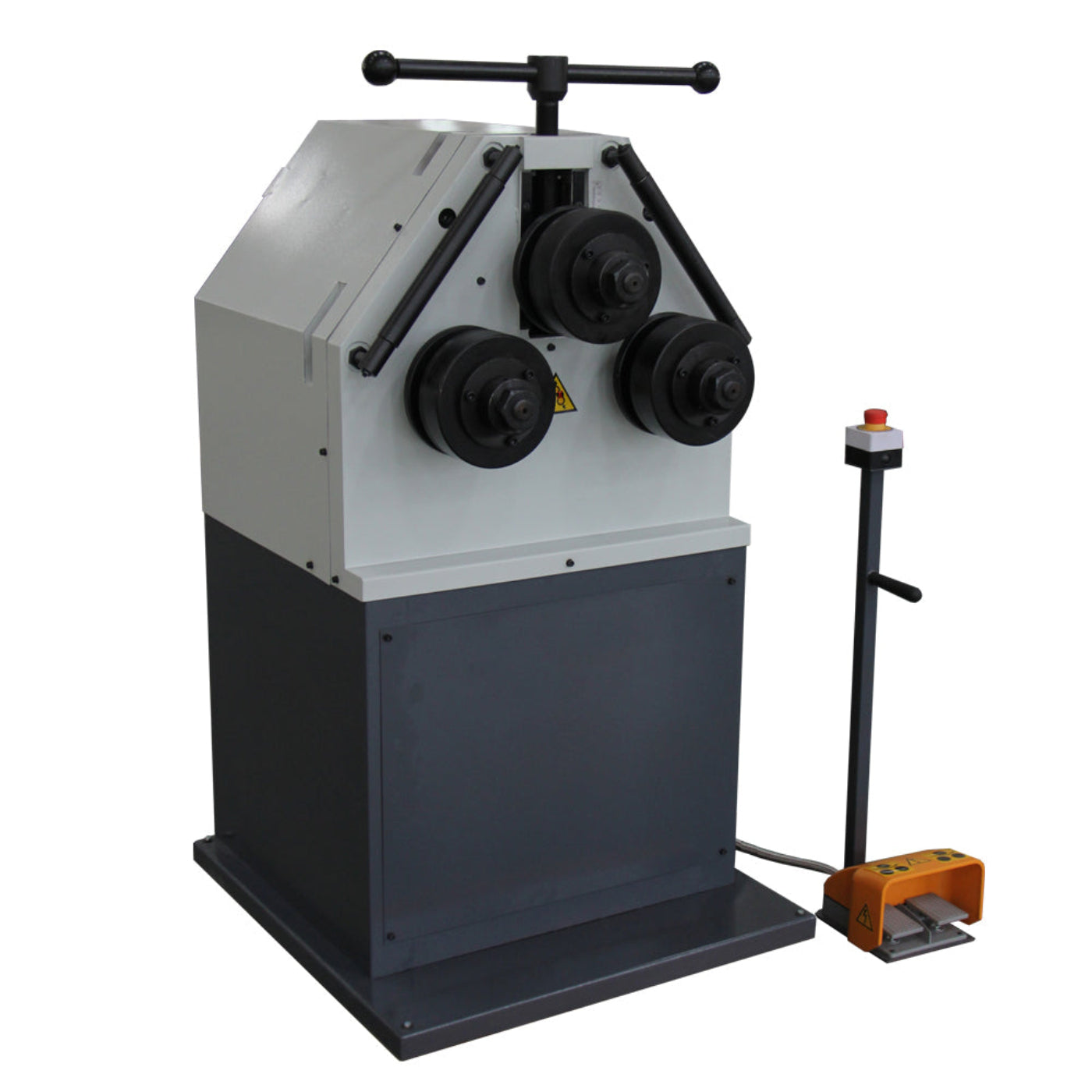

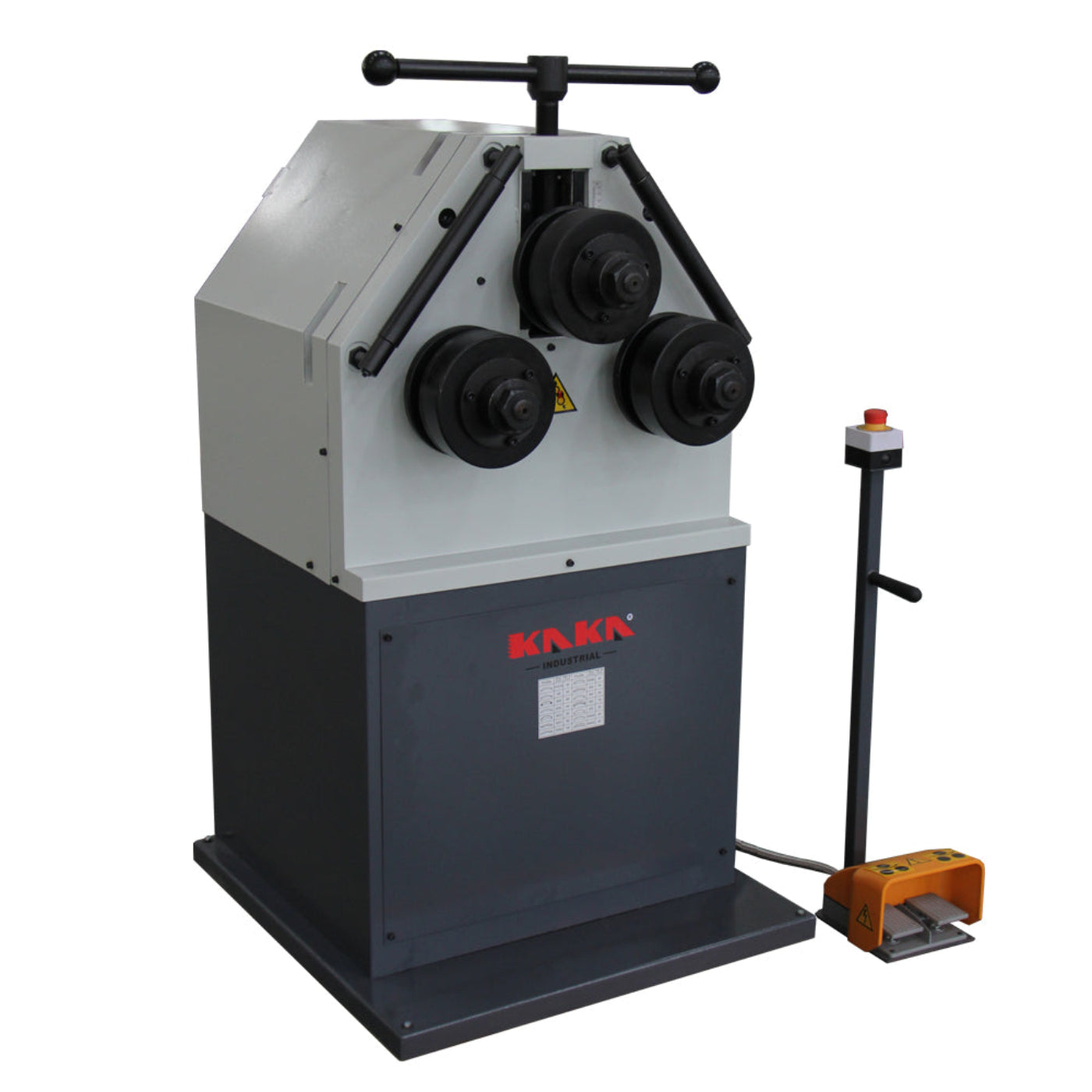

Kaka Industrial RBM-50HV Universal Profile Section Roll bending machine 230V460V-60HZ-3PH - 191011V230V460

Kaka Industrial RBM-50HV Universal Profile Section Roll bending machine 230V460V-60HZ-3PH - 191011V230V460

1.Simple and flexible operation
2.The service life of the rolling die is long and the deformation is small.One set standard rollers delivery with machine
3.The gear is made of high-strength carbon tool steel, which is durable
4.The clearance of the three rolls can be adjusted during operation to save materials
5.Machine can be set up in horizontal or vertical working position
6. Standard rolls and guide rolls are included
7. Electric control,220 Volt 3 phase

BE CAREFUL
Carefully check whether the safety device is in good condition before use

Don't put hands and feet on the rollers and transmission parts during operation

Cut off the power supply after the operation is completed

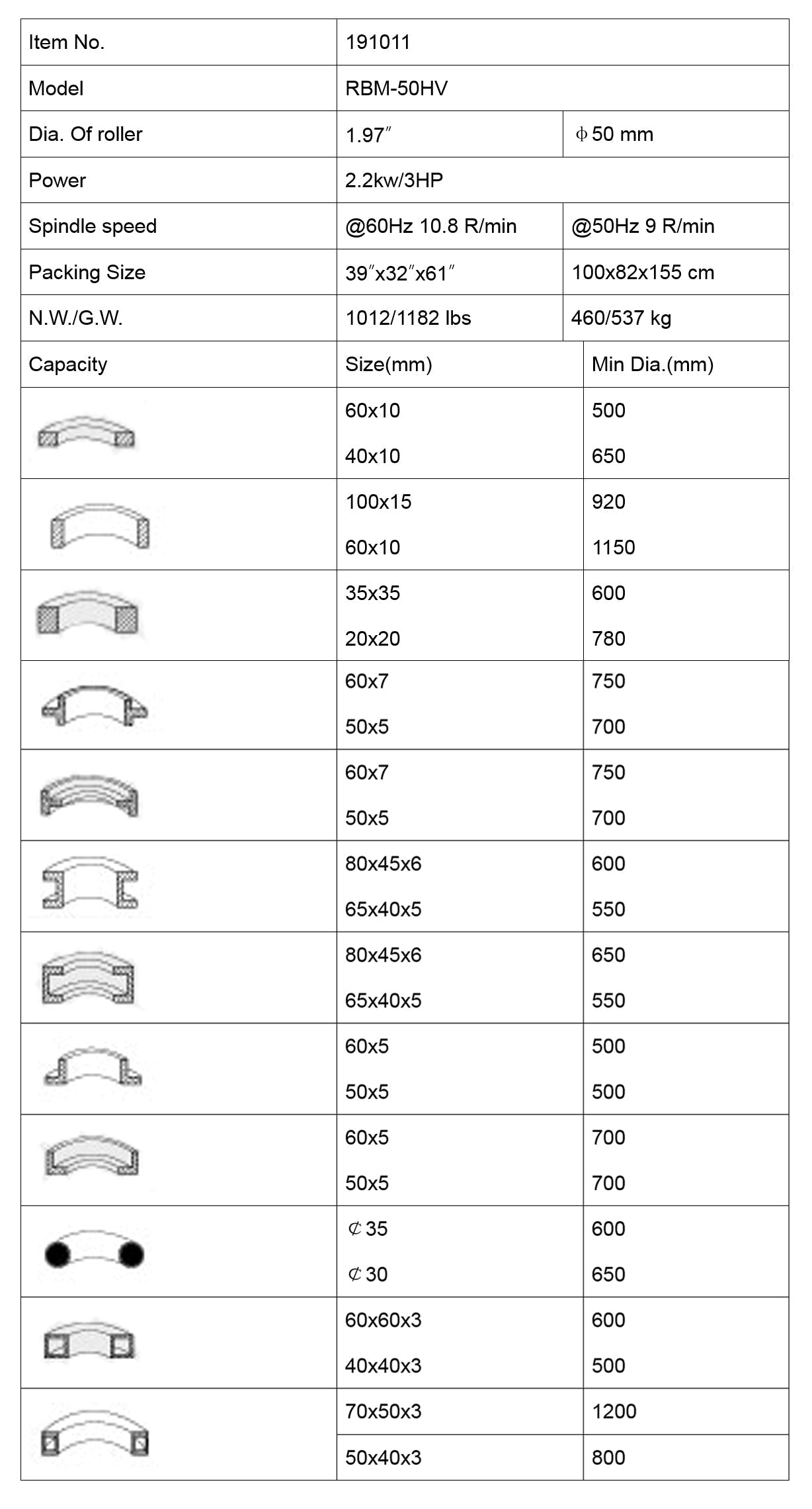

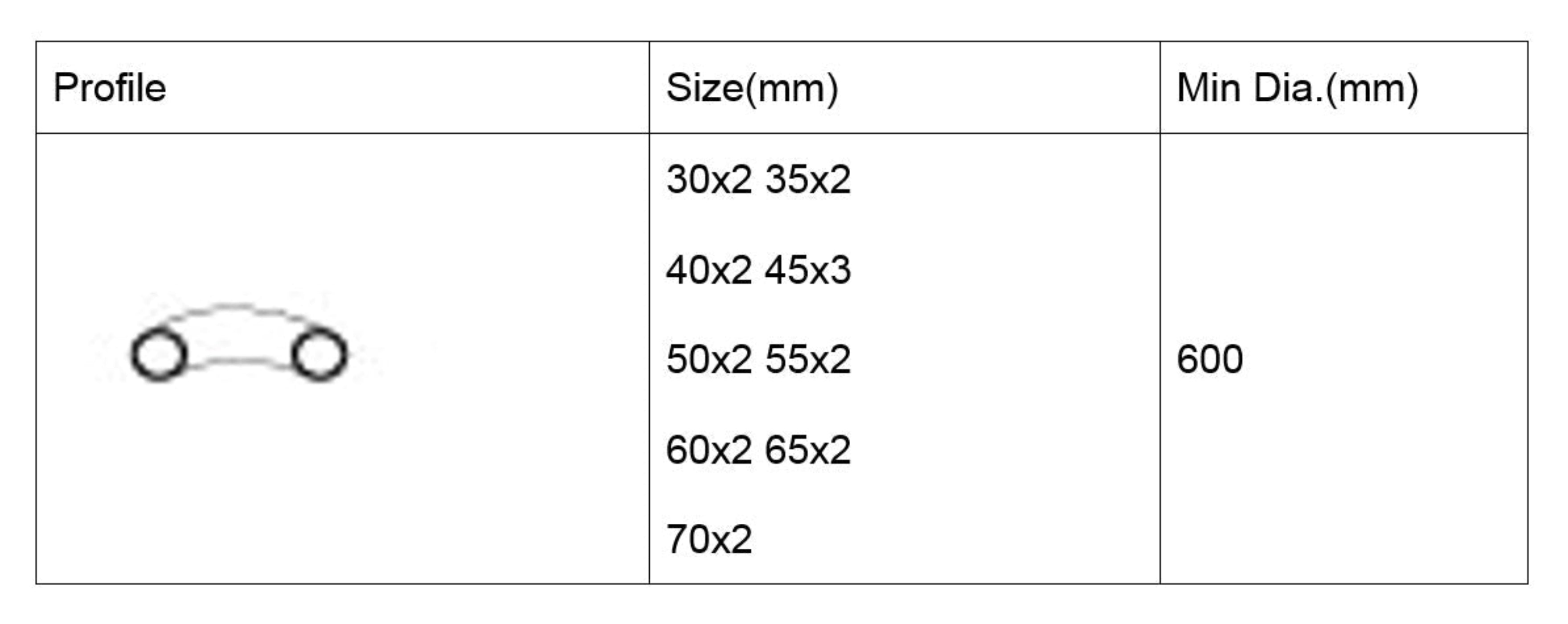

Specifications

Manual

RBM-50HV Manual

What Our Experts Think

• Versatile Profile Bending: Designed to bend pipes, tubes, angles, and various metal profiles, making it perfect for a wide range of fabrication projects.
• Powerful 230V/460V, 3-Phase Motor: Ensures consistent, high-performance operation for industrial applications.
• Dual Horizontal & Vertical Operation: Provides flexibility to accommodate different project requirements and workspaces.
• Heavy-Duty Steel Construction: Built for durability and stability, capable of handling heavy-gauge materials with ease.
• Precision & Repeatability: Delivers uniform, distortion-free bends, essential for professional-grade work.
• User-Friendly Controls: Simple and intuitive operation makes it suitable for both experienced fabricators and skilled workshop operators.

Q&A

Q: What is the KAKA Industrial RBM-50HV Universal Profile Section Roll Bending Machine?
A: The RBM-50HV is a high-performance, heavy-duty roll bending machine designed for shaping metal profiles, tubes, and bars with precision. It operates on 230V/460V, 60Hz, 3-phase power, making it ideal for industrial applications.

Q: What makes the RBM-50HV unique?
A: It features a universal design for bending a variety of profiles, a powerful motor for consistent performance, high-strength rollers for durability, and horizontal/vertical operation flexibility.

Q: What materials can the RBM-50HV bend?
A: It is capable of bending steel, aluminum, copper, and other metal profiles, depending on thickness and specifications.

Q: What is the bending capacity of the RBM-50HV?
A: The exact capacity varies based on material type and profile dimensions, but it is engineered for precision bending in heavy-duty applications.

Q: Is the RBM-50HV easy to use?
A: Yes, it features user-friendly controls, adjustable settings, and a robust design for efficient and precise bending.

Q: What types of projects is the RBM-50HV best suited for?
A: It is perfect for structural fabrication, industrial manufacturing, metal furniture, railings, and other custom metalworking applications requiring precise profile bending.

Maintenance Tips

• Keep It Clean – Remove dust, metal shavings, and debris from rollers and the frame after each use to maintain smooth operation.
• Lubricate Moving Parts – Regularly apply grease or machine oil to gears, bearings, and pivot points to reduce wear and ensure smooth movement.
• Inspect Rollers – Check rollers for wear, cracks, or buildup, and clean or replace them as needed for accurate bending.
• Check Hydraulic System – If equipped, monitor hydraulic fluid levels, inspect hoses for leaks, and replace or refill fluid as necessary.
• Tighten Fasteners – Periodically check and secure all bolts, nuts, and screws to maintain stability and precision during operation.
• Monitor Electrical Components – Ensure all wiring, motor connections, and switches are intact and functioning correctly to prevent electrical issues.
• Use Within Capacity – Do not exceed the machine’s rated bending capacity to avoid damage to the frame and rollers.
• Prevent Rust – Store in a dry location and apply rust-preventative oil to exposed metal surfaces when not in use.
• Align Material Properly – Ensure proper positioning of the material before bending to achieve consistent, high-quality results.
