Luna Optics Genesis Apocalypse Universal Thermal Modular 3-in-1 Device - A-TMD-40

Luna Optics Genesis Apocalypse Universal Thermal Modular 3-in-1 Device - A-TMD-40

Thermal devices work on the principle of detecting infrared radiation, also known as energy. Instead of operating in a visible light spectrum of 400-700nm (such as regular binoculars or scopes), thermal imagers detect waves of energy as high as 17,000nm or 17µm, which are beyond our capability to observe with naked eye. The infrared signal is received by the thermal device and is then converted into an electrical signal by the thermal sensor (called microbolometer), located inside the unit and that electrical signal is then displayed on the micro display located near the ocular (eyepiece).

All of Full-Moon Optics thermal day/night vision devices employ ULIS Pico Gen2™ Thermal Sensors, made in France, which feature shutter-free and NUC free performance combined with excellent image resolution and sharp contrast, as well as an extremely user-friendly and reliable interface allowing for numerous useful features to be easily implemented in the complete system. (Pico Gen2 is a trademark of LYNRED Corporation).

As with the digital night vision, every thermal imaging device requires batteries or an external power source to operate. Unlike a daylight scope, where you see the image due to light traveling through the glass and the prisms, the thermal imaging device works by projecting the image onto a micro-display. While the thermal sensor is the crucial component of any thermal device, the image display quality is also very important to have the best possible direct-view image clarity and best field of view.

The entire family of Full-Moon thermal products employs innovative High Resolution 1,024 x 768 AMOLED displays allowing for extra sharp contrast even in the low-light conditions – made in France by MICROOLED corporation. Since the image is projected on the screen, it has certain limited resolution…so please do not expect your thermal device to provide the same crystal clear and full-color image as you would see through your daylight scope. The main advantage of any thermal device is that it detects heat signatures in the conditions where seeing your target is virtually impossible with your naked eye.

Features

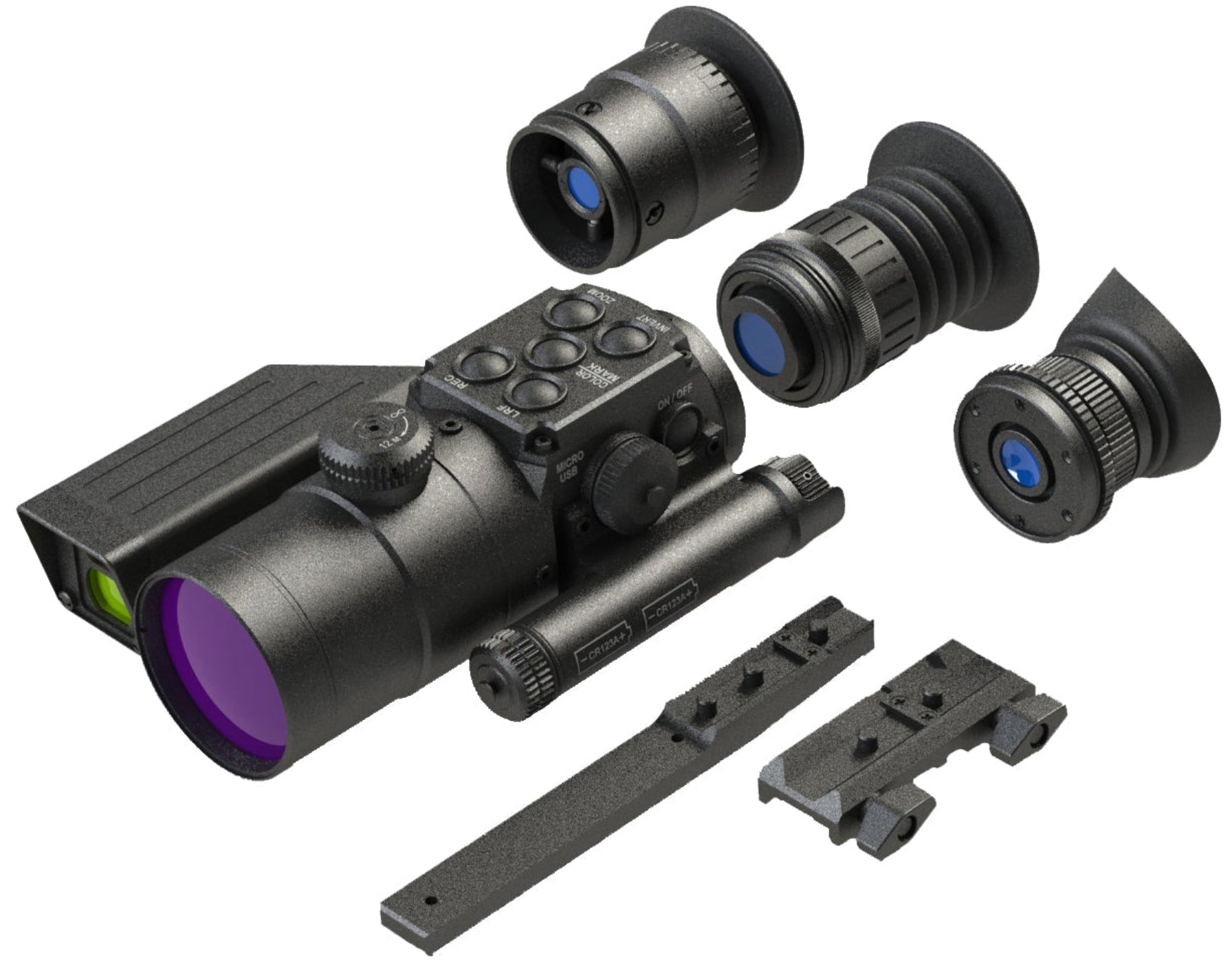

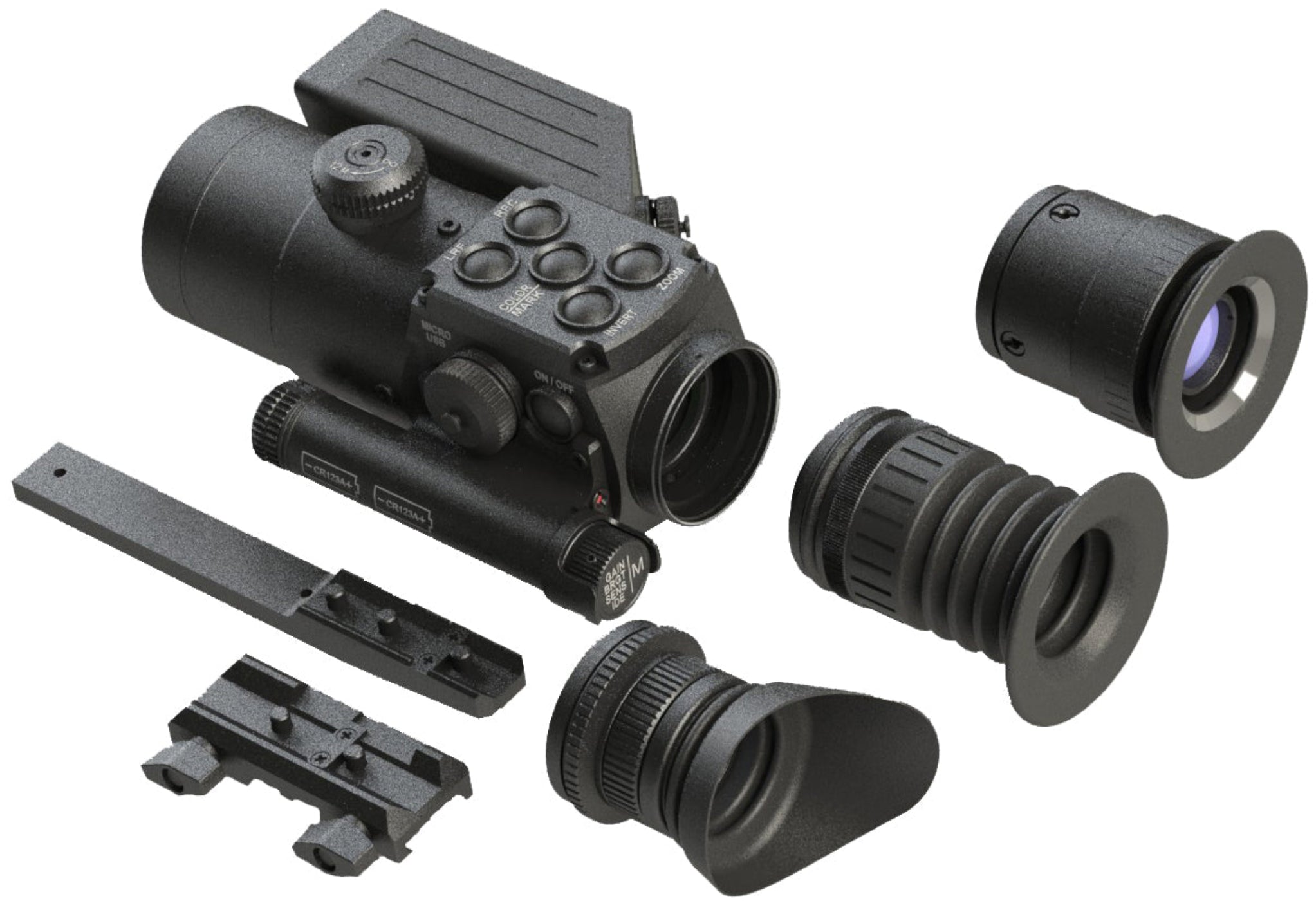

• Industry-first Thermal Modular (3-in-1) Device allows use as a dedicated riflescope, spotting monocular, or a clip-on module in front of the daylight scope!
• Proprietary GENESIS Hybrid Thermal Core with Industry-First Image Detail Enhancement with Manual DSP removes the barriers between 384 and 640 resolution thermal sensors
• Industry-First Super Controller allows instant multiple image adjustments without having to access complicated menus
• Industry-First User Programmable Button
• Ultra-High resolution 1,024 x 678 micro-OLED image display
• Thermal sensor with Shutter-Free & NUC-Free Technology
• Integrated 700m laser rangefinder provides reliable and fast distance readings
• On-board 32GB Video Recording with Quick Start and Battery Save mode & Wi-Fi data streaming
• 2.5x-10x image magnification (A-40 model); 3.5x-14x magnification (A-55 model) & 5x-20x magnification (A-75 model) (NOTE: when used as a Clip-On module image magnification is 1x)
• Detection range 1,100yds (40mm lens) 1,500yds (55mm lens) or 2,000yds (75mm lens)
• Recoil resistant on up to .300WIN magnum caliber
• 5 types of aiming reticles with 6 selectable reticle colors (plus reticle OFF mode for use as monocular or a clip-on module)
• 10 color palettes, each with polarity image inversion
• Super Contrast mode for instant game detection
• Ability to zero one scope on the same weapon for up to 7 different target distances
• Multiple customizable user modes
• User-friendly Bad Pixel Correction mode
• Various mounting systems available, including American Defense QD mounts for Picatinny rail platforms and traditional Forward-mounting bolt action Weaver style platforms

What Our Experts Think

• 3-in-1 Modular Design – Functions as a handheld monocular, weapon sight, and clip-on thermal imager for ultimate versatility.
• Advanced Thermal Imaging – Detects heat signatures in complete darkness, smoke, fog, and harsh environments.
• High-Resolution OLED Display – Delivers sharp, detailed thermal images for superior target identification.
• Multiple Color Palettes & Modes – Customize your viewing experience for various tactical and environmental conditions.
• Rugged & Weatherproof Build – Designed for extreme durability in demanding field operations.

Q&A

Q: What is the Luna Optics Genesis Apocalypse A-TMD-40?
A: A versatile 3-in-1 thermal imaging device that functions as a monocular, clip-on scope, and weapon sight, ideal for hunting, surveillance, and tactical applications.

Q: What type of thermal sensor does it have?
A: Equipped with a high-resolution thermal sensor for detection in total darkness, fog, and harsh environments.

Q: What are its magnification and display features?
A: Features multiple zoom levels and a high-contrast AMOLED-Q display for detailed thermal imaging.

Q: Can it be used as a standalone monocular?
A: Yes, it functions as a thermal monocular for handheld observation.

Q: How does it work as a clip-on scope?
A: Easily attaches to daytime scopes, converting them into thermal-capable optics without re-zeroing.

Q: Can it be mounted on a weapon?
A: Yes, it can be used as a standalone thermal weapon sight, providing enhanced targeting capabilities.

Q: What thermal color palettes are available?
A: Offers multiple color modes, including white-hot, black-hot, and color-enhanced for different environments.

Q: Does it support video recording?
A: Yes, it includes photo and video recording capabilities, with storage via a microSD card.

Q: What is the battery life?
A: Provides long-lasting battery performance, with USB-C rechargeable power for extended operation.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges for a clear image.
• Avoid Direct Sunlight – Never expose the thermal sensor to intense heat or direct sunlight to prevent damage.
• Store in a Cool, Dry Place – Use a protective case with silica gel packs to prevent moisture buildup.
• Update Firmware Regularly – Check for software updates to ensure peak performance and new features.
• Check Battery Health – Use high-quality batteries, avoid overcharging, and remove them when not in use.
• Handle with Care – Avoid impacts and rough handling to protect internal components.
• Clean the Housing – Wipe down the body with a dry or slightly damp cloth to remove dirt and debris.
• Test All Modes Periodically – Ensure thermal, night vision, and modular functions work properly before field use.
