Luna Optics LN-DTM1 Digital Tactical Day-Night Vision Monocular - LN-DTM1

Luna Optics  LN-DTM1 Digital Tactical Day-Night Vision Monocular - LN-DTM1

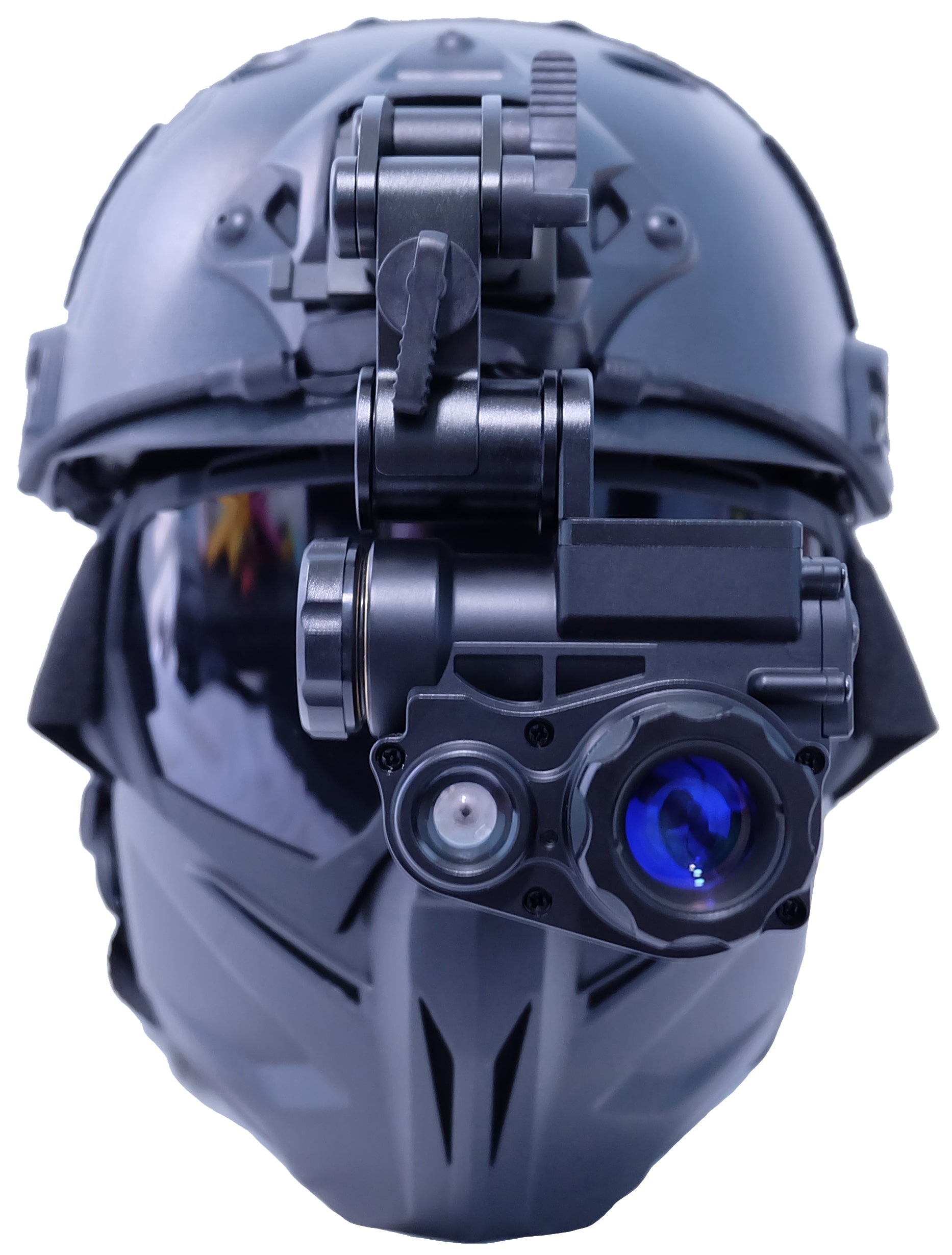

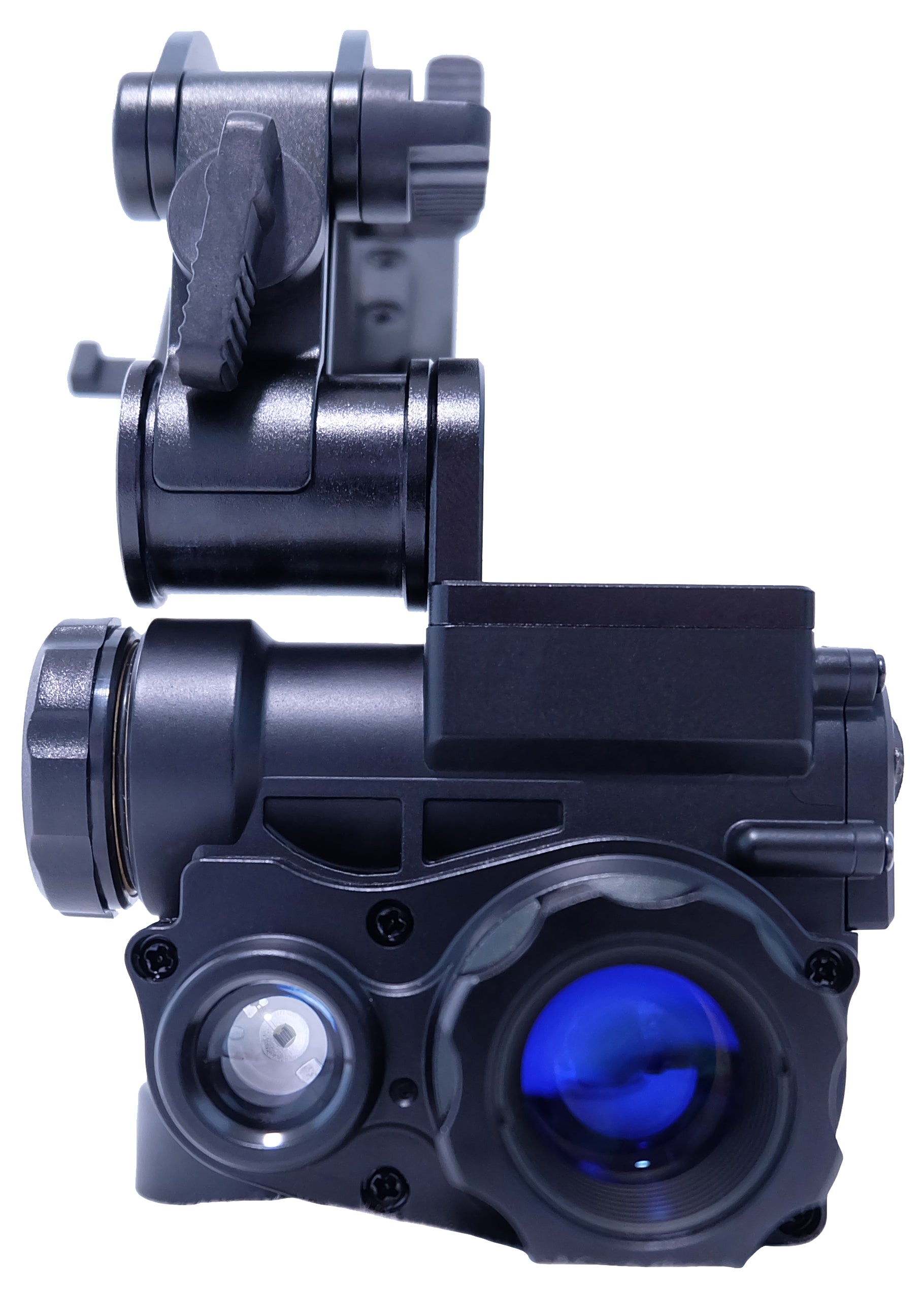

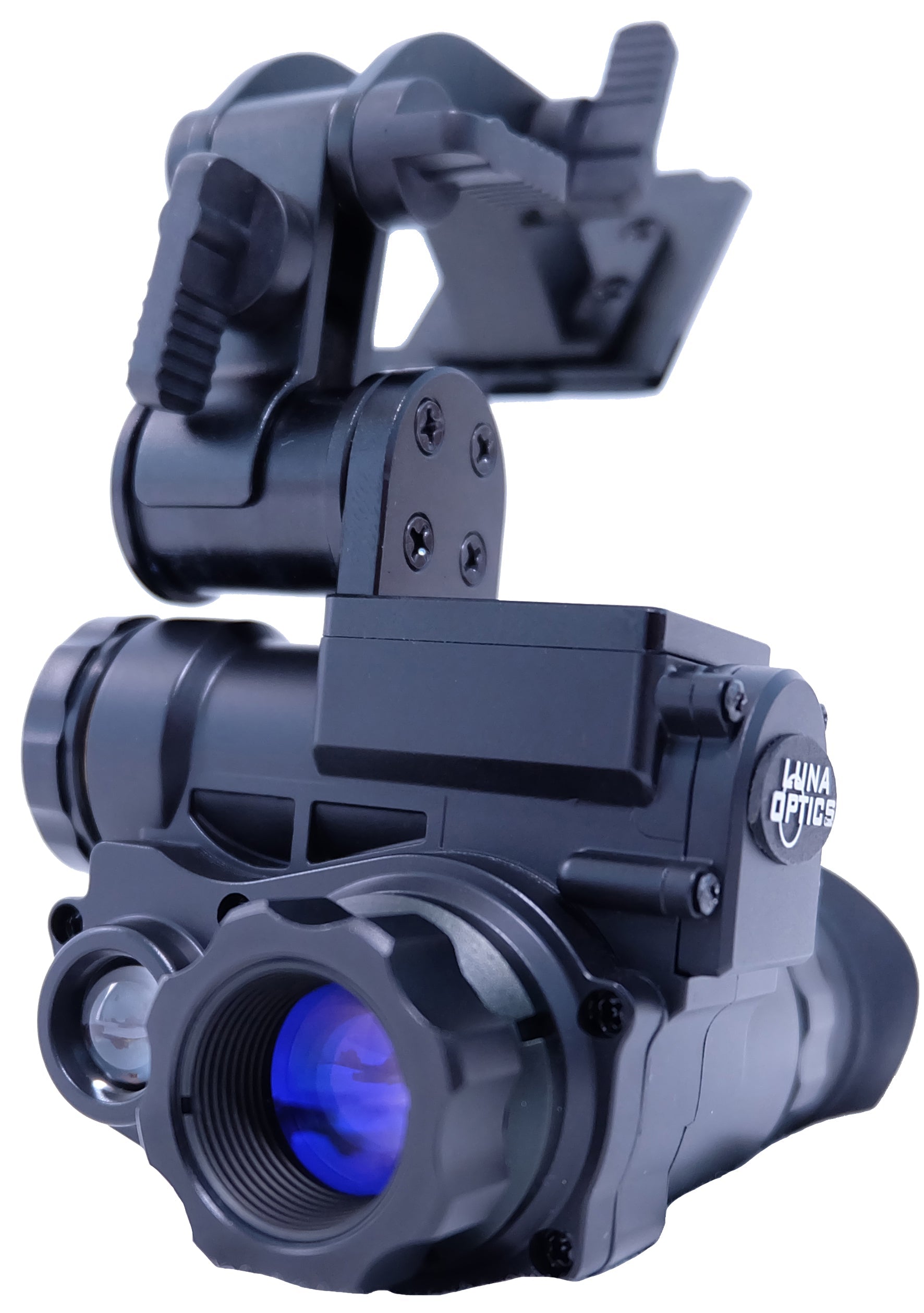

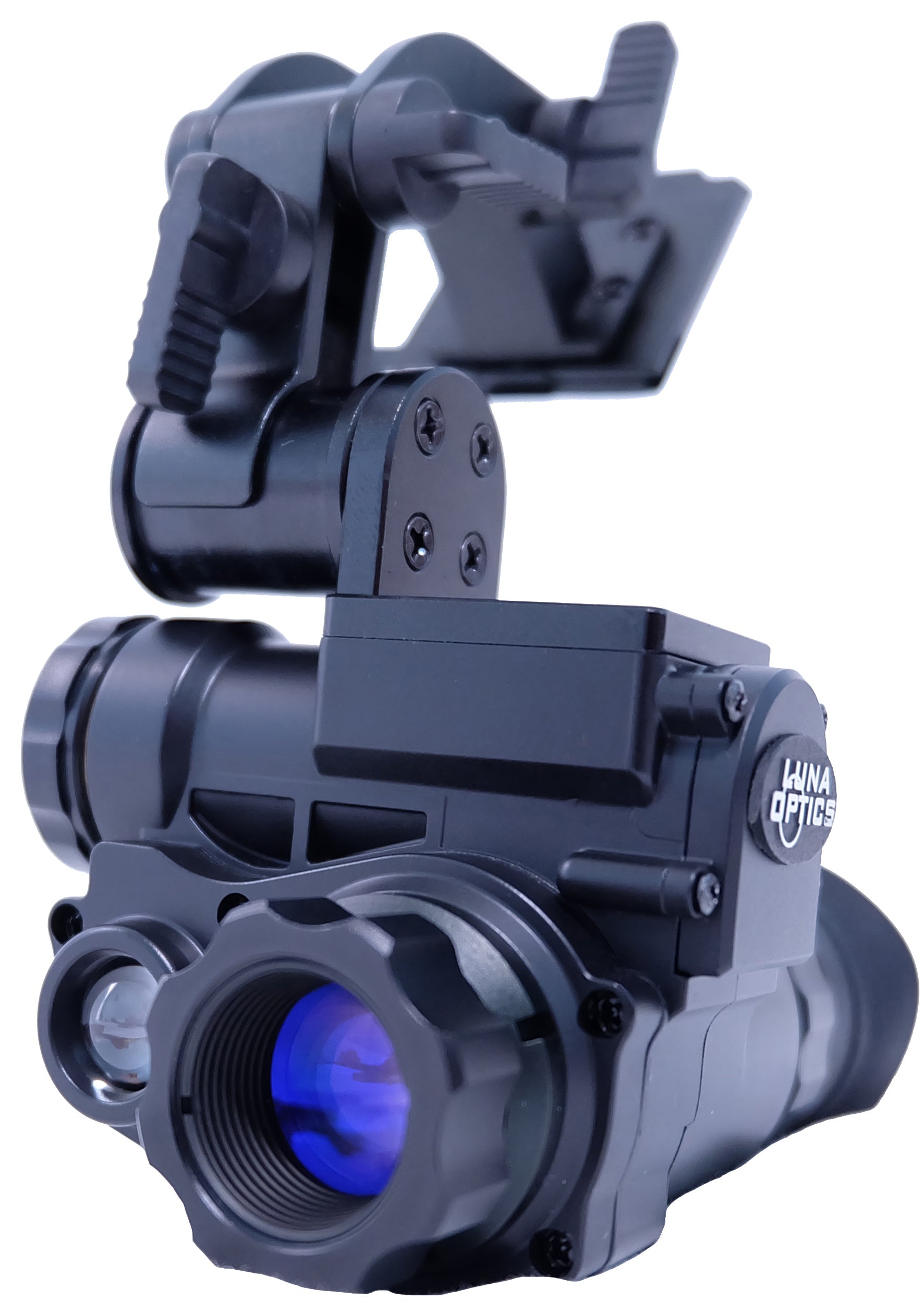

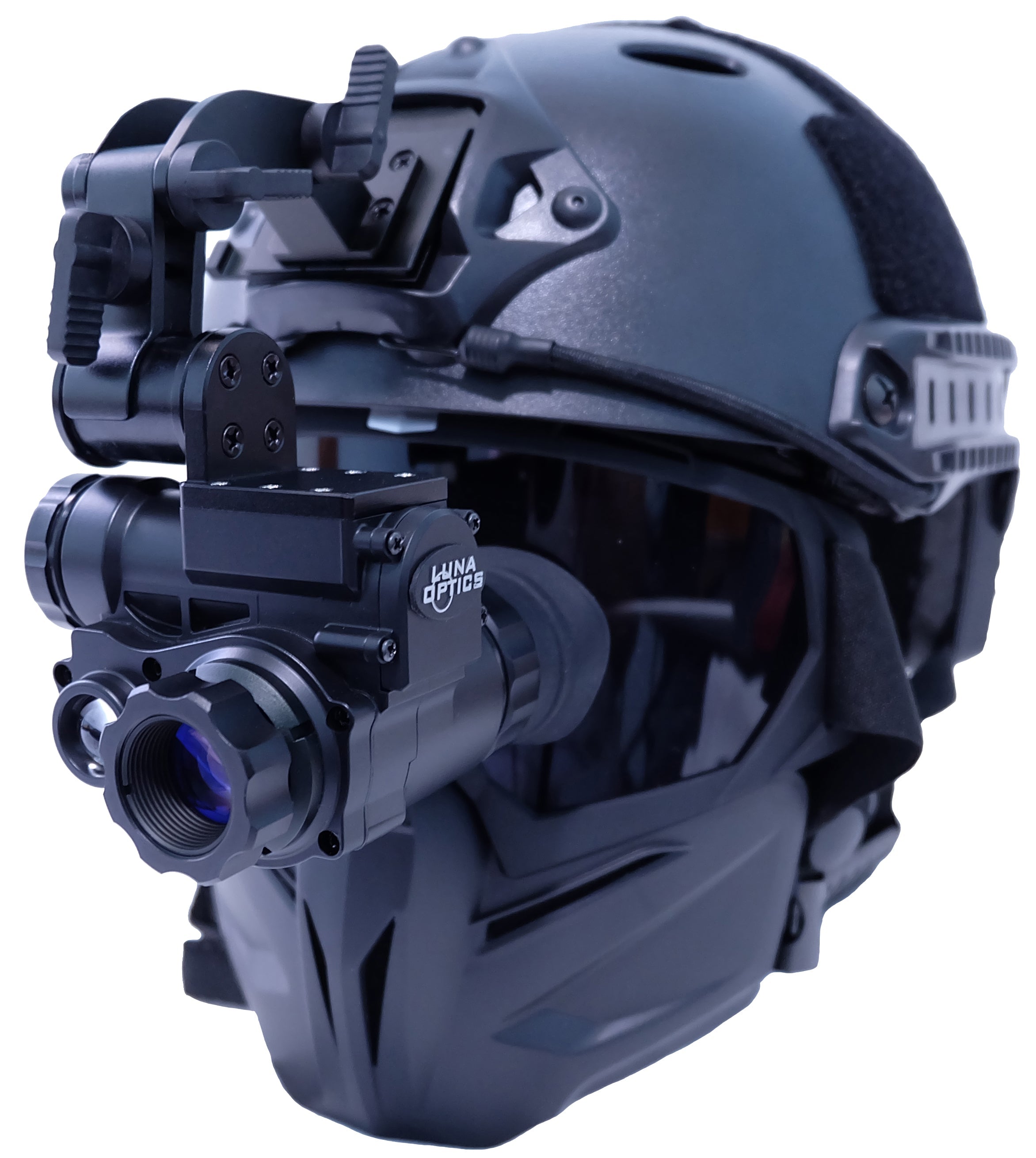

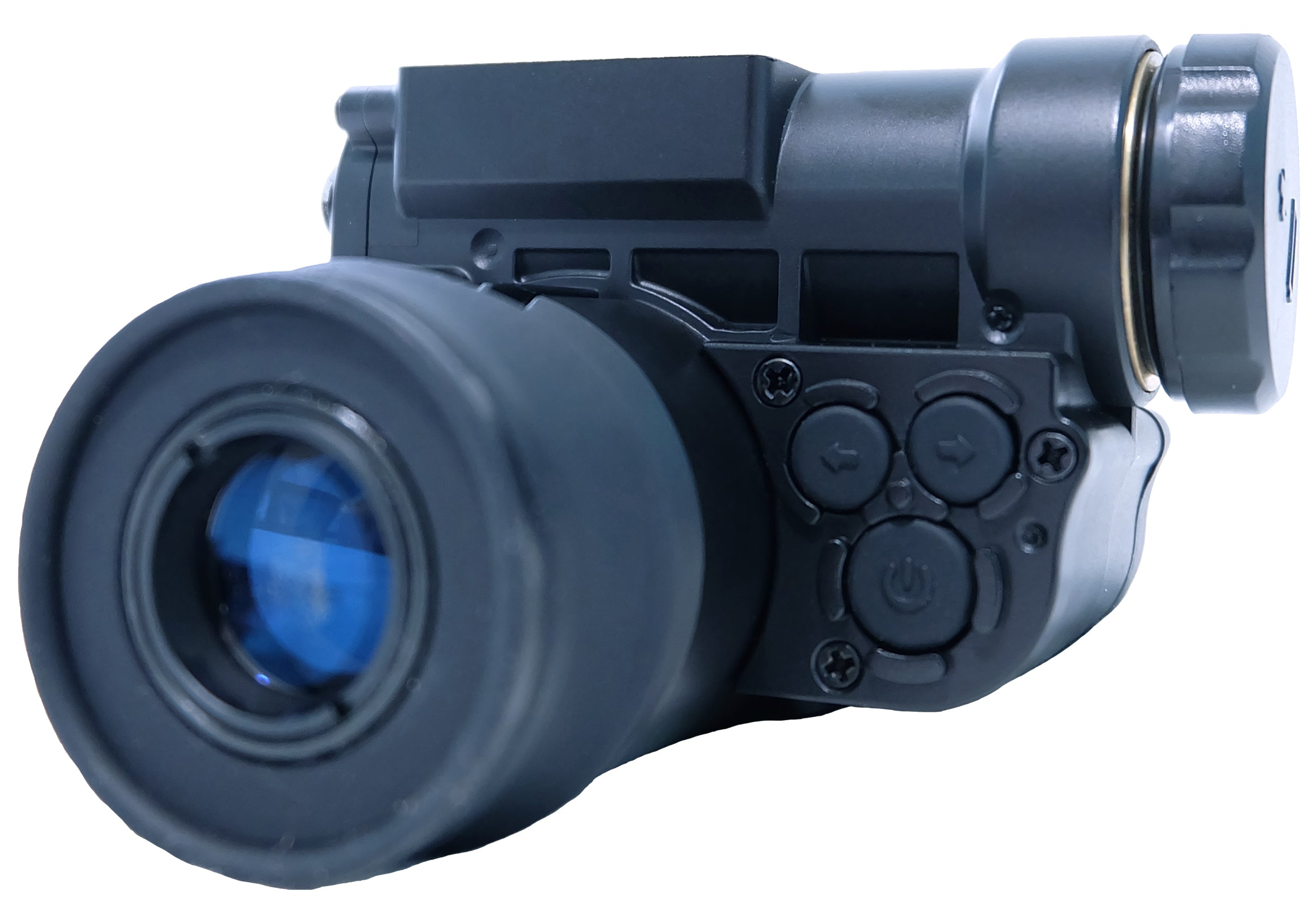

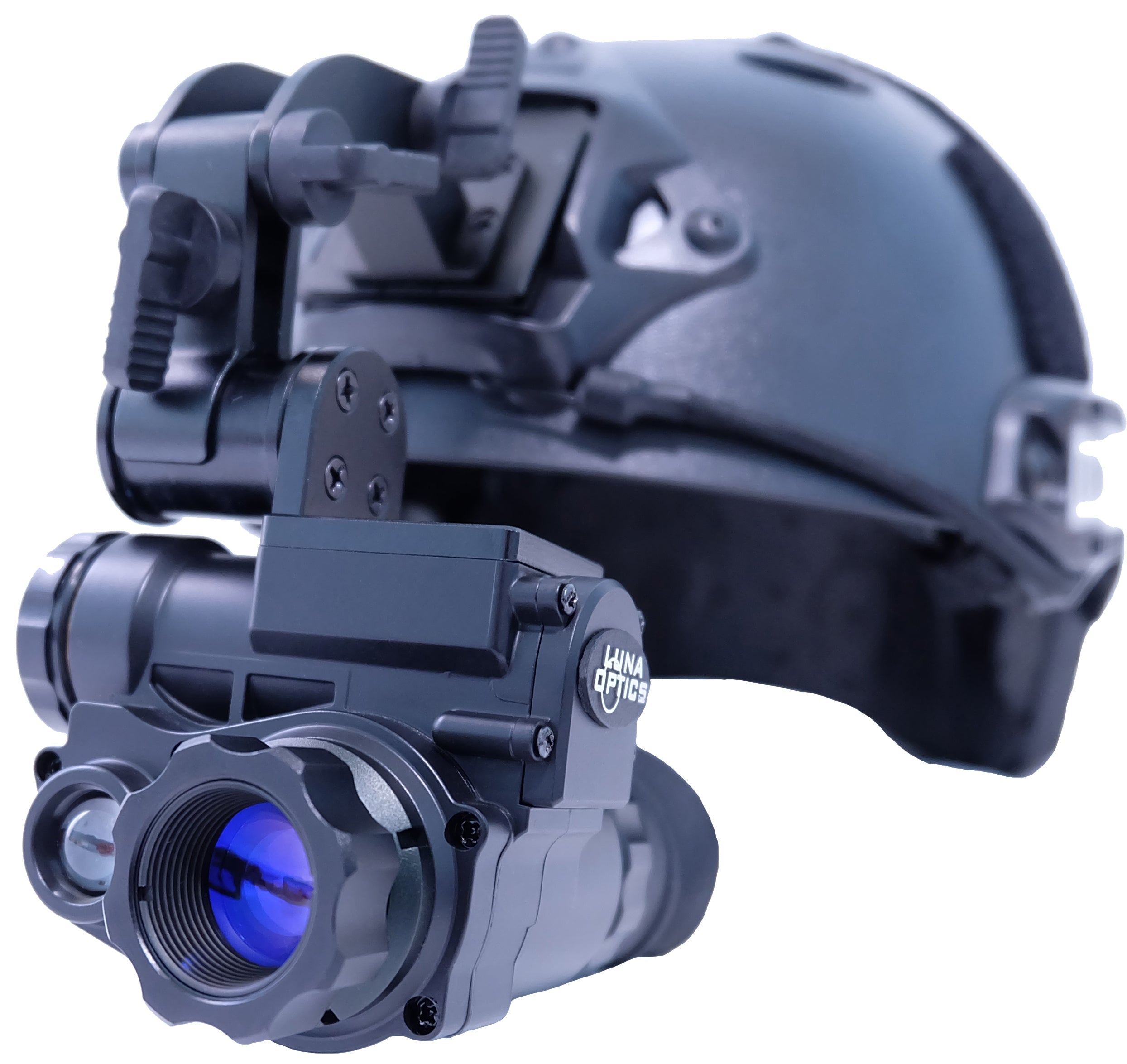

LN-DTM1 takes the latest in digital technology and fully applies it to tactical field operations. Palm-size dimensions and weighing only 237g (8.4oz) this monocular is perfect for hands-free use. Comes standard with the helmet mounting gear (fits to standard VAS NVG Helmet Shroud) this device can be mounted either for left or right eye viewing. With the ground-breaking 1920x1080-pixel Full-HD CMOS sensor, and a widescreen HD display, you will get an unparalleled viewing experience either in monochrome black-and-white or state-of-the-art, 'Night Vision Green Phosphor color. Unique "backlit technology" allows for close-up viewing and identification in near total darkness while staying 100% covert (without activating the built-in IR illuminator).

Your unique experience with this tactical digital night device does not end with its optical and electronic capabilities. Able to withstand some of the most brutal outdoor temperatures (-40°F to 131°F) and operate for up to 3.5 hours on readily available single 18650 rechargeable battery, featuring user selectable auto power shut off, this monocular can become a faithful companion on your night or daytime tactical mission for years to come.

Features

• 1920x1080 Full-HD CMOS digital sensor with backlit technology
• Allows for safe day and night observations
• 0.0001lux rating
• HD image display delivers vivid images
• B&W and Night Vision Green Phosphor color modes
• Wi-Fi live streaming to iOS or Android

OPTICS - ILLUMINATOR

• IR illuminator with 100m (109yds) night range
• 18mm, f/1.0, all-glass optical system
• Infrared Film Lens Coating
• 1x optical image for hands-free operation
• 6x maximum digital magnification

BUILD - ERGONOMICS

• Helmet mounting gear is included
• -40°F to 131°F operating temperature
• Palm-sized dimensions

ACCESSORIES INCLUDED

• Soft or optional hard carry case
• Fully adjustable helmet mounting gear
• Left/right eye setup clasp
• Battery charger with USB cable
• Helmet and mask are not included

Specifications

What Our Experts Think

• Day & Night Digital Vision – Provides clear imaging in both daylight and complete darkness with advanced infrared technology.
• Compact & Tactical Design – Lightweight and portable, perfect for one-handed operation in the field.
• High-Resolution Display – Delivers sharp, detailed images for surveillance, hunting, and outdoor exploration.
• Built-In Recording & Wi-Fi Streaming – Capture and share footage directly to your device.
• Durable & Weather-Resistant – Designed to withstand rugged outdoor conditions.

Q&A

Q: What is the Luna Optics LN-DTM1 Digital Tactical Day-Night Vision Monocular?
A: A compact and high-performance digital monocular designed for day and night vision, ideal for tactical use, hunting, surveillance, and outdoor observation.

Q: What is the magnification?
A: Features 3x optical magnification with 6x digital zoom for enhanced viewing.

Q: Does it work in complete darkness?
A: Yes! Equipped with a powerful IR illuminator, allowing clear vision in total darkness.

Q: What is the display type?
A: Features a high-resolution AMOLED-Q widescreen display for sharp and detailed images.

Q: Can it record photos and videos?
A: Yes, it supports photo and video recording, with storage capability via a microSD card.

Q: Does it have Wi-Fi and app support?
A: Yes, it includes Wi-Fi connectivity for real-time streaming and file transfer through a mobile app.

Q: What is the battery life?
A: Offers long battery life with a rechargeable power system for extended use in the field.

Q: Is it tripod mountable?
A: Yes, it includes a tripod mount for hands-free stability during prolonged observation.

Maintenance Tips

• Keep Lenses Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Avoid Direct Light Exposure – Never expose the night vision sensor to direct sunlight to prevent damage.
• Update Firmware – Check for software updates to ensure optimal performance and new features.
• Store in a Dry, Cool Place – Keep in a protective case with silica gel packs to prevent moisture buildup.
• Monitor Battery Health – Use quality batteries, remove them when not in use, and avoid overcharging.
• Handle with Care – Avoid dropping or shaking to protect internal electronics.
• Clean the Body Regularly – Wipe down with a dry cloth to remove dust and debris.
• Test Night Vision Function Periodically – Ensure IR illumination and image clarity work properly before field use.
