John Boos PB-DIIB2820CP10 Drop-In Ice Bin - JBPBDIIB2820CP10

John Boos PB-DIIB2820CP10 Drop-In Ice Bin - JBPBDIIB2820CP10

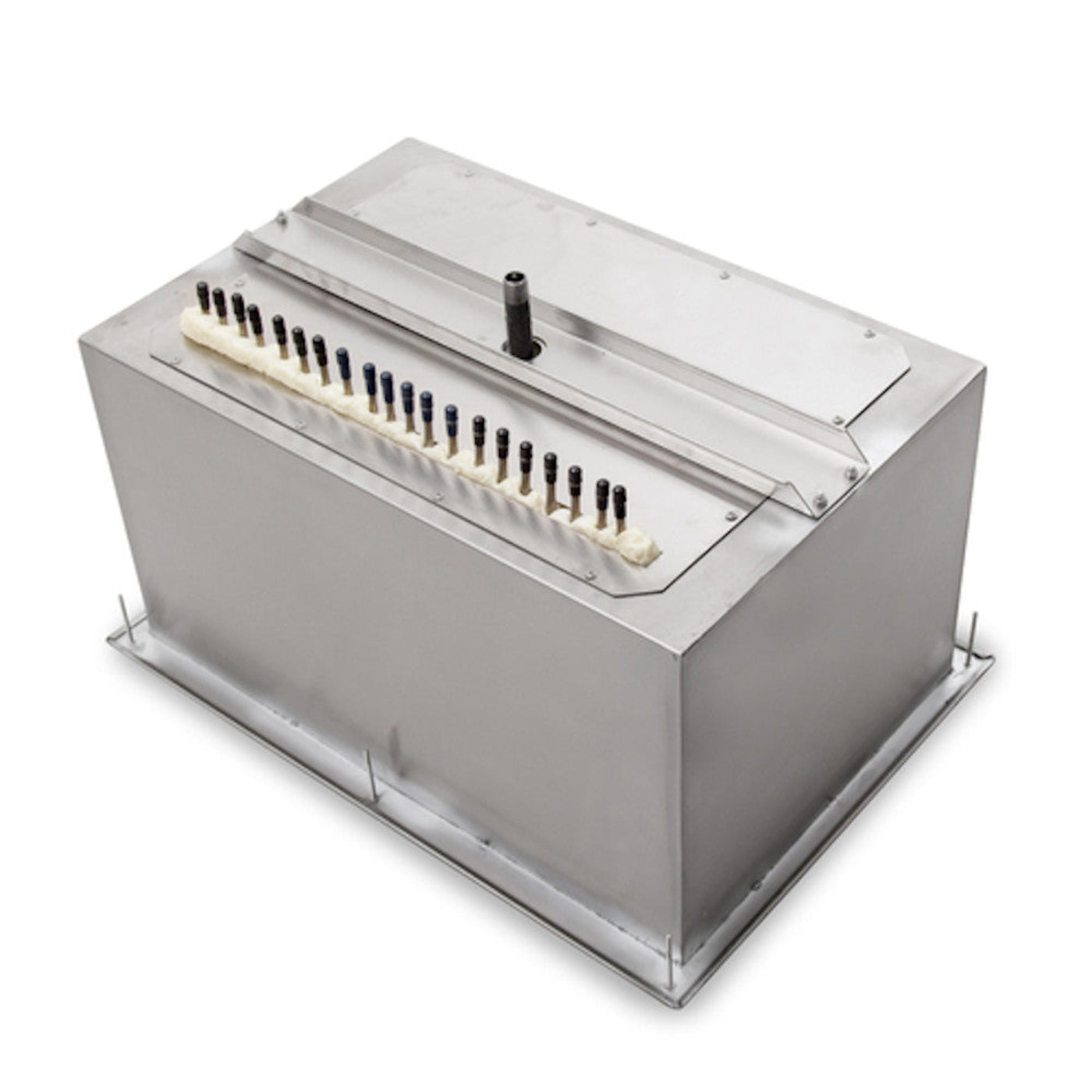

With a stainless steel construction, the John Boos PB-DIIB2820CP10 ice bin has a drop-in design. It is tig welded with all exposed welds polished to match adjacent surfaces. The PB-DIIB2820CP10 is insulated to retain cool temperatures. The lid slides open for easy access to the ice. The ice bin itself is 10 inches deep.

Features

• 10” deep ice bin
• Insulated basin
• 1/2” raised lip around top of ice bin
• Stainless steel sliding lid included
• 10-circuit cold plate with ½” x 5” MPT nipple included
• Tig welded; exposed welds are polished to match adjacent surfaces
• 14-gauge type 300 stainless steel deck
• 18-gauge type 300 stainless steel base

Specifications

What our Experts Think

• Spacious Capacity: The bin measures 28" in width, 20" in depth, and 14-3/16" in height, providing ample space for ice storage. The internal dimensions are 24" in length, 15" in width, and 10" in depth. It has an approximate ice capacity of 77 lbs.

• Durable Construction: Constructed with a 14-gauge Type 300 stainless steel deck and an 18-gauge Type 300 stainless steel base, the bin ensures long-lasting durability and resistance to corrosion.

• Efficient Cooling: Equipped with a 10-circuit cold plate featuring a 1/2" x 5" MPT nipple, the bin maintains ice temperature effectively, making it ideal for high-demand environments.

• Insulated Basin: The 10" deep insulated basin helps keep ice frozen longer, reducing the need for frequent replenishment.

• Convenient Lid: Includes a removable stainless steel sliding lid for easy access and maintenance.

• Raised Lip: Features a 1/2" raised lip around the top of the ice bin to prevent spills and ensure a clean setup.

• Installation Requirements: A recommended cutout size of 27" in length and 19-1/8" in width is needed for proper installation.

Q&A

Q: What are the dimensions of the John Boos PB-DIIB2820CP10 Drop-In Ice Bin?
A: The overall dimensions are 28" in width, 20" in depth, and 14-3/16" in height. The internal ice bin measures 24" in width, 15" in depth, and 10" in depth.

Q: What is the ice capacity of this bin?
A: It has an ice capacity of approximately 77 lbs.

Q: What materials are used in its construction?
A: The deck is made of 14-gauge Type 300 stainless steel, and the base is constructed from 18-gauge Type 300 stainless steel, ensuring durability and resistance to corrosion

Q: Does the ice bin include a cold plate?
A: Yes, it comes with a 10-circuit cold plate featuring a 1/2" x 5" MPT nipple for efficient cooling

Q: Is a drain included with the ice bin?
A: Yes, it includes a drain for easy maintenance and cleaning.

Q: Does the bin come with a lid?
A: Yes, it features a removable stainless steel sliding lid for convenient access and protection of the ice

Q: What is the recommended cutout size for installation?
A: The recommended cutout dimensions are 27" in width and 19-1/8" in depth.

Q: Where is the John Boos PB-DIIB2820CP10 Drop-In Ice Bin manufactured?
A: It is proudly made in the USA, ensuring high-quality craftsmanship and adherence to rigorous standards.

Maintenance Tips

• Ample Ice Capacity: Designed to hold approximately 77 lbs of ice, ensuring a sufficient supply for high-demand periods.

• Durable Construction: Features a 14-gauge Type 300 stainless steel deck and an 18-gauge Type 300 stainless steel base, providing durability and resistance to corrosion.

• Efficient Cooling: Equipped with a 10-circuit cold plate with a 1/2" x 5" MPT nipple, ensuring rapid and consistent cooling of ice

• Insulated Basin: The 10" deep insulated ice bin helps maintain ice temperature, reducing the frequency of replenishment

• Convenient Lid: Comes with a removable stainless steel sliding lid, providing easy access while helping to maintain ice temperature.

• Easy Installation: Designed for drop-in installation with a recommended cutout size of 27" (length) x 19-1/8" (width).
