John Boos PB-DIIBWS1821-P Drop-In Ice & Water Unit - JBPBDIIBWS1821P

John Boos PB-DIIBWS1821-P Drop-In Ice & Water Unit - JBPBDIIBWS1821P

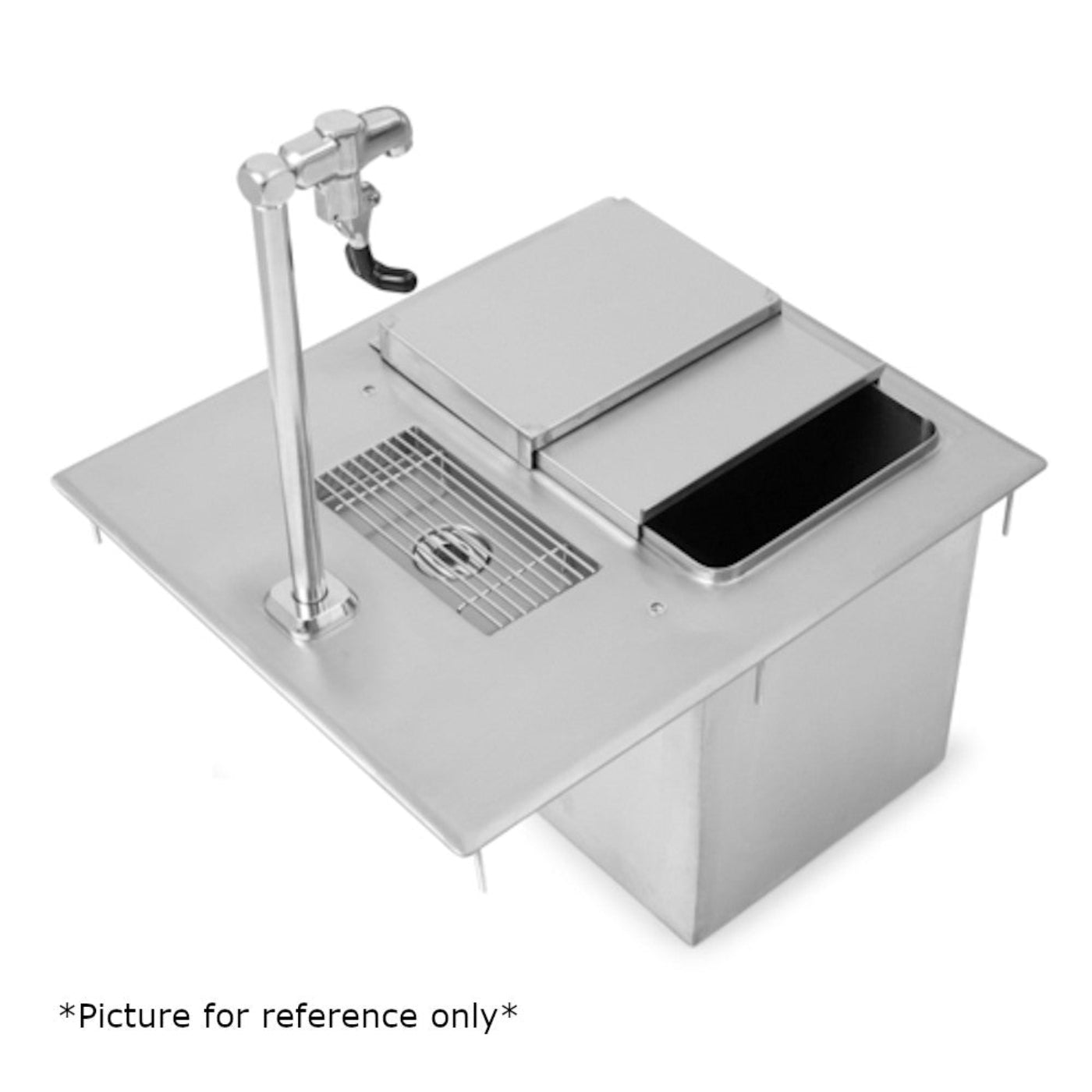

The John Boos PB-DIIBWS1821-P drop-in ice and water unit has an ice bin, sink grate, and so much more to improve the efficiency of your operation. The ice bin is insulated to retain temperatures. The water sink grate is removable. The side splash is removable as well, but when attached it ensures splashes don’t reach walls or surrounding equipment. It is removable for easy cleaning. The PB-DIIBWS1821-P is made of stainless steel.

Features

• Drain plugs PBDR-15CP and PBDR-325CP included
• 11” deep insulated ice bin
• Removable sliding lid for ice bin
• Removable water sink grate
• PBF-SGL-LF glass filler faucet included
• Removable side splash included
• 14-gauge 300 series stainless steel top
• Tops are tig welded
• Exposed welds polished to match adjacent surface
• 16-gauge 300 series stainless steel base

Specifications

What our Experts Think

• Dimensions: 18" width x 21" depth x 13" height, fitting standard countertop cutouts of 17.125" x 20".

• Ice Bin

• Capacity: Holds approximately 28 lbs of ice.

• Construction: Features a 13" x 9" x 11" deep insulated bin with a removable sliding lid and drain plugs (PBDR-15CP & PBDR-325CP) for easy maintenance.

• Water Station:

• Components: Includes a removable water sink grate and a 14" x 14.75" removable splash guard.

• Faucet: Equipped with a PBF-SGL-LF glass filler faucet for convenient water dispensing

Q&A

Q: What is the John Boos PB-DIIBWS1821-P Drop-In Ice & Water Unit?
A: The John Boos PB-DIIBWS1821-P is a commercial-grade drop-in ice and water station designed for efficient ice storage and beverage preparation in bars and restaurants.

Q: What are the dimensions and capacity of this unit?
A: The unit has an overall size of 18 inches in width, 21 inches in depth, and 13 inches in height. It features an insulated ice bin measuring 13 inches in width, 9 inches front-to-back, and 11 inches in depth, with an approximate ice capacity of 28 pounds.

Q: What materials is the unit constructed from?
A: The top is made from 14-gauge 300-series stainless steel, while the base is constructed from 18-gauge 300-series stainless steel, ensuring durability and ease of cleaning.

Maintenance Tips

• Overall Dimensions: 18" Width x 21" Depth x 13" Height

• Ice Bin

• Dimensions: 13" Width x 9" Front-to-Back x 11" Depth

• Capacity: Approximately 28 lbs of ice

• Features

• Removable sliding lid for easy access and cleaning

• Removable water sink grate to facilitate drainage and simplify maintenance

• Construction

• Top: 14-gauge 300 series stainless steel, TIG welded with polished exposed welds

• Base: 18-gauge 300 series stainless steel, ensuring durability and resistance to corrosion
